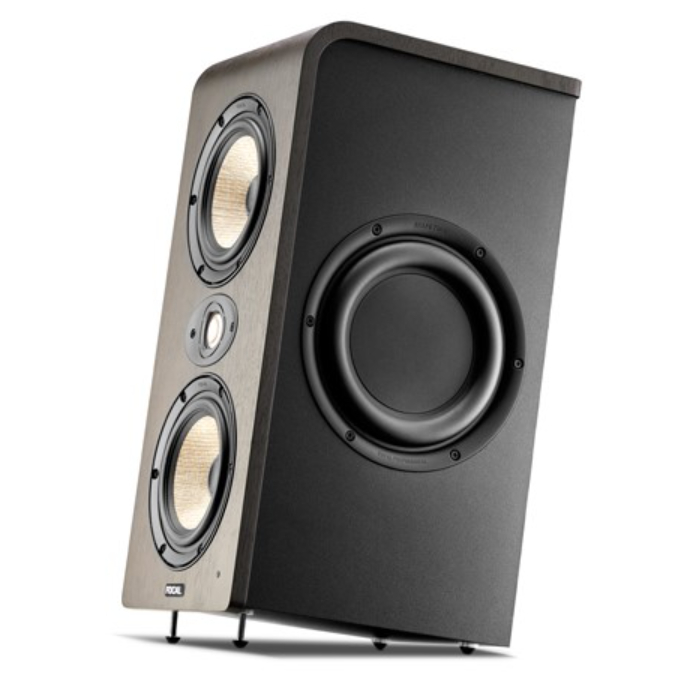

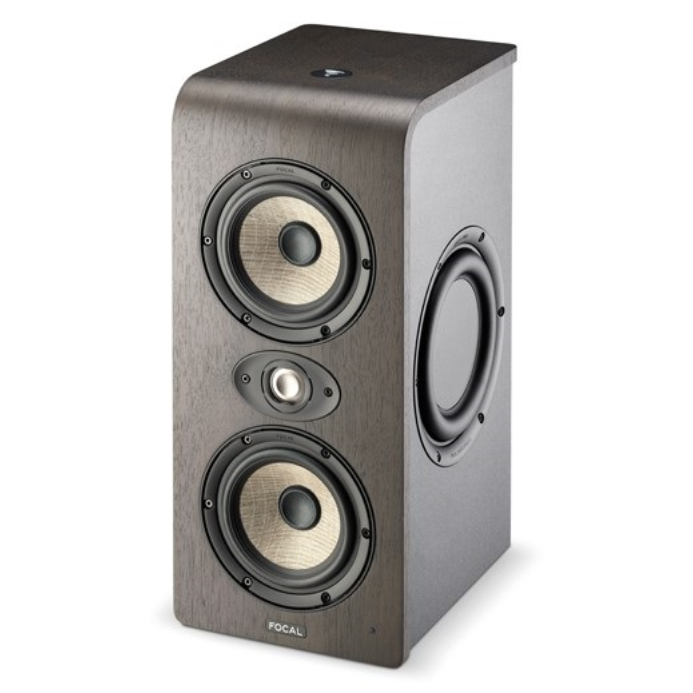

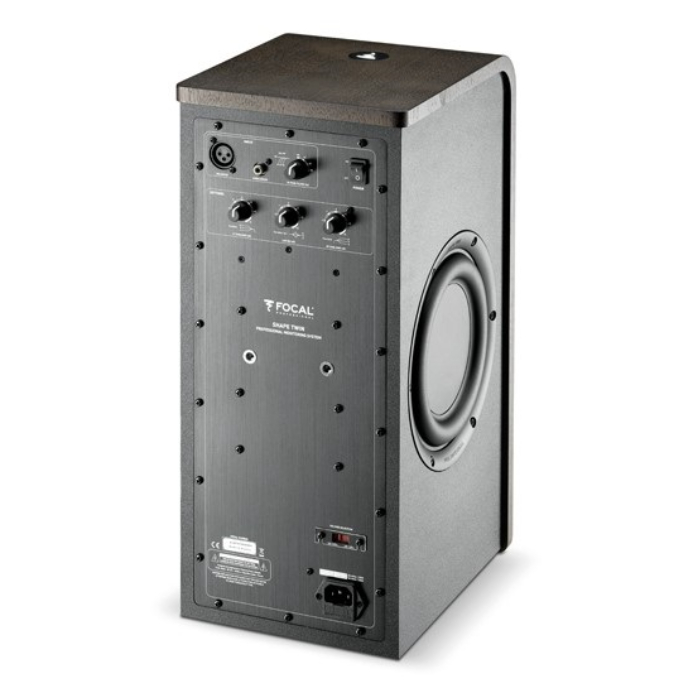

Focal Shape Twin 2.5 Way Powered Monitor


  • Our Price
  • Regular price $1,199.00




Get Time-Tested Quality And The Latest Innovations With The Focal Shape Twin 2.5 Way Powered Monitor

This standard bearer of the Shape series features two passive radiators, woofers equipped with a new Flax cone, and the latest "M"-shaped Aluminium/Magnesium inverted dome tweeter. Perfect weapon of mass production for professionals.

Shape Twin is made in France, just like Shape 40, 50 and 65. Designed to meet the needs of nearfield monitoring, these monitors combine an ingenuous design and numerous settings optimised for the acoustics of small listening rooms. Shape Twin stands out through its excellent rendering over the whole audio spectrum, its broad frequency response in the low end, and its high SPL considering its size. The compact design makes it easy to integrate even into the most cramped of rooms. Finally, its 2.5-way design gives it a real advantage when it comes to controlling the bass and lower mid-range registers which are the hardest to control in small rooms.

Shape Twin's five innovations present a remarkable tonal balance, with very wide and precise stereo imaging. The low frequencies are well defined as well as controlled. The low-mid and mid ranges provide a true neutral sound.

Features
  • Tweeter with very low directivity for a flexible sweet spot
  • Designed without a port (double passive radiator) allowing it to be placed near a wall
  • 2.5 channels to provide optimal control of bass and low mid-range registers
  • Numerous settings for optimal integration
  • Accurate control, even in the very high frequencies
  • Flax sandwich cone: controlled and articulated bass, natural and detailed lower mid-range and upper mid-range registers
  • Fastening mechanisms for mounting to the ceiling or a wall (fastening accessories not supplied)

SYSTEM

  • Frequency response (+/- 3dB): 40Hz - 35kHz
  • Maximum SPL (of musical signals): 110.5dB SPL (peak at @ 1m)

ELECTRONICS

Inputs/Impedance

  • Type: XLR: balanced 10 kOhms
  • RCA connectors: unbalanced 10 kOhms with sensitivity compensation

Mid-Range and Low Frequency Amplifier

  • 2 x 80W, class AB

High Frequency Amplifier

  • 50W, class AB

Automatic Standby

  • Off:  Approximately 30 minutes with no signal
  • Deactivate Standby: Signal detection > 3mV
  • Voltage: 220-240V (fuse T2AL / 250V) or 100-120V (fuse T3.15AL / 250V)

Power Supply

  • Voltage: 220-240V (fuse T2AL / 250V) or 100-120V (fuse T3.15AL / 250V)
  • Connexion: IEC connector and detachable power cable

Settings

  • High-Pass Filter: Adjustable Full range 45/60/90Hz
  • Bass Level (0-250Hz): Adjustable, +/-6 dB
  • Midrange/Bass (160Hz, Q=1): Adjustable, +/-6 dB
  • Treble Level (4.5 - 35kHz): Adjustable, +/-3 dB
  • Power on/off: On/off switch on rear panel

Power Consumption in Standby

  • < 0.5W

Displays and Controls

  • LED for power on/off and standby

TRANSDUCERS

  • Woofers: 2 x 5" (13cm) Flax Cone woofers
  • Tweeter: 1" (25mm) 'M'-shaped Aluminum/Magnesium

CABINET

  • Construction: 0.6" (15mm) MDF
  • Finish: Vinyl, real walnut and black paint
  • Dimensions including 4 rubber feet (HxLxD): 18.8 x 8.3 x 11" (478 x 211 x 279mm)
  • Weight: 24lbs (11kg)

RECOMMENDED MOUNTING KITS

  • Wall mounting kit: K&M 24471 + K&M 24359 adapter
  • Ceiling mounting kit: K&M 24496 + K&M 24359 adapter

Manufacturer: Focal
Model: SHAPE TWIN
Warranty: See manufacturer website for details
SKU: I502739-N-2
UPC: #191561834033
Listing ID: NA89406
