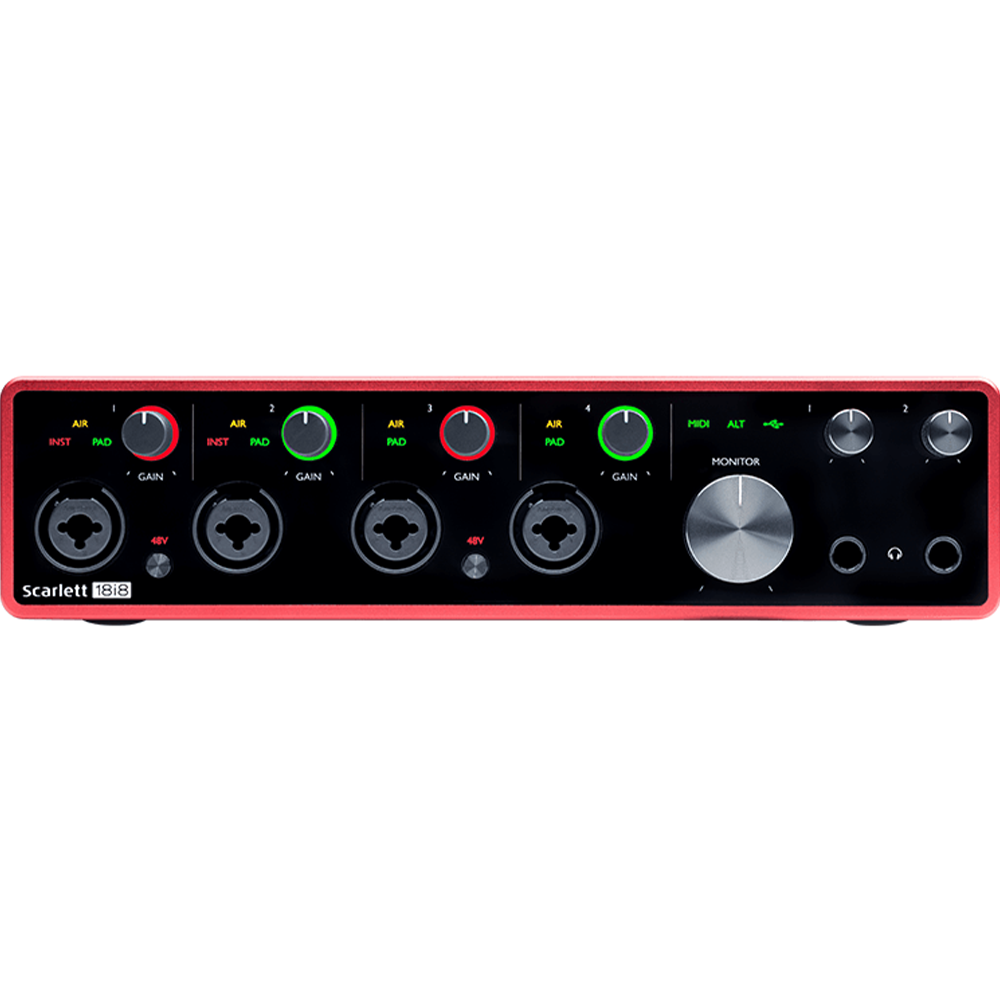

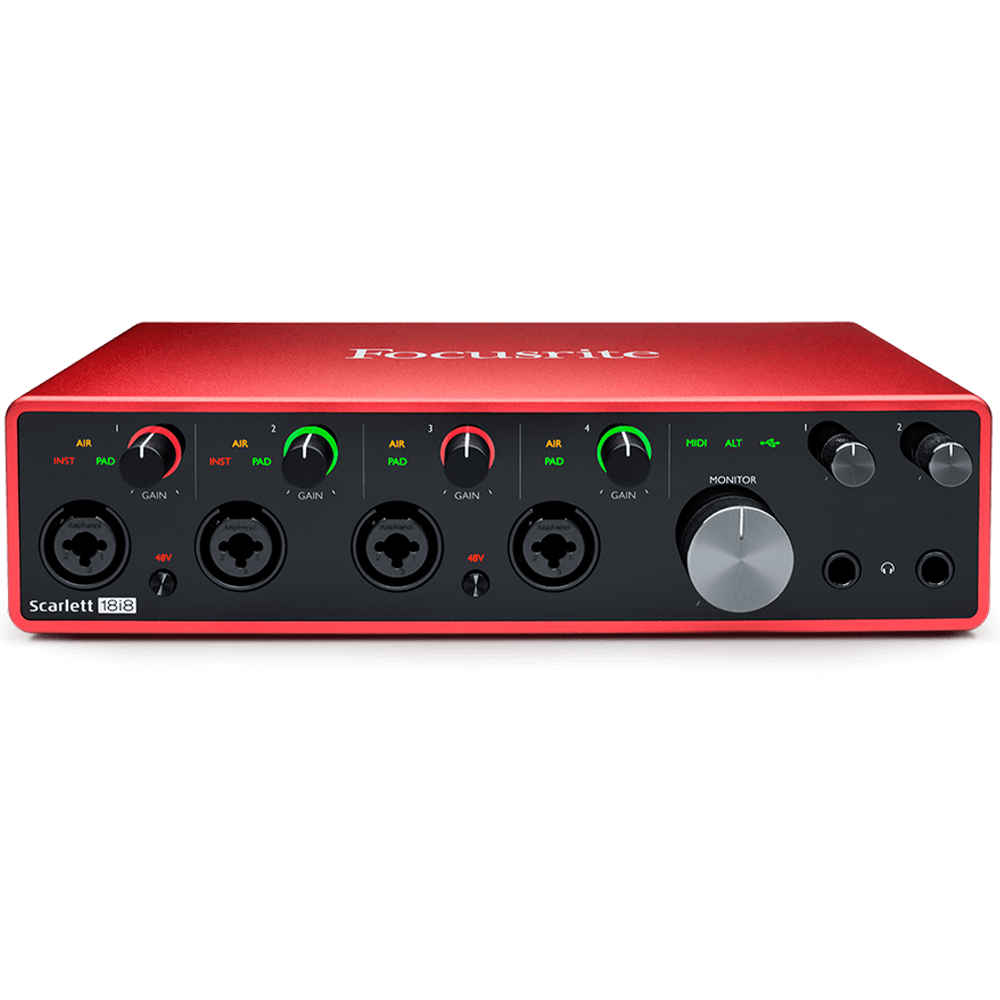

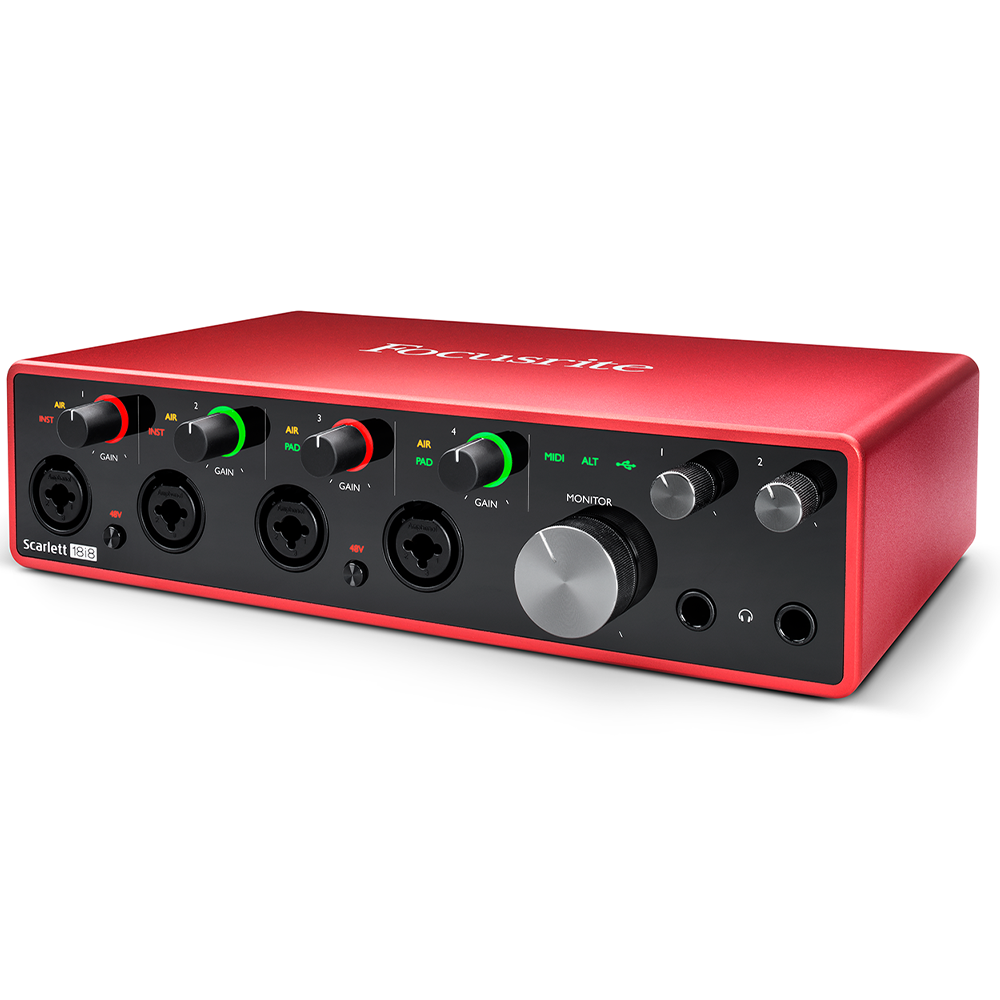

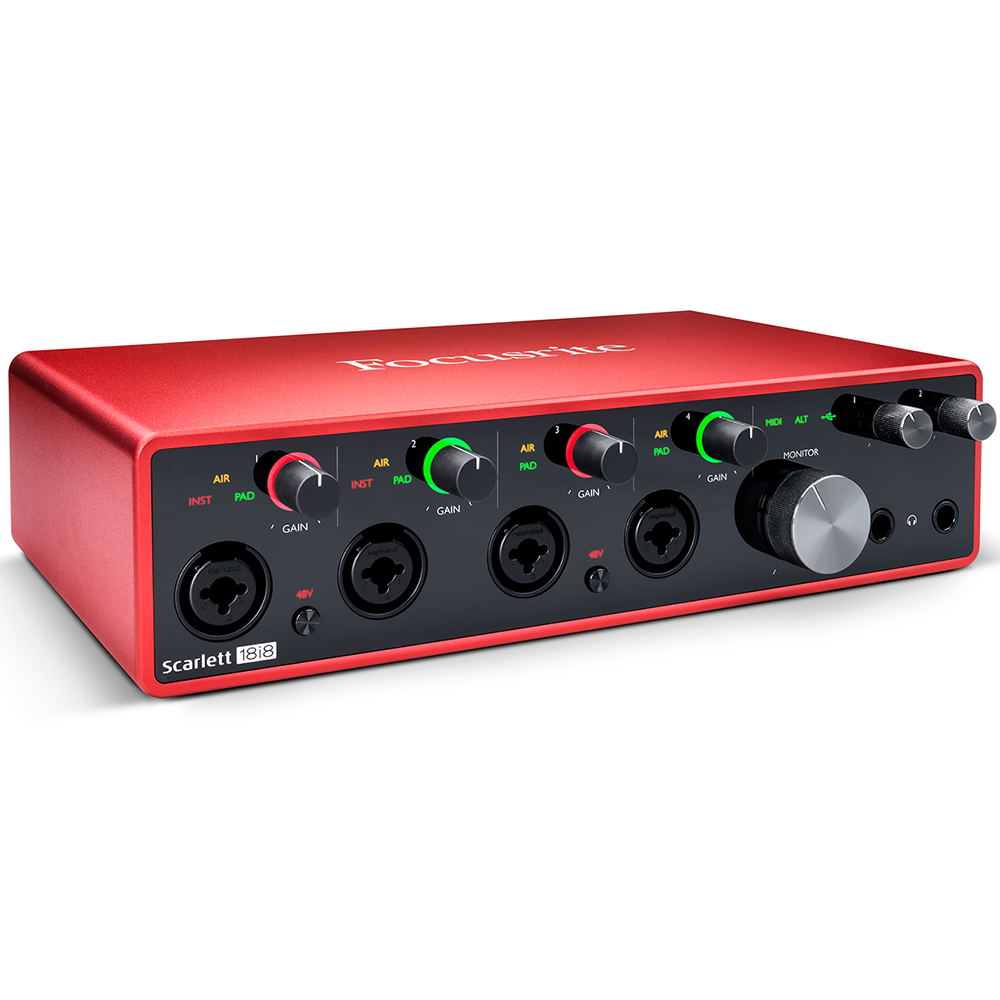

Focusrite Scarlett 18i8 Audio Interface - 3rd Gen

Get Studio Quality Anywhere With The Focusrite Scarlett 18i8 Audio Interface - 3rd Gen

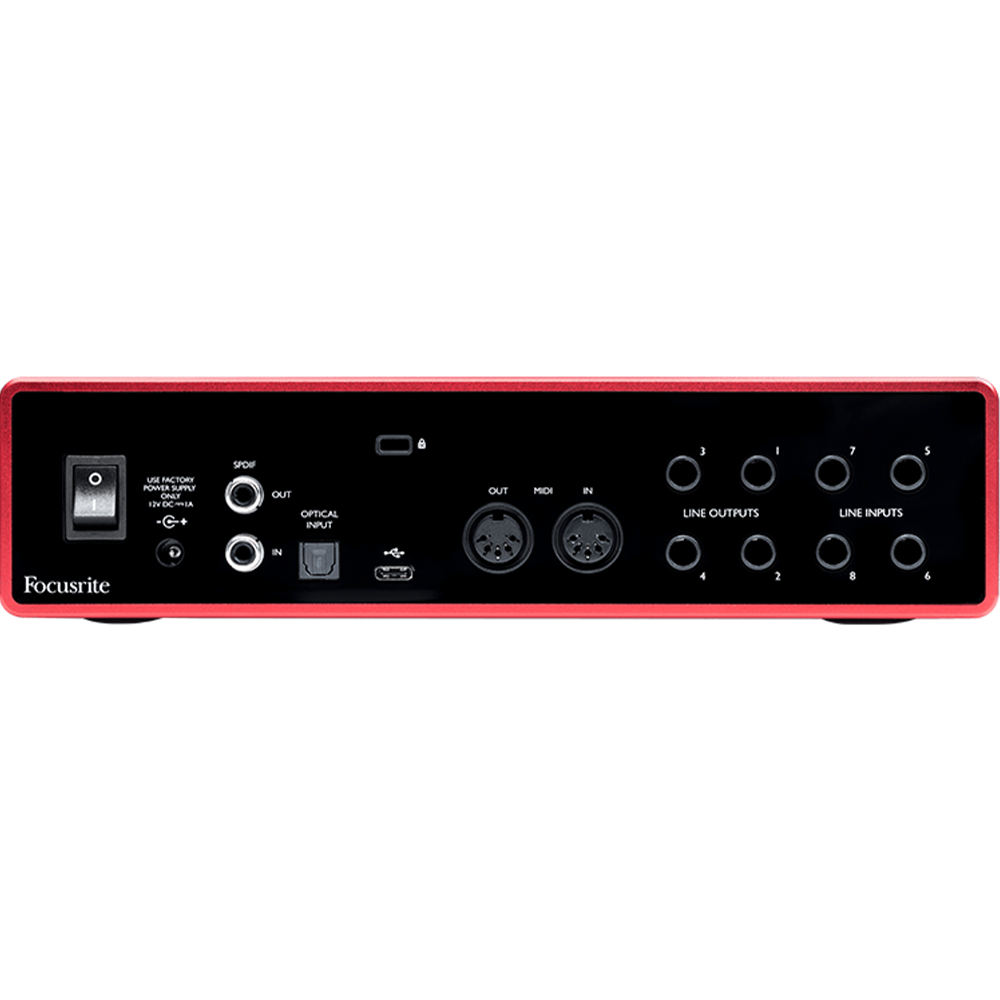

The 3rd Generation Scarlett 18i8 gives you all the tools to record all your instruments in studio quality, anywhere. With its high channel count, compact size and a huge selection of software in the box, 18i8 is ready to record your band wherever you are. Four of the best performing Scarlett mic preamps the range has ever heard now with Air for miking up guitars or recording vocals. Two high headroom instrument inputs, for plugging your guitar or bass straight in. Eight balanced line inputs, for connecting synths or other line-level audio, and four balanced outputs, for monitoring and effects sends. Four monitor outs, featuring anti-thump tech and speaker switching.

SUPPORTED SAMPLE RATES

• 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz

MICROPHONE INPUTS

• Frequency Response: 20Hz - 20kHz +/- 0.1dB
• Dynamic Range: 111dB (A-weighted)
• THD+N: <0.0012%
• Noise EIN: -128dB (A-weighted)
• Maximum Input Level: 9dBu (at minimum gain)
• Gain Range: 56dB
• Impedance: 3k Ohms

LINE INPUTS 1-4 (VARIABLE GAIN)

• Frequency Response: 20Hz - 20kHz +/- 0.1dB
• Dynamic Range: 110.5dB (A-weighted)
• THD+N: <0.002%
• Maximum Input Level: 22dBu (at minimum gain)
• Gain Range: 56dB
• Impedance: 60k Ohms

LINE INPUTS 3-6 (FIXED GAIN)

• Frequency Response: 20Hz - 20kHz +/- 0.1dB
• Dynamic Range: 110.5dB (A-weighted)
• THD+N: <0.002%
• Maximum Input Level: 18dBu (at minimum gain)
• Impedance: 44k Ohms

INSTRUMENT INPUTS

• Frequency Response: 20Hz - 20kHz +/- 0.1dB
• Dynamic Range: 110dB (A-weighted)
• THD+N: <0.03%
• Maximum Input Level: 12.5dBu (at minimum gain)
• Gain Range: 56dB
• Impedance: 1.5M Ohms

LINE/MONITOR OUTPUTS

• Dynamic Range (Line Outputs): 108dB
• THD+N: <0.002%
• Maximum Output Level (0 dBFS): 15.5dBu
• Impedance: 430 Ohms

HEADPHONE OUTPUTS

• Dynamic Range: 104dB (A-weighted)
• THD+N: <0.002%
• Maximum Output Level: 7dBu
• Impedance: <1 Ohms
