Friedman 15 x 42-Inch Tour Pro Platinum Guitar Pedalboard

Sold out
Original price $689.99 - Original price $689.99
Original price
$689.99
Default Title: $689.99
Current price $689.99
❓ Out of stock

Notify Me When Available
About Inventory Status


Questions?
Call or text us at 301-946-8808.

In stock: It is in stock and available to ship or pickup. Apparel must be shipped from another location and is not available for in-store pickup. We can usually ship or have these items available for pickup by the next business day if they don't require inspection, special handling, or setup. Our pickup location is 11151 Veirs Mill Rd. Silver Spring, MD 20902.

📆 Preorder: It is on the way to our warehouse. We can't predict when preorder items will arrive due to current supply chain issues. If you place an order for one of these items someone will contact you to estimate the delivery date.

Out of stock: We don't currently have it available but you're not out of luck yet. We still may be able to get it. If you order one of these items we will contact you with an estimated fulfillment date. You have the option to cancel the order if you change your mind.

Special order: The item is so special that it needs to be custom ordered for you. Some of these items are works of art and have to be made individually. Orders for special order items must be prepaid and we cannot accept cancellations or refunds.

█ Sold out: We don't think we can get this item because it was either discontinued by the manufacturer or was limited in quantity. If you want or need this item call or text us. Sometimes we can help you track down the item through other sources or help you find something similar.

About Item Conditions


Questions?
Call or text us at 301-946-8808.

New: The item is brand new as received from the manufacturer with a full manufacturer warranty. Instruments such as guitars, snare drums, drum kits, brass and woodwind instruments may be opened for photography and quality control inspection and may not be in a factory sealed box.

Mint or Open Box: The item may have been opened and tested but has been repackaged. The original packaging may have superficial issues but the item itself and any originally included accessories are in perfect, like new condition.

Display Model: These items are so cool that we put them on display in our legendary shop. The condition is brand new as received from the manufacturer with manufacturer warranty. Rest assured, these items undergo a very careful inspection before shipping.

Demo: These items have been on our sales floor for demo purposes and will likely show signs of use. The original packaging may no longer be included, but you can be assured that you are receiving an awesome item and an awesome price.

Used: The item is used. These item may have varying degrees of wear. Please read the description for information about the condition of the item. Used items do not carry a warranty.

B or C Stock: Factory refurbished. These items were purchased from the manufacturer in a refurbished condition. They will show some cosmetic issues, but nothing that would impact performance. Being that these are sealed from the manufacturer, we generally do not open these to photograph the cosmetic issues. They are guaranteed to work and may have a limited warranty or you may purchase an extended warranty in some cases. Please see the listing description for item specific information.

Educational & Government Sales Quotes

Click here to inquire about an educational or government quote and discover more about our Educational & Government Sales Division.


Get the Powered Pedalboard System of Your Dreams - The Friedman 15 x 29-Inch Tour Pro Platinum Guitar Pedalboard

Dave Friedman has been building pedal boards for over 30 years. From the fancy, ultra-complex, to the simplistic pedal boards, Dave has seen and designed them all for the who's who of the industry. When it came time for Dave to design his own line of pedal boards, everything a touring or home guitar player actually needs was meticulously thought out and addressed. Friedman pedal boards are made in usa. Why? Because it matters to us and the quality and manufacturing consistency of the Tour Pro boards is what makes a Friedman a "FRIEDMAN!"

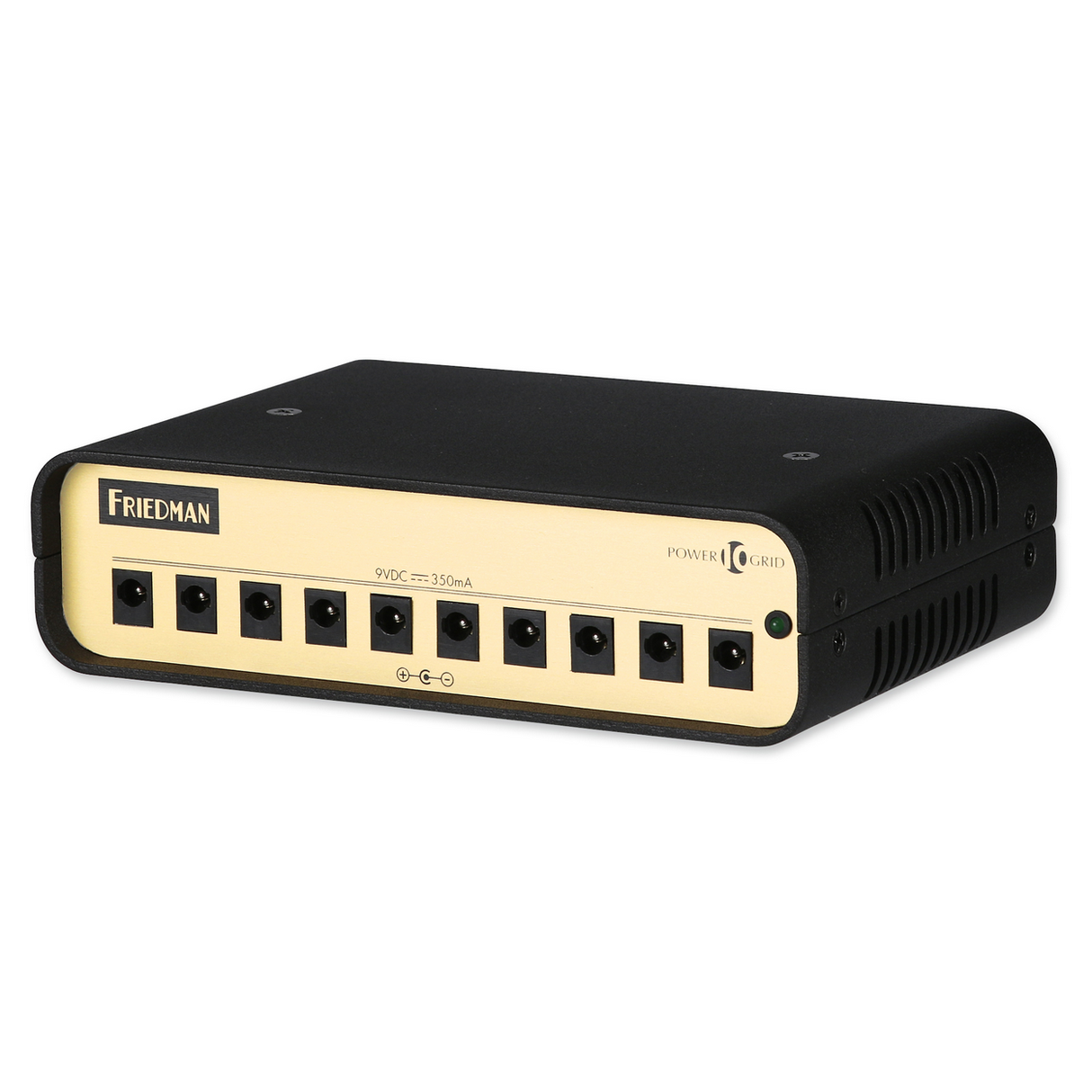

Power Grid 10

  • The Power Grid 10 provides 10 isolated outputs-350mA per output at 9Vdc Universal power from 100-240Vac meaning you can plug it in anywhere in the world. You will never have to flip switches or worry about a step up or step-down transformer
  • ZERO field hum, which plagues many other power supplies with traditional toroidal transformers
  • The Power Grid 10 will power virtually any pedal (350mA each per 9V output)
  • All the cables needed to power your pedals
  • And for those boards that have no room to mount the power supply underneath, the Power Grid 10 was designed as a riser -yes, with the Power Grid 10 you can mount your pedals right on top of the housing, including your favorite Fuzz pedals, which are known to cause unnecessary proximity hum and infiltrate your other pedals

Buffer Bay 6

  • Cleans up all of the connections on your pedal board
  • Allows for tighter pedal placement on the board (you no longer need to access the jacks on certain pedals)
  • Lets you have all cables from your board in the same location allowing neater chord runs on stage
  • Your pedal chain in permanently connected making setup and takedown quick and painless
  • Saves the life of the jacks on your pedals by not plugging in cables ever y time you play
  • Easily configure your input or output in hard-to-reach places

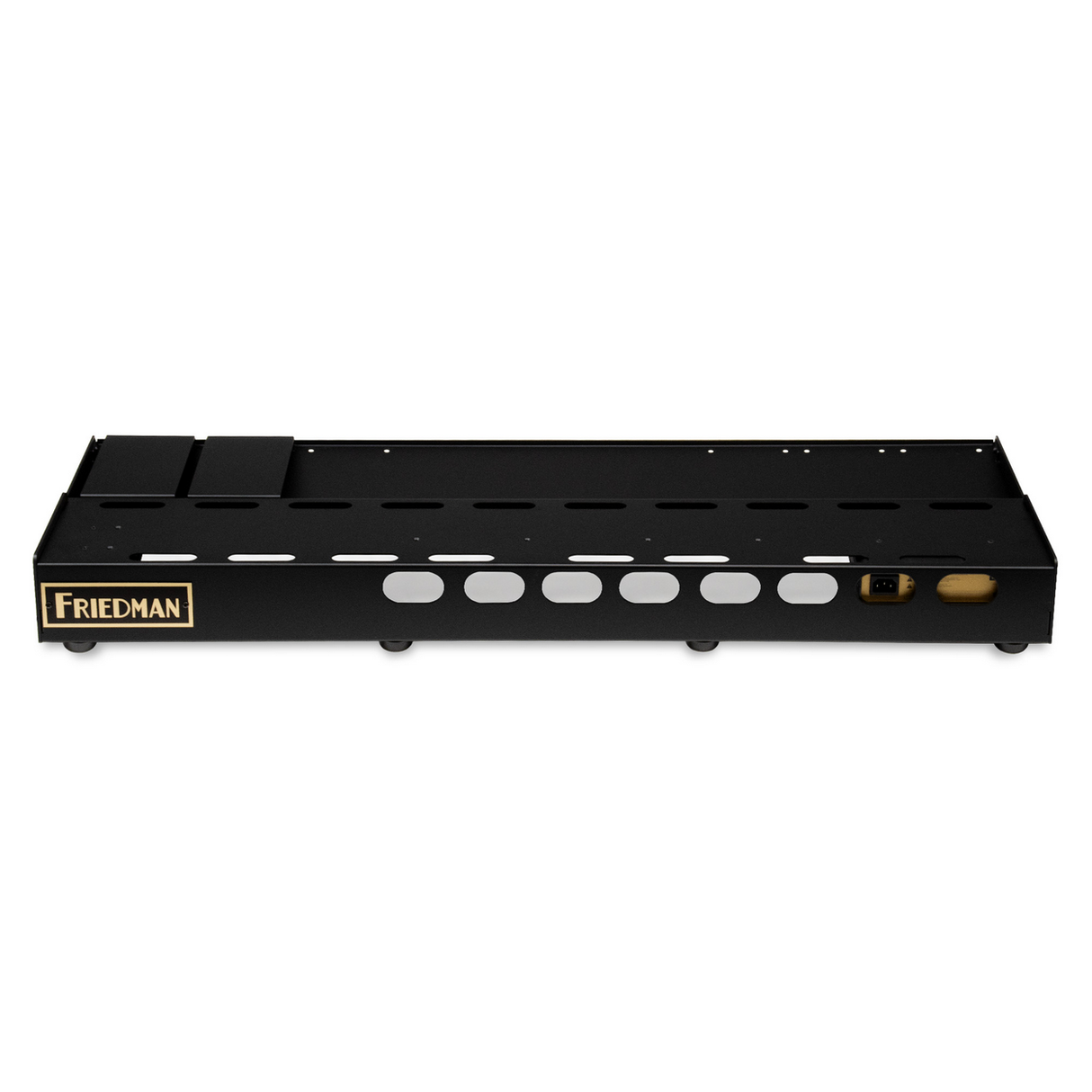

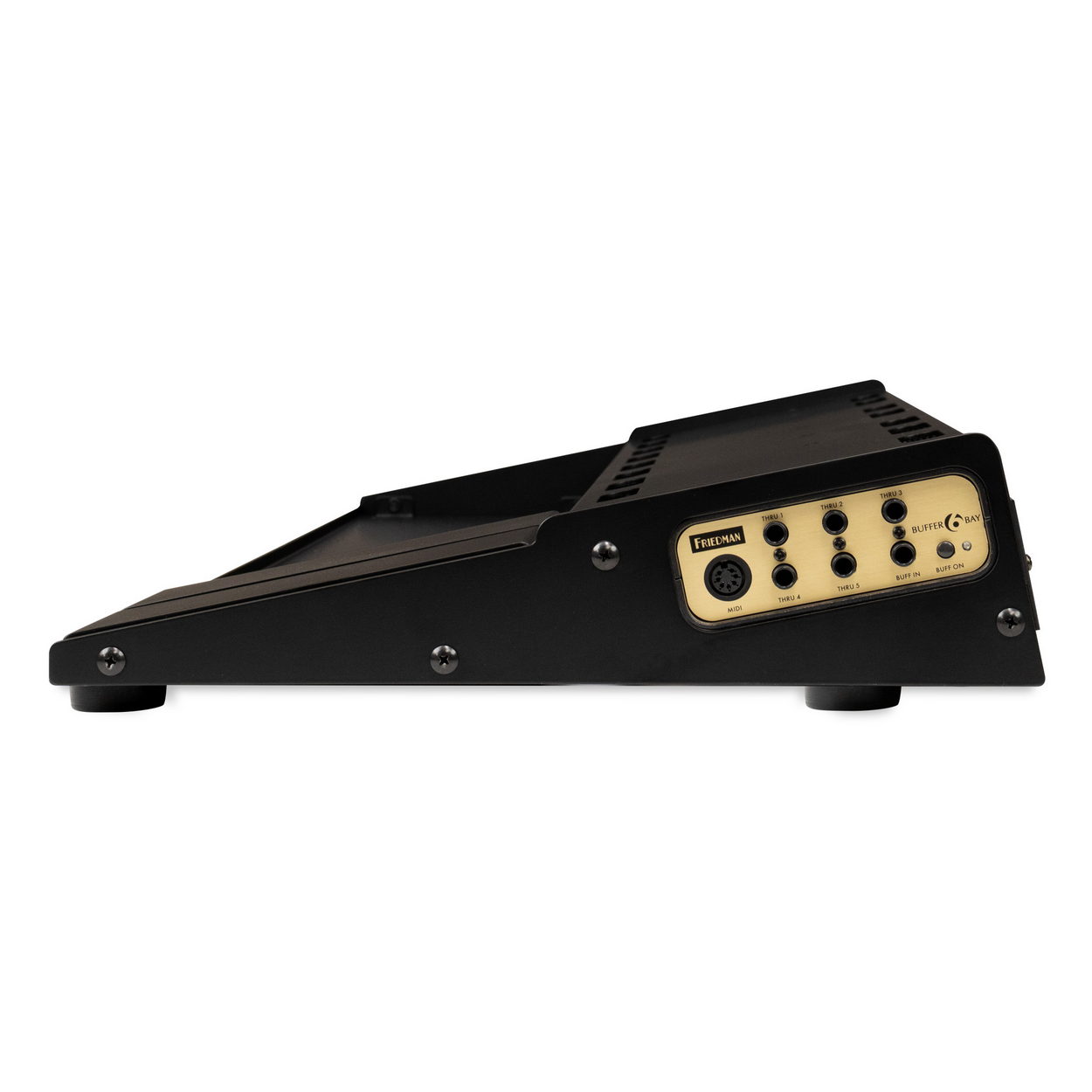

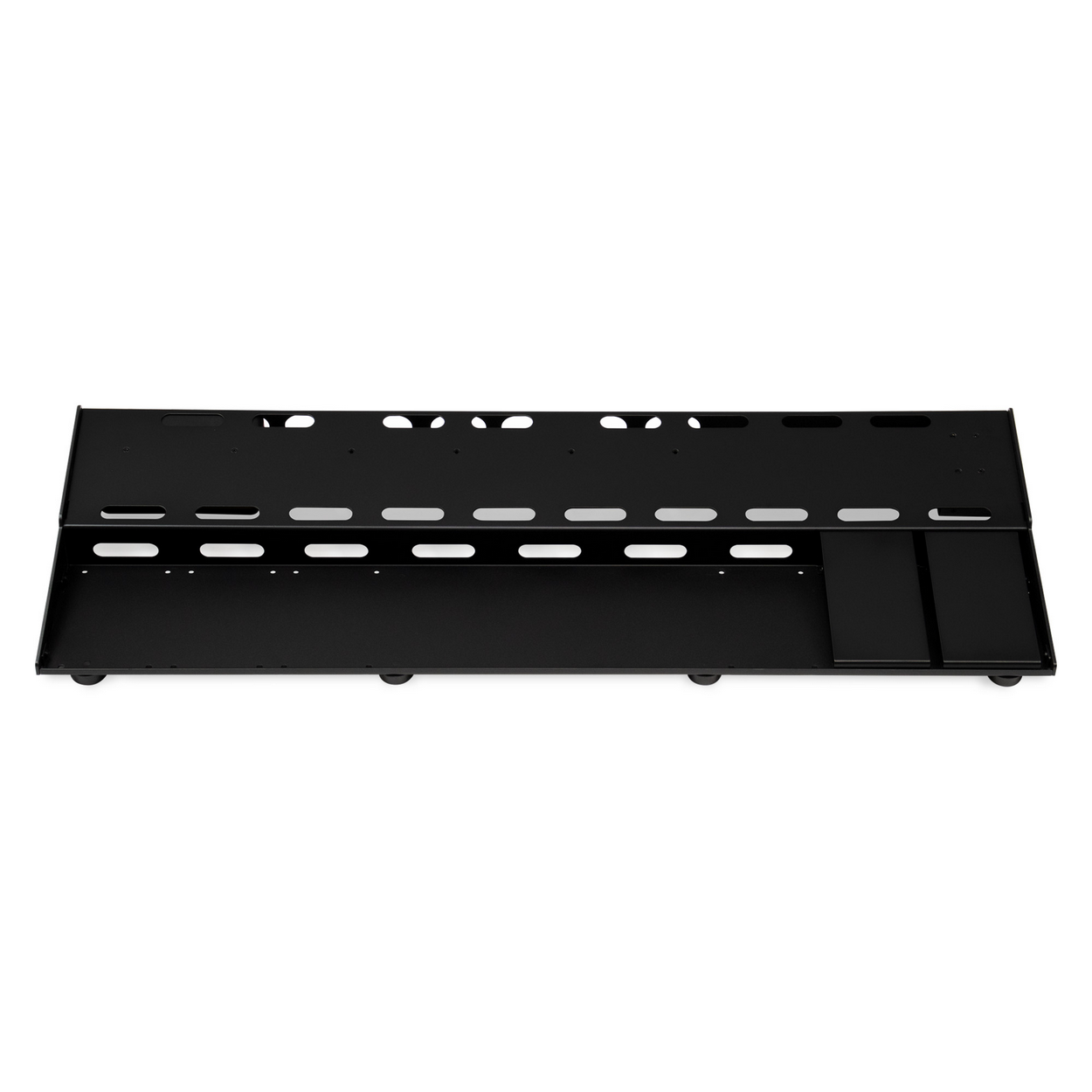

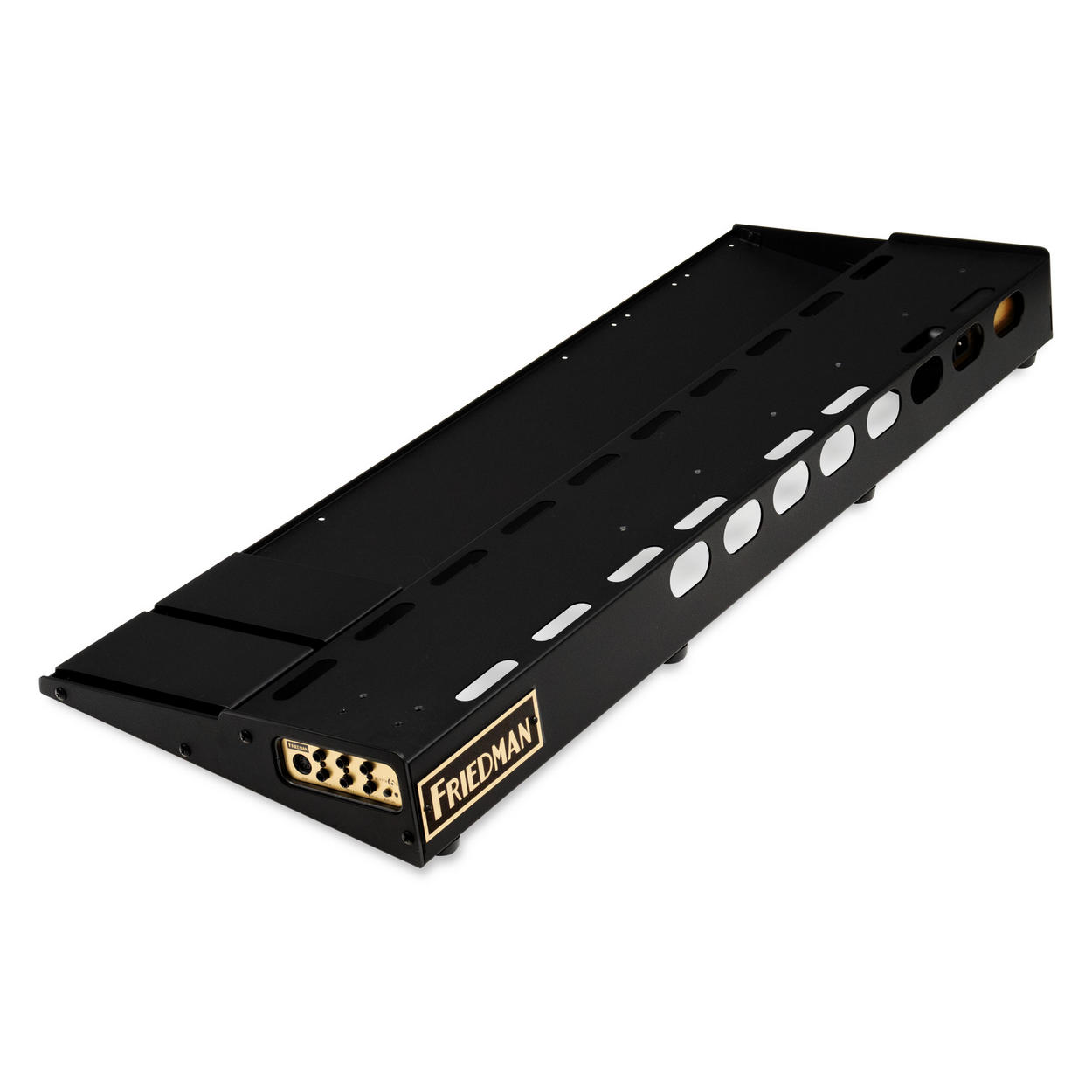

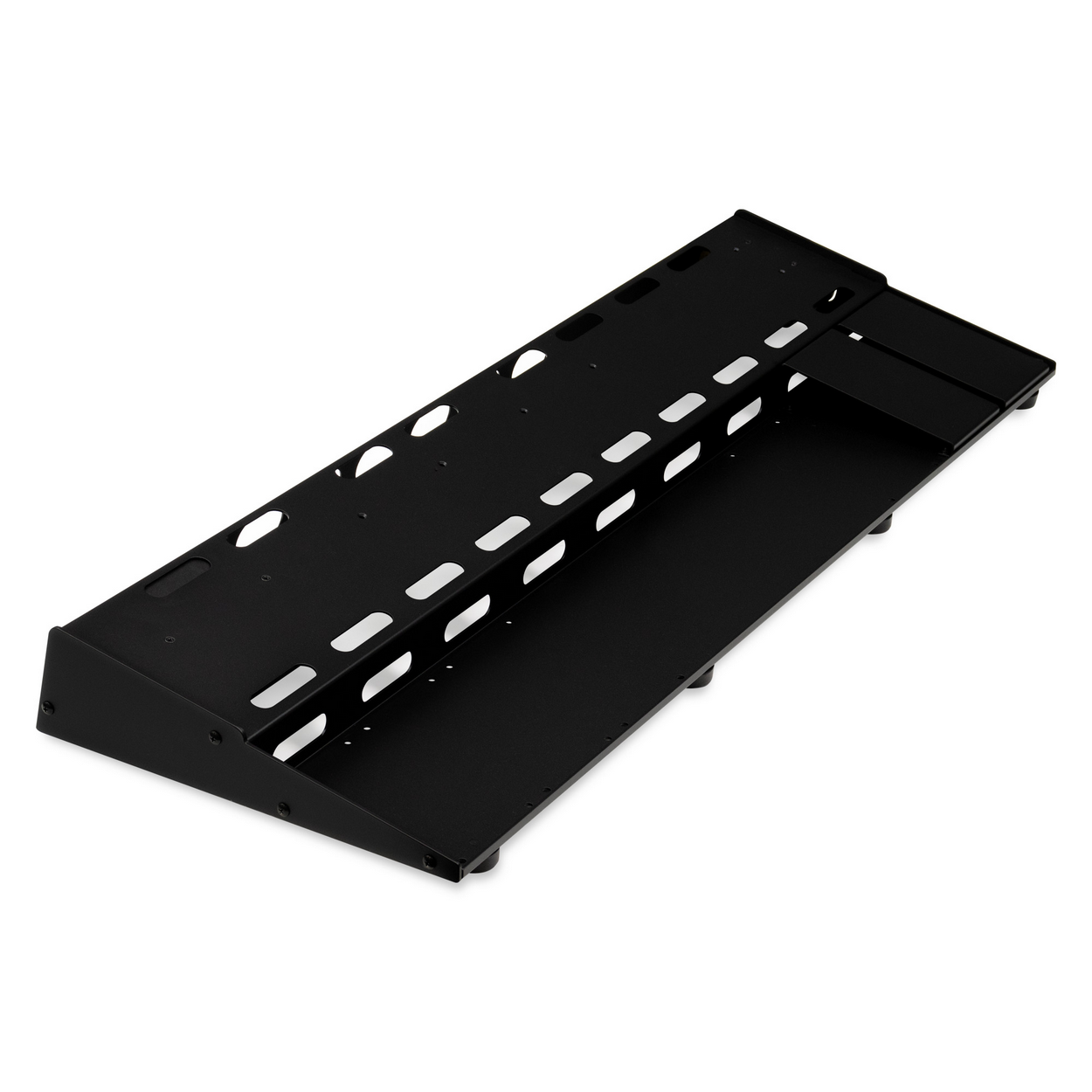

While most pedal boards have either a flat or a slanted surface, the Tour Pro Platinum boards are designed with two tiers, a bottom section that is flat and a top section that is angled(with all the holes needed for easy cable routing). This two-tier design allows a guitar player to have access to all pedals on the board, without ballerina style, toe-extending dance moves. And, to address the need for Wah and/or Volume pedals, the Tour Pro Platinum board includes a detachable riser, which can be mounted in various locations on the bottom tier(yes -we thought of left footed guitar players too).

Power Grid 10

The Power Grid 10 was designed to address all of the deficiencies Dave encountered with power supplies from other brands over his 27-year history of designing and building pedal boards for the biggest touring guitarists and studio producers. The Power Grid 10 was designed to meet the demands of any player who wants a dead quite pedal board, that can be taken anywhere and is tour ready.

Buffer Bay 6

The Friedman Buffer Bay is a simple solution that incorporates Dave's wealth of experience and knowledge providing players an innovative tool which can be easily implemented to ANY pedal board or easily mount into any Friedman branded pedal board.

It is an ultra-transparent, natural and musical sounding buffer, which can be turned on or off using the provided switch. The buffer solves the fundamental problem of loading loss caused by interconnected cables and some pedals. This "loss" siphons your guitar of fidelity, tone and volume level. This problem occurs even if all the pedals used are true bypass and the more pedals and longer the cable runs, the greater the losses. The Buffer Bay 6 circuitry, when engaged, sounds identical to your guitar straight into the amp! You can access the buffer using the buffers IN connector on one side of the Buffer Bay and Buffer Out on the other side.

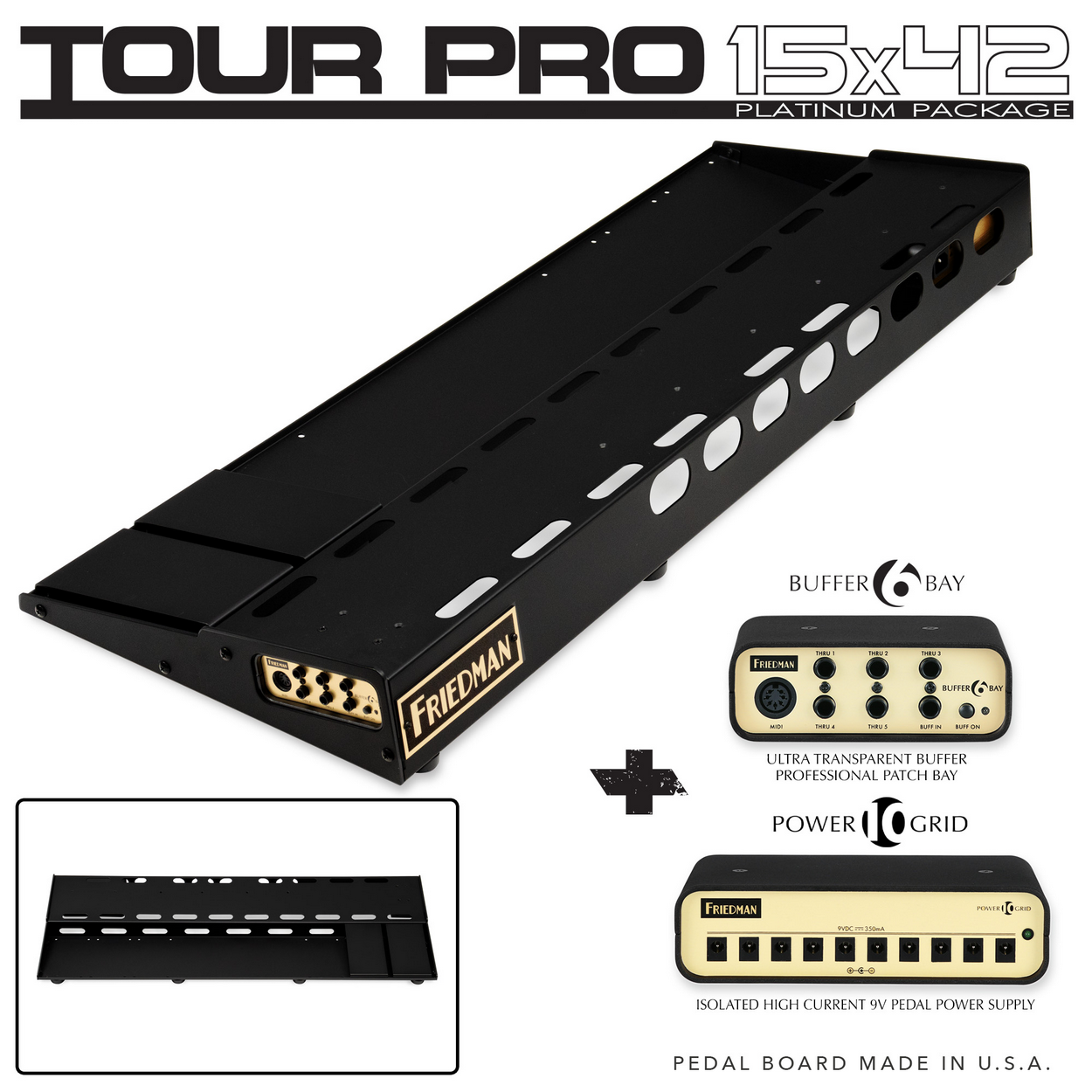

The Tour Pro Platinum package includes a Friedman Power Grid 10 (Isolated high current 9V Pedal Power Supply)& Friedman Buffer Bay 6 (Buffer and Patch Bay)


SPECIFICATIONS

  • Dimensions: 15” x 42” x 4.5”
  • Weight: 6 lbs (pedalboard alone)

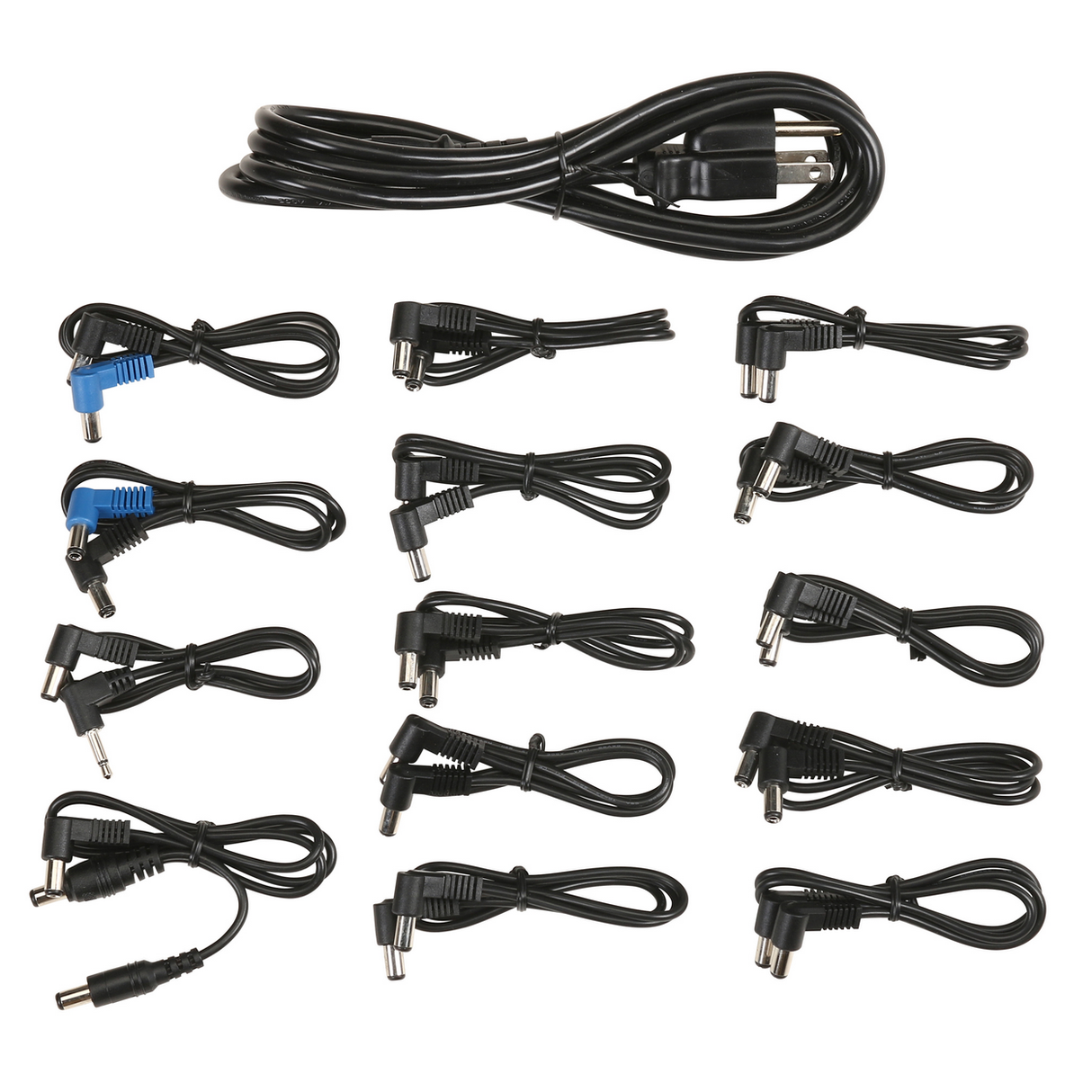

Cables Included

  • 2x 2.1mm BLACK connector to 2.5mm BLUE connector -polarity reversed -20" long -right angle connector on both sides,10 x 2.1mm BLACK connector to 2.1mm BLACK connector -regular polarity -20" long -right angle connector on both sides
  • 1x 2.1mm BLACK connector to 1/8" phono BLACK connector -20" long -right angle connector on 2.1mm connector
  • 1x 18 V cable -2.1mm BLACK connector with additional 2.1mm slave connector on one side to 2.1mm BLACK connector -regular polarity -20" long -right angle connector on both sides.

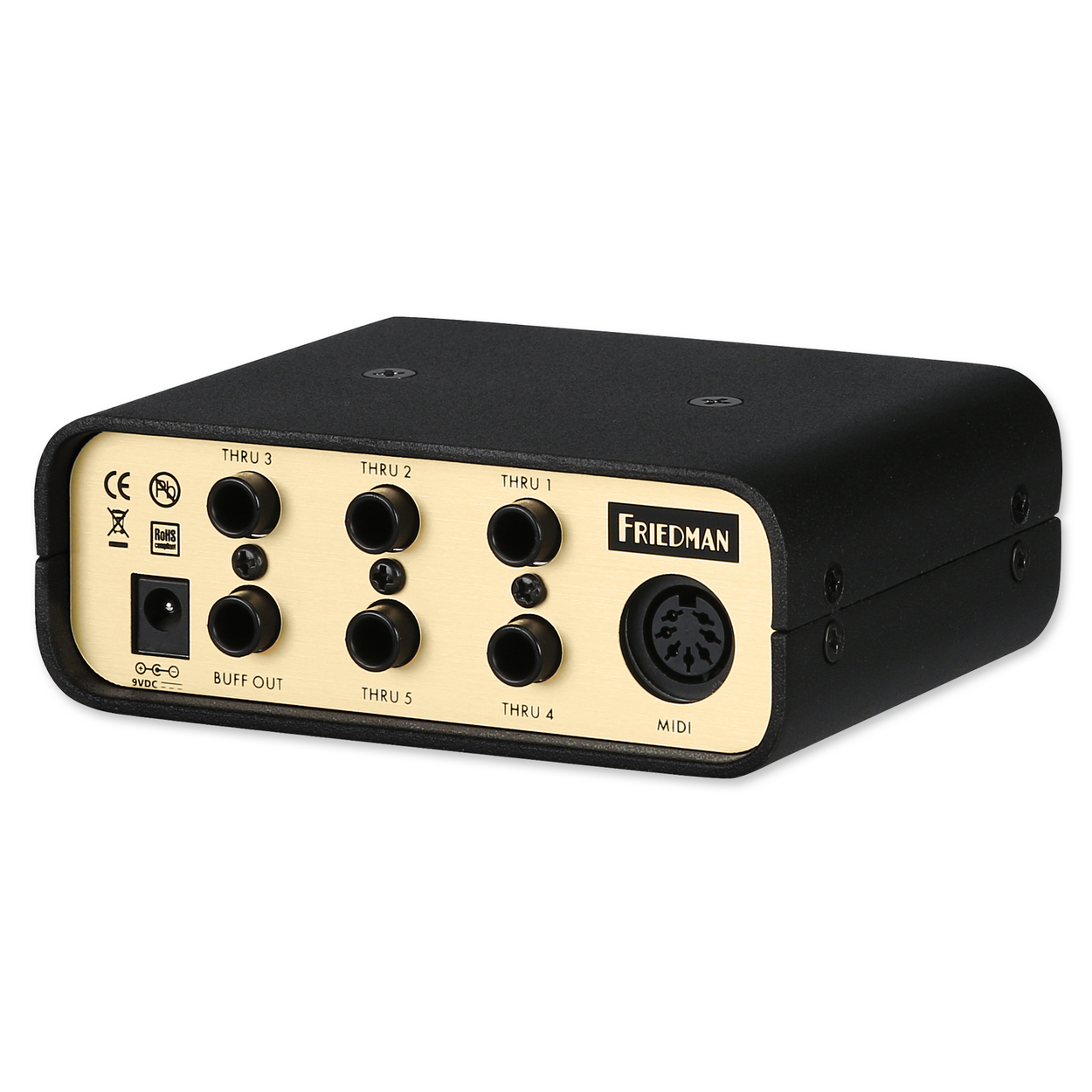

Buffer Bay 6

  • Ultra-transparent, natural and musical sounding buffer
  • 5 identical 1/4" TRS (tip, ring, sleeve) in and out connections
  • Buffered TS (tip, sleeve) connection (can be turned ON/OFF via switch)
  • 7 pin MIDI thru connection


Manufacturer: Friedman Amps
Model: TOURPRO 1542PLATINUM
SKU: I734289-N-0-WHXB
UPC: 763815133645
