Description
Description

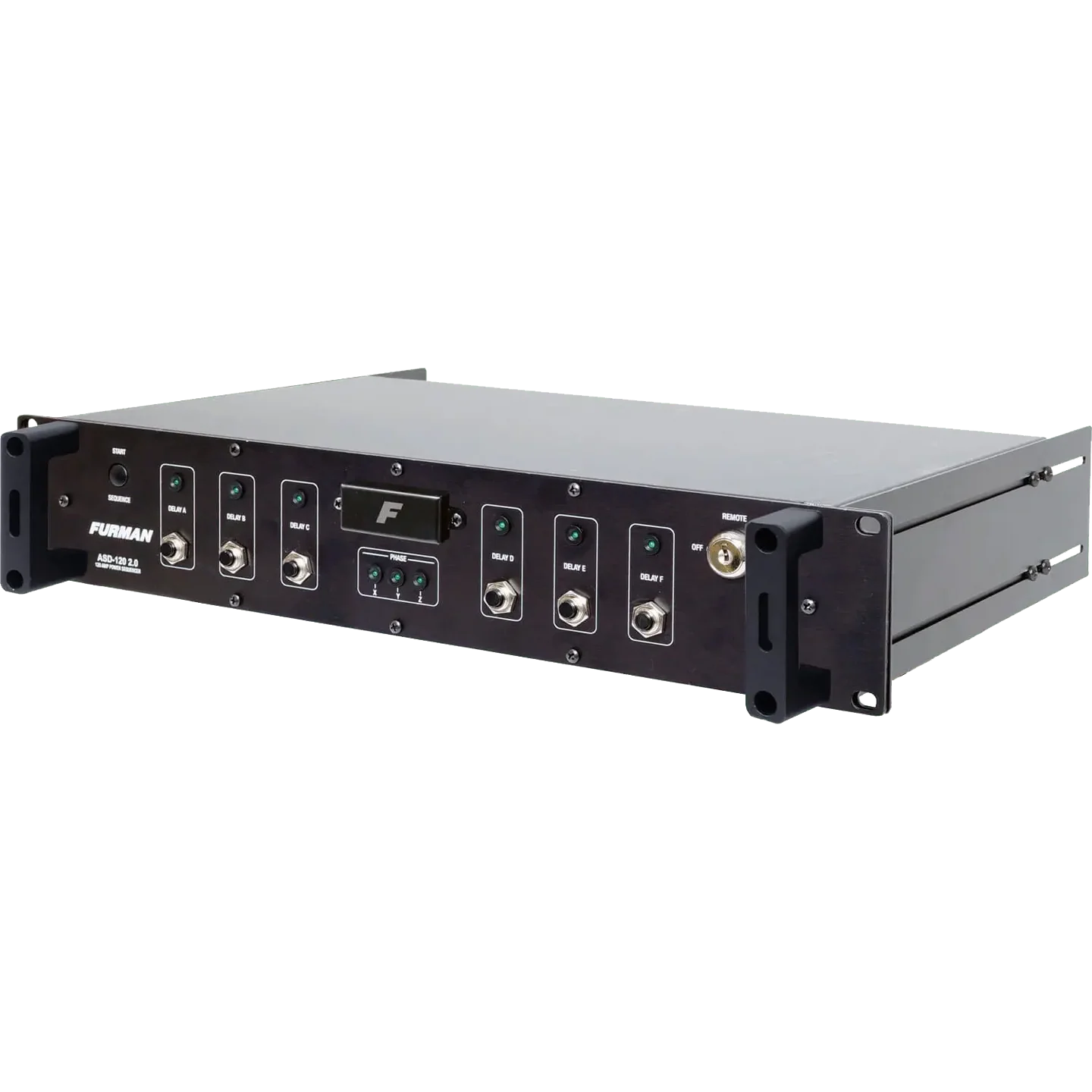

Furman ASD-120 2.0 Six-Channel Sequencing Power Distributor
The Furman ASD-120 2.0 is a professional 6-channel sequencing power distributor designed for systems where multiple AC loads must power up and shut down in a safe, orderly sequence. Ideal for theaters, houses of worship, stadiums, live venues, broadcast and recording studios, and on-location film or video shoots, it helps prevent loud speaker “pops” and nuisance breaker trips caused by inrush current while delivering robust, road-ready power distribution in a compact 2RU chassis.
- Distributes up to 120 amps total across six independent 20-amp, 120V circuits
- Prevents speaker “pop” and reduces nuisance breaker trips from inrush current
- User-adjustable power-up and power-down sequencing with reverse order shutdown
- Three-position switch per circuit for sequenced, always-on, or always-off operation

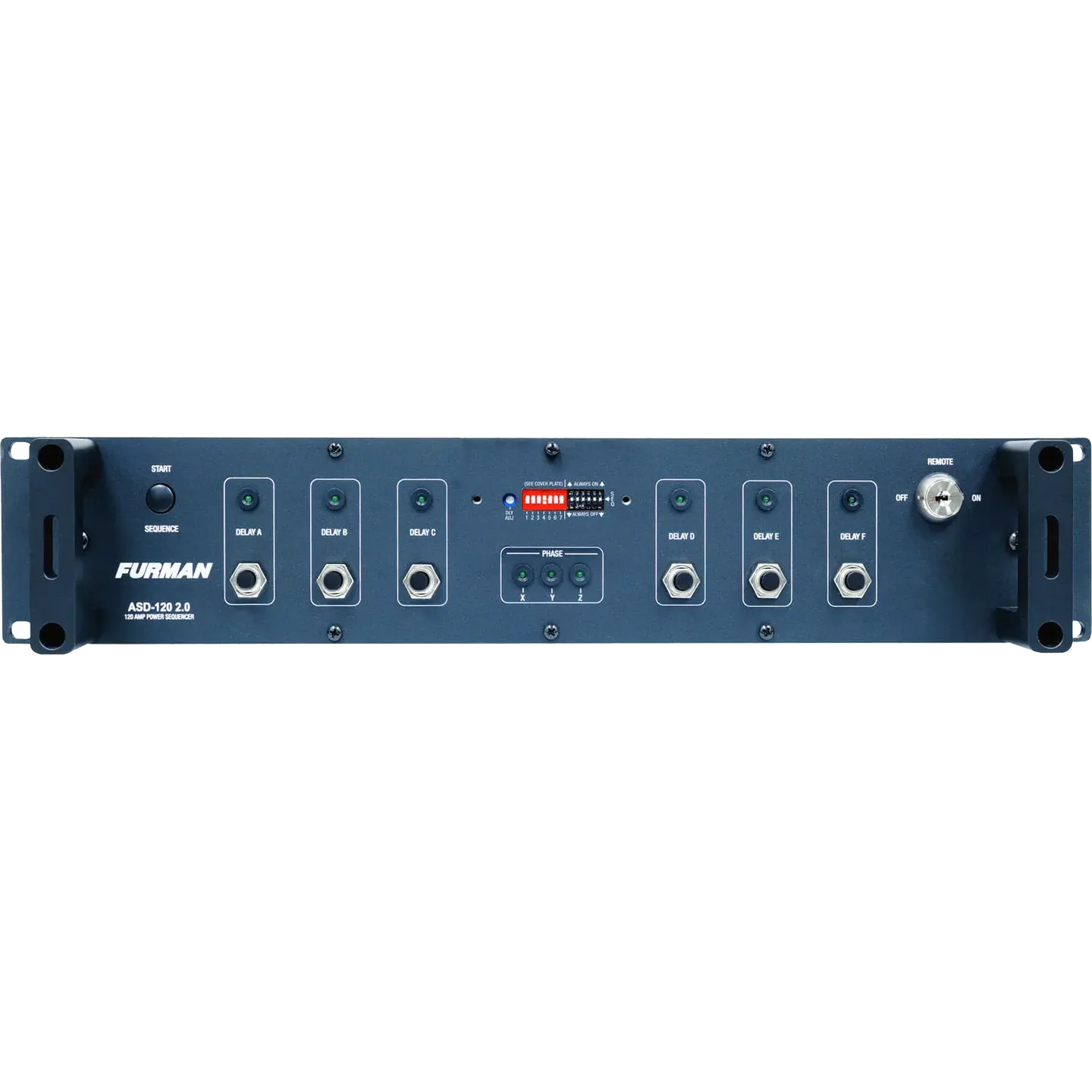

- Front-panel status indicators for each circuit plus sequence-in-progress LED
- Remote sequence control via low-voltage control wiring and rear-panel control connections
- Sequence control signals can trigger additional ASD-120 2.0 units and compatible Furman sequencers
- Front-panel locking key switch for security in installed and touring applications
- Force Off function for emergency system-wide shutdowns

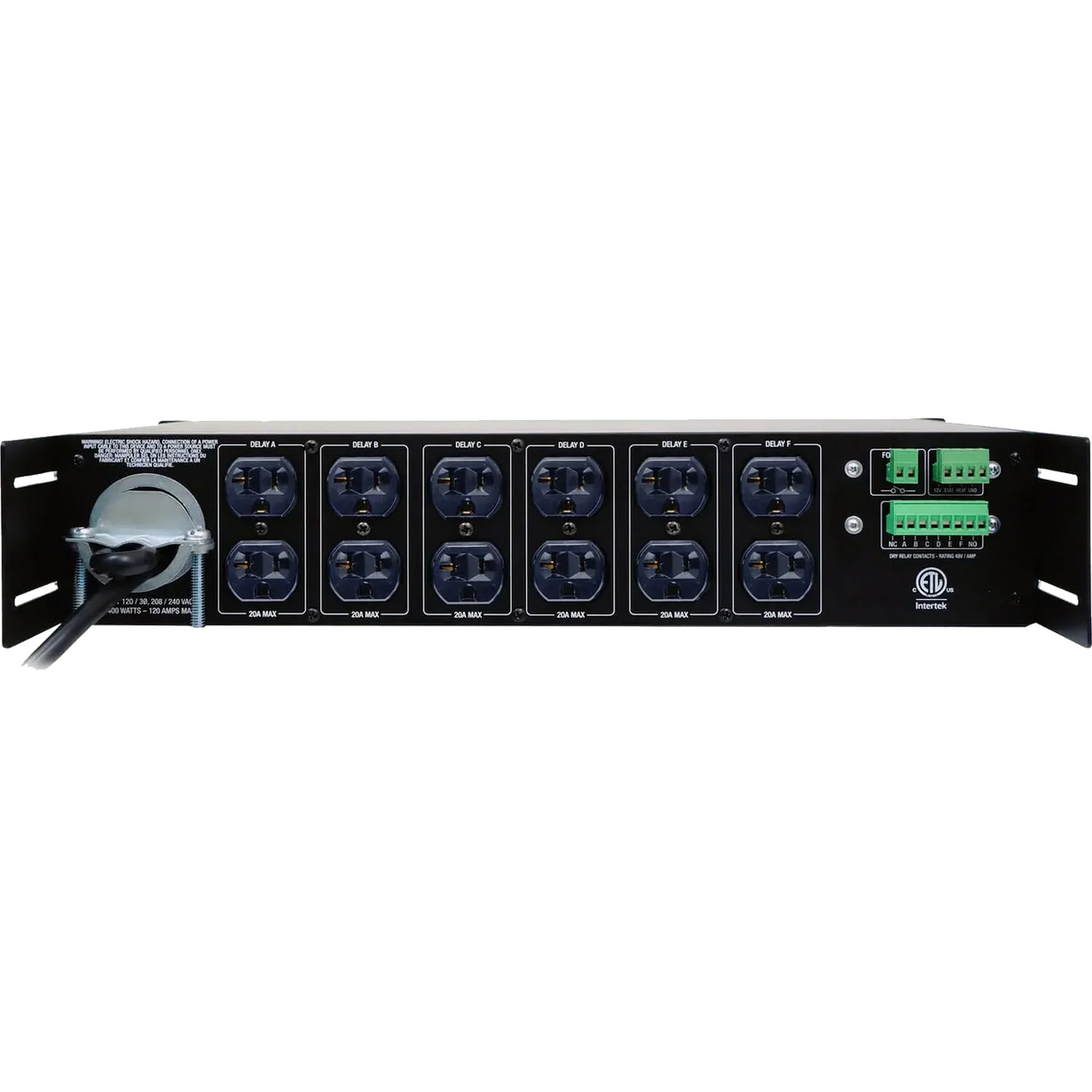

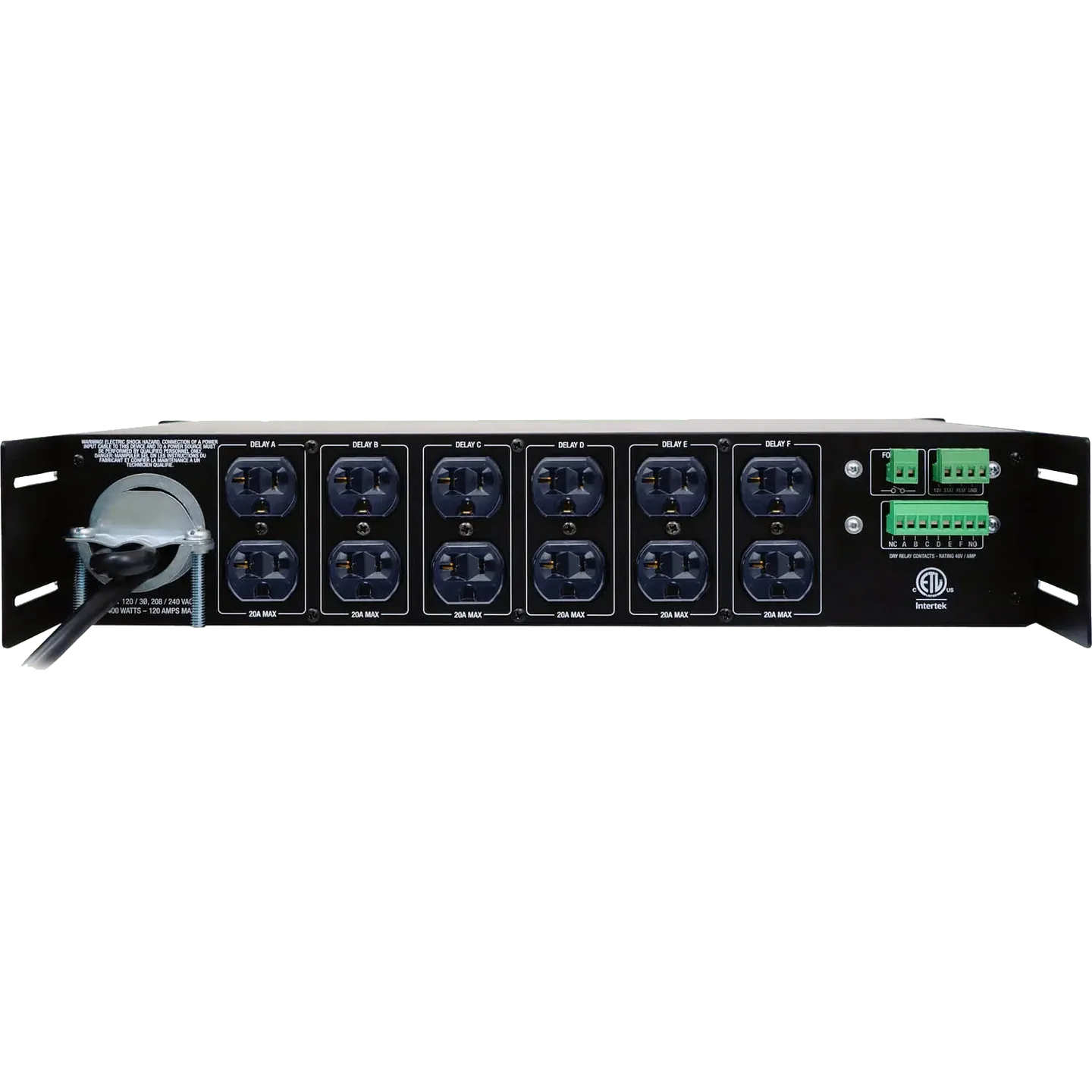

- Six widely spaced rear-panel duplex outlets for easy connection of multiple devices
- Four-bus design supports 120V or 240V single-phase, or 120/208V three-phase power
- Rugged 2RU rack-mountable chassis with strain relief clamp for up to 1.5" diameter cable bundles
Whether you are powering a touring PA, a theater rig, or a complex AV installation, the ASD-120 2.0 puts you in control of how and when your system turns on and off, helping protect loudspeakers and circuits while simplifying power distribution across an entire system.
Specifications
Power Distribution
- Total Load Capacity: 120 amps
- Circuits: Six 20-amp, 120V circuits
- Rear Outlets: Six widely spaced 20A duplex outlets (one per circuit)
- Bus Design: Four oversized busses
- Supported Power Configurations: 120V or 240V single-phase, 120/208V three-phase
Sequencing and Control
- Power Sequencing: User-adjustable delay between steps (internal trimpot)
- Sequence Direction: Sequential power-up; reverse sequence for power-down
- Circuit Control: Three-position switch (sequence/on/off) per circuit
- Indicators: Front-panel status indicator per circuit; sequence-in-progress LED
- Local Control: Front-panel switches plus locking key switch
- Remote Control: Sequence initiation locally or remotely via low-voltage control wiring
- Force Off: Emergency shutdown function for all connected circuits
- Expansion: Rear-panel sequence control signals can drive additional ASD-120 2.0 units, PowerPorts, MiniPorts, PS-PRO, PS-8-R, and other compatible devices
Electrical
- Nominal Voltage: 120 VAC
- Load Type: AC power distribution for multiple circuits
- Protection: Helps reduce excessive inrush currents that can trip breakers
Physical
- Form Factor: 2RU rackmount
- Cable Entry: Strain relief clamp accommodates cable or wire bundle up to 1.5" (38 mm) diameter
- Chassis: Rugged steel housing for touring and installed environments
Manufacturer: Furman
Model: ASD-120 2.0
SKU: I388843-N-3-WHXE
UPC: 654061041184
