Genzler Acoustic Array AA-Mini Acoustic Guitar Amplifier

Sold out
Original price $644.99 - Original price $644.99
Original price $644.99
$644.99
New: $644.99
Display Model: $644.99
Current price $644.99

Sale!

While Supplies Last

Choose a Condition
About Inventory Status


Questions?
Call or text us at 301-946-8808.

In stock: It is in stock and available to ship or pickup. Apparel must be shipped from another location and is not available for in-store pickup. We can usually ship or have these items available for pickup by the next business day if they don't require inspection, special handling, or setup. Our pickup location is 11151 Veirs Mill Rd. Silver Spring, MD 20902.

📆 Preorder: It is on the way to our warehouse. We can't predict when preorder items will arrive due to current supply chain issues. If you place an order for one of these items someone will contact you to estimate the delivery date.

Out of stock: We don't currently have it available but you're not out of luck yet. We still may be able to get it. If you order one of these items we will contact you with an estimated fulfillment date. You have the option to cancel the order if you change your mind.

Special order: The item is so special that it needs to be custom ordered for you. Some of these items are works of art and have to be made individually. Orders for special order items must be prepaid and we cannot accept cancellations or refunds.

█ Sold out: We don't think we can get this item because it was either discontinued by the manufacturer or was limited in quantity. If you want or need this item call or text us. Sometimes we can help you track down the item through other sources or help you find something similar.

About Item Conditions


Questions?
Call or text us at 301-946-8808.

New: The item is brand new as received from the manufacturer with a full manufacturer warranty. Instruments such as guitars, snare drums, drum kits, brass and woodwind instruments may be opened for photography and quality control inspection and may not be in a factory sealed box.

Mint or Open Box: The item may have been opened and tested but has been repackaged. The original packaging may have superficial issues but the item itself and any originally included accessories are in perfect, like new condition.

Display Model: These items are so cool that we put them on display in our legendary shop. The condition is brand new as received from the manufacturer with manufacturer warranty. Rest assured, these items undergo a very careful inspection before shipping.

Demo: These items have been on our sales floor for demo purposes and will likely show signs of use. The original packaging may no longer be included, but you can be assured that you are receiving an awesome item and an awesome price.

Used: The item is used. These item may have varying degrees of wear. Please read the description for information about the condition of the item. Used items do not carry a warranty.

B or C Stock: Factory refurbished. These items were purchased from the manufacturer in a refurbished condition. They will show some cosmetic issues, but nothing that would impact performance. Being that these are sealed from the manufacturer, we generally do not open these to photograph the cosmetic issues. They are guaranteed to work and may have a limited warranty or you may purchase an extended warranty in some cases. Please see the listing description for item specific information.

Educational & Government Sales Quotes

Click here to inquire about an educational or government quote and discover more about our Educational & Government Sales Division.

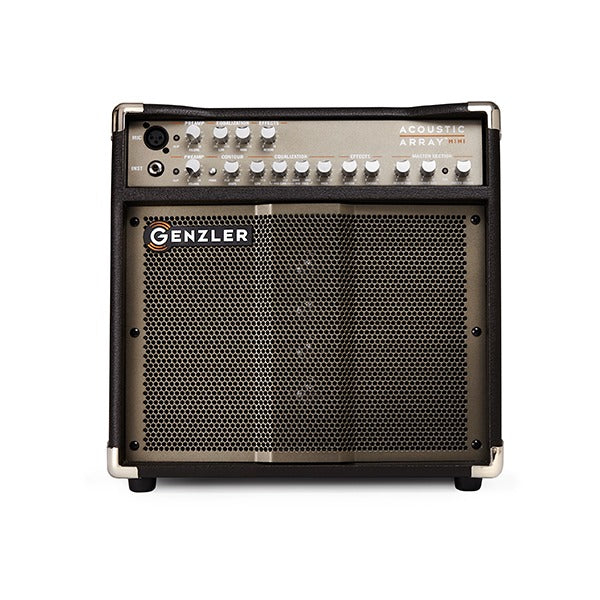

Experience Acoustic Guitar As Never Before - The Genzler Acoustic Array AA-Mini Acoustic Guitar Amplifier

The focal point of this light-weight, compact combo is a speaker system engineered for acoustic instrument reproduction that is based upon our revolutionary Bass Array format from our bass guitar cabinet designs. The AA-MINI speaker system features a specialized 8" woofer in a ported chamber along with the performance and pattern control of a proprietary line array column, which is mounted forward of the woofer in the center of the speaker baffle. This line array column utilizes 4 custom-designed 1.5" neodymium soft dome drivers. The use and placement of the line array provide exceptional clarity and ultra-smooth response, along with broad dispersion and projection that line array principals provide. The custom 8" woofer delivers tight, punch, and roundness for the lows and lower mids, while the upper mids and high frequencies are produced by the line array and are clear, natural, and authentic to the acoustic instrument.

The blend of this innovative speaker system along with our preamp and amplifier platform delivers an acoustic amp like no other available. At 21 lbs,  Acoustic Array MINI is a versatile package ideal for a variety of instruments and venues.


SPECFICATIONS

  • Power Output: 100 Watts / 4 Ohms
  • Operating Power condition: 100 - 240V, 50/60 Hz
  • Dimensions: 14.5"H X 14.5"W  X 12"D  (36.83cm H x  36.83cm W x 30.48cm D)
  • Weight: 21 LBS  (9.52 Kg)

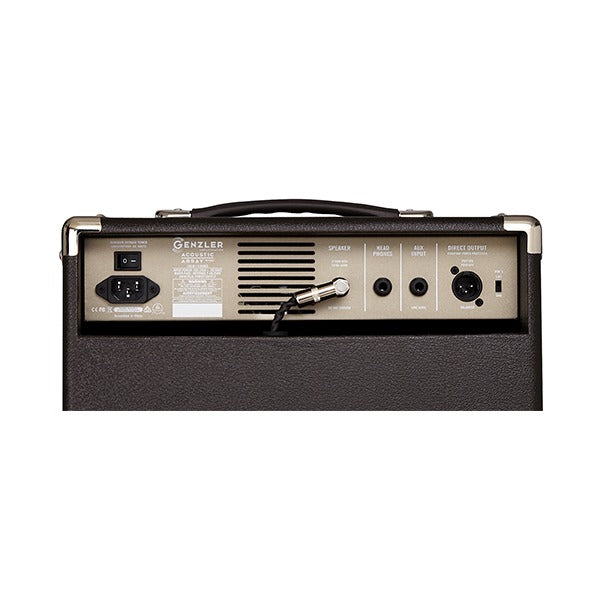

Rear Panel

  • XLR Direct Output
  • Global: Post EQ
  • Ground Lift Switch
  • Headphone Output
  • Aux Input
  • Preamp: Dedicated Mic and Instrument Channels.
  • Input: 5Meg ohm input impedance.
  • Channel Volume: Voiced to provide natural, pristine, transparent reproduction of the instrument.
  • Input Phase Switch: Reverses the polarity of the instrument input to help control potential feedback.
  • Contour: continuously variable control of a pre-shaped curve that boosts lows and highs while simultaneously cutting Mids.  The slope is fairly gentle which keeps the tone shaping very musical. This curve covers a wide range of EQ and offers a quick and simple starting point for EQ adjustments.
  • Active Equalization: The AA-MINI's Instrument channel contains an active 3 band equalizer with a sweepable parametric mid-range frequency control.
  • Bass: +/- 15dB boost/cut shelving curve with a corner frequency of 75Hz
  • Mid: +/- 15dB boost/cut of the variable mid frequency selected
  • Freq.: Variable mid frequency from 200Hz- 5kHz
  • Treble: +/- 15dB boost/cut shelving curve with a corner frequency of 7.5kHz
  • Digital Effect: The Mic channel has its own REVERB level control and the Instrument channel offers both REVERB and CHORUS controls that provide the user with the most flexibility. The parameters of each effect are variable at the Master Section with the Reverb Time and Chorus Rate controls.
  • Power Amp: The Acoustic Array MINI uses a state of the art, Class D power amplifier design, and a high frequency auto-sensing universal switch-mode power supply (SMPS) to achieve unprecedented high performance in a lightweight package. For global use, there are no Voltage Switches to change or jumpers to move. This SMPS senses the line voltage from 100-240 Volts and automatically configures itself.


Manufacturer: GENZLER AMPLIFICATION
Model: AA-MINI
SKU: I569111-0-WHXA
