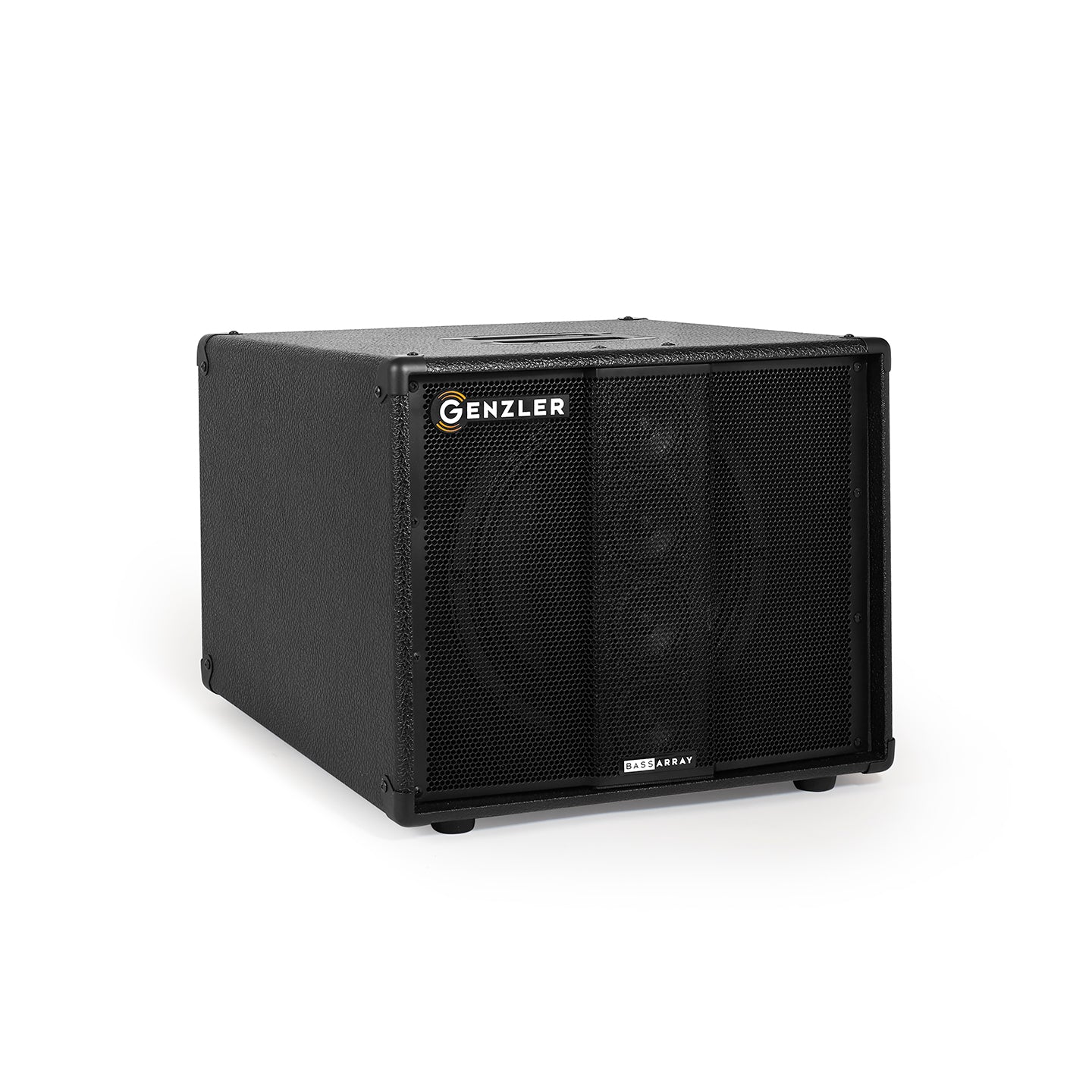

Genzler BA12-3 SLT Slanted Bass Array Bass Cabinet

  • Our Price
  • Regular price $959.99


Go Configure! The Genzler BA12-3 SLT Slanted Bass Array Cabinet

Genzler Amplification announces the addition of a new SLANTED version of their innovative Bass Array 12-3 bass cabinet design.  The original Array design is now being offered in a new slanted model BA12-3 SLT, to compliment the straight design.  The slanted version further enhances all benefits of the BA design by adding a new level of dispersion and projection, either when used as a single enclosure or in combination with additional straight or slant cabinets.  This offers multiple options to the player to configure their BA12-3 stack for the best coverage of the stage or performance venue.

The innovative Bass Array design blends the benefits of a 12" neodymium woofer in vented bass reflex design with the performance and pattern control of a 4 x 3" neodymium cone-driver line array element.

The benefits of combining both loudspeaker platforms in an extremely compact speaker system are exponential for the player.

  • Full, Deep, Low Frequency Response From The High Efficiency 12" Ported Woofer
  • Smooth, Seamless, Clear And Articulate Mid-Range To High Frequency Transition Across The Audio Spectrum
  • Broad Horizontal Dispersion Far Exceeding Conventional Woofer/Tweeter Combinations
  • 6-Degree Slanted Baffle Providing Increased Projection Towards The Player And The Audience.
  • Unique Cabinet Shape Reduces Internal Standing Waves, Translating Into Clearer Tones
  • Top-Mounted Recessed Bar Handle
  • Quick And Simple Cable Routing Process For Securing The Magellan Amp To The Top Of Slanted Cabinet


  • Power Handling: 350 Watts
  • Frequency Response: 32-15KHz
  • Sensitivity 1W/1M: 98 dB
  • Nominal Impedance: 8 ohm
  • Crossover Frequency: 800 Hz


  • One  -  Premium Faital Neodymium 12" Cast Frame Loudspeaker Utilizing A Unique Dual-Wound Voice Coil Design For Increased Power Handling And Efficiency
  • Four  -  Premium Faital Neodymium 3" Mid/High Cone Drivers Loaded Into A Sealed Line Array Stack


  • Custom Designed 6 Db/Octave Slopes In Balance With The Acoustical Controls Of Each Enclosure
  • Two  -  Speakon NL-2 Connector And Two “ï“ç’úËÇ£ËÇÜËÇ£“»ËÇ£ËÇÖ•ÆËÇ£“»ËÇ£“ºËÇÖ“Š “ï“ç’úËÇ£“ï“ç“ûËÇó“å" Sealed Jacks; To Reduce Rear Cabinet Air Loss And Noise


  • Cabinet Finish: Heavy-Duty Textured Black Vinyl


  • Black Metal Corners And Heavy-Duty Strap Handle
  • Custom, Curved Grille With A Unique Center “ï“ç’úËÇ£ËÇÜËÇ£“»ËÇ£ËÇÖ•Æ“ï“ç“‚ËÇ£ËÇPleat" To Protect The Array Column
  • Large Rubber Feet


  • Weight: 32 Lbs
  • Dimensions: 16" x 19" x 18"
  • Carton Dimensions: 23"H x 22"W x 20"D
  • Shipping Weight: 38 Lbs

Model: BA12-3 SLT
Warranty: See manufacturer website for details
SKU: I498218-3
