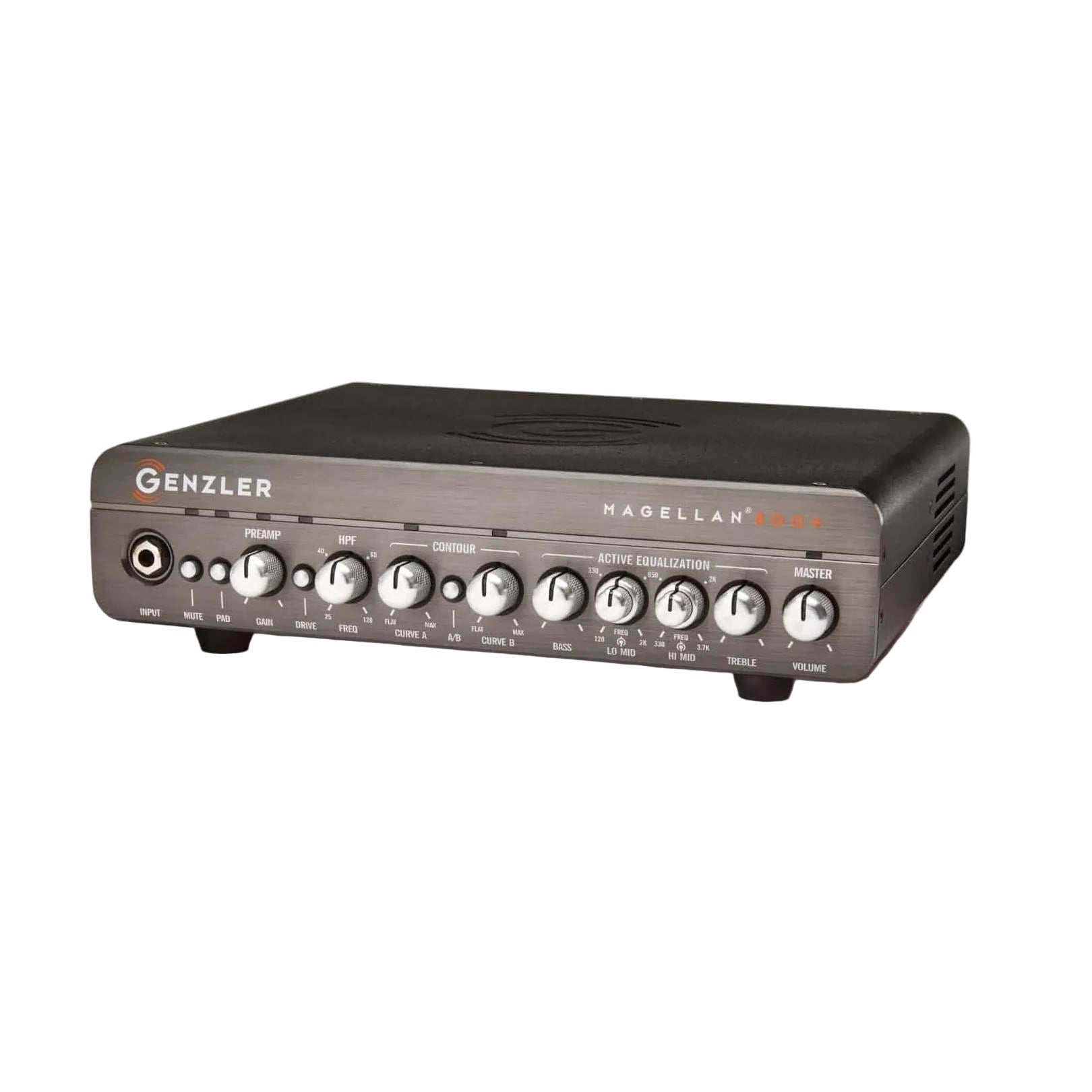

Genzler MG-800+ Magellan 800W Bass Amplifier

Next-Gen Power – The Genzler MG-800+ Magellan Bass Amplifier

After 10 years in service, GENZLER AMPLIFICATION is proud to introduce the next generation of this 800-watt professional, tour-class bass amp — the new MAGELLAN 800+. Carrying forward the legacy of night-after-night reliability, the MAGELLAN 800+ reaches even higher achievements in performance with several new features, improved preamp circuitry, expanded EQ network; all within the same rugged chassis and developed with the same stringent design and build expertise GENZLER is known to achieve.

• Updated input circuitry for increased dynamics
• All new DRIVE circuitry delivering a wide range of tube-like harmonics and compression — and foot switchable
• New HPF (High Pass Filter) — multi-slope, frequency dependent and adjustable between 25-120Hz
• GENZLER’s unique Dual Contour Circuit — foot switchable and separately adjustable
• New 4 Band Active EQ with two Sweepable midrange frequencies
• New high-grade op-amps for lower noise threshold and higher dynamic headroom, throughout the preamp

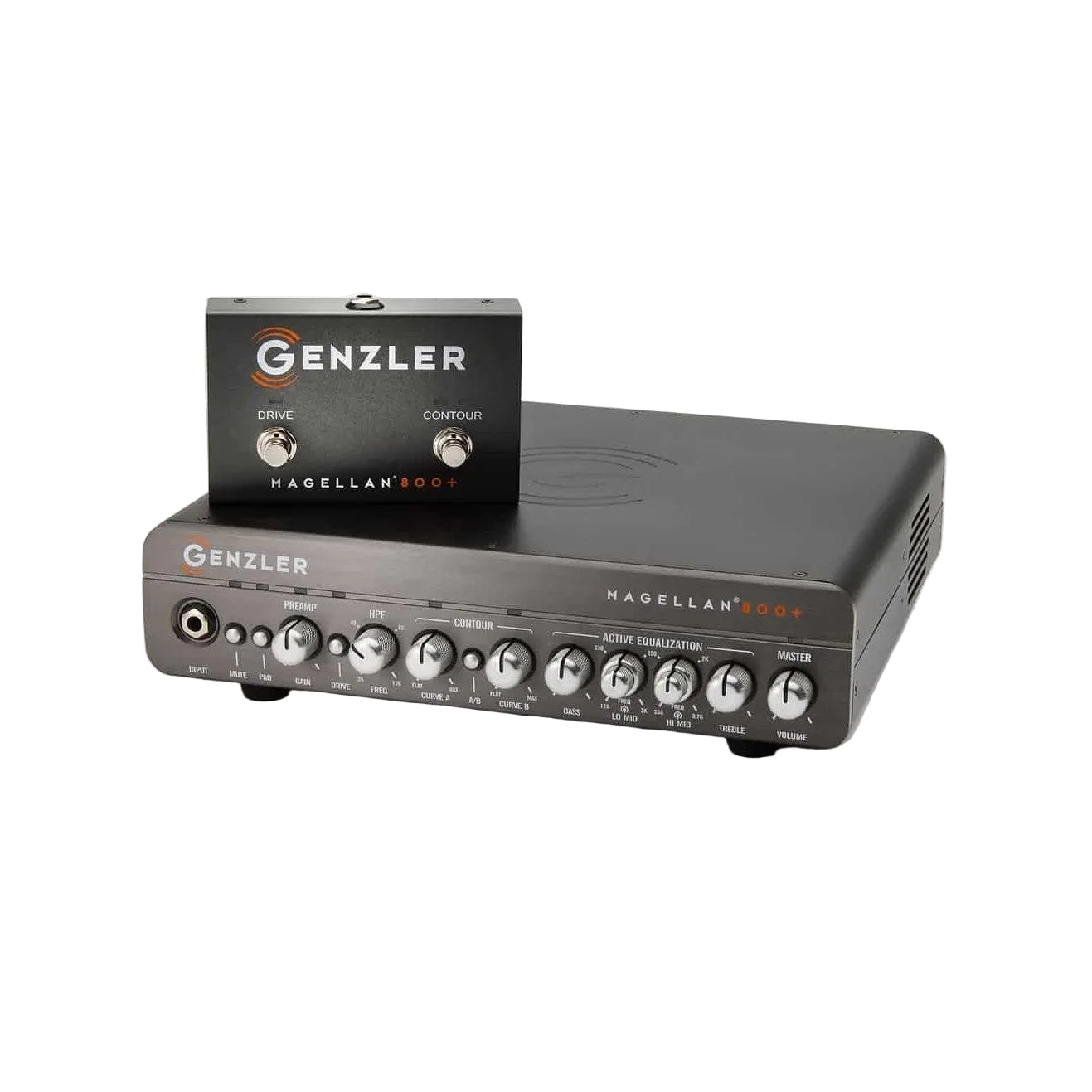

• Optional dual function footswitch —- DRIVE and CONTOUR functions
• Light weight @ 6.25 Lbs

The MAGELLAN 800+ delivers the most powerful, feature-laden, compact bass amplifier available in its class. This new model offers improved dynamic response and feel, along with superior low-noise thresholds and increased dynamic headroom. This is exactly what players have come to expect from the GENZLER design team – innovation, performance, reliability and versatility.

The MG-800+ provides the tonal palette needed to cover all the bassist’s amplifier requirements: from natural, pristine, transparent reproduction of the bass instrument to classic, vintage harmonic textures and dynamic — with “weighted feel to the notes”. All of this encased in the same classic styling of an all-aluminum chassis, weighing only 6.25 lbs.

Continuing the tradition of the original MAGELLAN amplifier design, the MAGALLAN 800+ represents a new pinnacle in lightweight, high-output, versatile, bass amplification. GENZLER’s years of research, design and manufacturing expertise, along with listening to players’ needs, has helped to develop this model utilizing stringent design parameters for performance, form, function, fit and finish. The new MG-800+ continues the reputation of the original design as a simple interface for the user and one of the most musical amplifiers available.

The MG-800+ is a solid-state, all analog design and provides the tonal palette needed to cover all of the bassist’s amplifier requirements; from natural, pristine, transparent reproduction of the bass instrument to classic, vintage harmonic textures with “weighted feel to the notes”. This is packaged within the classic Magellan styling and all-aluminum chassis, weighing only 6.25 lbs.

The expanded feature set and output power level make this amplifier an essential tool on the global stage, and with its universal power supply, the MAGELLAN 800+ can be used with any voltage around the world without modification.

SPECIFICATIONS

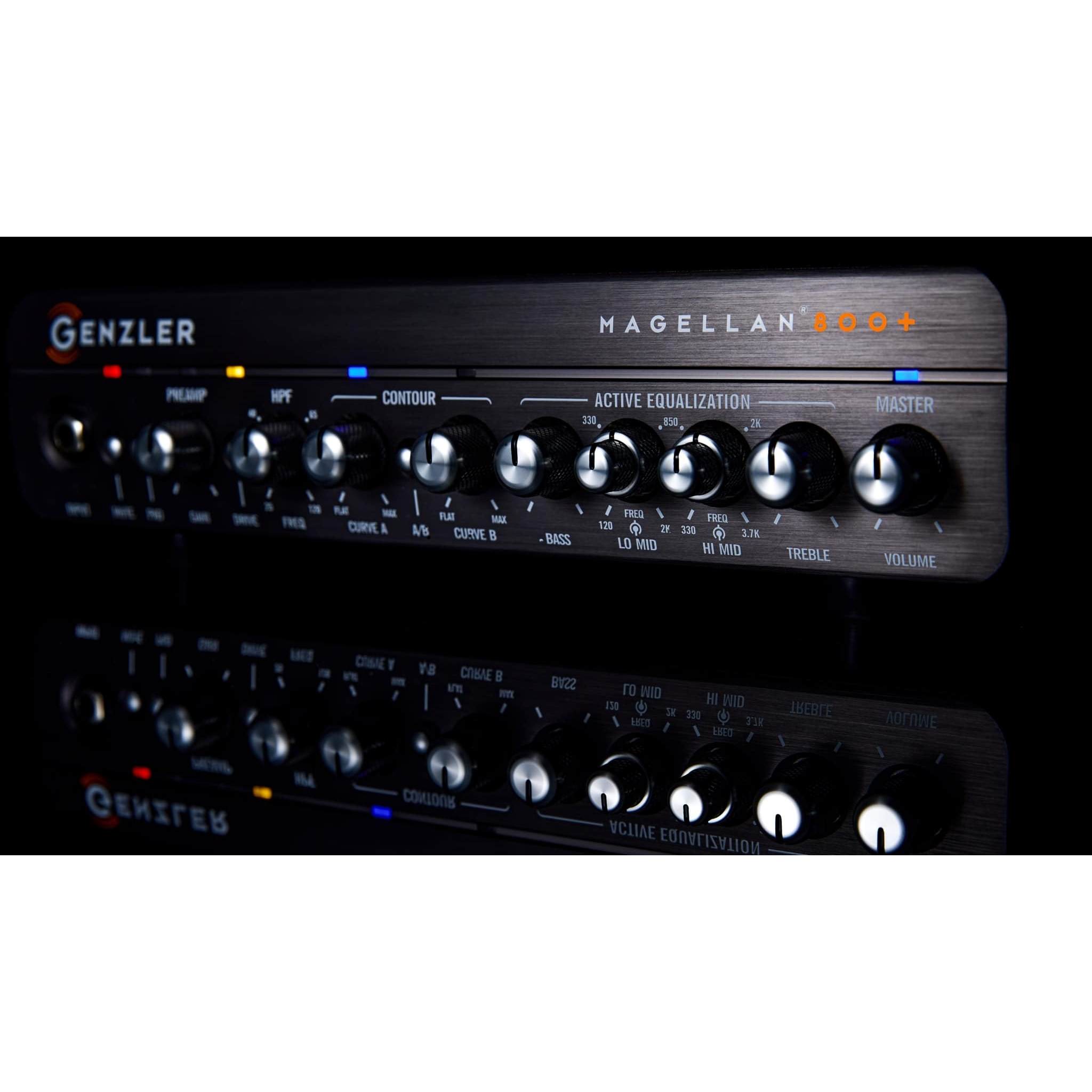

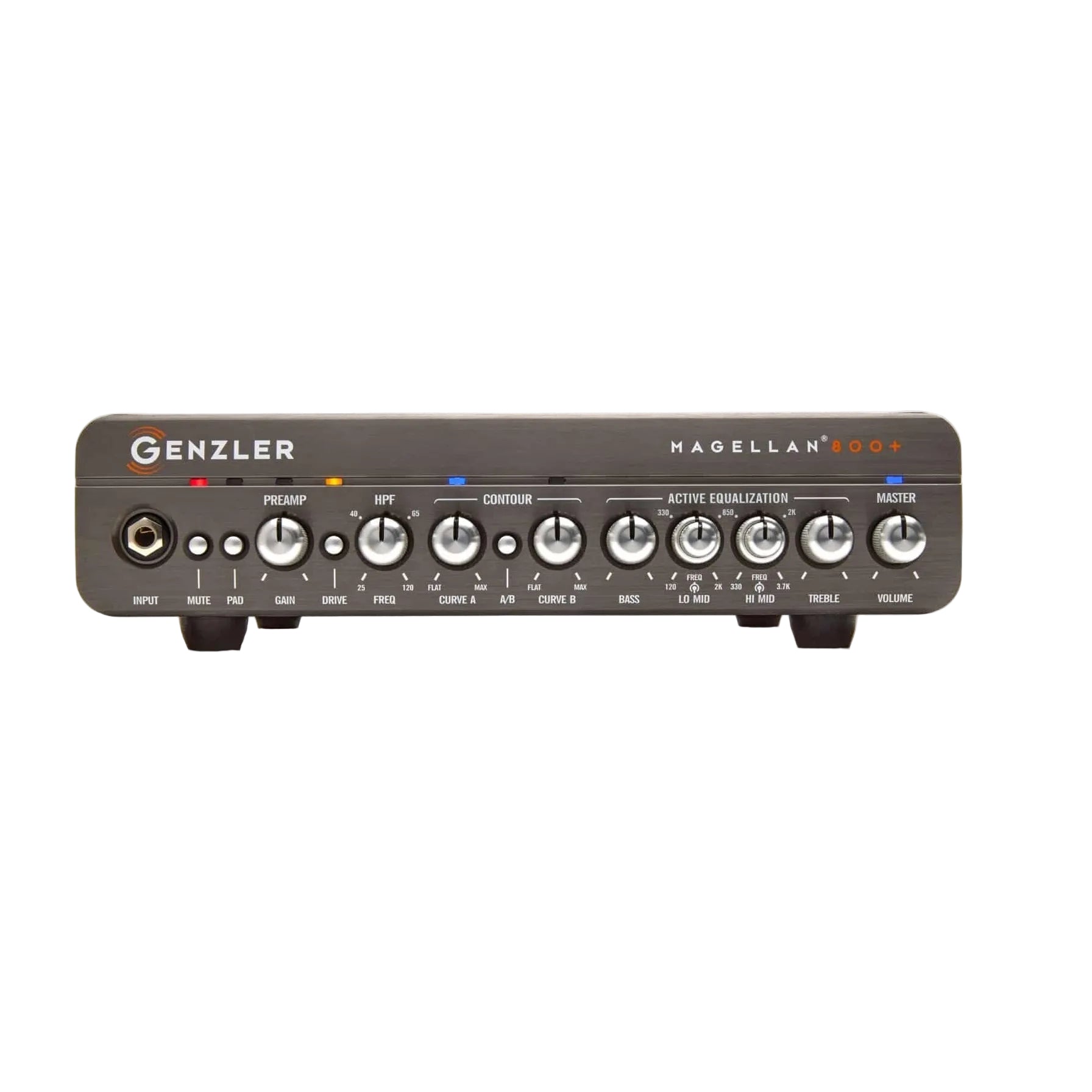

Front Panel Features

• Input: ¼ inch
• Signal Mute Switch
• Input Pad: - 8.5dB
• Gain Level Control
• Drive Channel Switch: voiced for a driven tonal signature and harmonic texture, controlled by gain level control and master volume
• HPF High Pass Filter: variable from 25 – 120Hz
• Dual-Curve Variable Contour Circuitry: footswitchable
• Curve A: classic to modern — smooth mid scoop curve with increased lows and highs
• Curve B: thicker to vintage — low-mid bump with tapered top end
• Flat Position: full bypass
• Active 4 Band EQ with 2 parametric mid controls
• Bass: +/- 15dB @ 75Hz
• Lo Mid: +/- 15dB variable from 120Hz – 2K Hz
• High Mid: +/- 15dB variable from 330Hz – 3.7K Hz
• Treble: +/- 15dB @ 6K Hz
• Master Volume Control

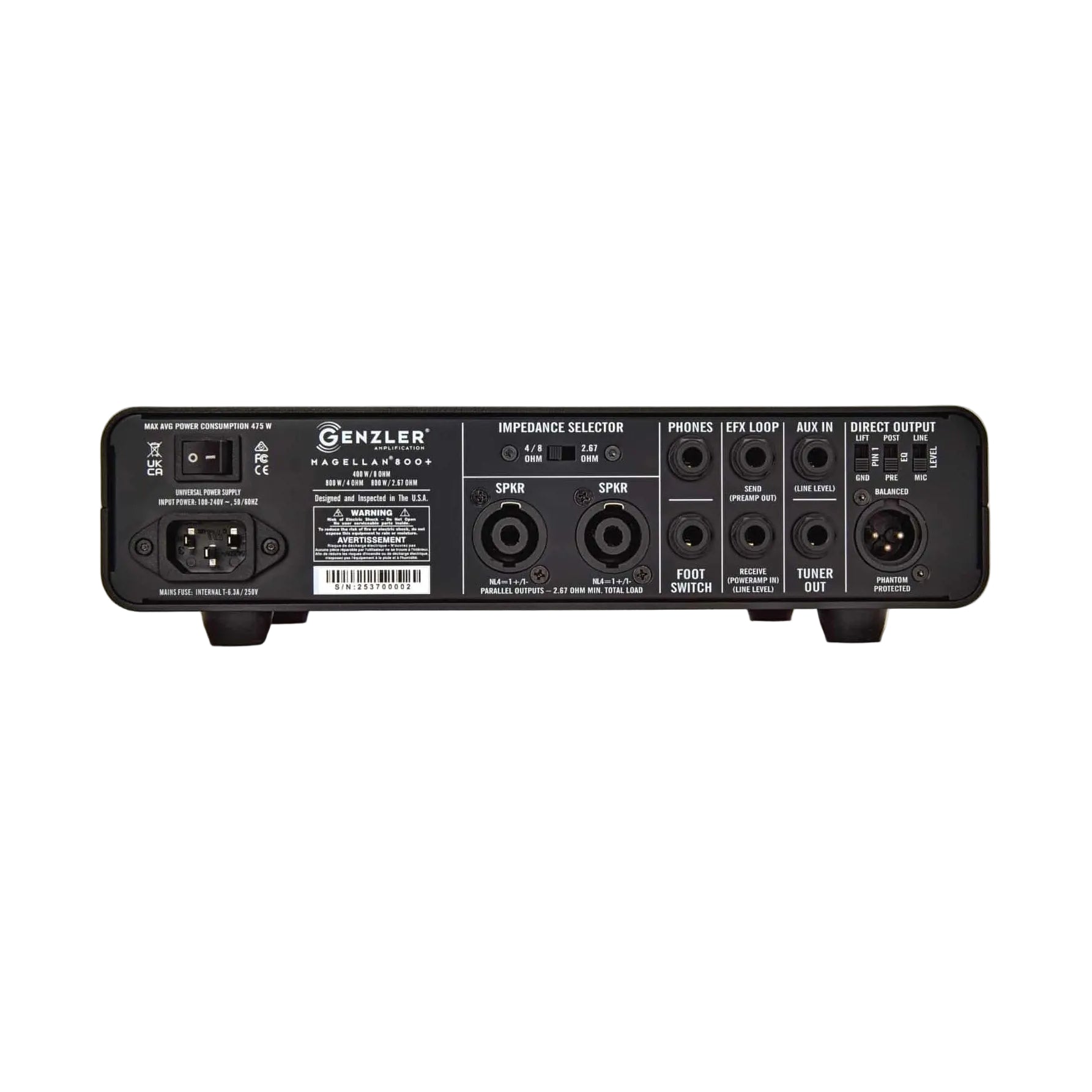

Rear Panel Features

• Impedance Selector Switch: 8/4 ohm to 2.67 ohms
• Dual Speakon Speaker Outputs
• Headphone Output
• Footswitch Input Jack: for optional 2 button footswitch
• Effects Loop
• Tuner Output Jack
• Direct Output Interface: pre/post
• Thermal Sensing Variable Speed Fan Cooling
• Aircraft-grade, all aluminum chassis with extruded aluminum front panel
• Power Amplifier: Class D power amplifier with high frequency auto-sensing universal switch-mode power supply
• Operating Power: auto senses line voltage from 100 – 240 volts

General Specifications

• Power Output: 400W/8 ohms, 800W/4 ohms and 800W/2.67 ohms
• Minimum Speaker Load: 67 ohms
• Operating Power Condition: 100 – 240V, 50/60 Hz
• Dimensions: 3 inch H x 11.25 inch W x 10.5 inch D (76.2mm H x 285.75mm W x 266.7mm D)
• Weight: 6.25 lbs (2.83Kg)
