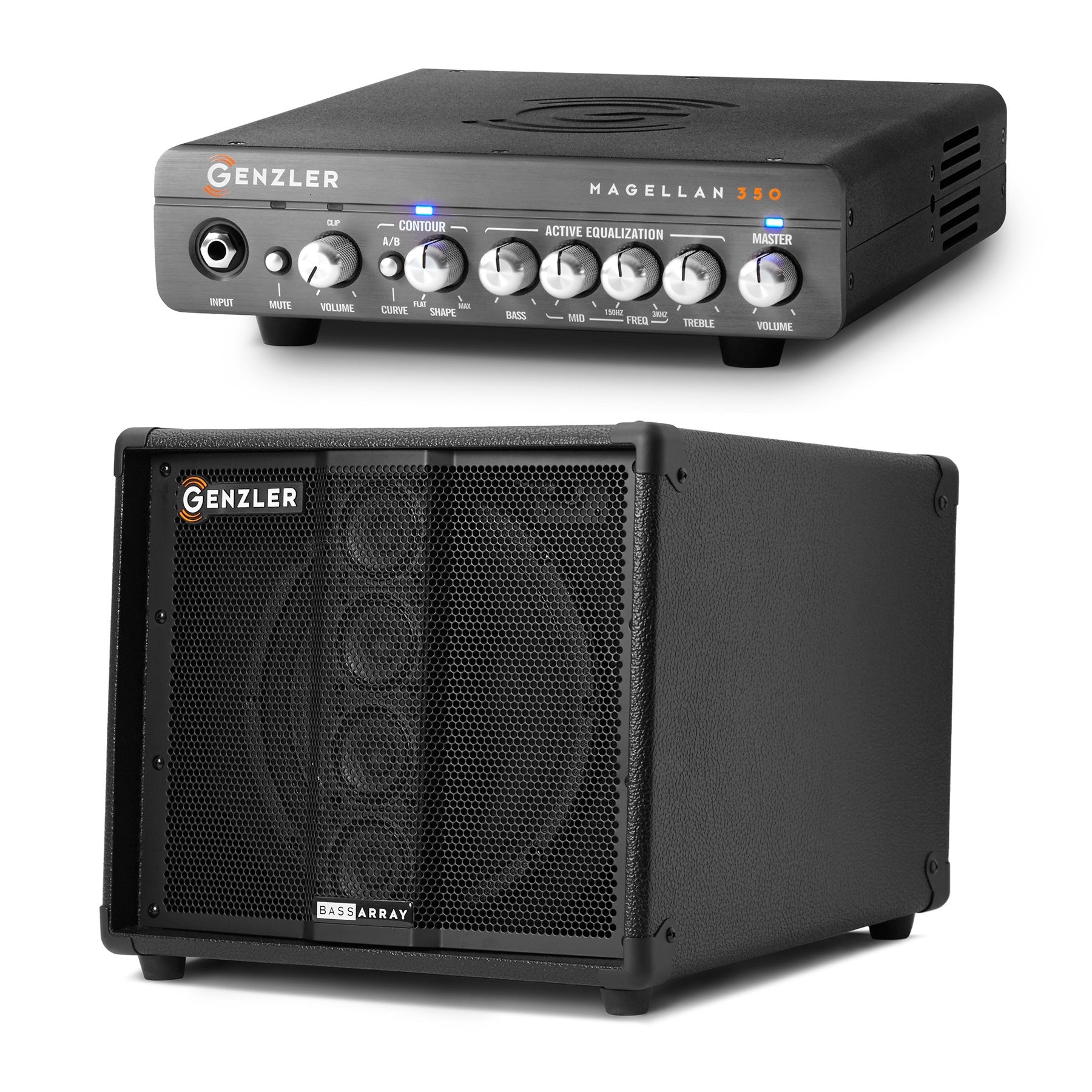

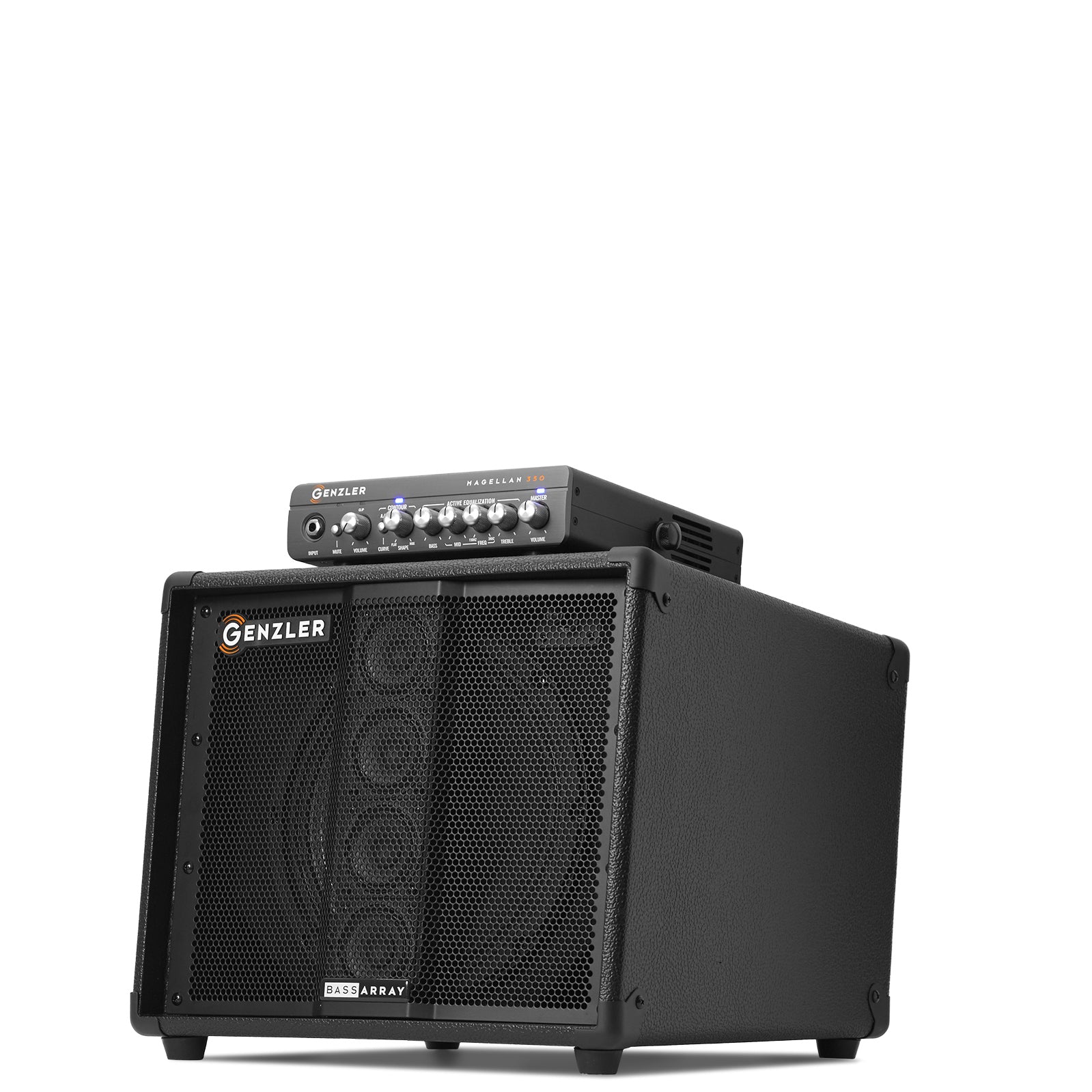

Play The Pinnacle Of Dynamic Bass Tone Through The Resilience Of Neodymium Drivers - The Genzler MG350-BA10 Bass Combo Amplifier
Introducing the latest MAGELLAN series bass amplifier, the MAGELLAN 350. The MG-350 represents the pinnacle in the next generation in a compact, lightweight, high-output, versatile, bass amplification.

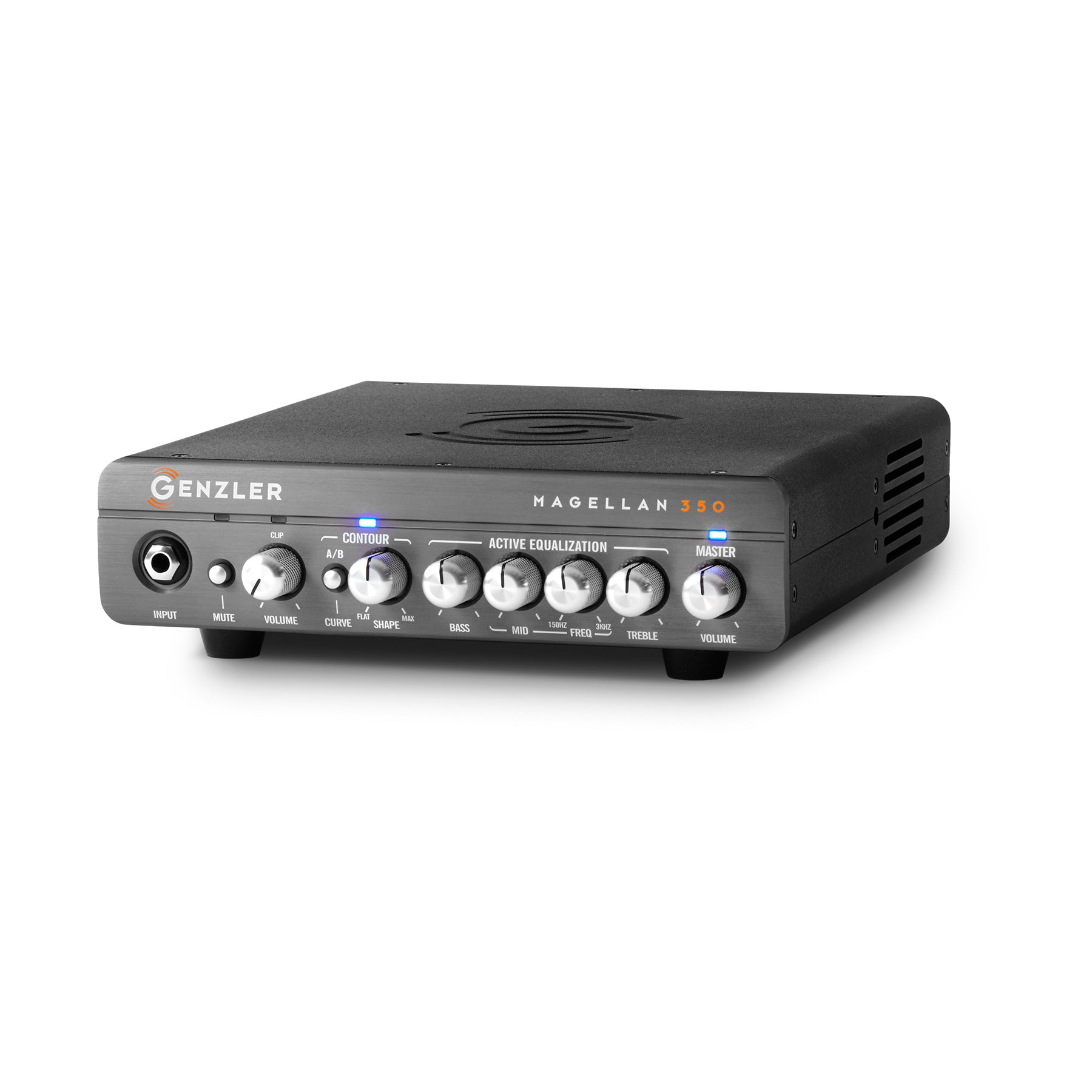

The Magellan 350 Head
The MAGELLAN 350 is the little brother of the larger MAGELLAN 800 - but only in relation to its smaller compact size. The MG-350 meets the same stringent design parameters for form, function, fit, and finish as our larger MAGELLAN 800. The feature set and 350-watt output power level of this tiny amplifier make it a big boy in its amplifier class. As well, the MG-350 delivers exactly what players have come to expect from the GENZLER design team -- performance, versatility, and reliability.
From natural, pristine, transparent reproduction of the bass instrument to classic, vintage harmonic textures, the MG-350 provides the tonal pallet needed to cover all of the bassist's amplifier requirements and is ideal for electric or upright bassists.
The BA 10-2 Bass Array Cabinet
GENZLER AMPLIFICATION is proud to announce the addition of the new BA10-2 model to the innovative BASS ARRAY line of bass guitar cabinets that the company first introduced in 2015. Based upon the overwhelming success and popularity of this one-of-a-kind bass cabinet design, we've now expanded these offerings to include this ultra-compact single 10 model.
The BA10-2 blends the punch and quickness of a premium Neodymium 10 driver in a compact vented bass reflex enclosure, along with the performance and pattern control of a proprietary line array element utilizing 4 custom-designed 2.5 neodymium full-range drivers. With the Bass Array design, the placement of the line array in front of the 10" woofer provides extremely broad projection, quickness, and articulation. As well, the all-important mid and high frequencies have a much wider horizontal dispersion with a more controlled vertical pattern.
The benefits of combining both design platforms in an extremely compact cabinet are exponential for the player requiring a small, yet powerful enclosure. The BA10-2 also offers a unique cabinet shape with an angled baffle --- tilting up towards the player --- and a single top/rear-mounted edge-lift handle for an easy grab and go solution. When stacking 2 cabinets they form a unique arc for increased dispersion.
The BA10-2 delivers a full-bodied, defined, musically smooth, and seamless response, along with the most even projection possible around the perimeter of the stage and throughout the audience.
This compact combo model is ideal for electric or upright bass requirements.
- Pristine and Articulate
Dual-Curve Variable Contour Circuitry
- Curve A -- Classic to Modern -- Mid Scoop Curve
- Curve B -- Thicker to Vintage -- Low-Mid Bump w/Tapered Top End
- Active 3 Band EQ w/Parametric Mid Control
- Signal Mute Switch
- Thermal Sensing Variable Speed Fan Cooling
- Full-Featured XLR Direct Output Interface
- 2.67 Ohm Min. Total Load
- Output: 175W/8 Ohms, 350W/4 Ohms, and 350W/2.67 Ohms
PREAMP: all-solid-state analog design with integrated soft clip circuitry.
INPUT: 1Meg ohm input impedance
CHANNEL OVERVIEW: Voiced to provide natural, pristine, transparent reproduction of the bass instrument. The circuitry consists of a FET feedback type variable gain circuit that provides a wide range, continuously variable gain for use with a wide range of instrument pick-ups and preamps.
CONTOUR: continuously variable control of 2 vastly different response curves. In either CURVE position, when the SHAPE control is all the way off (CCW) the response curve is completely FLAT.
Curve A (Blue): a variable pre-shaped curve that boosts lows and highs while simultaneously cutting mids. The slopes are fairly gentle which keeps the tone shaping very musical. This curve covers a wide range of sounds from flat to classic to modern depending on the position of the SHAPE control.
Curve B (Amber): a variable pre-shaped curve with attenuated high mids and highs, a low mid bump, and a slight roll-off of the lowest bass frequencies. Again, the slopes are fairly gentle which keeps the tone shaping very musical. This curve is intended to provide sounds in the range of vintage amps and vintage cabinets that do not have tweeters.
ACTIVE EQUALIZATION: The MAGELLAN 350 contains an active 3 band equalizer with a sweepable parametric mid-range frequency control.
- Bass +/- 15dB boost/cut shelving curve with a corner frequency of 75Hz
- Mid +/- 15dB boost/cut of the variable mid frequency selected
- Freq Variable mid frequency from 150Hz-3kHz
- Treble +/- 15dB boost/cut shelving curve with a corner frequency of 6kHz
POWER AMP: The MAGELLAN 350 uses a state of the art, class D power amplifier design, and a high-frequency auto-sensing universal switch-mode power supply (SMPS) to achieve unprecedented high performance and lightweight packaging. There are no Voltage Switches to change or jumpers to move. This SMPS senses the line voltage from 100-240 Volts and automatically configures itself.
- XLR Direct Output
- Mic / Line Switch
- Pre / Post EQ Switch
- Ground Lift Switch
- Aux Input
- Head Phones
- Dual Speakon Speaker Outputs
- Impedance Selector Switch for 8, 4 or 2.67-ohm operation
- One - premium Eminence neodymium 10" cast frame loudspeaker.
- Four - proprietary neodymium 2.5" mid/high cone drivers with sealed basket design.
Input Panel/Crossover Network:
- Custom designed 6 dB/octave slopes in balance with the acoustical controls of each enclosure.
- Two - Combination Speakon NL-2 input jacks.
- Black textured vinyl.
- Black metal corners and heavy-duty edge-lift handle.
- Custom, curved perforated metal rille with a unique
- Carton Dimensions: 21" x 19.5" x 18.5" (533.4mm H x 495.3mm W x 470mm D)
- Shipping Weight: 32 Lbs (14.5 Kg)
- Weight: 25 LBS
- Dimensions: 15.5" W x 15" x 16"
Manufacturer: GENZLER AMPLIFICATION
Warranty: See manufacturer website for details
