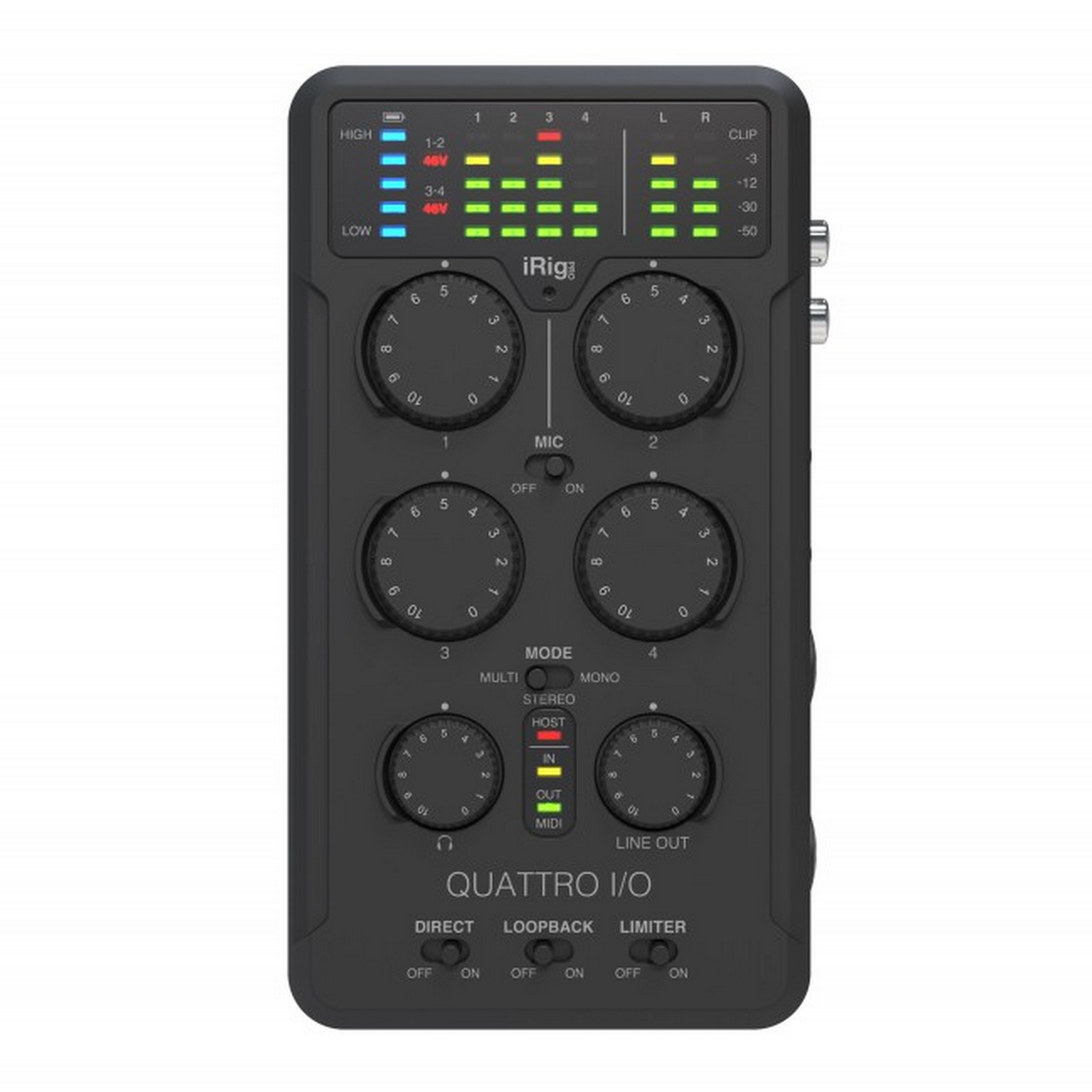

Be Ready for Recording at any Time with the IK Multimedia IRIG Pro Quattro I/O Audio Interface

Have you ever found yourself mid-session missing a key cable or connection? Or worrying before, during, or even after a shoot that your work could be compromised by technical issues? iRig Pro Quattro I/O will put those concerns to rest forever. It’s a professional-grade 4-in / 2-out portable audio and MIDI interface packed with everything you need for pristine field recording, content creation, streaming, podcasting and performing.


  • Professional mobile recording interface/mixer
  • For iPhone, iPad, Android, Mac/PC, standalone
  • 24-bit, 96 kHz operation
  • 4 x XLR / 1/4" mic, guitar, line in with phantom power
  • 2 x RCA, 3.5 mm line in
  • Built-in microphone
  • 2 x balanced XLR outs
  • Headphone out with direct monitoring
  • Multitrack, stereo or mono operation
  • Standalone mixer mode
  • Built-in limiter & -12 dB safety mode


Compact Size, Full Stereo Sound

The iRig Pro Quattro I/O will easily find a home in your camera bag or backpack. It comes with all you need to get started including a set of batteries, cables and camera stand adapter. Or choose the iRig Pro Quattro I/O Deluxe, which adds a pair of custom iRig XY mics for stunning stereo sound every time, without the bulk or expense of a larger mic setup. It also includes a windscreen, power supply unit and carrying case.

Mono, Stereo or Multichannel

iRig Pro Quattro does all 3 at the flip of a switch. Stereo and Mono modes pre-mix up to 4 audio sources (RCA / 3.5 mm stereo line inputs (+ Loopback), XLR combo inputs and MEMS microphone) down to a stereo or mono track, which can be sent to your choice of streaming apps, DSLR camera or sound system.

Switching to multichannel mode, the XLR mic/Hi-Z instrument and mic/line combo jacks or RCA / 3.5 mm stereo line inputs are routed to channels 1 to 4 respectively, giving you 4 channels of audio to send to recording apps such as GarageBand or any DAW.

Custom Mics For Deluxe Results

iRig MIC XY stereo microphones are available separately or as part of the iRig Pro Quattro I/O Deluxe edition. These condenser mics use a cardioid polar pattern in an XY formation for trouble-free stereo sound recording. You can also position the capsules in divergent mode, which is ideal for taking interviews.

With a frequency response of 20 Hz to 20 kHz and dynamic range up 145 dB SPL, your field recordings will always be natural, immersive and protected by Quattro I/O’s safety channel feature.


SPECIFICATIONS

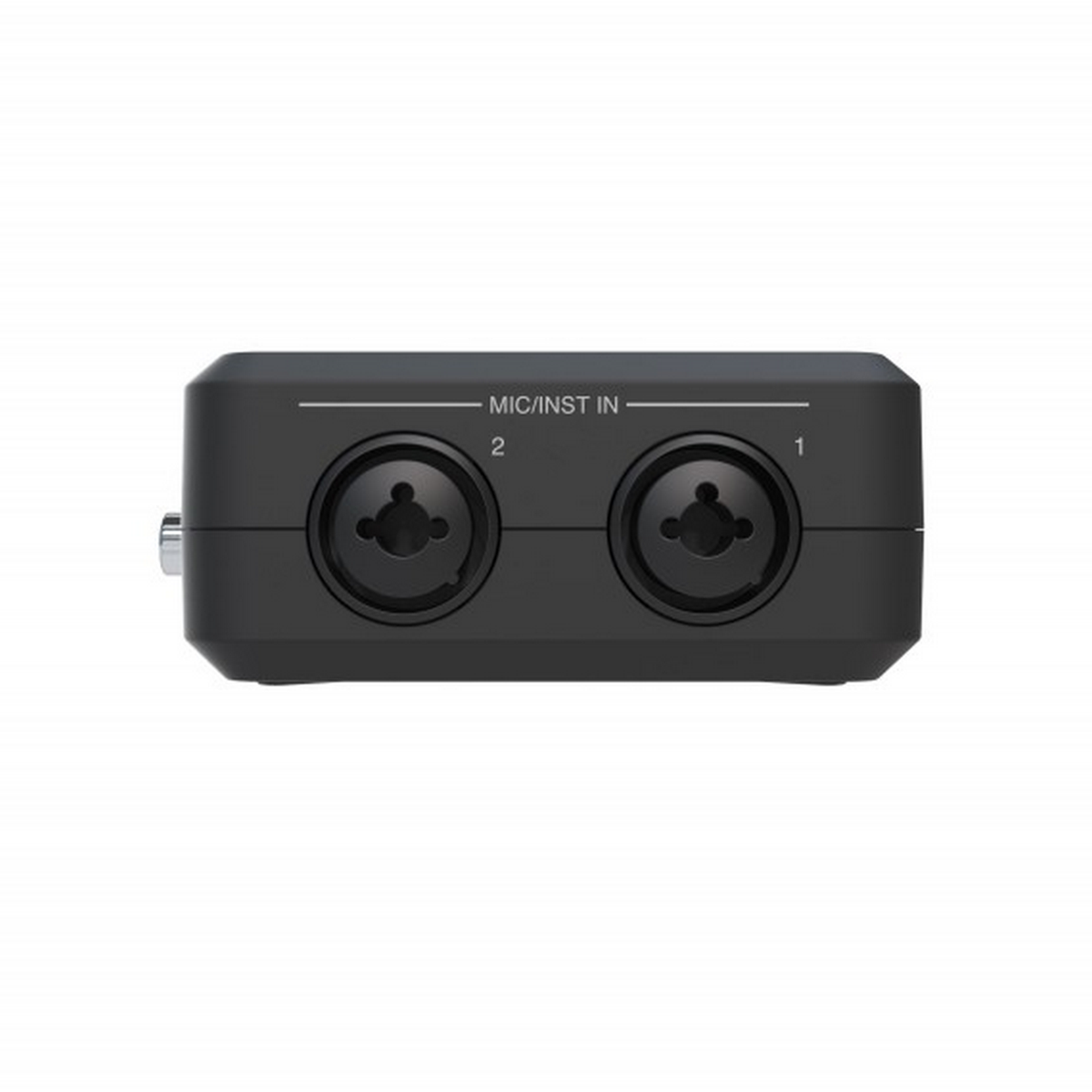

Microphone Inputs 1-2

  • 2 x balanced, XLR. Pin 2: hot / Pin 3: cold / Pin 1: ground
  • Input impedance: 1 kOhms
  • Input level, min gain: 0 dBFS is obtained with a -1.5 dBu signal at the XLR input
  • Input level, max gain: 0 dBFS is obtained with a -55 dBu signal at the XLR input
  • Frequency response: from 10 Hz to 46 kHz within 3 dB (96 kHz sample rate), min gain
  • Dynamic Range: 103 dB(A), min gain
  • Phantom power: 48V / -4V

Built-in microphone

  • Type: MEMS
  • Polar pattern: omnidirectional
  • Frequency response: from 30 Hz to 20 kHz
  • Max SPL: 110 dBSPL
  • Sensitivity: -41.5 dB (1 kHz, 94dB SPL)

Instrument Inputs 1-2

  • 2 x unbalanced, Hi-Z, TS 1/4” Jack, Tip: signal / Shield: ground
  • Input impedance: 1 MOhms
  • Input level, min gain: 0 dBFS is obtained with a +10 dBu signal at the TS input
  • Input level, max gain: 0 dBFS is obtained with a -43 dBu signal at the TS input
  • Frequency response: from 7 Hz to 46 kHz within 3 dB (96 kHz sample rate), min gain
  • Dynamic range: 103 dB(A), min gain

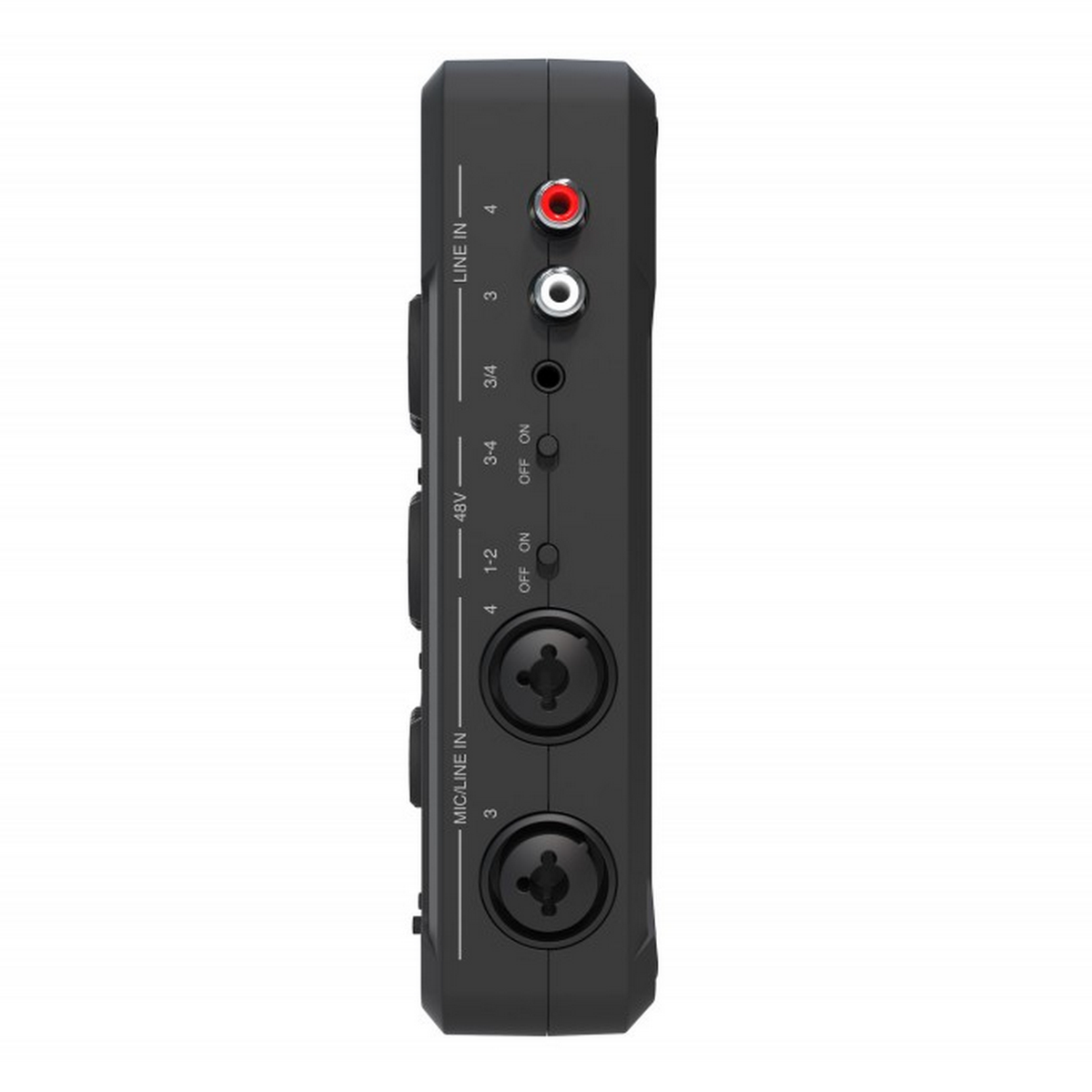

Microphone Inputs 3-4

  • 2 x balanced, XLR. Pin 2: hot / Pin 3: cold / Pin 1: ground
  • Input impedance: 1 kOhms
  • Input level, min gain: 0 dBFS is obtained with a -3 dBu signal at the XLR input
  • Input level, max gain: 0 dBFS is obtained with a -54 dBu signal at the XLR input
  • Frequency response: from 10 Hz to 46 kHz within 3 dB (96 kHz sample rate), min gain
  • Dynamic range: 101 dB(A), min gain
  • Phantom power: 48V / -4V

Line Inputs 3-4 (balanced)

  • 2 x balanced, XLR. Pin 2: hot / Pin 3: cold / Pin 1: ground
  • Input impedance: 1 kOhms
  • Input level, min gain: 0 dBFS is obtained with a -3 dBu signal at the XLR input
  • Input level, max gain: 0 dBFS is obtained with a -54 dBu signal at the XLR input
  • Frequency response: from 10 Hz to 46 kHz within 3 dB (96 kHz sample rate), min gain
  • Dynamic range: 101 dB(A), min gain
  • Phantom power: 48V / -4V

Line Inputs 3-4 (unbalanced)

  • Unbalanced, TRS 3.5 mm stereo Jack and RCA
  • Input impedance: 2.1 kOhms
  • Nominal input level: -3.5 dBV (-10 dBV with 6.5 dB of headroom)
  • Frequency response: from 16 Hz to 46 kHz within 3 dB (96 kHz sample rate)
  • Dynamic range: 93 dB(A)

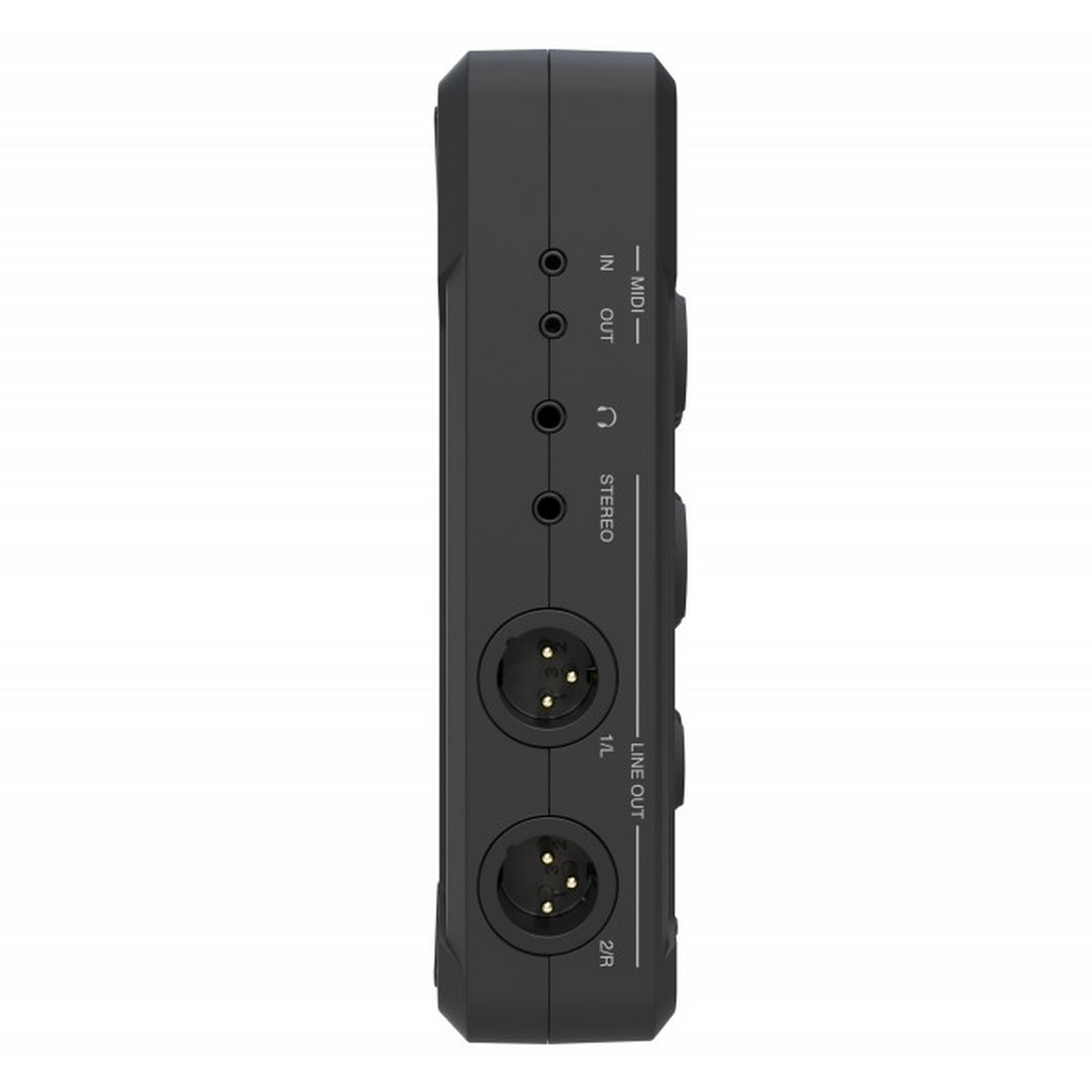

Line Outputs (balanced)

  • 2 x balanced, 3-pin XLR, Pin 2: hot / Pin 3: cold / Pin 1: ground
  • Floating balanced outputs with automatic level compensation when working in unbalanced mode
  • Output impedance: 150 Ohms balanced
  • Output level: 0 dBFS corresponds to +12 dBu
  • Frequency response: from 5 Hz to 44 kHz within 3 dB (96 kHz sample rate)
  • Dynamic range: 100 dB(A)
  • Channels crosstalk: 88 dB(A)

Stereo Output (unbalanced)

  • Unbalanced, TRS 3.5 mm stereo Jack
  • Output impedance: 150 Ohms balanced
  • Output level: 0 dBFS corresponds to +12 dBu
  • Frequency response: from 5 Hz to 44 kHz within 3 dB (96 kHz sample rate)
  • Dynamic range: 100 dB(A)
  • Channels crosstalk: 88 dB(A)

Headphones Output

  • TRS 3.5 mm stereo Jack
  • Output impedance: 22 Ohm
  • Output level: 26 mW/channel (32 Ohm load)
  • Frequency response: from 15 Hz to 44 kHz within 3 dB (96 kHz sample rate)
  • Dynamic range: 100 dB(A)

Common

  • AD and DA Resolution: 24-bit
  • Sampling Rate: 44.1 kHz, 48 kHz, 88.2 kHz and 96 kHz
  • Power: USB bus power, battery power (4 x AA), DC power supply (9VDC) or external USB power supply (5VDC, 1A min)
  • Device Connection: Mini-DIN
  • Size: 166 x 92 x 43 mm(6.54 x 3.62 x 1.69″)
  • Weight: 325 g / 0.72 lb (batteries excluded)

Battery Life

  • Recording Max load: 1 hours, 30 minutes (Alkaline); 3 hours (NiMH rechargeable)
  • Playback Min load: 2 hours, 30 minutes (Alkaline); 4 hours (NiMH rechargeable)
  • Max load condition: four inputs connected each to a 1.6mA phantom powered load, input gains set to maximum, 32 Ohm headphones connected.
  • Min load condition: music playing, phantom power OFF, 32 Ohm headphones connected.

Dimensions

  • Size: 166 mm / 6.54″ x 92 mm / 3.62″ x 43 mm / 1.69″
  • Weight: 325 g / 0.72 lb (batteries excluded)

IRig Mic XY

  • Type: Electret condenser
  • Polar pattern: Cardioid
  • Capsule size: 0.55”
  • Frequency response: 20 Hz - 20kHz
  • Sensitivity: -39 dB at 1kHz
  • Equivalent noise: 22 dB (A-weighted)
  • Max SPL: 145 dB SPL (@1% THD)
  • Connector type: male 3-pin XLR
  • Power requirements: 48V phantom power, <2mA (each)
  • Dimensions (each): 55mm (H) x 19mm (Diam.)
  • Weight (each): 37g
  • *** Included with iRig Pro Quattro I/O Deluxe

Package includes

  • iRig Pro Quattro I/O
  • iRig Pro Quattro I/O interface
  • 1/4" thread adapter
  • Lightning to Mini-DIN connection cable (60cm/23.62")
  • USB-C to Mini-DIN connection cable (60cm/23.62")
  • USB-A to Mini-DIN connection cable (60cm/23.62")
  • 1x 2.5mm TRS male to MIDI female adapter (10cm/3.9")
  • 4 x 1.5V AA Battery

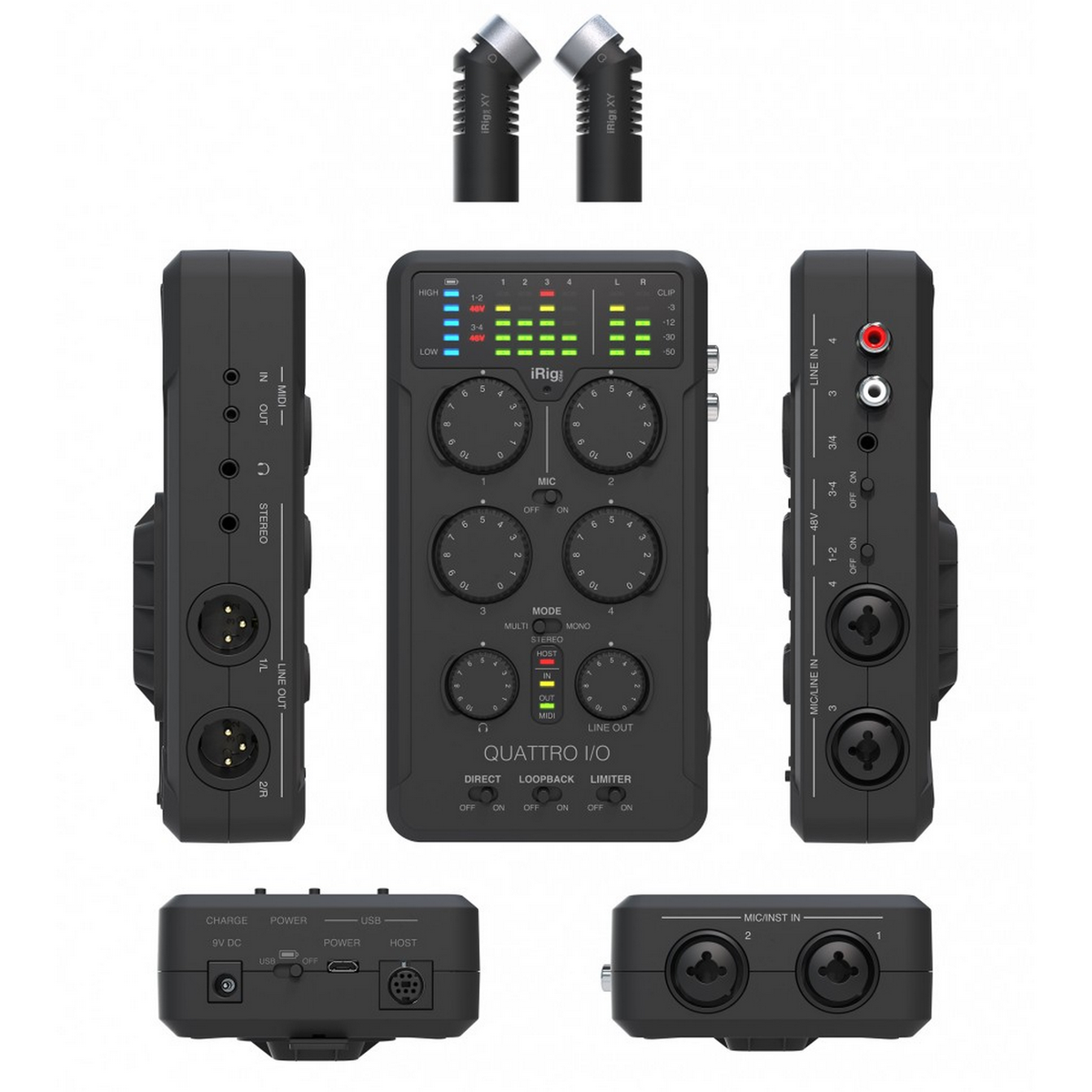

  • iRig Pro Quattro I/O Deluxe
  • iRig Pro Quattro I/O interface
  • 1/4" thread adapter
  • Lightning to Mini-DIN connection cable (60cm/23.62")
  • USB-C to Mini-DIN connection cable (60cm/23.62")
  • USB-A to Mini-DIN connection cable (60cm/23.62")
  • 1x 2.5mm TRS male to MIDI female adapter (10cm/3.9")
  • 4 x 1.5V AA Battery
  • 2 x iRig Mic XY
  • Windshield
  • Power Supply Unit
  • Carrying case

Compatibility

  • Compatible with iPhone 12 Pro Max, iPhone 12 Pro, iPhone 12, iPhone 12 mini, iPhone 11 Pro Max, iPhone 11 Pro, iPhone 11, iPhone XS Max, iPhone XS, iPhone XR, iPhone X, iPhone 8 Plus, iPhone 8, iPhone 7 Plus, iPhone 7, iPhone SE (2nd generation), iPhone SE, iPhone 6s Plus, iPhone 6s, iPhone 6 Plus, iPhone 6, iPhone 5s, iPad Pro 10.5-inch, iPad Pro 12.9-inch (1st and 2nd generation), iPad Pro 9.7-inch, iPad Air (3rd generation), iPad Air 2, iPad Air, iPad mini (5th generation), iPad mini 4, iPad mini 3, iPad mini 2, iPad (5th, 6th, 7th and 8th generation) iPod touch (7th generation), iPod touch (6th generation). iOS 7.0 or later is required.
  • Also compatible with all newer iPhone, iPad and iPod touch models.
  • Mac®: Mac OS X 10.6 or later. One free USB port.
  • Windows®: Windows 10 or later. One free USB port. For low latency, the IK Multimedia's iRig audio driver must be installed. Download the iRig ASIO driver here.
  • Compatible with Android devices running Android 5 or later and with USB digital audio capabilities.

Manufacturer: IK Multimedia
Model: IP-IRIG-QUATTRO-IN
SKU: I709381-N-0-WHXA
UPC: 8025813882034
