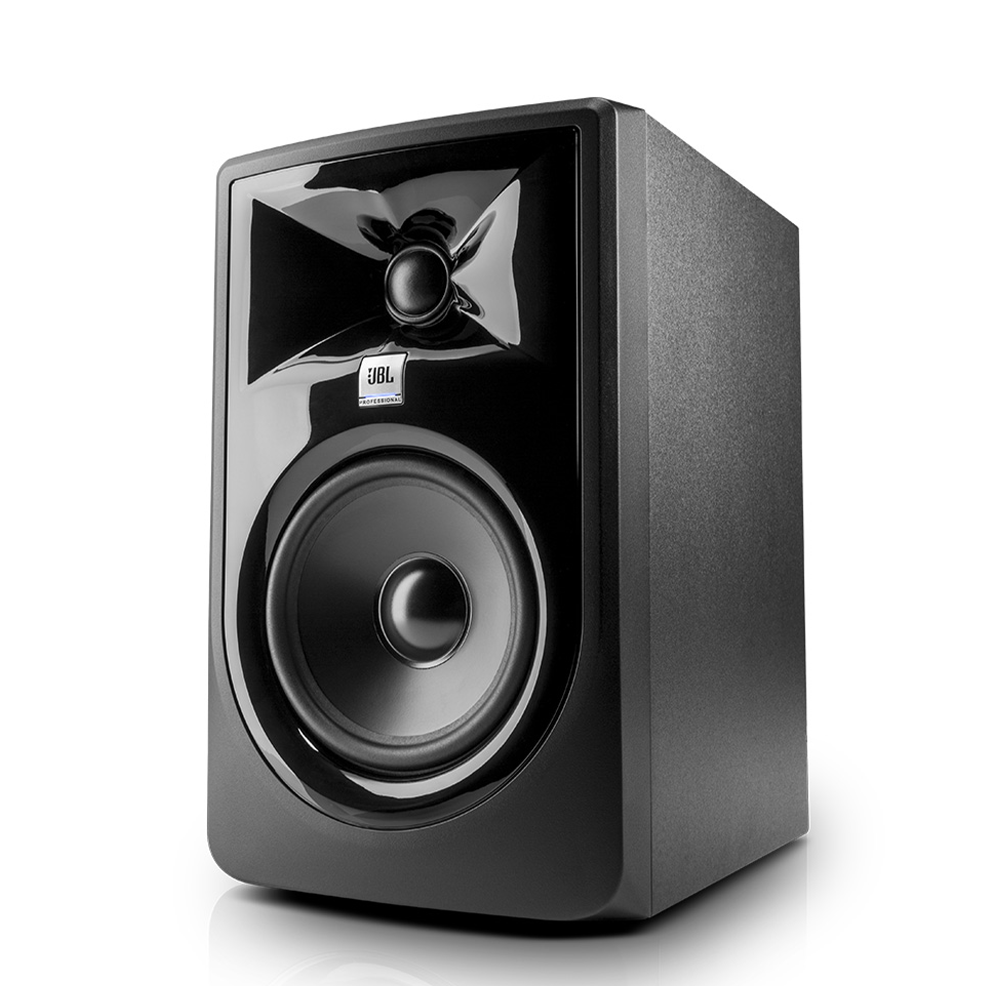

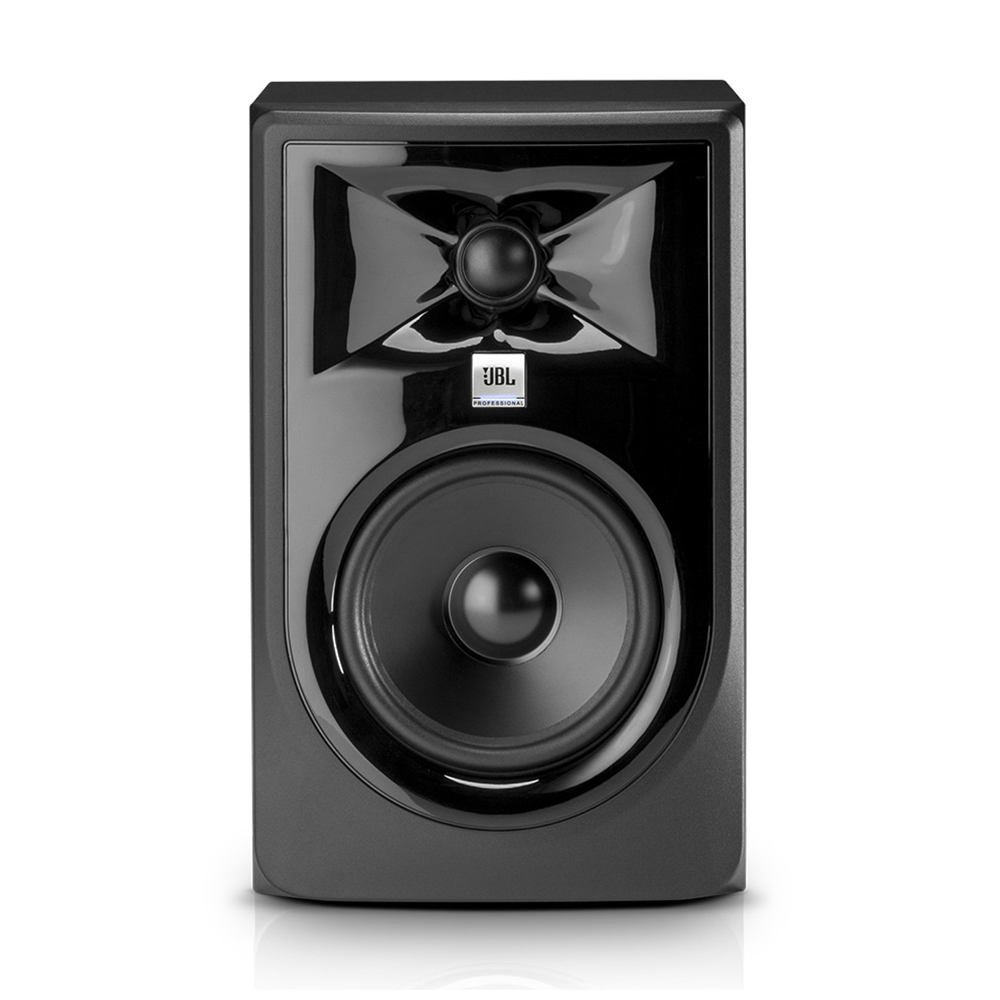

JBL 3 Series 305P MKII 5" Powered Studio Monitor


  • Our Price
  • $129.00
  • Regular price MSRP: $186.25





*IN STOCK - READY TO SHIP


Get Big Performance In A Small Package With JBL 3 Series 305P MKII 5" Powered Two-Way Studio Monitors


The next-generation JBL 305P MkII powered studio monitor makes legendary JBL performance available to every studio. With the revolutionary JBL Image Control Waveguide and refined transducers, JBL 305P MkII offers stunning detail, precise imaging, a wide sweet spot and impressive dynamic range that enhances the critical listening capabilities of any modern workspace. Featuring patented technologies derived from the JBL 7 Series and M2 Master Reference Monitors and, sporting a sleek, modern design, JBL 305P MkII delivers outstanding performance and an enjoyable mix experience at an accessible price.


Specifications

  • LF Driver Size: 127 mm (5")
  • HF Driver Size: 25 mm (1")
  • HF Driver Type: Soft dome
  • Crossover: 1725Hz 4th order acoustic Linkwitz-Riley
  • Power Configuration: Bi-amplified
  • HF Driver Power Amp: 41 W Class D
  • LF Driver Power Amp: 41 W Class D
  • Frequency Response(+/- 3dB): 49Hz - 20kHz
  • Frequency Range(-10 dB): 43Hz - 20kHz
  • Low Frequency Extension: 43Hz (-10dB)
  • Maximum Continuous SPL: 94dB
  • Maximum Peak SPL: 108dB
  • Maximum Peak Input Level: +6dBV / +20.3dBu (-10dBV / +4dBu)
  • System Distortion Criteria: <10% THD at maximum output with full compressor / limiter engagement
  • Electrical Distortion Criteria: 0.2% THD @ 1kHz / 2.83VRMS output; <1% THD @ 1kHz, full rated output
  • Signal to Noise Ratio: 75dBA (A-Weighted), 70dBr (unweighted), relative to 2.83VRMS output
  • Coverage: 120 x 90 degrees
  • HF Trim Control: -2dB, 0dB, +2dB
  • Boundary EQ: LF Shelf @ 50Hz
  • AC Input Voltage: 100 - 240VAC(+/- 10%), 50/60 Hz

Dimensions

  • Height: 298 mm (11.7")
  • Width: 185 mm (7.3")
  • Depth: 231 mm (9.1")
  • Net Weight: 4.73 kg (10.43 lbs)

Design

  • Enclosure Type: Ported
  • Enclosure Construction: 15mm MDF
  • Enclosure Finish: Matte black PVC
  • Baffle Construction: Injection-molded structural ABS

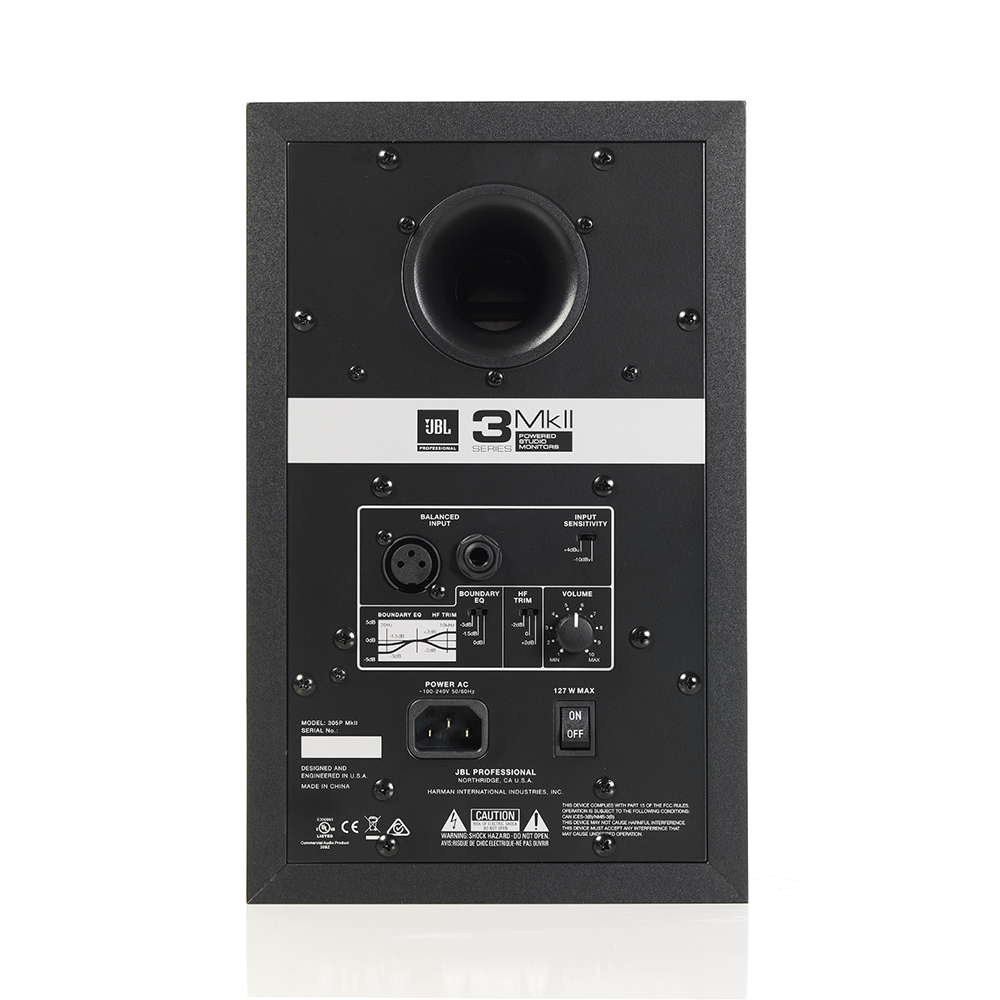

Audio Input

  • Analog Input Types: 1 x XLR female, 1 x TRS female, balanced
  • Input Sensitivity: 92dB / 1m (-10dBV Input)


Manufacturer: JBL Professional
Model: 305PMKII
Warranty: See manufacturer website for details
SKU: I503786-45
Listing ID: NA89207
