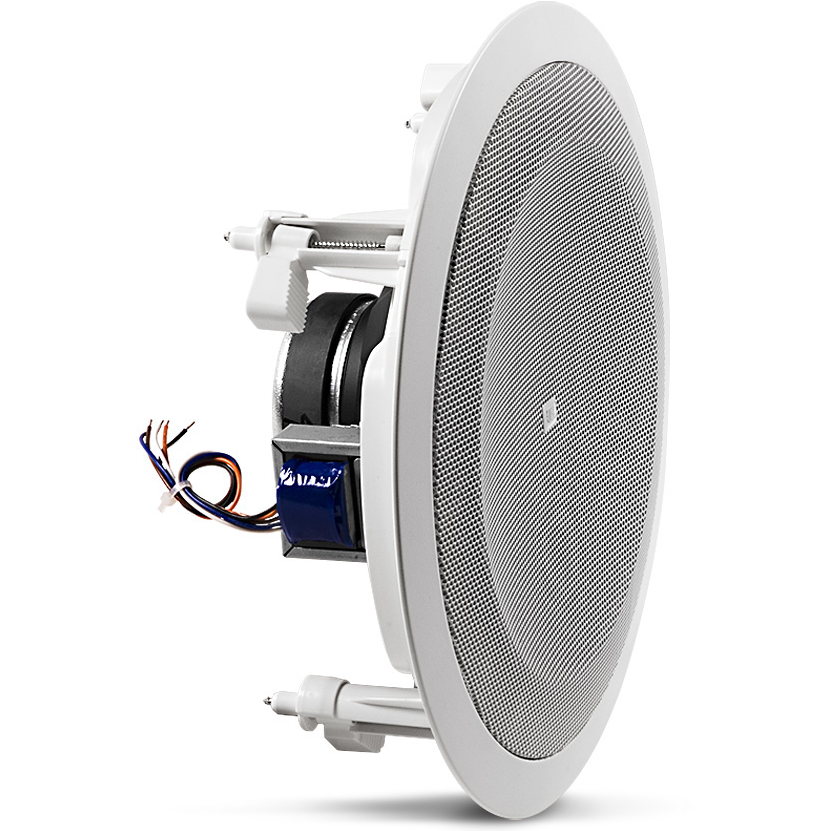

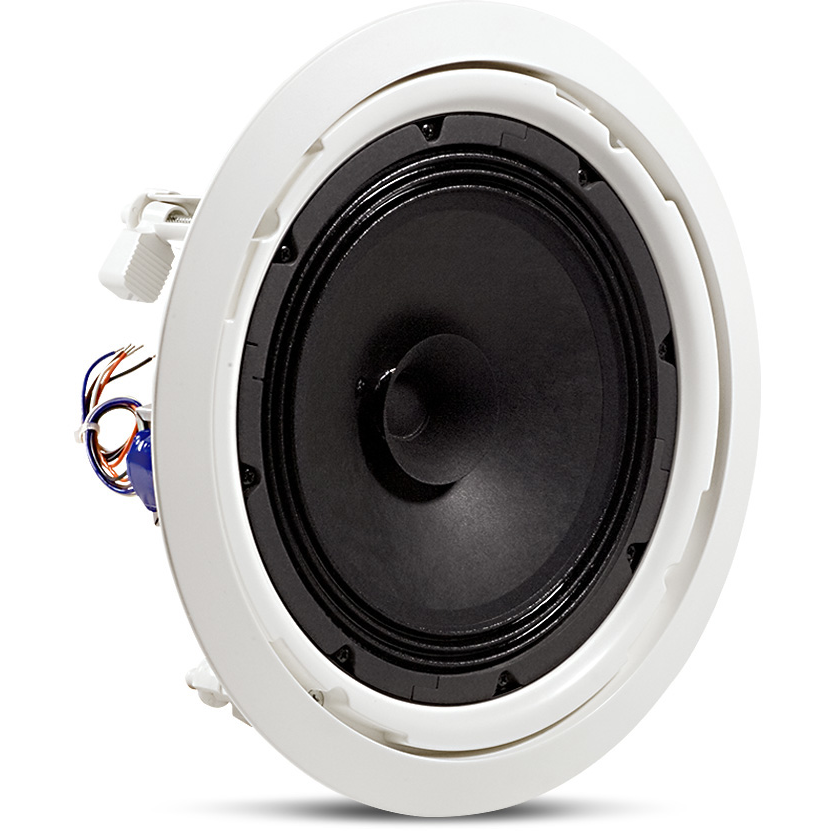

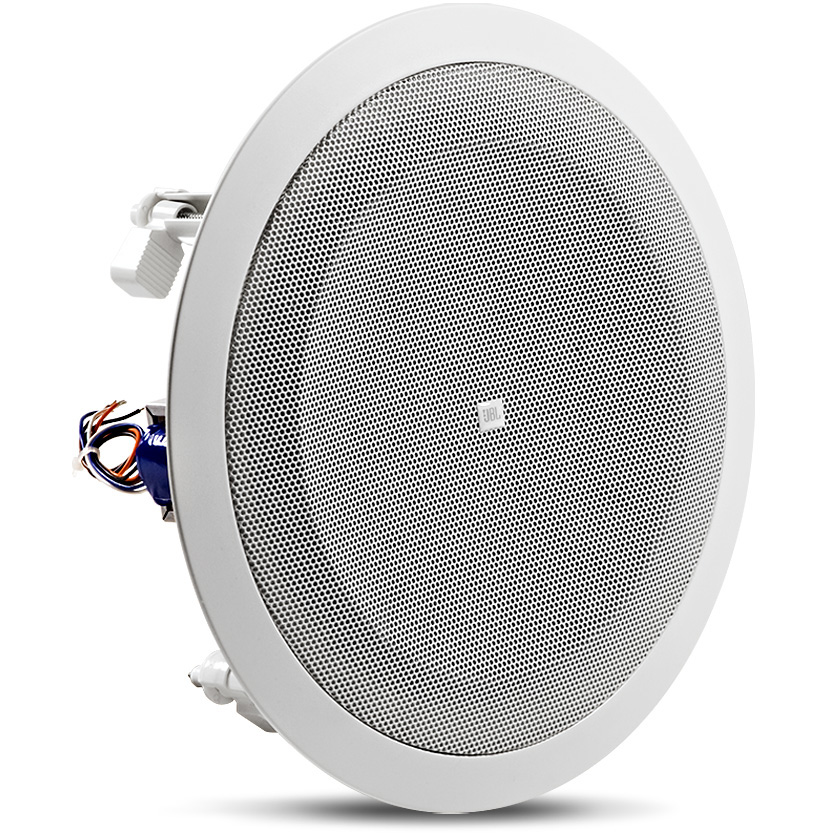

JBL 8128 8-Inch Full-Range In-Ceiling Loudspeaker Pack

Get Quality Sound with the JBL 8128 8-Inch Full-Range In-Ceiling Loudspeaker Pack

The 8128 is an 8-inch full-range loudspeaker for commercial applications. The 8128 features high-fidelity performance in an easy to install package. The system’s high sensitivity drivers deliver maximum sound levels using minimal amplifier power. With its contemporary grill design, 70V/100V taps and an open-back design, the 8100 series brings elegance and performance to basic commercial sound systems, or any application not requiring a back can for installation.

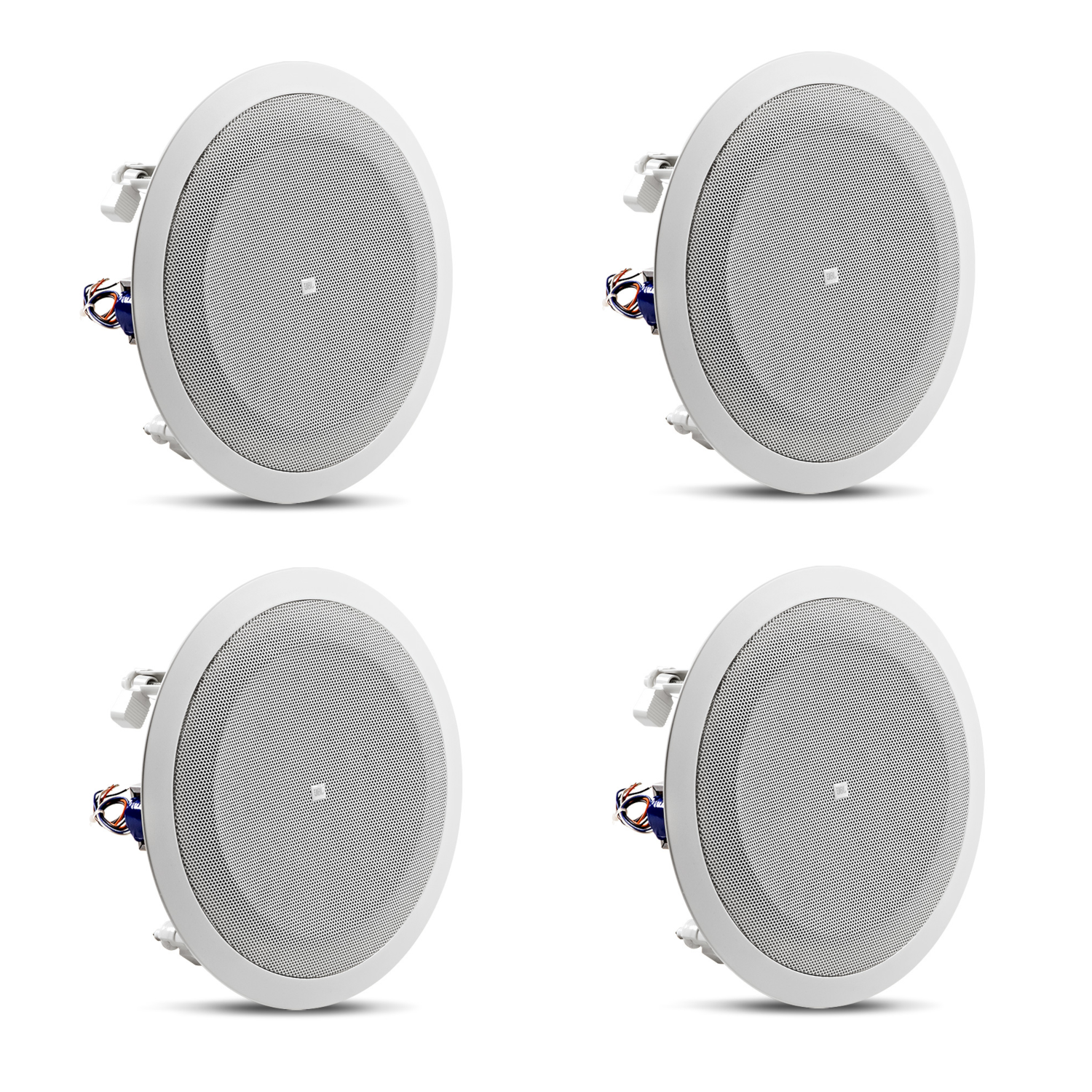

• Includes four JBL 8128 speakers
• Clear, high-fidelity performance
• Dog-ears for easy Blind Mount Installations
• High Sensitivity (97 db, 1W, 1m) for Maximum Power Efficiency
• 6-watt transformer for use of 70V / 100V distributed lines

SPECIFICATIONS

• Drivers: 8 in (200 mm), Full-range Driver
• Frequency Range: 50 Hz – 16 kHz
• Sensitivity: 97 dB (1 kHz – 8 kHz)
• Coverage Angle: 90° conical
• Transformer Taps: 6W, 3W, 1.5W (0.75W at 70V only)
• Input Connectors: Bare wires
• Dimensions (Diameter x Depth): 11.3 in (287 mm) x 4.1in (105 mm)
• Weight: 3lb (1.4 kg)
• Included Accessories: Sculpted Grille
• Optional Accessories: MTC-8124C C-ring, MTC-Rail tile rails
• Power Rating: See transformer taps
• Maximum SPL (1m): 105 dB (top 70V/100V tap)
• Color: White
• Backcan: No
• Baffle/Rim: Plastic
• Ceiling Cutout Size: 260 mm diameter (10.1 in)
• Plenum Usage: Not intended for use in return air plenums
