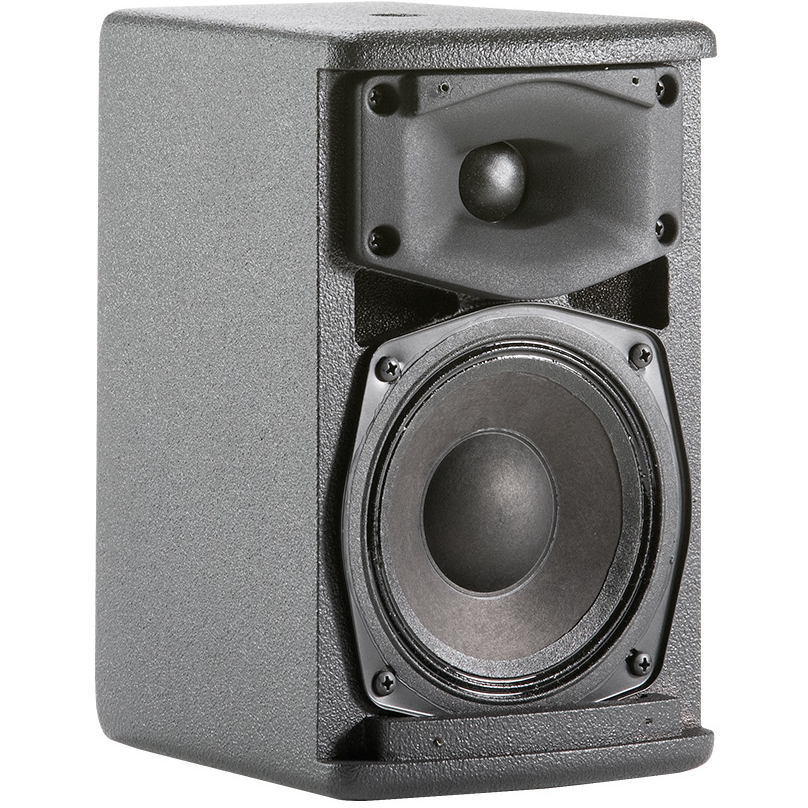

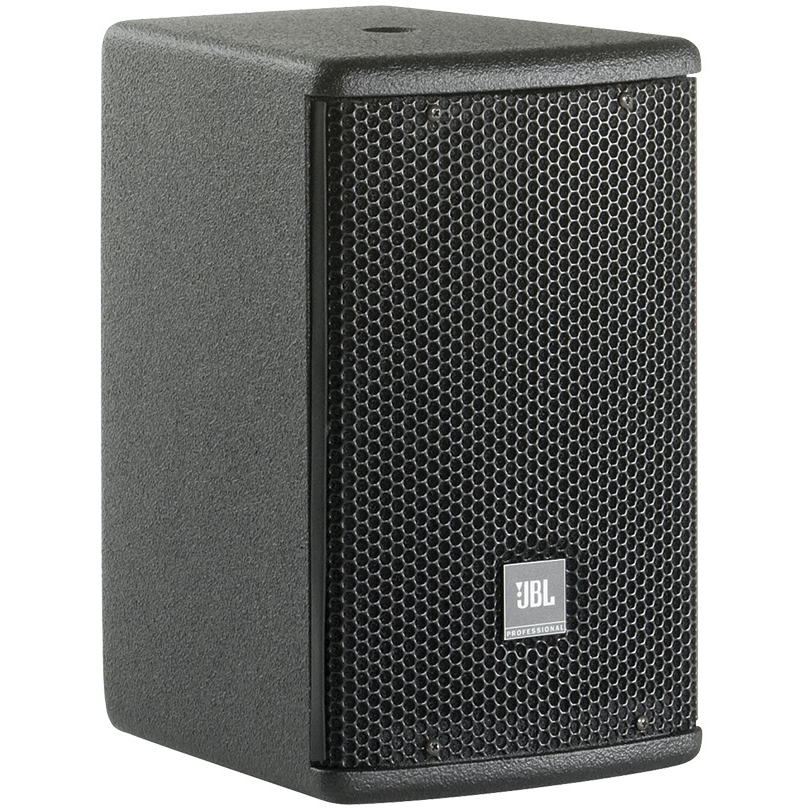

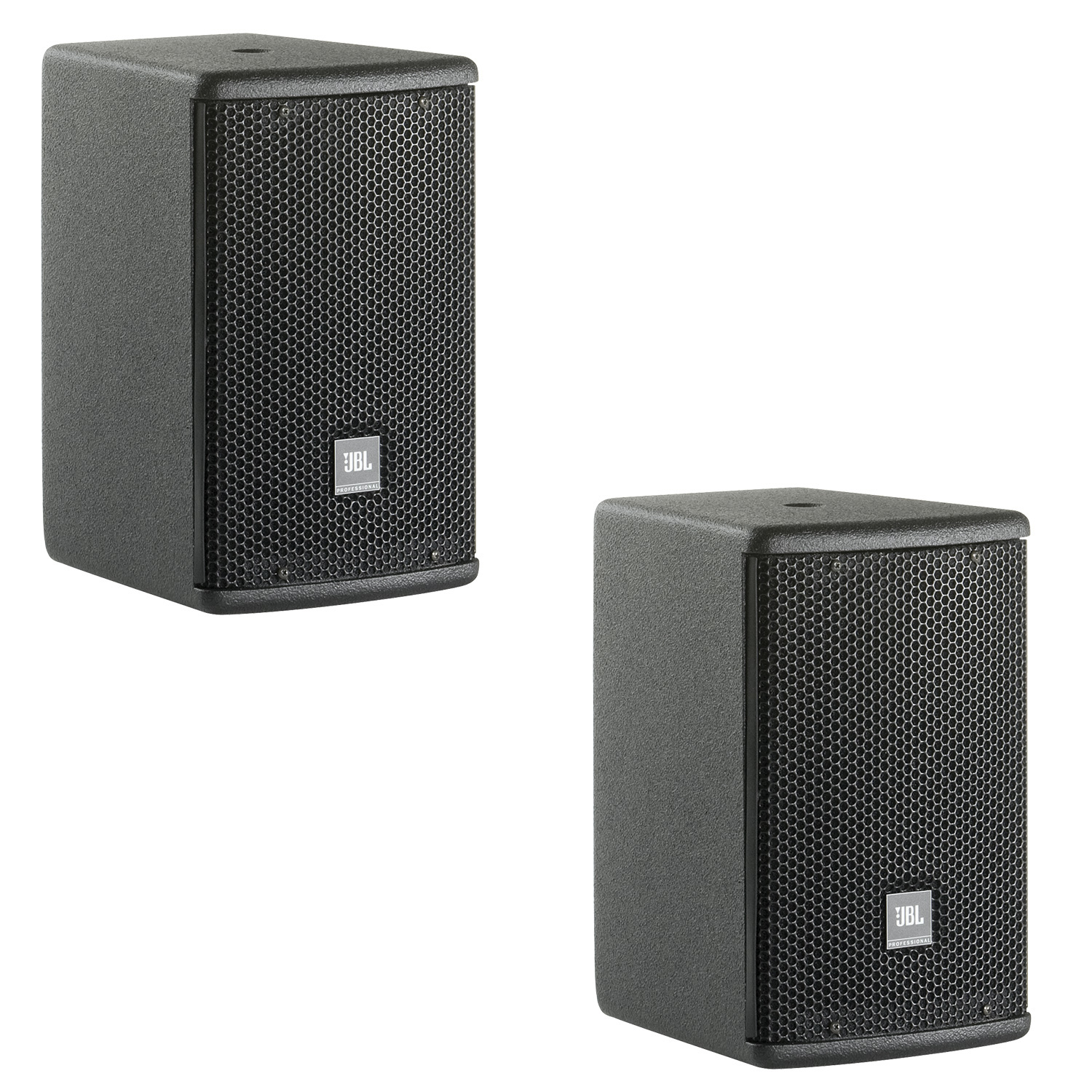

JBL AC15 Ultra Compact 2 Way Loudspeaker


  • Our Price
  • Regular price $812.00

*IN STOCK - READY TO SHIP





Get Loud Sound In A Small Package With The JBL AC15 Ultra Compact 2 Way Loudspeaker

High output, 2-way loudspeaker systems combining flexibility with high fidelity


SPECIFICATIONS

  • Frequency Response (-10dB): 80 Hz -20 kHz
  • Frequency Response (±3 dB): 90 Hz -18 kHz
  • System Power Rating: 225 W (AES rated), 150 W / 300 W / 600 W (Continuous/Program/Peak) (IEC rated)
  • Impedance: 16 ohms
  • Coverage Pattern: 90° x 90°
  • Dimensions (H x W x D): 241.3 x 150.3 x 177.8mm (9.5 x 5.9 x 7.0in)
  • Net Weight (each): 4.7 kg (10.5 lb)
  • Crossover Modes: Passive
  • Maximum SPL (1m): 108 dB
  • System Sensitivity (1w @ 1m): 86 dB SPL
  • Nominal Section Impedances: 16 ohms
  • LF Driver: 1 x JBL 225J, 135 mm (5.25 in) SFG™ driver with 38 mm (1.5 in) edge wound voice coil
  • Nominal LF Driver Impedance: 16 Ohms
  • HF Driver: 1 x JBL 201J, 25 mm (1 in) voice coil dome tweeter
  • Enclosure: 12 mm exterior grade multi-ply hardwood plywood
  • Suspension Attachment: 4 x M8 points; 1 top, 1 bottom, 2 rear. 2 x M6 bottom for OmniMount® 20.5 or MultiMount® MM-008-BT
  • Environmental: Mil-Std 810; IPx3 per IEC529.

Manufacturer: JBL Professional
Model: AC15
SKU: I241999-N-1-WHXE
UPC: 691991010569
