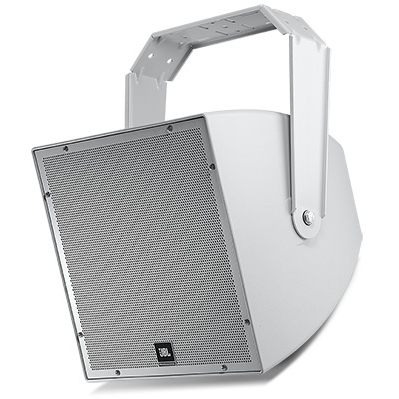

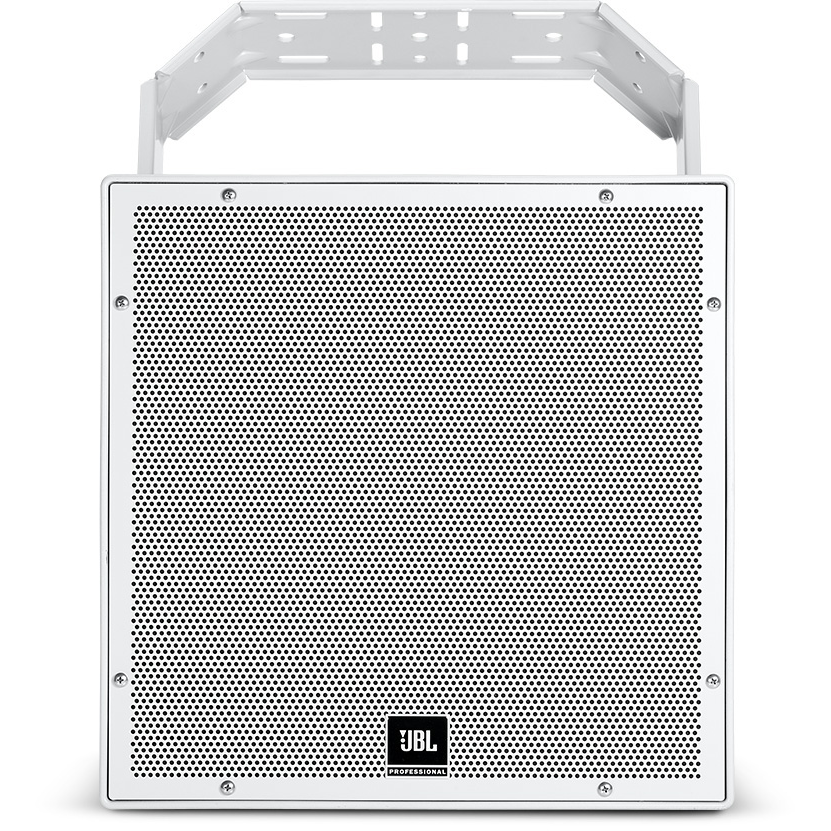

JBL AWC129 All-Weather Compact 2-Way Coaxial Loudspeaker With 12" LF

  • Our Price
  • $799.00
  • Regular price MSRP: $1,002.00


Enjoy A Compact, Weather Resistant Outdoor JBL AWC129 Loudspeaker

The JBL AWC129 is a compact, coaxial-driver, 2-way, highly weather-resistant full-range loudspeaker system which is ideal for speech and music in a wide variety of applications, including sports facilities, racetracks, stadiums, fairgrounds, rodeos, skating rinks, themed entertainment venues, cruise ships, water parks, outdoor background music/paging systems, swimming pools, and a wide variety of other outdoor or indoor venue types.


  • Frequency Range (-10 dB) 55 Hz – 20 kHz
  • Frequency Response (±3 dB) 80 Hz – 20 kHz
  • Coverage Pattern 90° x 90°
  • Directivity Factor (Q) 10.1 (1 k – 16 kHz)
  • Directivity Index (DI) 9.5 dB (1k – 16 kHz)
  • Long-Term System Power Rating (IEC) 400 W (1600 W peak), 2 hrs, 250 W (1000 W peak), 100 hrs
  • Sensitivity (2.83V @ 1m) 96 dB (Ave. 80 Hz – 20 kHz)
  • Maximum SPL Direct 8Ω: 122 dB (peaks of 128 dB) 200 W Tap: 119 dB
  • Crossover Network 1.5 kHz, 3rd order (18 dB/oct) high-pass plus conjugate to HF, 2nd order low-pass to LF
  • Nominal Impedance 8 ohms
  • Transformer Taps 70V: 200W, 100W, 50W, 25W, 100V: 200W, 100W, 50W
  • Low Frequency Driver Kevlar-reinforced cone with weather treatment, 75 mm (3 in) voice coil.
  • High Frequency Driver 25 mm (1 in) diaphragm and voice coil diameter, high temperature polymer diaphragm, patented design, fluid-cooling.
  • HF Driver Protection Minimum audibility SonicGuard™ HF overload protection
  • Enclosure ABS with Glass enclosure, heavily braced
  • Attachment Two M10 (fine-thread) points for included U-bracket. M6 secondary safety attachment point on back panel.
  • Grille Corrosion-resistant zinc-rich extra-thick powder coated steel grille, 3- layer assembly with foam and woven poly mesh backing.
  • Input Connection CE-compliant covered barrier strip terminals. Barrier terminals accept up to 9 mm outside 4 mm inside open-lug (#6, #8 or #10) plus bare wire up to 2.5 mm2 (12 AWG) wire or spade lugs. Terminal compartment cover equipped with gland nut that forms water-tight seal with round-jacketed cables with outside diameters between 4.0 mm (0.16") and 9.0 mm (0.36")
  • Environmental IP56 per IEC529, with a minimum 5° downward aiming angle. Exceeds Mil Spec 810 for humidity, salt spray, temperature and UV, and ASTM G85 for salt spray (168 hrs).
  • Colors Available in gray (similar to Pantone 420C) and black (-BK)
  • Included Accessories U-bracket, matches loudspeaker color (gray or black), zinc-rich extrathick powder coated, steel.

Manufacturer: JBL Professional
Model: AWC129
Warranty: See manufacturer website for details
SKU: I298406-N-4-B
UPC: 050036904193
