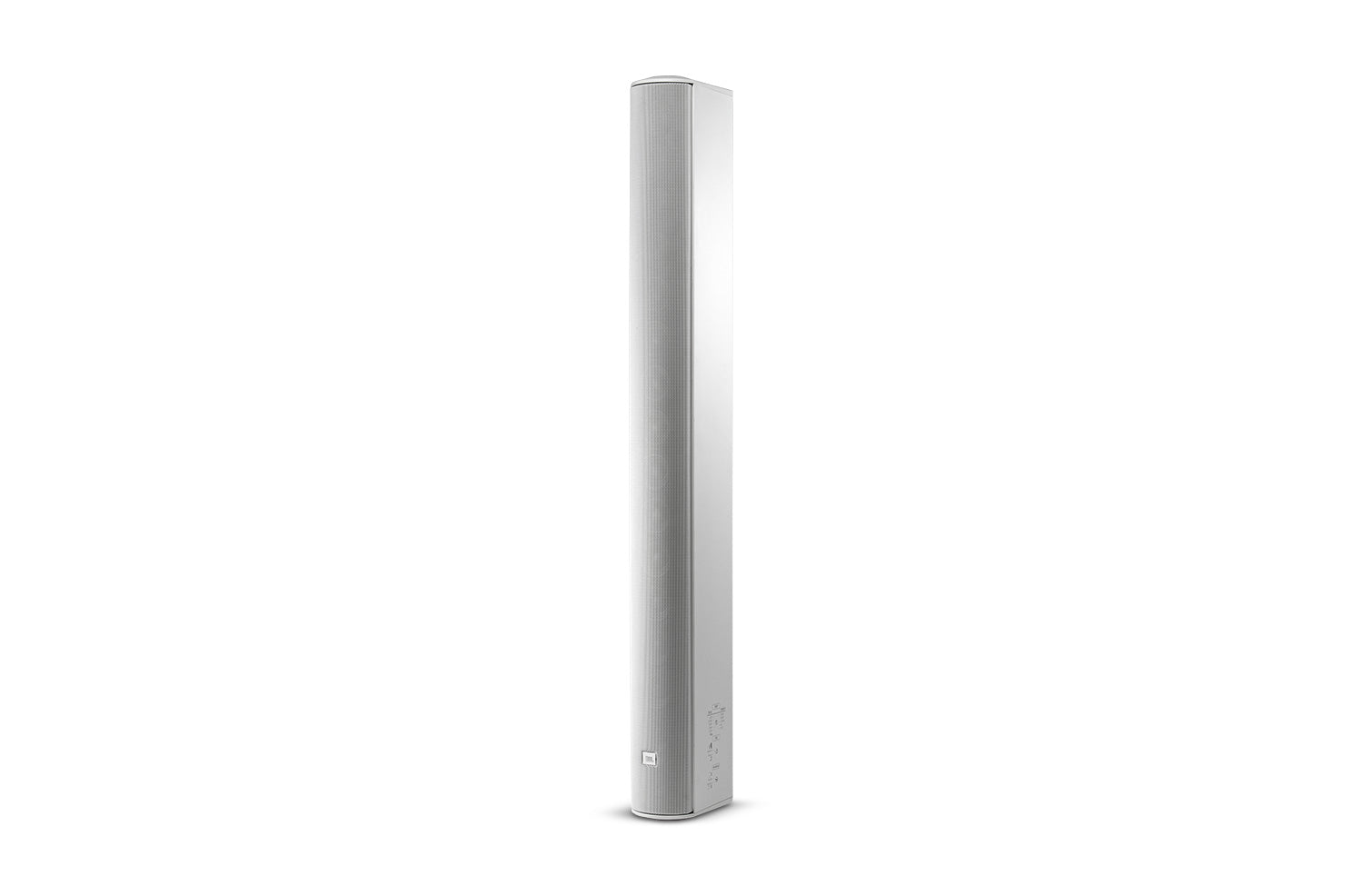

Get superior, consistent vertical coverage with a JBL CBT 100LA-1-WH
The JBL CBT 100LA-1-WH, with Constant Beamwidth Technology™, represents a breakthrough in pattern control consistency, utilizing complex analog delay beam-forming and amplitude tapering to accomplish superior, consistent vertical coverage without the narrow vertical beaming and out-of-coverage lobing that are typical of straight form-factor column speakers.

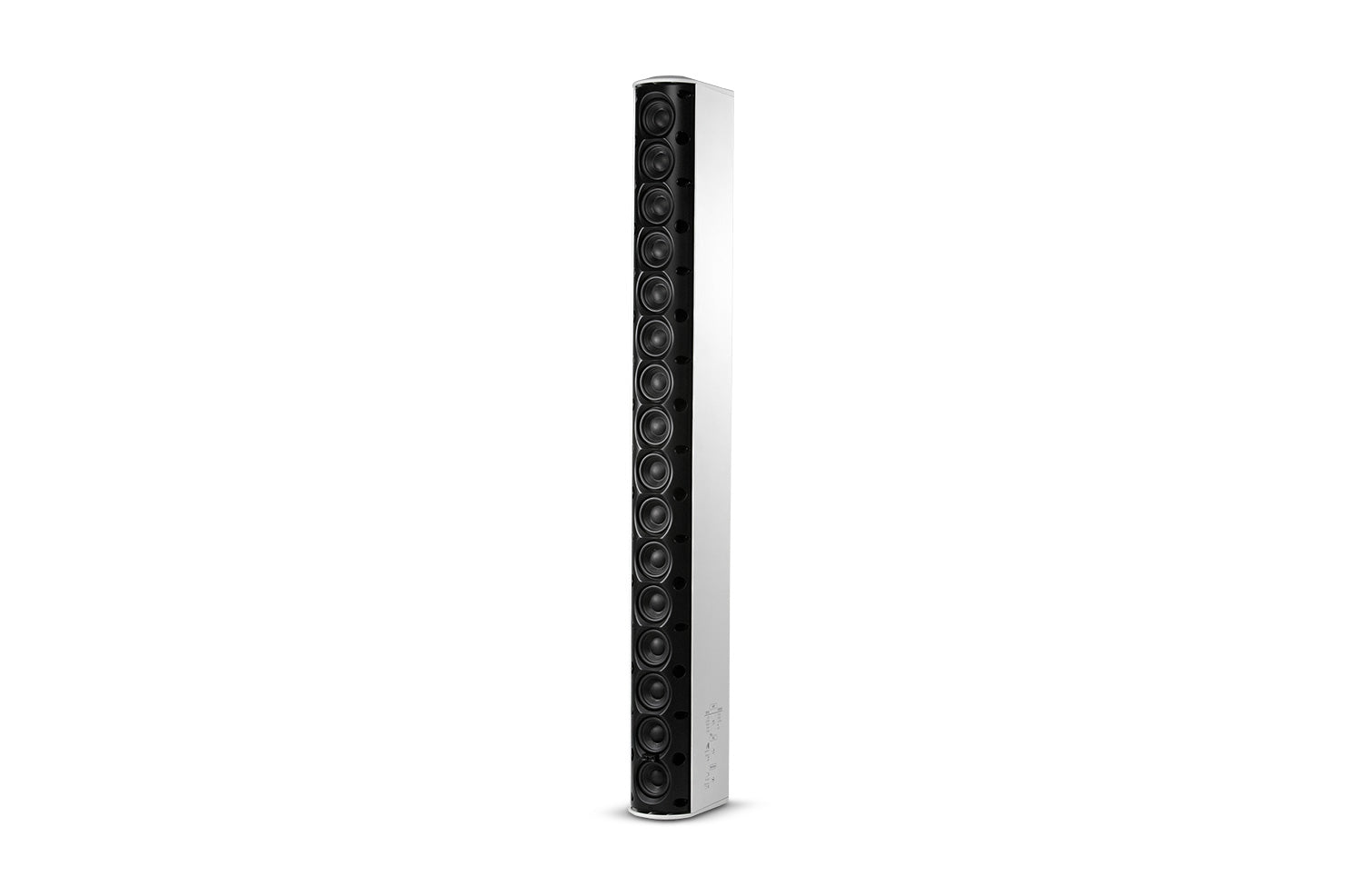

- Components Sixteen 50 mm (2 in) Full-Range
- Frequency Range (-10 dB) 80 Hz – 20 kHz
- Vertical Coverage Vertical Narrow Mode: 15° (2 kHz - 16 kHz) (±10°); Broad Mode: 40° (1 kHz - 16 kHz) (±10°); Horizontal 150° (ave, 1 kHz – 4 kHz, ±20°)
- Sensitivity (2.83V@ 1m) Narrow: (speech mode) 96 dB (2 kHz - 14 kHz ); (music mode) 93 dB (300 Hz - 18 kHz); Broad: (speech mode) 93 dB (2 kHz - 14 kHz); (music mode) 90 dB (300 Hz - 18 kHz)
- Nominal Impedance 8 ohms (in Thru mode)
- Power Capacity (8 ohm setting) 325 W (1300W peak), 2 hrs; 200 W (800W peak), 100 hrs
- Max SPL Narrow: (speech mode) 121 dB cont ave (127 peak); (music mode) 118 dB cont ave (124 peak); Broad: (speech mode) 118 dB cont ave (124 peak); (music mode) 115 dB cont ave (121 peak)
- 70V/100V Transformer Taps 120W, 60W, 30W (15W at 70V only), and 8Ω thru, via switch
- Enclosure Fiberglass reinforced ABS cabinet, painted aluminum grille
- Outdoor Capability IP-54 rated, per IEC529. UV, moisture and salt-spray resistant
- Colors Black or White (-WH)
- Insert Points 18 M6 insert points on back panel.
- Mounting Included swivel (pan)/tilt wall bracket provides continuously variable +/-80 degree left-right swivel aiming (at no up/down tilt -- see Bracket Guide for maximum swivel range at various up/down tilt angles), continuously adjustable ±15 degree tilt, as well as 5 degree fixed increment points. Eighteen threaded mounting points located on back panel conform to industry standard rectangular 108 x 51 mm (4.25 x 2.0 in) pattern for OmniMount® 30.0 and other compatible third-party brackets. Threaded mounting points can be utilized for suspension.
- Included Accessories Swivel (pan) / tilt wall bracket
- Optional Accessories MTC-PC2 terminal panel cover; MTC-CBT-FM1 flush-mount low-profile wall-mount bracket; MTC-CBT-SMB1; Stand-Mount Bracket for use with 35 mm speaker stand
Manufacturer: JBL Professional
Model: CBT 100LA-1-WH
Warranty: See manufacturer website for details
