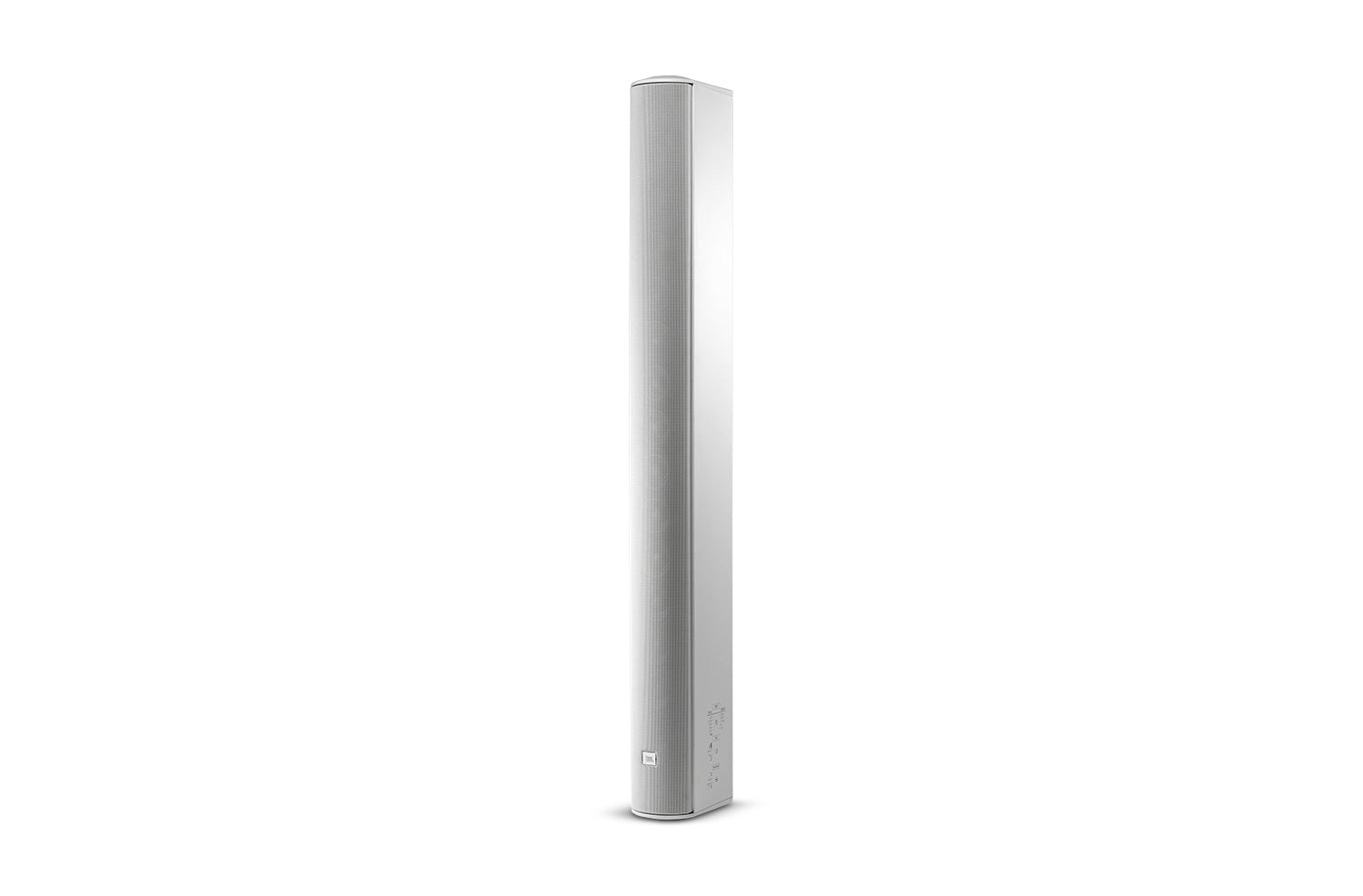

Get superior, consistent vertical coverage with a JBL CBT 100LA-LS
The JBL CBT 100LA-LS, with Constant Beamwidth Technology™, represents a breakthrough in pattern control consistency, utilizing complex analog delay beam-forming and amplitude tapering to accomplish superior, consistent vertical coverage without the narrow vertical beaming and out-of-coverage lobing that are typical of straight form-factor column speakers.

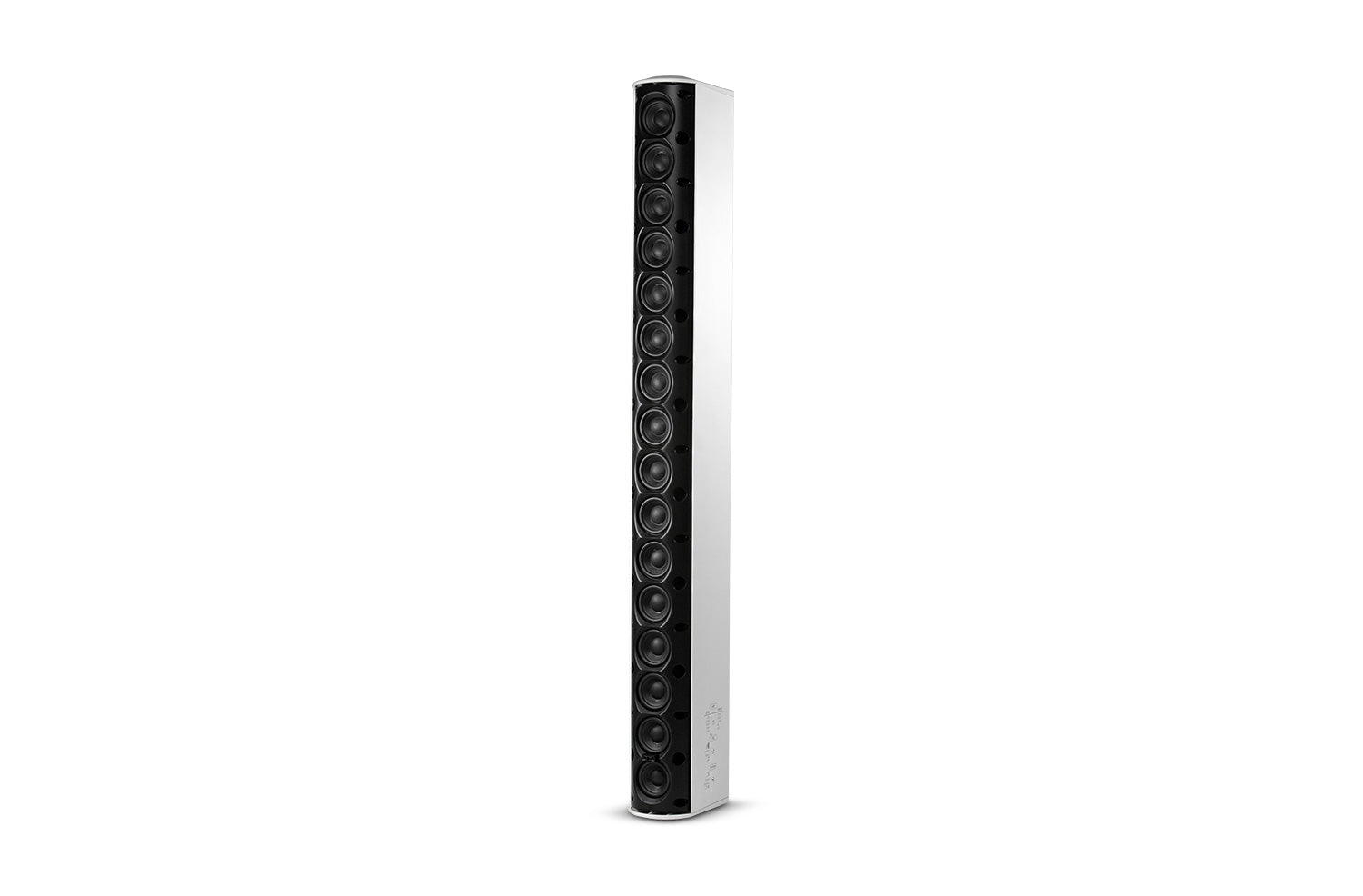

- Components Sixteen 50 mm (2 in) Full-Range
- Frequency Range (-10 dB) 120 Hz – 20 kHz
- Coverage Pattern Vertical: Narrow Mode: 15° (2 kHz - 16 kHz) (±10°); Broad Mode: 40° (1 kHz - 16 kHz) (±10°); Horizontal: 150° (ave, 1 kHz – 4 kHz, ±20°)
- Sensitivity (2.83V@ 1m) Narrow: (speech mode) 96 dB (2 kHz - 14 kHz ); (music mode) 93 dB (300 Hz - 18 kHz) Broad: (speech mode) 93 dB (2 kHz - 14 kHz); (music mode) 90 dB (300 Hz - 18 kHz)
- EN54 Sensitivity (@ 4m) 76 dB (per EN54:24 spectrum and measurement conditions at 4 meters, set at broad/music mode.)
- Nominal Impedance 8 ohms (in Thru mode)
- 15w@70v; 30w@100v Tap = 333Ω30w@70v; 60w@100v Tap = 167Ω 60w@70v; 120w@100v Tap = 83Ω 120w@70v; N/C@100v Tap = 42Ω
- Power Capacity (8 ohm setting) 325 W (1300W peak), 2 hrs; 200 W (800W peak), 100 hrs
- Max SPL Narrow: (speech mode) 121 dB cont ave (127 peak); (music mode) 118 dB cont ave (124 peak) Broad: (speech mode) 118 dB cont ave (124 peak); (music mode) 115 dB cont ave (121 peak)
- EN54 Max SPL (@ 4m) 92 dB (per EN54:24 spectrum and measurement conditions, at 4 meters)
- 70V/100V Transformer Taps 120W, 60W, 30W, (15W at 70V only), and 8 thru, via switch
- Reference Axis Specification and measurement referenced on-axis vertically and horizontally to the center point of the speaker baffle.
- Enclosure Fiberglass reinforced ABS cabinet with UL94-5VB flammability rating, painted aluminum grille
- Outdoor Capability IP-55 rated, per IEC529, when installed with optional MTC-PC2 panel cover. UV, moisture and 200-hr ASTM G85 acid-air/salt-spray
- Colors Black or White (-WH)
- Insert Points 18 M6 insert points on back panel.
- Mounting Included swivel (pan)/tilt wall bracket provides continuously variable +/-80 degree left-right swivel aiming (at no up/down tilt -- see Bracket Guide for maximum swivel range at various up/down tilt angles), continuously adjustable ±15 degree tilt, as well as 5 degree fixed increment points. Eighteen threaded mounting points located on back panel conform to industry standard rectangular 108 x 51 mm (4.25 x 2.0 in) pattern for OmniMount® 30.0 and other compatible third-party brackets. Threaded mounting points can be utilized for suspension.
- Safety Agency EN54-24:2008 certified (Certificate No. 0359-CPR-00432), when installed with MTC-PC2 terminal panel cover.
- Cabinet UL94-5VB flammability rated. In accordance with the requirements of IEC60849/EN60849. Transformer UL registered per UL1876.
- Included Accessories Swivel (pan) / tilt wall bracket; MTC-PC2 terminal panel cover
- Optional Accessories MTC-CBT-FM1 flush-mount low-profile wall-mount bracket; MTC-CBT-SMB1 Stand-Mount Bracket for use with 35 mm speaker stand
Manufacturer: JBL Professional
Model: CBT 100LA-LS-WH
Warranty: See manufacturer website for details
