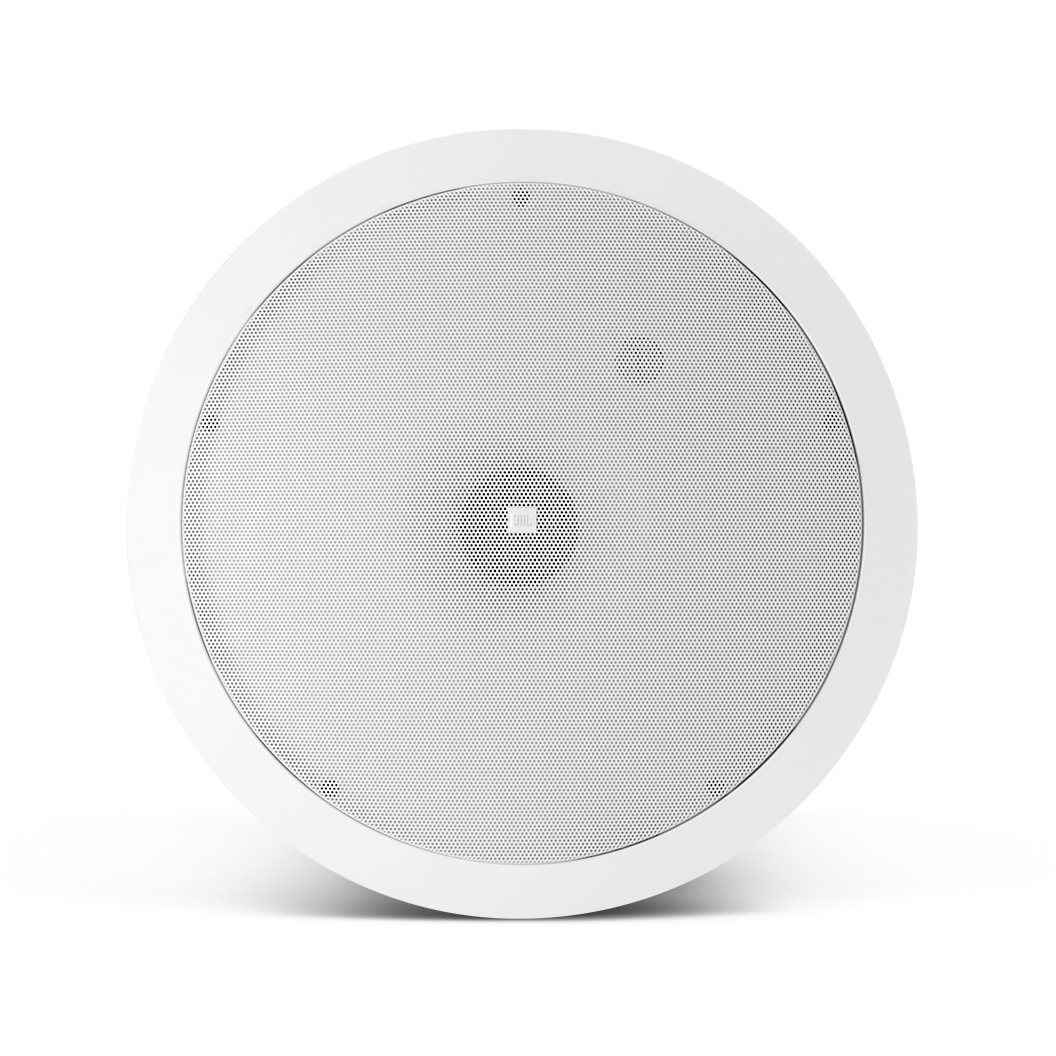

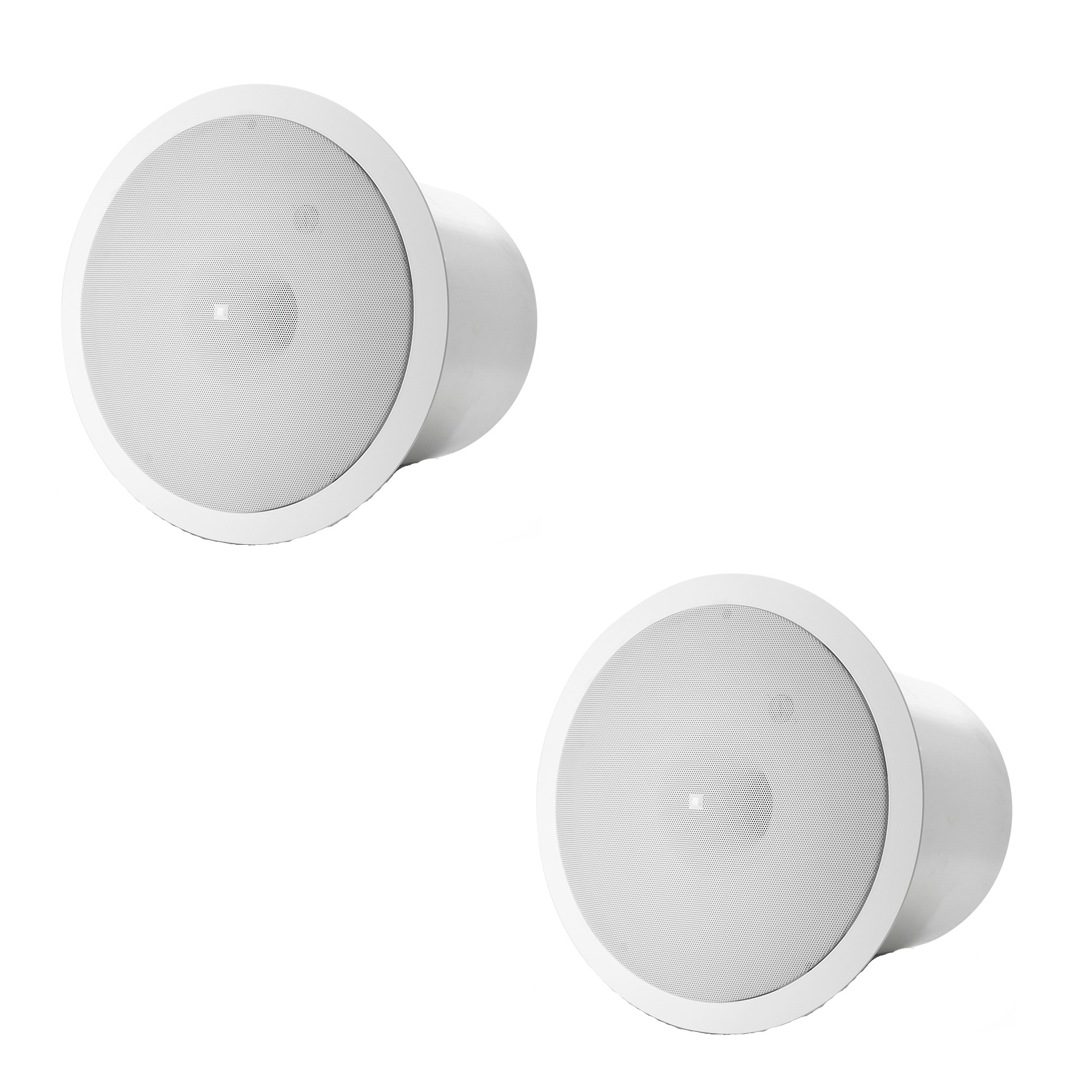

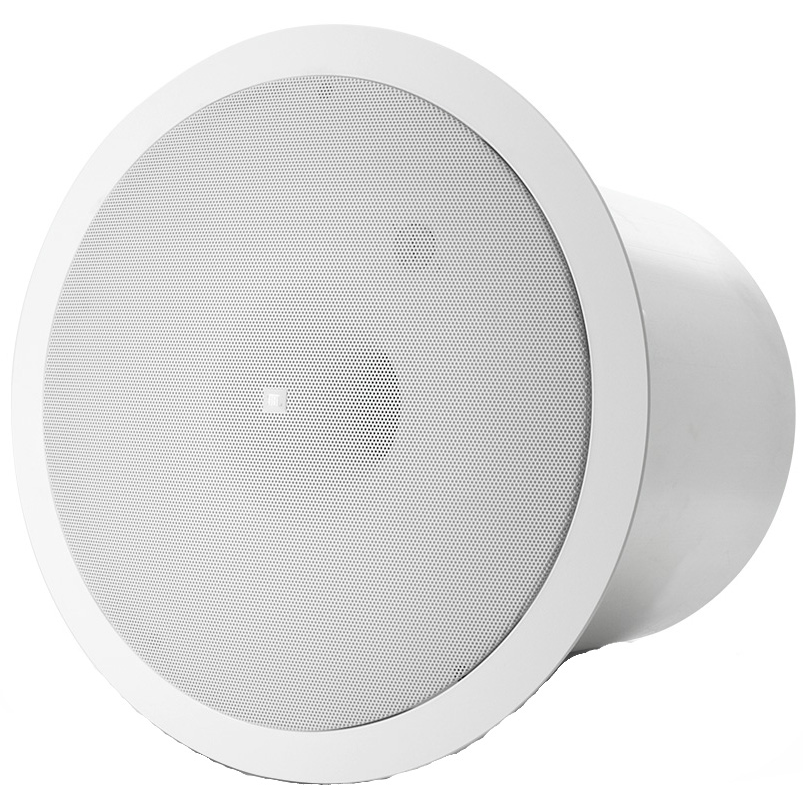

JBL Control 19CS 8-Inch In-Ceiling Subwoofer Pair

Get Quality Sound with the JBL Control 19CS 8-Inch In-Ceiling Subwoofer Pair

The Control 19CS uses advanced proprietary technologies to produce powerful bass from a low profile in-ceiling design.

• Unique Nested Chamber™ design and Linear Dynamic Aperture™ port design delivers high output from a compact enclosure
• JBL’s exclusive SonicGuard overload protection allows higher operational levels and improved system reliability
• Component: Long excursion 200 mm (8 inch) driver
• with grille, backcan and tile rails for fast installation and easy stocking
• Simple installation and wire connection method

SPECIFICATIONS

• Frequency Range: 42 Hz - 200 Hz
• Sensitivity: 95 dB SPL in ceiling near corner, 89 dB in center of ceiling
• Coverage Angle: 180° conical
• Maximum SPL (1m): 109 dB (low-impedance, 115 dB peak, center of ceiling), 115 dB (low-impedance, 121 dB peak near corner)
• Impedance: 8 ohms
• Input Connectors: Removable locking connector with screw-down terminals
• Drivers: 200 mm (8.0 inch) subwoofer
• Color: White
• Backcan: Formed steel (included "blind-mount")
• Baffle/Rim: Medium impact polystyrene, fire rated UL94V-0
• Ceiling Cutout Size: 305 mm (12.0 in) diameter (cardboard cutout template included)
• Backcan: Formed steel (included "blind-mount")
• Baffle/Rim: Medium impact polystyrene, fire rated UL94V-0
• Ceiling Cutout Size: 305 mm (12.0 inches) diameter (cardboard cutout template included)
• Outside Dimensions: 345 x 345 mm (13.6 x 13.6 in) 318 mm (12.5 in) front of ceiling tile to back of backcan
• Net Weight: 5.5 kg (12 lbs)
