*IN STOCK - READY TO SHIP

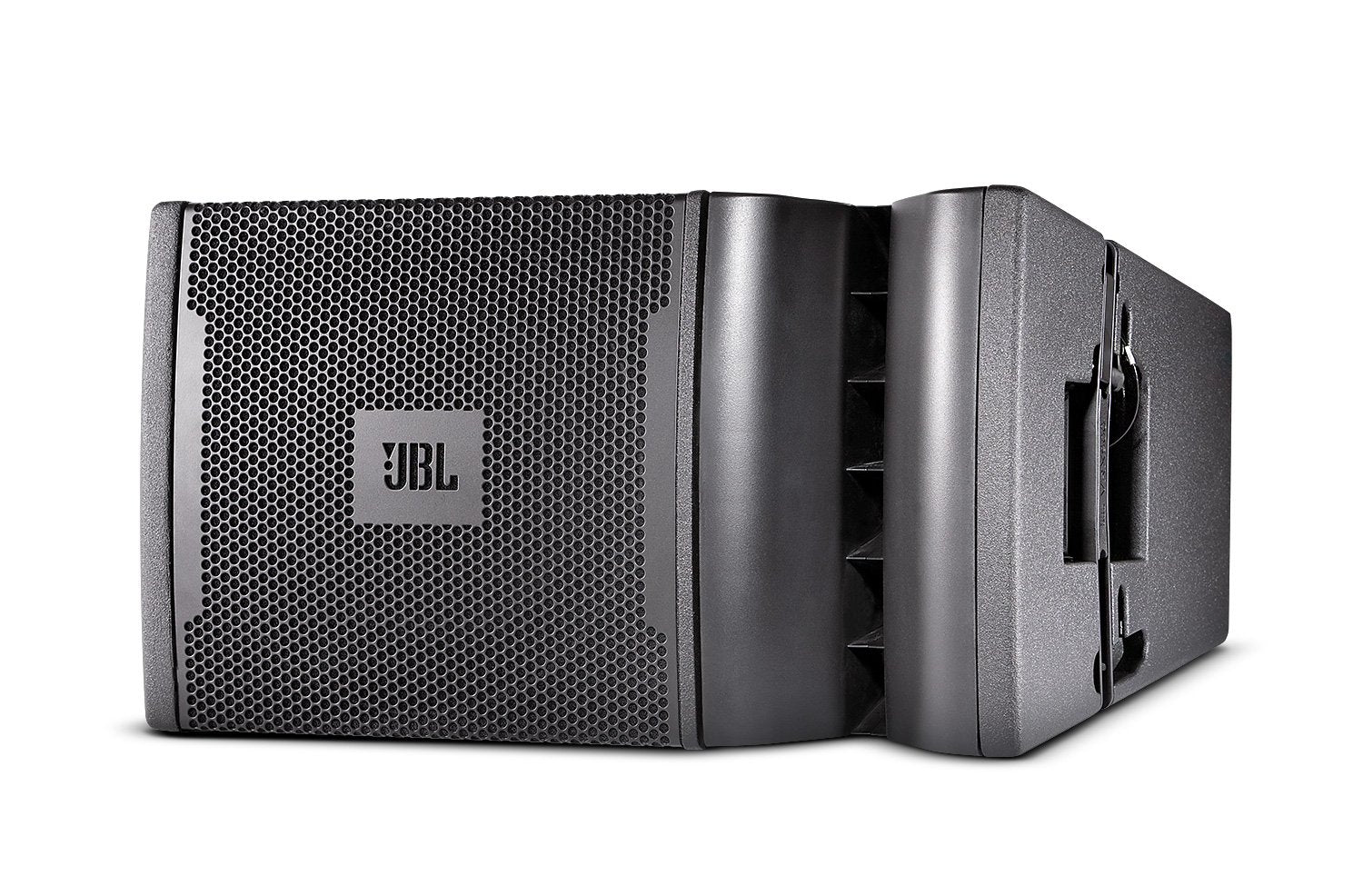

Get Excellent Feedback Response With The JBL VRX932LAP 12" Two-Way Powered Line Array Loudspeaker System
The JBL VRX932LAP is a powered, lightweight, compact 12" two-way line-array speaker system designed for use in arrays of up to five units. JBL VRX932LAP is the ideal choice when line-array performance is needed but the venue size doesn't call for the very long-throw characteristics of larger line-arrays and a fast and easy setup is vital.
- Built-in JBL Drivepack DPC-2 amplifier module designed by Crown provides 1750 Watts of peak Power. DSP based resident input module provides system optimization and EQ functionality.
- JBL's exclusive neodymium magned Differential Drive woofer for high-power capacity and light-weight.
- VRX932LAP features 3 x 2408J Annular Ring Diaphragm HF drivers. The 2408 represents the latest in JBL Professional compression driver design.
- Constant Curvature waveguide for unprecedented array coherence.
- Integral rigging hardware for simple connection of enclosures and optional array frame. Dual angle pole socket for aiming flexibility.
- Array Configuration Selector permits "array shading".
- Power Rating: 1750 Watts Peak, 875 Watts Continuous
- Frequency Range: 57 Hz - 20 kHz, (-10 dB)
- Frequency Response: 75 Hz - 20 Hz, (+/-3db)
- Maximum Peak Output: 136 dB SPL at 1m
- Coverage Pattern: 100 x 15 nominal
- DPC-2 Output as (Continuous IED shaped pink noise into rated load impedance) LF: 750 Watts, HF: 125 Watts
- DPC-2 Output Sectoin LF: Dual-Bridged Technology, Class D
- Audio Input Connector: XLR with loop through
- LF Driver: 1 x JBL 2262FF 305 mm (12 in) neodymium magnet
- HF Driver: 3 x JBL 2408J, 38 mm (1.5 in)
- User Controls Input Attenuator (0-16 dB)
- Signal Processings DSP based, resident in Input Module
- AC Power Operating Range: 90-132 VAC or 216-264 VAC, 50/60 Hz
- AC Input Connector: Neutrik PowerCon (NAC 3MPA)
- AC Loop Through Connector: Neutrik PowerCon (NAC 3MPB)
- AC Current Requirements: 6A per system at 120V, 3A per system at 240V
- Enclosure: 25/15 mm, 11-ply birch plywood
- Suspension / Mounting :Optional VRX-AF line array frame kit, 10mm forged eyebolts or internal dual angle 36mm pole mount cup for pole or tripod mounting
- Finish: Black DuraFlex finish
- Grille Powder: coated, black, 16-gauge perforated steel with with acoustically transparent foam
