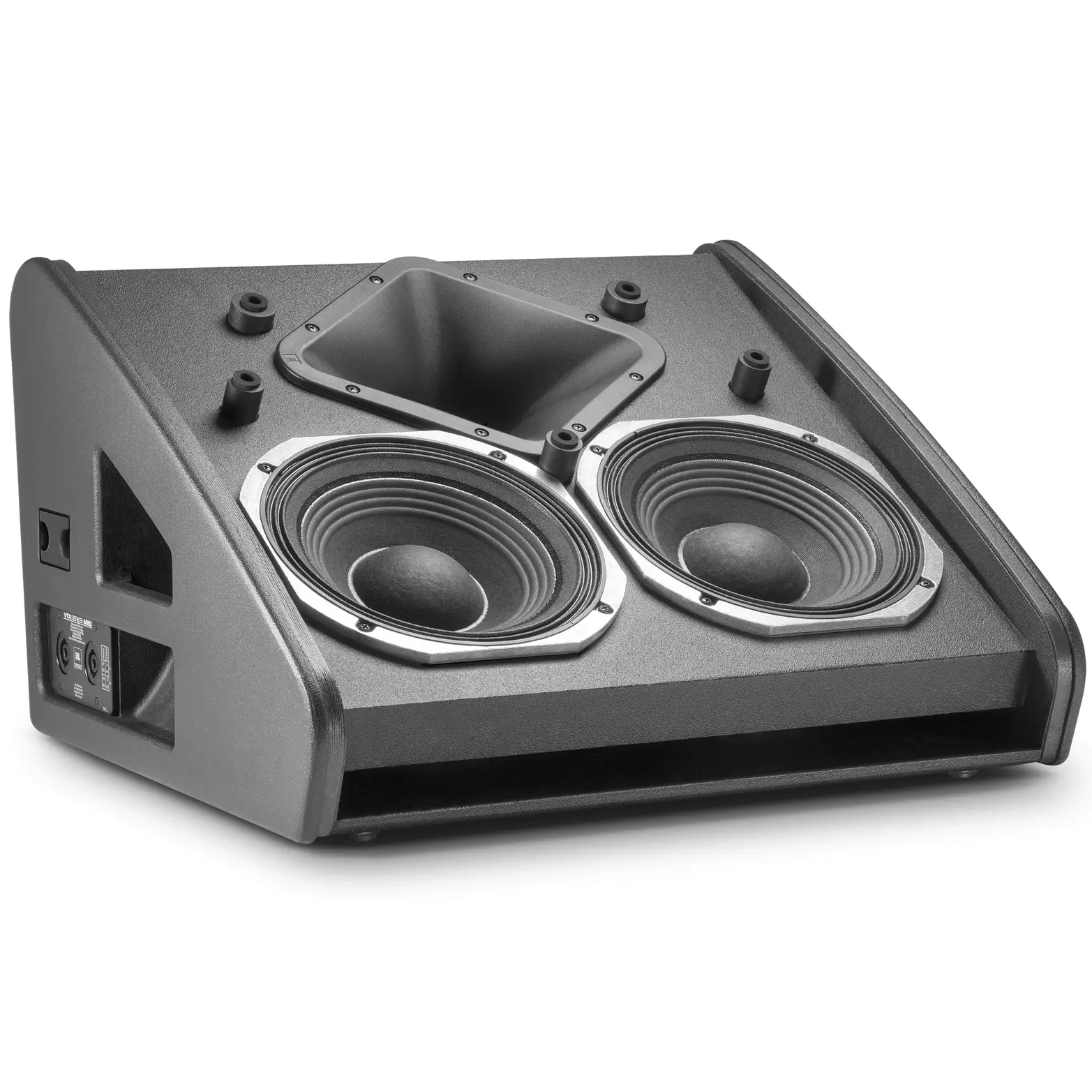

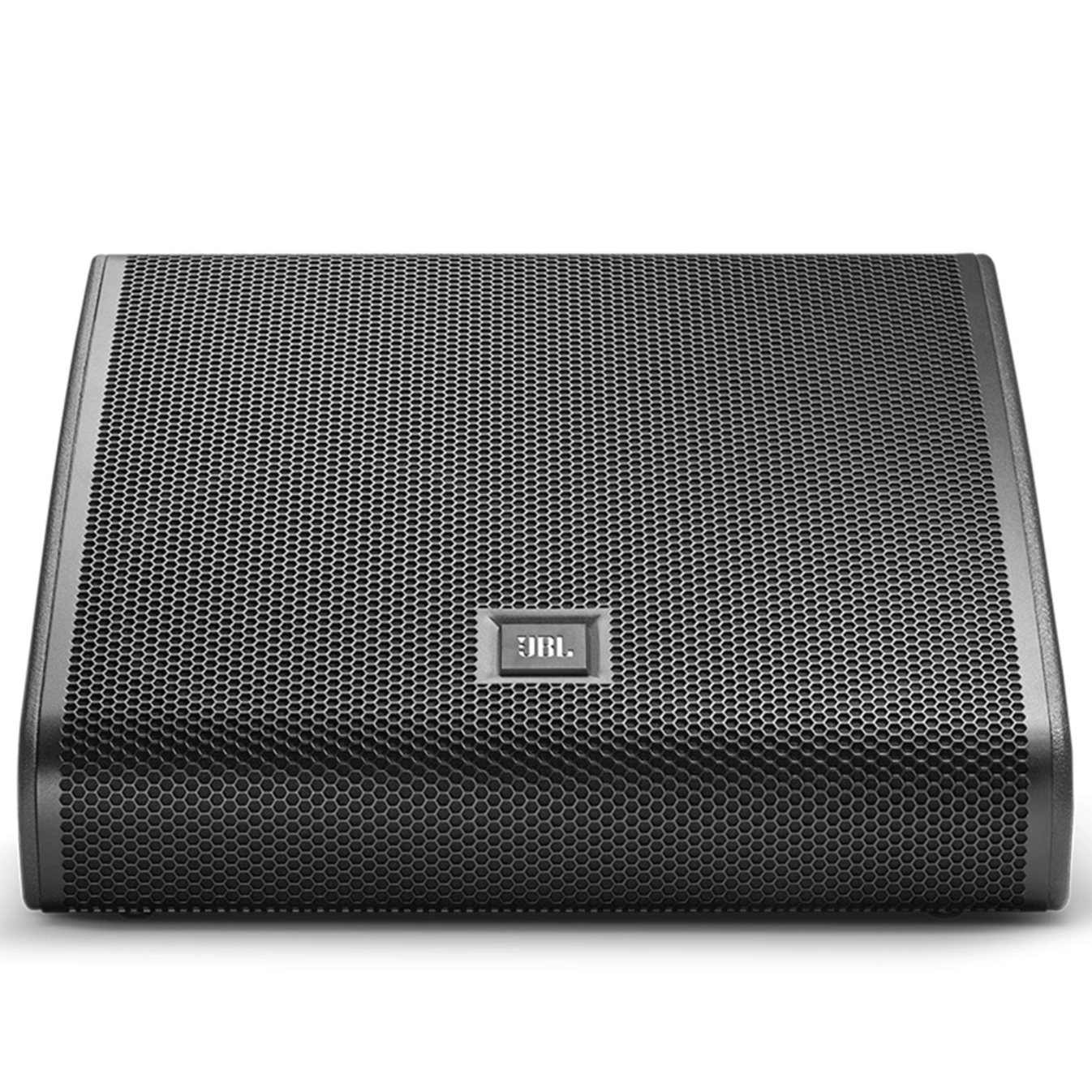

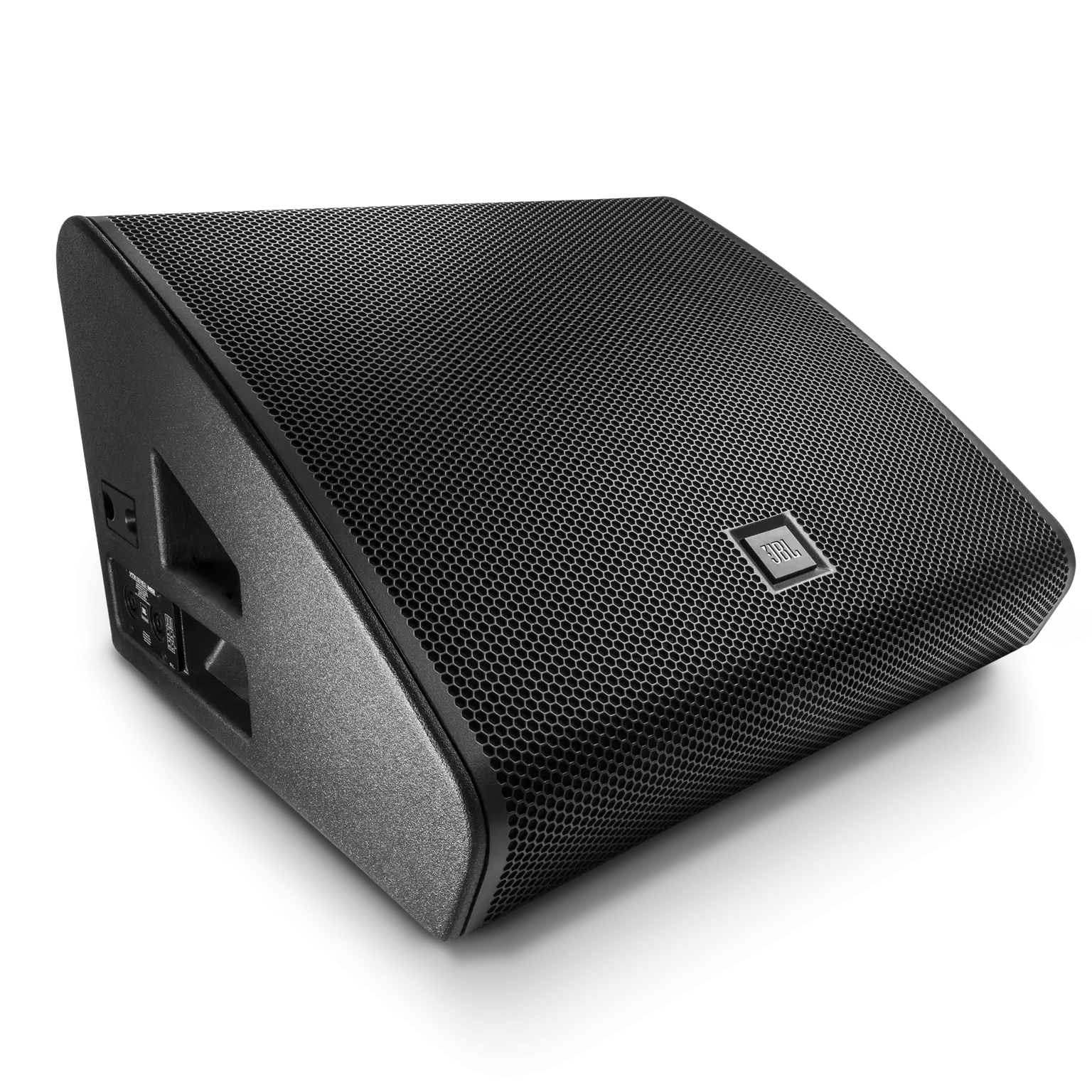

Experience Precision Monitoring With the JBL VTX M20 Dual 10-Inch Professional Stage Monitor
The JBL VTX M20 is a dual 10-inch professional stage monitor designed for the most demanding touring and broadcast environments. Featuring a low-profile, elegant design, it fits seamlessly into any stage setup while delivering unmatched clarity and power. Equipped with JBL’s state-of-the-art Differential Drive™ transducers and D2 dual diaphragm compression driver, the VTX M20 provides pristine sound quality, impressive output, and exceptional consistency across every performance.
- Dual 10-inch professional stage monitor with compact, low-profile design
- Ideal for touring and high-profile broadcast applications
- Features JBL Differential Drive™ cone transducers and D2 dual diaphragm compression driver
- 60° x 60° high-frequency waveguide with JBL Image Control Waveguide Technology
- Selectable single-channel (passive) or dual-channel (bi-amp) operation for maximum system flexibility
- Compatible with Crown Audio I-Tech HD Series amplifiers and processing
SPECIFICATIONS
Frequency Response
- Frequency Range (-10 dB): 55 Hz – 19.5 kHz
Coverage Pattern (-6 dB)
- Horizontal: 60°
- Vertical: 60°
Power Rating
- Passive: 1250 W Continuous (IEC / 100 hour)
- Active LF: 1250 W Continuous (IEC / 100 hour)
- Active HF: 100 W Continuous (IEC / 100 hour)
Maximum SPL (1 m)
- 136 dB (Preset: VTX M20 FR)
System Latency
- 3.33 ms
System Processing
- Crown Audio I-Tech HD Series, I-Tech 4x3500HD
Nominal Impedance
- Passive: 4 ohms
- Active LF: 4 ohms
- Active HF: 8 ohms
Transducers
- LF Driver: 2 × 2261H, 254 mm (10-inch) diameter, dual 76 mm (3-inch) voice coil, NDD® Direct Cooled™
- HF Driver: 1 × D2430H, D2 dual diaphragm, dual 76 mm (3-inch) voice coil
Monitor Angle
- 30°
Enclosure
- 18 mm, 11-ply Finnish birch plywood
Grille
- Powder-coated 14-gauge hex-perforated steel with acoustically transparent black cloth backing

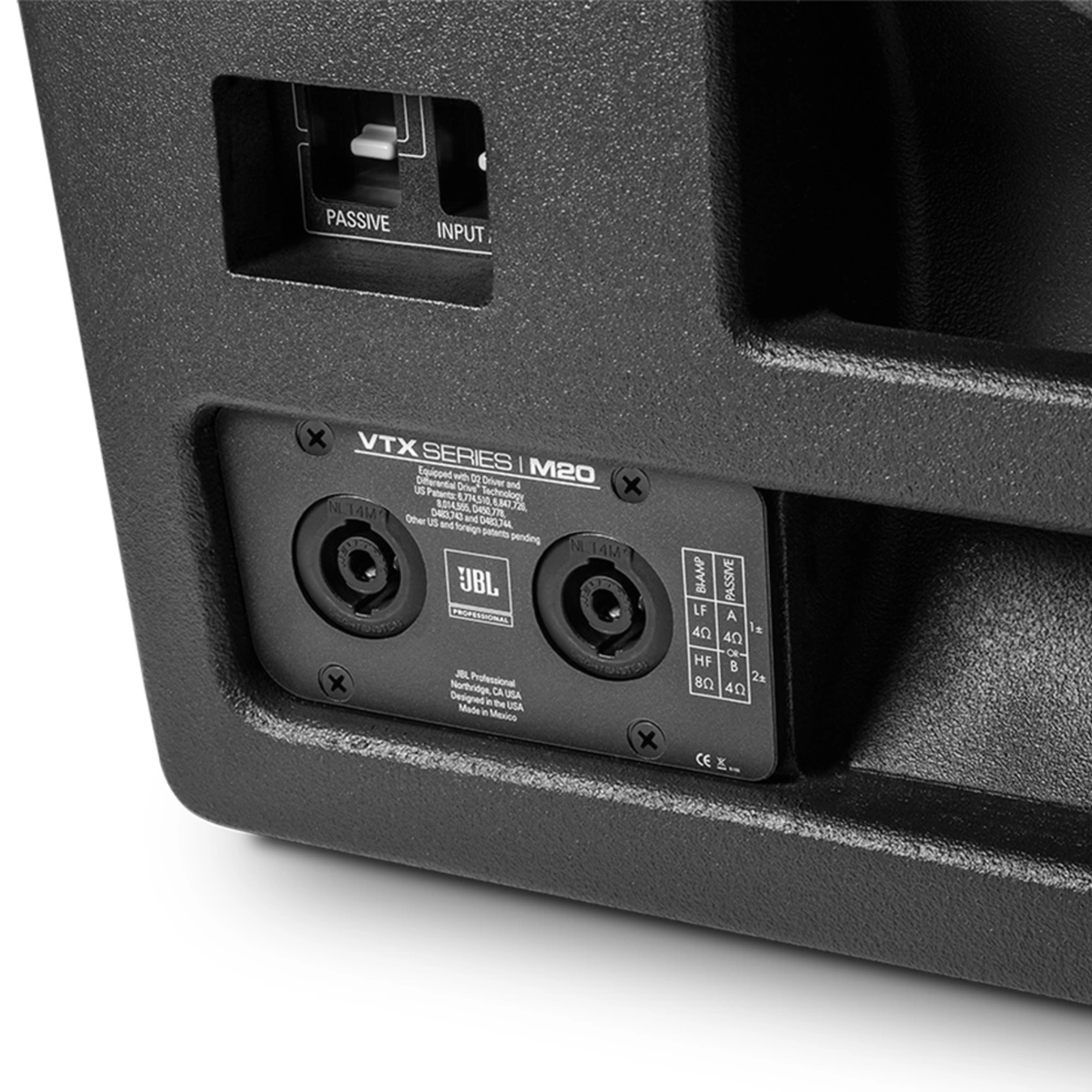

Input Connectors
- Passive: Neutrik® Speakon® NL-4 (4x), selectable Pins 1 ± or Pins 2 ±
- Active: Neutrik® Speakon® NL-4 (4x), Pins 1 ± (LF), Pins 2 ± (HF)
Dimensions (H × W × D)
- 342.9 mm × 575.0 mm × 515.3 mm (13.6 in × 22.6 in × 20.3 in)
Weight
- 23 kg (51 lbs)
Manufacturer: JBL Professional
Model: VTX-M20
SKU: I468204-N-5-WHXD
UPC: 691991012952
