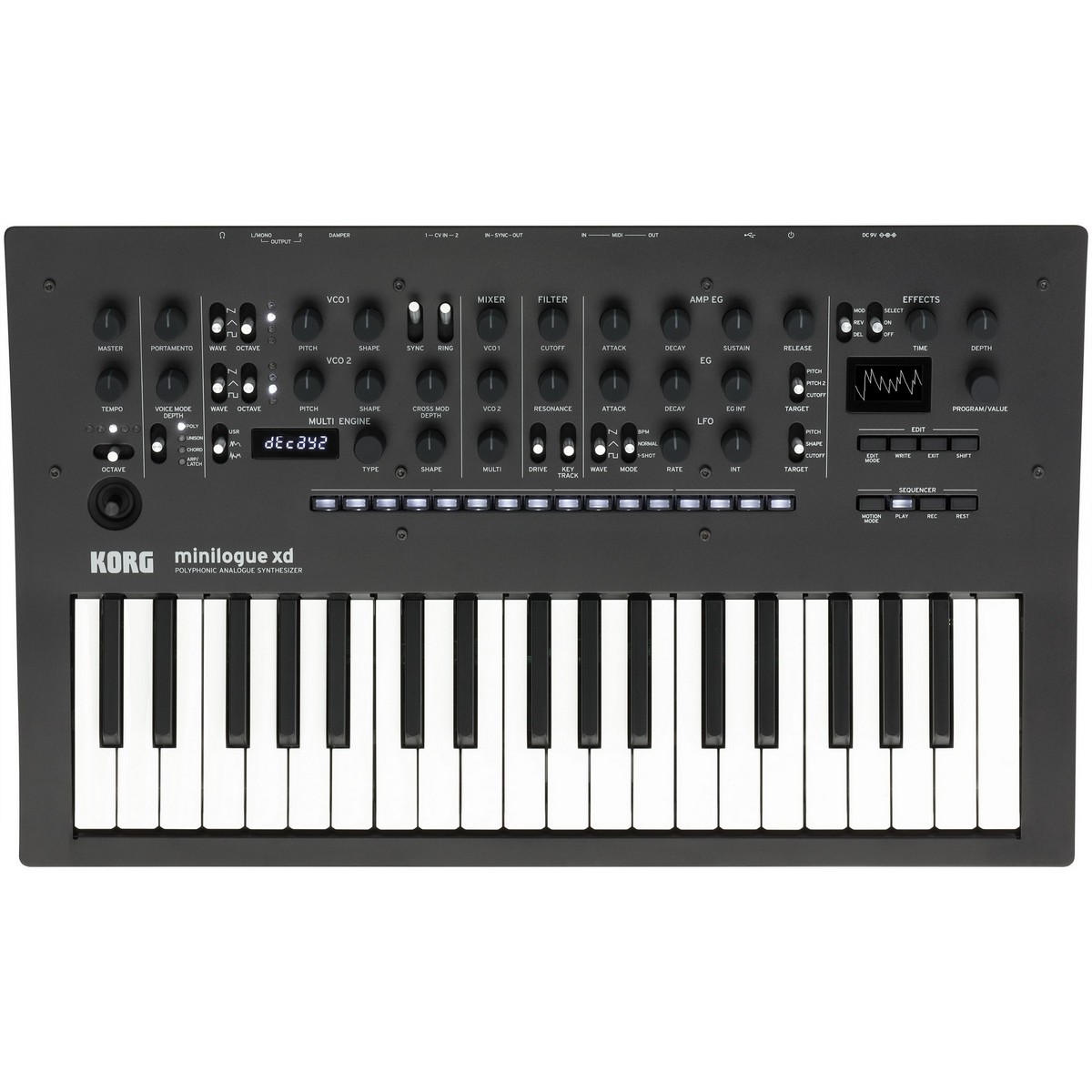

Korg Minilogue XD Polyphonic Analog Synthesizer

Design And Performance - The Korg Minilogue XD Polyphonic Analog Synthesizer

Korg wanted to deliver a next-generation analog synthesizer for a new generation of musicians new to analog synthesis. That dream was realized in the development of the minilogue, which instantly made the analog synthesizer approachable.

In addition to emphasizing the same real analog sound and joy of controlling an electronic musical instrument offered by the original minilogue, the minilogue xd newly adds a digital multi-engine, effects, a powered-up sequencer, and micro tuning functionality, further expanding the possibilities for sound design and performance potential.

• Sound Engine Type(s): Hybrid (Analog And Digital)
• Number Of Presets: 200 Factory, 300 User
• Oscillators: 2 X Analog VCO (Sawtooth, Triangle, Square), 1 X Digital (Noise, VPM, User), 1 X LFO

SPECIFICATIONS

Keyboard

• 37-keys (Slim-key, velocity sensitive)

Sound Generation

• Analogue sound generator + Multi digital sound generator (Noise, VPM, User)

Maximum Polyphony

• 4 voices

Programs

• 500 voices (more than 200 preload, 300 user programs)
• Each program provides a program sort function that includes voice mode settings
• Favorite function built-in

Voice Mode

• 4 (POLY, UNISON, CHORD, ARP / LATCH)
• The VOICE MODE DEPTH setting allows different parameters to be varied for each mode

Sequencer

• 16-step polyphonic sequencer
• Motion sequence can be used on up to four parameters
• Main Synthesis Parameters
• VCO1: WAVE (SAW, TRIANGLE, SQUARE), OCTAVE, PITCH, SHAPE
• VCO2: WAVE (SAW, TRIANGLE, SQUARE), OCTAVE, PITCH, SHAPE
• MODULATION: SYNC, RING, CROSS MOD DEPTH
• MULTI ENGINE: NOISE/VPM/USER, TYPE, SHAPE
• MIXER: VCO1, VCO2, MULTI
• VCF: CUTOFF, RESONANCE, DRIVE, KEYTRACK
• AMP EG: ATTACK, DECAY, SUSTAIN, RELEASE
• EG: ATTACK, DECAY, EG INT, TARGET (PITCH, PITCH2, CUTOFF)
• LFO: WAVE (SAW, TRIANGLE, SQUARE), MODE (BPM, NORMAL, 1-SHOT), RATE, INT, TARGET (PITCH, SHAPE, CUTOFF)

Main Effect Parameters

• EFFECT: TYPE (MODULATION, REVERB, DELAY), ON/OFF (SELECT, ON, OFF), TIME, DEPTH
• MULTI ENGINE
• Noise Generator: 4 types
• VPM oscillator: 16 types
• User oscillator: 16 slots

Mod Effects

• CHORUS: 8 types
• ENSEMBLE: 3 types
• PHASER: 8 types
• FLANGER: 8 types
• USER: 16 slots
• DELAY
• DELAY: 12 types
• USER: 8 slots
• REVERB: 10 types
• USER: 8 slots

Controls

• Joystick that can modify different parameters for each program, PORTAMENTO knob

Display

• Main: Real-time OLED oscilloscope provides visual feedback of parameter changes
• MULTI ENGINE section: 7 segments x 6 digit LED display

Input/Output Connectors

• Headphone jack (Stereo phone jack)
• OUTPUT L/MONO, R jacks (monaural phone jack unbalanced)
• CV IN 1, CV IN 2 jacks 3.5 mm (1/8") monoural mini-jack, Input voltage: -5 V - +5 V (Modulation mode), -3V - +5 V (CV/Gate mode)
• SYNC IN jack 3.5 mm (1/8") mini-jack, maximum input level 20 V
• SYNC OUT jack 3.5 mm (1/8") mini-jack, output level 5 V
• MIDI IN jack
• MIDI OUT jack
• USB B jack
• DAMPER jack (half-damper is not supported)

Power Supply

• AC adapter (DC9 V)

Power Consumption

• 8W

Dimensions (W X D X H)

• 500 mm x 300 mm x 85 mm/19.69" x 11.81" x 3.35"

Weight

• 2.8 kg / 6.17 lbs

Included Items

• AC adapter

Accessories (Sold Separately)

• SC-MINILOGUE soft shell case
• SEQUENZ MP-TB1 multi-purpose tall backpack
• SQ-CABLE-6 sync cable
• DS-1H damper pedal
• PS-1 pedal switch
• PS-3 pedal switch
