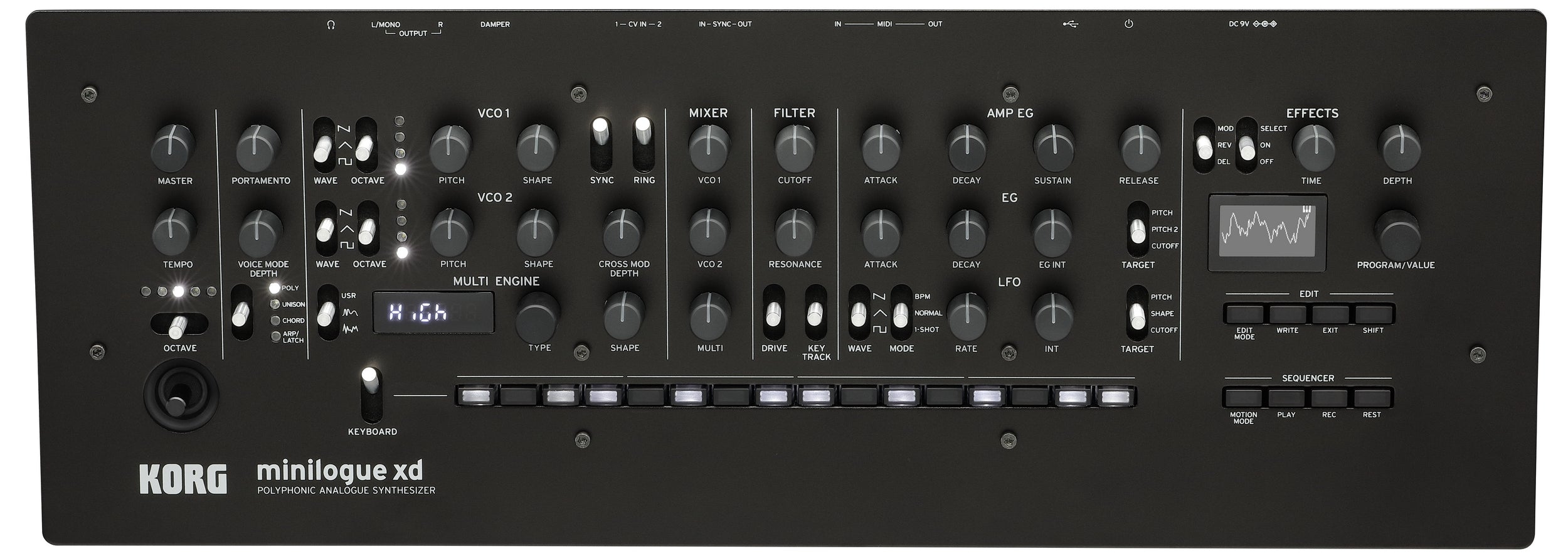

Korg Minilogue XDM Polyphonic Analog Synthesizer Module

Original price $866.66
Original price $866.66 - Original price $866.66
Original price $866.66
Current price $599.99
$599.99 - $599.99
Current price $599.99
♫ In stock
About Inventory Status


Questions?
Call or text us at 301-946-8808.

In stock: It is in stock and available to ship or pickup. Apparel must be shipped from another location and is not available for in-store pickup. We can usually ship or have these items available for pickup by the next business day if they don't require inspection, special handling, or setup. Our pickup location is 11151 Veirs Mill Rd. Silver Spring, MD 20902.

📆 Preorder: It is on the way to our warehouse. We can't predict when preorder items will arrive due to current supply chain issues. If you place an order for one of these items someone will contact you to estimate the delivery date.

Out of stock: We don't currently have it available but you're not out of luck yet. We still may be able to get it. If you order one of these items we will contact you with an estimated fulfillment date. You have the option to cancel the order if you change your mind.

Special order: The item is so special that it needs to be custom ordered for you. Some of these items are works of art and have to be made individually. Orders for special order items must be prepaid and we cannot accept cancellations or refunds.

█ Sold out: We don't think we can get this item because it was either discontinued by the manufacturer or was limited in quantity. If you want or need this item call or text us. Sometimes we can help you track down the item through other sources or help you find something similar.

About Item Conditions


Questions?
Call or text us at 301-946-8808.

New: The item is brand new as received from the manufacturer with a full manufacturer warranty. Instruments such as guitars, snare drums, drum kits, brass and woodwind instruments may be opened for photography and quality control inspection and may not be in a factory sealed box.

Mint or Open Box: The item may have been opened and tested but has been repackaged. The original packaging may have superficial issues but the item itself and any originally included accessories are in perfect, like new condition.

Display Model: These items are so cool that we put them on display in our legendary shop. The condition is brand new as received from the manufacturer with manufacturer warranty. Rest assured, these items undergo a very careful inspection before shipping.

Demo: These items have been on our sales floor for demo purposes and will likely show signs of use. The original packaging may no longer be included, but you can be assured that you are receiving an awesome item and an awesome price.

Used: The item is used. These item may have varying degrees of wear. Please read the description for information about the condition of the item. Used items do not carry a warranty.

B or C Stock: Factory refurbished. These items were purchased from the manufacturer in a refurbished condition. They will show some cosmetic issues, but nothing that would impact performance. Being that these are sealed from the manufacturer, we generally do not open these to photograph the cosmetic issues. They are guaranteed to work and may have a limited warranty or you may purchase an extended warranty in some cases. Please see the listing description for item specific information.

Educational & Government Sales Quotes

Click here to inquire about an educational or government quote and discover more about our Educational & Government Sales Division.


Get The Long-Awaited Desktop Module Of Korg's Next-Generation Analog Synthesizer - The Korg Minilogue XDM Polyphonic Analog Synthesizer Module

The desktop module is equipped with the same controllers as the keyboard version, making it a great choice not only as an additional sound module for your keyboard or DAW but also providing excellent performability, giving you an easy way to include an analog polyphonic synth in your setup. It's also equipped with a poly-chain function that lets you connect it with another minilogue xd or minilogue xd module so that the two units can operate as a polysynth with a total of up to eight voices in your studio or on stage.

Equipped With an Analog Synthesizer Circuit and a Digital Multi-Engine

Voice structure of minilogue xd is 2VCO + MULTI ENGINE, 1VCF, 2EG, 1VCA, and 1LFO. In addition to the distinctive circuits found in the series, such as wave shaping to shape the overtones of the oscillator and a sync/ring switch, there's also cross modulation, a two-pole filter that can be both sharp and fat, and a drive switch that adds thickness and drives signal into minilogue xd's filter. Every parameter has been tuned in detail based on what musicians want out of their synth. The sounds range from the warm pads typical of analog to fat basses and crisp lead sounds, covering every situation.

High-Quality Digital Effects

Minilogue xd's high-quality digital effects use 32-bit floating point DSP processing, adding a finishing touch to its deep sound design platform. The three types (modulation effects, reverb, and delay) can be used simultaneously, letting you choose from a wide range of variations including chorus, ensemble, warm tape delay, and a diverse variety of reverb. The user effect slots allow you to load your own effect programs that you've created.

Polyphonic Step Sequencer

The step sequencer provides 16 steps and supports both realtime recording and step recording. You can use the 16 step buttons to select a step directly, allowing quick editing to replace the pitch of a step or to mute it, or even improvisatory performances. Motion sequence lets you record the movements of up to four knobs, adding time-varying change to the sound, and you can record not only smooth changes in value but also values that change precisely at each step. You can use this to have different parameter values at each step; for example, you might create a drum pattern or sound effect from just a single program. This allows countless ideas to be unleashed.

Poly Chain Support

The minilogue xd module can be used in conjunction with another unit (*2) in the minilogue xd series (*1) for poly assignment settings. Specify one unit as the master and the other as the slave, and they will play as an eight-voice polyphonic synthesizer (*3). This supports a variety of uses, such as a voice-expansion module for the minilogue xd or as a sound module for a DAW-based production system.

  1. For keyboard-equipped models, supported in system ver. 1.10 or later.
  2. Any combination of the xd and xd module can be used.
  3. The two xd units can each play four voices, for a maximum total of eight voices. The master unit takes priority for producing notes, and the fifth and subsequent voices are assigned to the slave unit.

Free Bundle Of Music Software

The minilogue xd module comes with a diverse variety of music software from Izotope including Ozone Elements which lets you not only create songs but also master them using AI, Skoove which will help you improve your keyboard playing skills, Reason Lite DAW software, as well as software synths from KORG and other brands.


Included Apps for iPad/iPhone

  • KORG Gadget Le (music production studio DAW app)
  • KORG Module Le (piano/keyboard sound module app)

Included Software for Mac/Windows

  • KORG Collection - M1 Le (synthesizer sound module)
  • UVI Digital Synsations (synthesizer sound module)
  • AAS Ultra Analog Session (synthesizer sound module)
  • AAS Strum Session (acoustic guitar sound module)
  • AAS Lounge Lizard Session (electric piano sound module)
  • Propellerhead Reason Lite (DAW music production software)
  • Skoove free 3 month trial of Skoove Premium (online piano lesson)
  • KORG Gadget Le for Mac (DAW music production software)
  • iZOTOPE Ozone Elements (Audio Mastering Plug-in Software)

SPECIFICATIONS

Poly Chain Function

  • Two minilogue xd units can play up to eight voices polyphonically.

Sound Generation

  • Analogue sound generator + Multi digital sound generator (Noise, VPM, User)

Maximum Polyphony

  • 4 voices

Programs

  • 500 voices (more than 200 preload, 300 user programs).
  • Each program provides a program sort function that includes voice mode settings.
  • Favorite function built in.

Voice Mode

  • 4 (POLY, UNISON, CHORD, ARP / LATCH).
  • The VOICE MODE DEPTH setting allows different parameters to be varied for each mode.

Sequencer

  • 16-step polyphonic sequencer
  • Motion sequence can be used on up to four parameters
  • Main Synthesis Parameters
  • VCO1: WAVE (SAW, TRIANGLE, SQUARE), OCTAVE, PITCH, SHAPE
  • VCO2: WAVE (SAW, TRIANGLE, SQUARE), OCTAVE, PITCH, SHAPE
  • MODULATION: SYNC, RING, CROSS MOD DEPTH
  • MULTI ENGINE: NOISE/VPM/USER, TYPE, SHAPE
  • MIXER: VCO1, VCO2, MULTI
  • VCF: CUTOFF, RESONANCE, DRIVE, KEYTRACK
  • AMP EG: ATTACK, DECAY, SUSTAIN, RELEASE
  • EG: ATTACK, DECAY, EG INT, TARGET (PITCH, PITCH2, CUTOFF)
  • LFO: WAVE (SAW, TRIANGLE, SQUARE), MODE (BPM, NORMAL, 1-SHOT), RATE, INT, TARGET (PITCH, SHAPE, CUTOFF)

Main Effect Parameters

  • EFFECT: TYPE (MODULATION, REVERB, DELAY), ON/OFF (SELECT, ON, OFF), TIME, DEPTH

Multi Engine

  • Noise Generator: 4 types
  • VPM oscillator: 16 types
  • User oscillator: 16 slots

Mod Effects

  • CHORUS: 8 types
  • ENSEMBLE: 3 types
  • PHASER: 8 types
  • FLANGER: 8 types
  • USER: 16 slots
  • DELAY
  • DELAY: 12 types
  • USER: 8 slots
  • REVERB
  • REVERB: 10 types
  • USER: 8 slots

Controls

  • Joy stick that can modify different parameters for each program, PORTAMENTO knob, KEYBOARD knob

Display

  • Main: Real-time OLED oscilloscope provides visual feedback of parameter changes
  • MULTI ENGINE section: 7 segments x 6 digit LED display

Input/Output Connectors

  • Headphone jack (Stereo phone jack)
  • OUTPUT L/MONO, R jacks (monaural phone jack unbalanced)
  • CV IN 1, CV IN 2 jacks (3.5 mm [1/8"] monoural mini jack, Input voltage: -5 V - +5 V (Modulation mode), -3V - +5 V (CV/Gate mode)
  • SYNC IN jack (3.5 mm [1/8"] mini jack, maximum input level 20 V)
  • SYNC OUT jack (3.5 mm [1/8"] mini jack, output level 5 V)
  • MIDI IN jack
  • MIDI OUT jack
  • USB B jack
  • DAMPER jack (half damper is not supported)

Power Supply

  • AC adapter (DC9 V)

Dimensions

  • (W x D x H): 500 x 179 x 85 mm / 19.69" x 7.05" x 3.35"

Weight

  • 2.6 kg / 5.73 lbs.

Manufacturer: Korg USA
Model: MINILOGUEXDM
SKU: I611818-N-3-WHXC
UPC: 4959112192218
