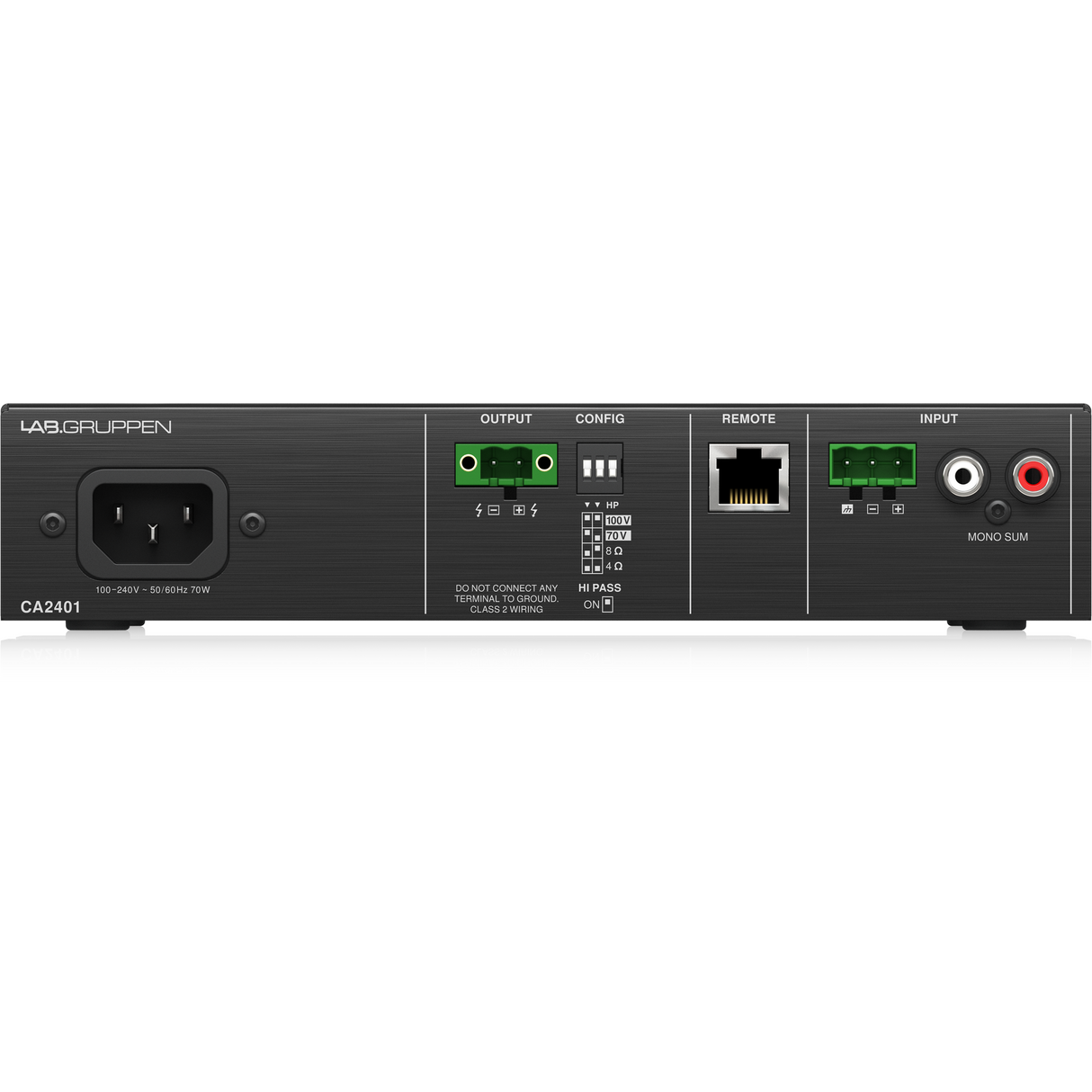

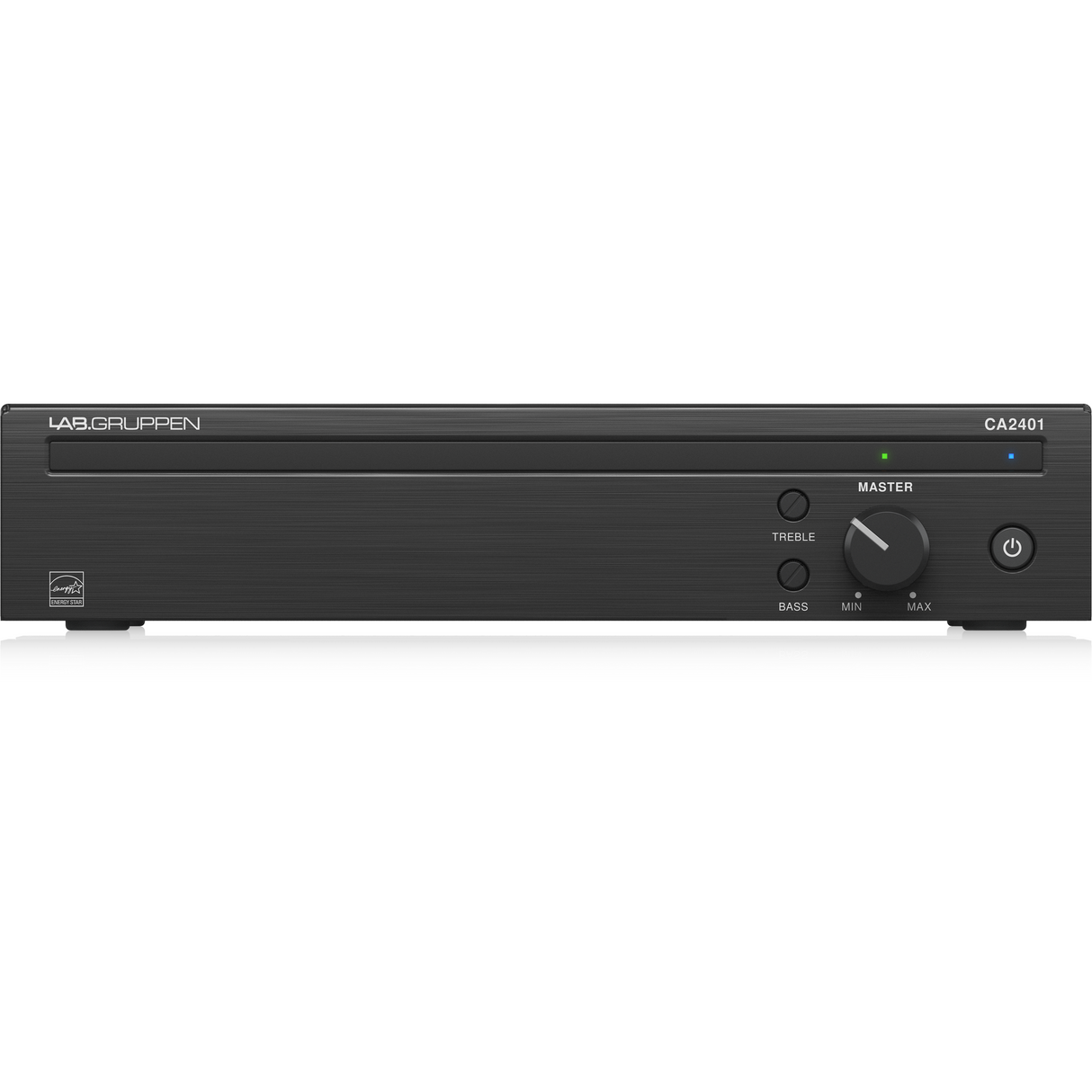

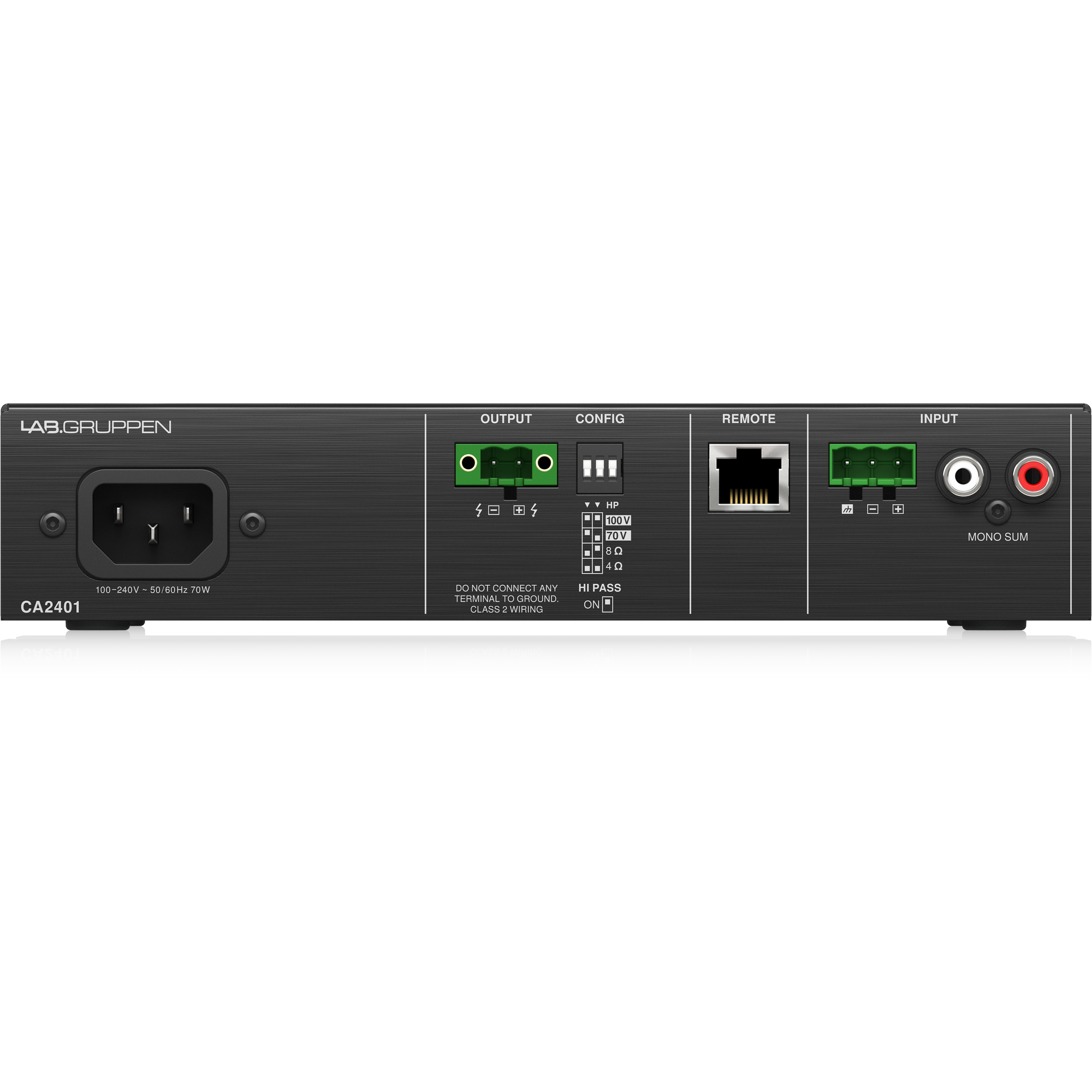

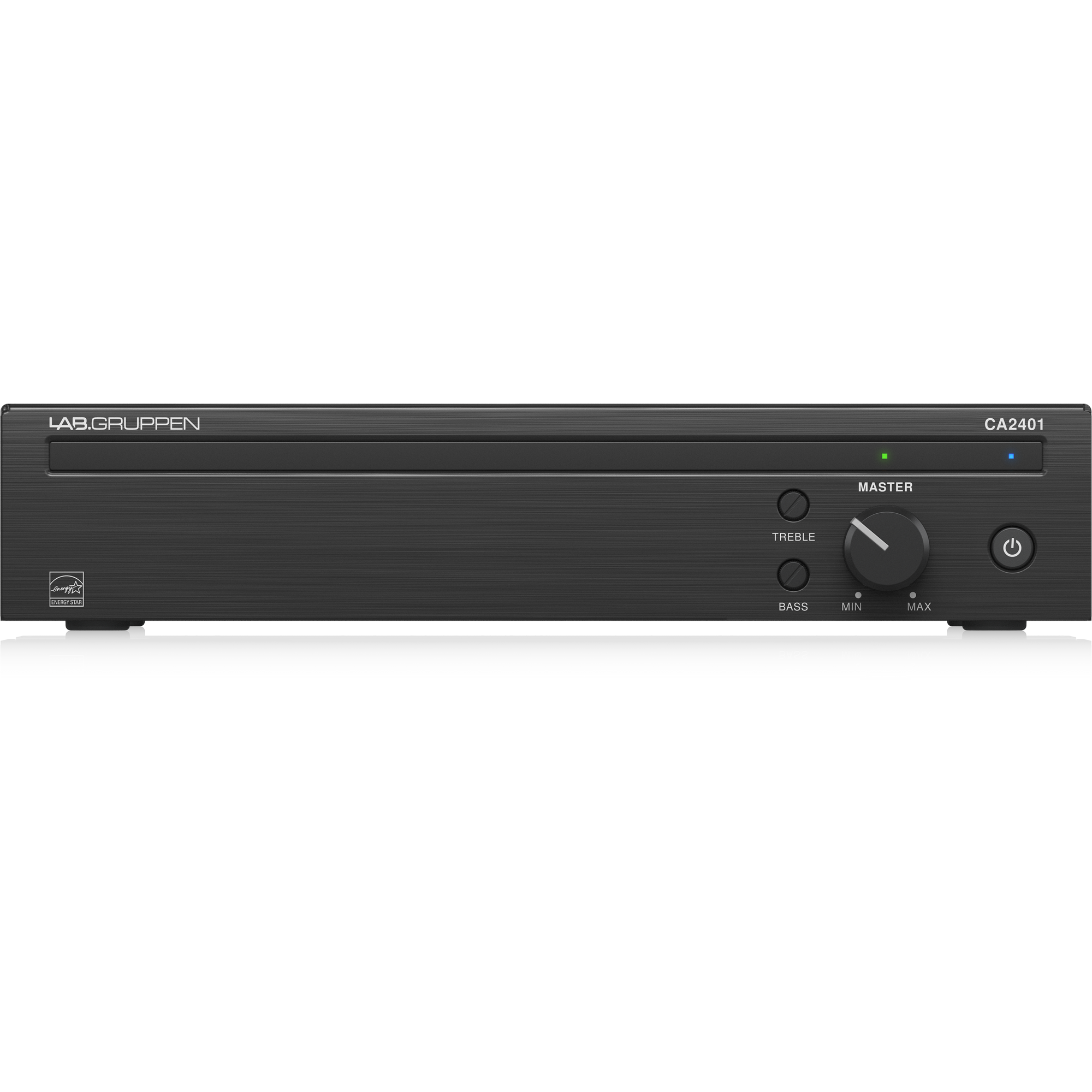

Flexible and Convenient - The Lab Gruppen CA2401 240 W Commercial Amplifier

The Lab Gruppen CA2401 240 W Commercial Amplifier provides the perfect solution for commercial and industrial applications requiring great sounding distributed audio coupled with power conservation and reduced operating expense. Capable of delivering high-quality sound over both Low-Z (4/8 Ohm) and High-Z (70/100 V) loudspeaker configurations offering extreme flexibility on every channel. CA2401 is easy to install and operate – even for non-technical personnel. Simply put, the CA2401 is ideal-suited for bars & restaurants, retail destinations, hotels, corporate, education or other venues needing background music and/or a public address system.


  • 240 Watt amplifier for commercial and industrial applications
  • Low-Z (4/8 Ohm) and High-Z (70/100 V) operation with switchable high-pass filter
  • Energy Star certified design conserves energy and drastically reduces operational cost
  • Direct drive, constant power technology for superior audio performance and reliability
  • GPI remote volume control using standard RJ-45 connector and Ethernet cable
  • Individual front panel master volume and bass/treble controls
  • Auto Ramp circuitry for quiet and fast power up/down enables real-world energy savings
  • Front panel power control button for direct access

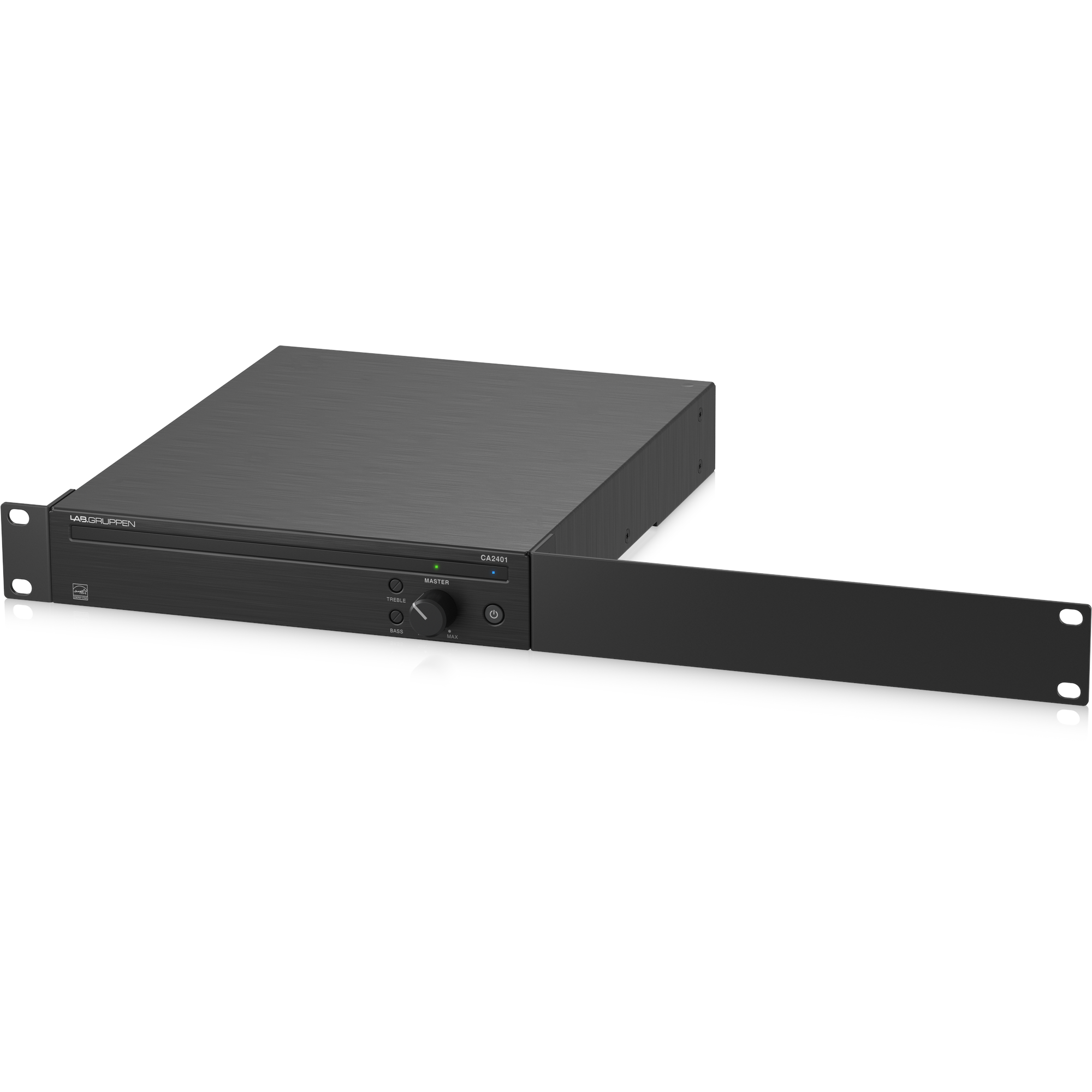

  • Rack-mountable 1U, half-rack width enclosure with joining brackets for rack, table and wall mounting
  • Euroblock type amplifier input and output connectors
  • Convection-cooled, fan-less amplifier technology for low noise


SPECIFICATIONS

General

  • Maximum Output Power: 4 or 8 Ω per channel
  • Number of Output Channels: 1
  • Minimum Load Impedance
    • 4 Ω Mode: 4 Ω
    • 8 Ω Mode: 8 Ω
    • 70 V Output Mode: 20 Ω
    • 100 V Output Mode: 41 Ω

Controls

  • Front: Power standby button, gain control tone controls - bass and treble
  • Rear: Load config - (4 Ω / 8 Ω / 70 V / 100 V), switchable 80 Hz high-pass filter
  • Bass: ± 10 dB @ 100 Hz
  • Treble: ±10 dB @ 10 kHz

Indicators

  • Power: On (blue), force standby (red), sleep (yellow)
  • Master
    • Signal (green LED): >12.3 Mv (-36 DbU)
    • Limit (red LED): Input clip, output limit
    • Fault (Red LED): Overheat, DC fault, over current, etc

System

  • 1 x 3-pin, 5.08 mm Euroblock connector, 1 x RCA stereo summed
  • Input Impedance: 10 kΩ unbalanced and RCA, 20 kΩ balanced
  • Maximum Input Level: 9.75 (+22 dBu)
  • Outputs: 1 x 2-pin, 5.08 mm Euroblock connector
  • Output Circuit Type: Class D
  • Remote Connector: 1 x RJ45 connector

Performances

  • Distortion 1/8 Rated Power: <.05%
  • Frequency Response: 20 Hz ti 29 kHz, +.5 / -1 dB
  • Crosstalk (2-channel models: >85 dB
  • Signal-to-Noise: >97 dBa
  • High-Pass Filter: 80 Hz HPF

Circuit Protection

  • Cooling: Convection-cooled, fanless
  • Amplifier Protection: Thermal protection, over current protection, DC protection, high frequency protection
  • Load Protection: Controlled start and shutdown behavior, DC-fault protection

Power Supply, Voltage (Fuse)

  • Main Voltage: 100-240 V~, 50/60 Hz with active power factor connection
  • Fuse: T 6.3 A L 2450 V
  • Power Consumption 1/8th Rated Power @ 4 Ω: 70 W
  • Mains Connector: Standard IEC Connector

Dimensions

  • Dimensions (H x W x D): 44 x 218 x 299 mm (1.7 x 8.6 x 11.8 inches)
  • Height: 2.4 kg (5.3 lbs)
  • Finish: Brushed black anodized aluminum chassis black painted steel bottom


Manufacturer: Lab Gruppen
Model: CA2401_US1
SKU: I620004-N-0-WHXA
UPC: 4033653090476
