Get An Amplifier Platform With A Proven Record Of Reliability - The Lab Gruppen D 20:4L 2000 Watt Lake Amplifier With 4 Flexible Output Channels

D 20:4L Combines 2000 W of Flexible Power with the Latest LAKE DSP, DANTE Digital Audio Networking and Advanced System Integrity Monitoring.

The D 20:4L is based on the same foundation of robust, high-power amplifier technologies as our renowned PLM Series – an amplifier platform with a proven record of reliability and sonic performance on the world’s most grueling concert tours and in high-profile, large-scale installations.

With the D 20:4L, those same core technologies have been updated and refocused to provide the ultimate solution for the most demanding digitally networked installed sound applications – in stadia, arenas, theme parks, performing arts centers, racecourses and other large commercial sound installations.

In addition to legendary LAB GRUPPEN reliability and sonic excellence, the D Series incorporates newly refined outputs stage technologies along with installation-targeted hardware and software features that optimize amplifier system design and configuration. Together, these new technologies allow systems integrators to minimize both initial equipment costs and end users’ long-term energy consumption.


SPECIFICATIONS

General

  • Processing / Network: Lake / Dante
  • Number of amplifier channels: 4
  • Total burst power all channels (share among channels with RPM): 2000 W

Max output power (all channels driven)1

  • 2 ohms: 500 W
  • 2.67 ohms: 500 W
  • 4 ohms: 500 W
  • 8 ohms: 500 W
  • 16 ohms: 425 W
  • Hi-Z 25 V: 500 W
  • Hi-Z 70 V: 500 W
  • Hi-Z 100 V: 250 W

Max output power single channel (all models)1

  • 2 ohms: 850 W
  • 2.67 ohms: 1150 W
  • 4 ohms: 1600 W
  • 8 ohms: 1100 W
  • 16 ohms:600 W
  • Hi-Z 25 V: 500 W
  • Hi-Z 70 V: 1400 W
  • Hi-Z 100 V: 1000 W

Amplifier output modules (all models, all channels)

  • Peak output voltage: 142 Vpk
  • Max output Current: 30 Apk
  • Rational Power Management (RPM):Share “Total burst power” of the product freely among channels. Any channel can scale up to the “single channel max power”
  • Default voltage limitation (can be lifted with RPM configuration): 100 Vpk
  • Protection Features: Current Average Limiter (CAL), Very High Frequency Protection (VHF), Direct Current Protection (DC), Short Circuit Protection, Current-Clip Limiter, Voltage Clip Limiter, Temperature protection

Amplifier platform

  • Inter Sample Voltage Peak Limiter (ISVPL): Configurable Peak voltage threshold and profile
  • Amplifier gain: Digital configurable amplifier gain 22 - 44 dB
  • Dynamic range: > 112 dB
  • Load impedance analysis: Yes
  • Temperature control: Temperature regulated fans (front-to-rear airflow) and show must go on limitation (ATL, PTL)
  • Internal Sample Rate / Data path: 96 kHz / 32 bit floating point
  • Product propagation delay AES 96 kHz / analog input: 1.61 / 1.68 ms

Lake Processing

  • Loudspeaker processing: Up to 4 modules of Classic/linear-phase/FIR crossover, EQ, delay, LimiterMax™ - peak and RMS limiters
  • System tuning: Group control with Raised Cosine™ MESA EG™ asymmetric filters
  • Input redundancy / Matrix: Automatic 4 level input redundancy / 4 input mixers
  • System integration: Comprehensive 3rd party protocol over UDP Ethernet

Dante Audio Network

  • Dante I/O: 8 x 8
  • Network topology / redundancy: Flexible topology / Supports daisy-chained and Dual redundant networks
  • Sample Rates / Transport: 48, 96 kHz / Uni + Multicast
  • Network latency: 0.25, 0.5, 1.0, 2.0, 5.0 ms

AES Inputs

  • Inputs: 4 AES inputs
  • Supported sample rates / resolution: 44.1, 48, 88.2, 96, 176.4, 192 kHz / up to 24 bits
  • Sample rate conversion THD+N 20 Hz - 20 kHz unweighted: 0.0000003

Analog Inputs

  • Inputs: 4 high quality inputs with Iso-Float ground isolation
  • Maximum input / digital reference: +26 dBu / +21 dBu
  • Sampling rate / Resolution: 96 kHz / 24 bit
  • Input impedance balanced / unbalanced: 20 / 10 kOhm
  • THD+N (typical at 1 kHz unweighted): 0.0000022
  • THD+N (typical at 20 Hz and 20 kHz unweighted): 0.0000033

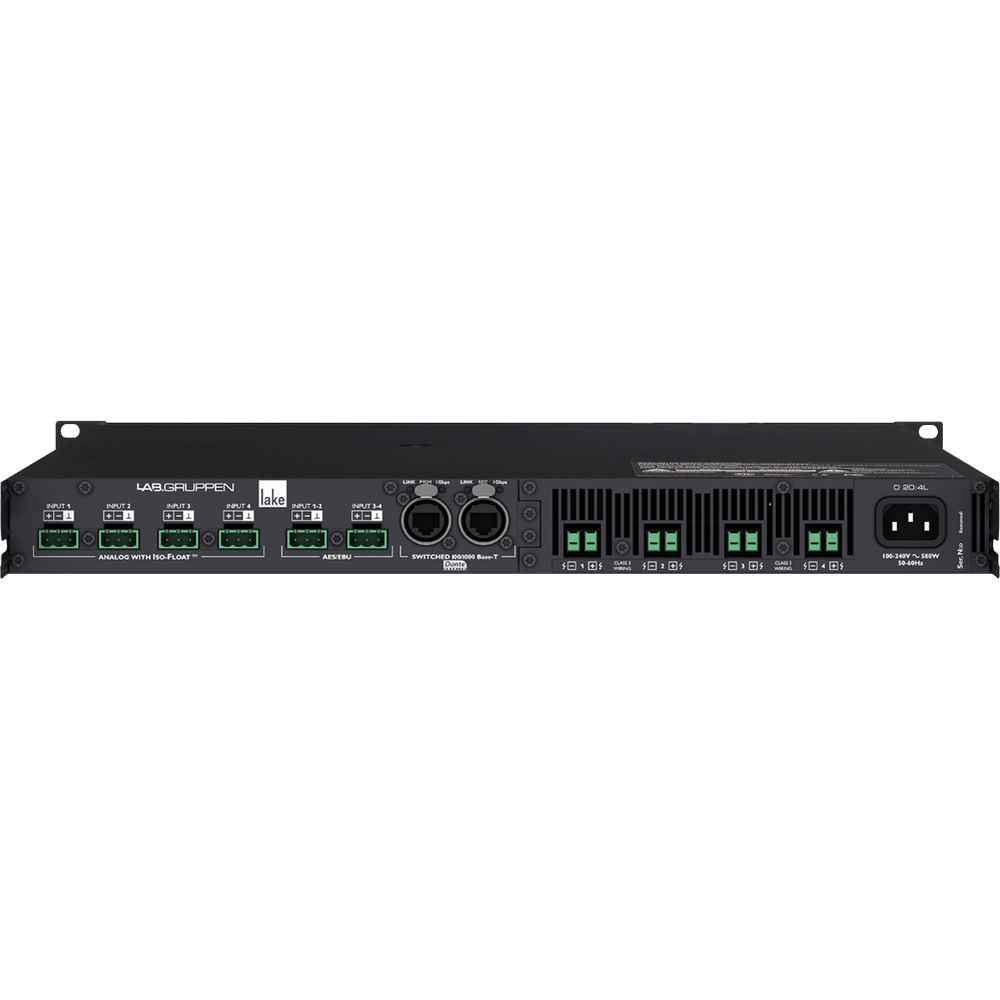

Back panel Interface

  • Analog inputs: 4 x Terminal block connectors analog input with +, - and ground
  • AES inputs: 4 x Terminal block connectors analog input with +, - and ground
  • Output connectors: 4 x 2 pole Terminal block connectors rated at 1000 V / 41 A (exceeding amplifier capacity) Can take up to 8 mm2 (8.2 AWG) cables
  • Ethernet Ports: 2 x EtherCon RJ45 Lake Controller, Dante controller and/or DLM (3rd party protocol)
  • Detachable mains cord: Detachable locking 3-pin IEC rated at 250 V / 16 A

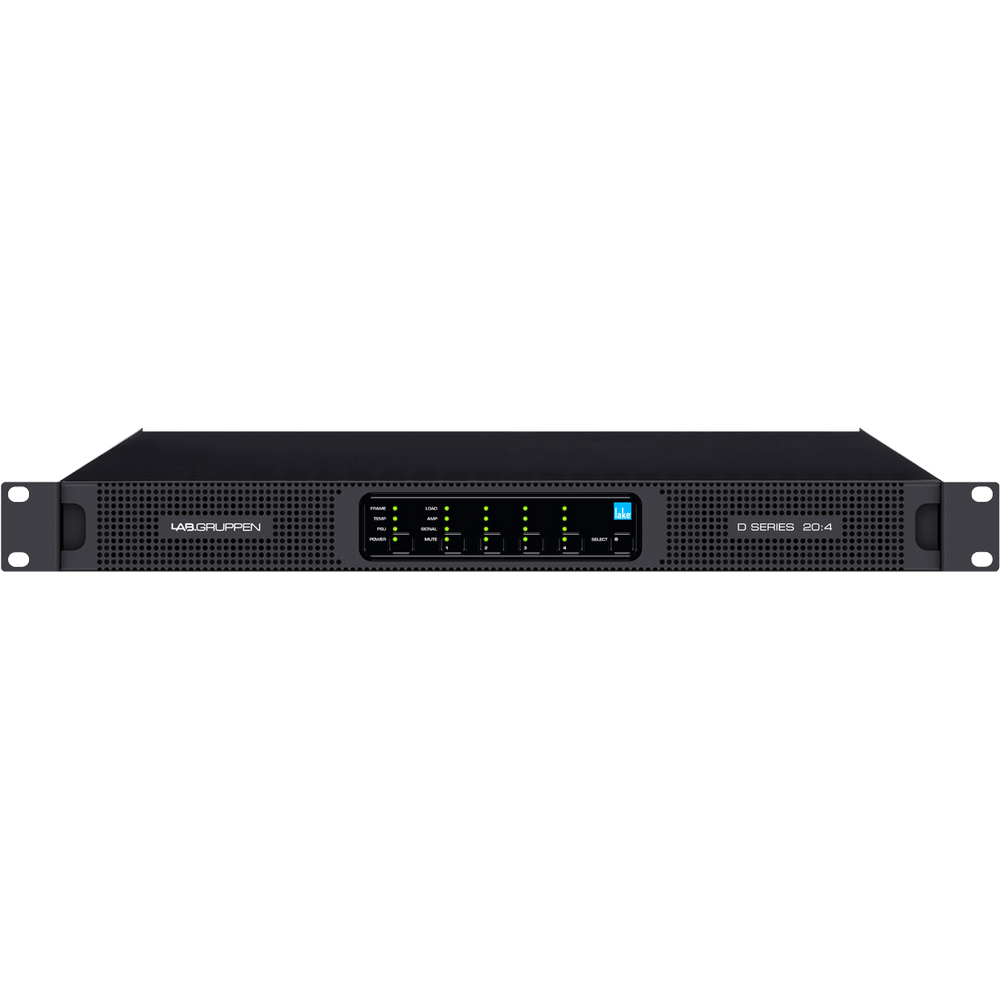

Front-panel user interface

  • System status indication: 3 x tri-color LED. FRAME, TEMP, PSU for device status indication
  • Channel status indication: 3 x tri-color LED per channel. Status indication separated for channel LOAD, AMP, SIGNAL status
  • Mute: Per channel touch button for MUTE control and tri-color LED for indication
  • Power: Touch button for ON/STANDBY control and tri-color LED for power state indication
  • Select: Touch button and LED for bidirectional device software select functionality

Mains Power

  • Nominal voltage: 100 - 240 Volt AC 50 - 60 Hz
  • Operating voltage: 70 - 265 V AC 45 - 66 Hz
  • Mains wall plug: Selectable on order CEE 7/7 “Schuko” 230 V / 16 A, NEMA 5-15 125 V / 15 A, BS1363-A 250 V / 13 A, IA16A3 250 V / 16 A, AU/NZ 250 V / 10 A, JP 125 V / 15 A, CPCS-CCC 250 V / 10 A

Power supply

  • Soft start / Inrush power: Yes
  • Power factor correction: > 0.98 for mains power > 300 W
  • Regulated switch mode power supply (R.SMPS): Yes
  • Breaker Emulation Limiter (BEL): No
  • BEL max current threshold: Fixed 8 A
  • Power Average Limiter (PAL): Yes
  • Under Voltage Limiter (UVL): Yes
  • Mains undervoltage and overvoltage protection and mains glitch tolerance: Yes

Dimensions

  • Rack rail to rear panel W: 483 mm (19”), H: 44 mm (1 U), D: 425 mm (16.7”)
  • Overall depth front-rear support: D: 463 mm
  • Weight: 7.9 kg (17.3 lbs)
  • Finish: Black painted steel chassis with grey painted steel front with detachable grille
  • Approvals: CE, ETL (ANSI/UL, CSA), PSE, RCM, BIS, CCC


Manufacturer: Lab Gruppen
Model: D 20:4L_US1
SKU: I434612-N-0-WHXB
UPC: 7331573003949
