Lab Gruppen NLB 60EU Ethernet-to-NomadLink Bridge for PC Interface

Original price $1,400.00 - Original price $1,400.00
Original price $1,400.00
$1,400.00 - $1,400.00
Current price $1,400.00
♫ In stock
About Inventory Status

Call or text us at 301-946-8808.

In stock: It is in stock and available to ship or pickup. Apparel must be shipped from another location and is not available for in-store pickup. We can usually ship or have these items available for pickup by the next business day if they don't require inspection, special handling, or setup. Our pickup location is 11151 Veirs Mill Rd. Silver Spring, MD 20902.

📆 Preorder: It is on the way to our warehouse. We can't predict when preorder items will arrive due to current supply chain issues. If you place an order for one of these items someone will contact you to estimate the delivery date.

Out of stock: We don't currently have it available but you're not out of luck yet. We still may be able to get it. If you order one of these items we will contact you with an estimated fulfillment date. You have the option to cancel the order if you change your mind.

Special order: The item is so special that it needs to be custom ordered for you. Some of these items are works of art and have to be made individually. Orders for special order items must be prepaid and we cannot accept cancellations or refunds.

█ Sold out: We don't think we can get this item because it was either discontinued by the manufacturer or was limited in quantity. If you want or need this item call or text us. Sometimes we can help you track down the item through other sources or help you find something similar.

About Item Conditions

Call or text us at 301-946-8808.

New: The item is brand new as received from the manufacturer with a full manufacturer warranty. Instruments such as guitars, snare drums, drum kits, brass and woodwind instruments may be opened for photography and quality control inspection and may not be in a factory sealed box.

Mint or Open Box: The item may have been opened and tested but has been repackaged. The original packaging may have superficial issues but the item itself and any originally included accessories are in perfect, like new condition.

Display Model: These items are so cool that we put them on display in our legendary shop. The condition is brand new as received from the manufacturer with manufacturer warranty. Rest assured, these items undergo a very careful inspection before shipping.

Demo: These items have been on our sales floor for demo purposes and will likely show signs of use. The original packaging may no longer be included, but you can be assured that you are receiving an awesome item and an awesome price.

Used: The item is used. These item may have varying degrees of wear. Please read the description for information about the condition of the item. Used items do not carry a warranty.

B or C Stock: Factory refurbished. These items were purchased from the manufacturer in a refurbished condition. They will show some cosmetic issues, but nothing that would impact performance. Being that these are sealed from the manufacturer, we generally do not open these to photograph the cosmetic issues. They are guaranteed to work and may have a limited warranty or you may purchase an extended warranty in some cases. Please see the listing description for item specific information.

Educational & Government Sales Quotes

Click here to inquire about an educational or government quote and discover more about our Educational & Government Sales Division.

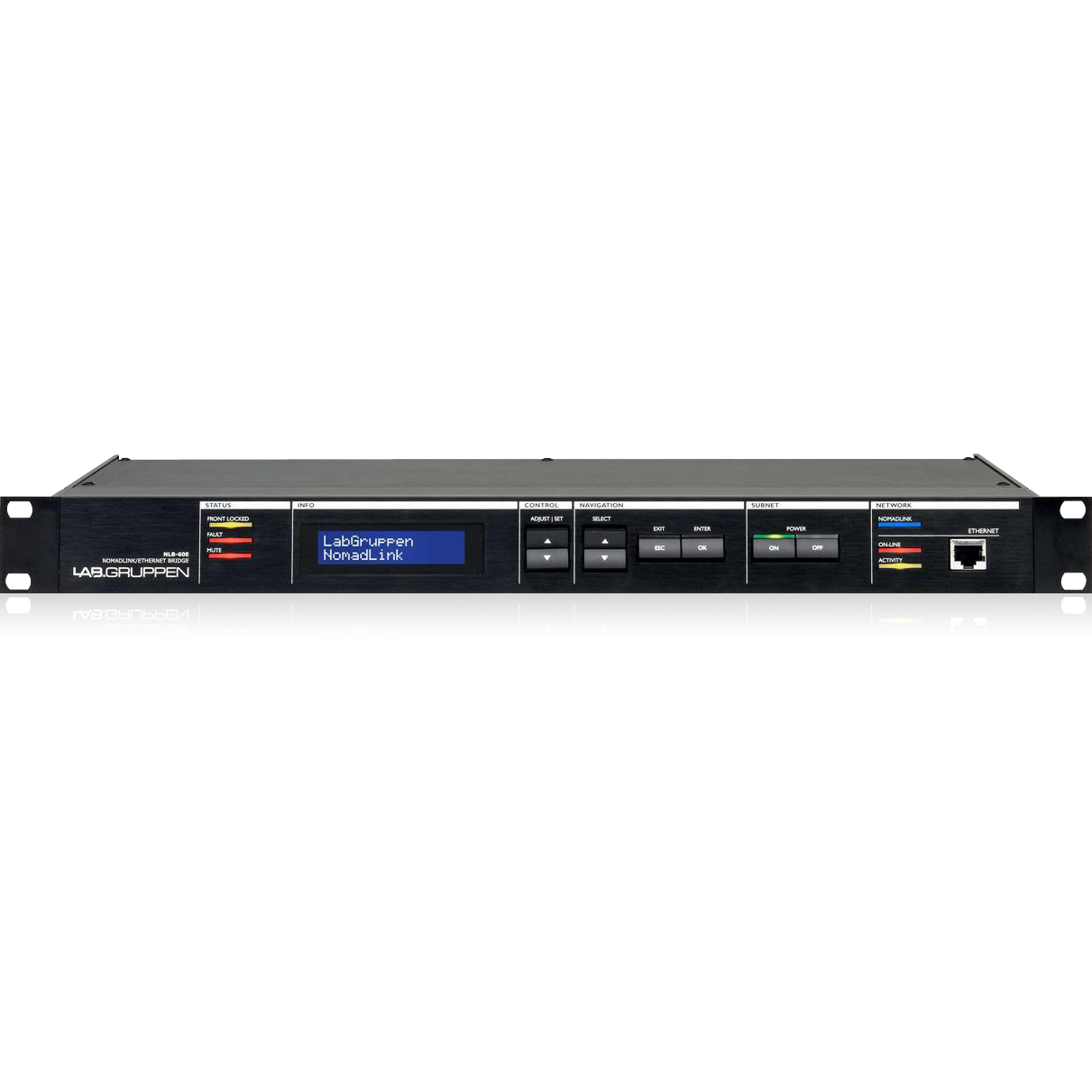

Flexible and Convenient - The Lab Gruppen NLB 60EU Ethernet-to-NomadLink Bridge for PC Interface

The NLB 60E NomadLink Bridge & Network Controller serves as the keystone component in all networked applications for Lab Gruppen's NomadLink-ready power amplifiers. As a stand alone unit, the NLB 60E provides facilities for monitoring amplifier parameters, detecting fault conditions, and controlling key functions (power on/off sequencing and mute) over a proprietary NomadLink network comprising up to 60 amplifiers.

  • Ethernet to NomadLink Bridge – Provides an Ethernet link between a PC and a NomadLink® network for monitoring and control of up to 60 NomadLink-ready amplifiers per NLB 60E
  • Network power on/off – Dedicated switches control power on/off for all amplifiers connected to the network
  • General Purpose Inputs (GPIs) – Three GPIs each individually programmable for external triggering of power on/off or mute on all amplifiers
  • Bright LED display – Ultra-bright 16x2 character display for easy reading in high ambient light
  • Keypad user interface – Six momentary keys access amplifier status information, parameter selection, and data entry
  • Fault Indication – Bright red LED signals a fault condition, with detailed information accessible on the 16 x 2 display or connected PC
  • Phantom powering for network – Amplifiers stay online with zero power consumption, remaining ready for immediate use
  • Front and rear Ethernet ports – Rear port for permanent connection, with parallel front port for quick maintenance access
  • Front-panel password lockout – Prevents unauthorized operation or reprogramming



  • Front Panel L/C Indicators: Front operation locked (Yellow); Fault warning (Red); Subnet muted (Red); NomadLink network connected/activity (Blue); Ethernet connected (Orange); Ethernet activity (Yellow)
  • Display: 2 x 16 character; white text on blue background
  • Navigation and Adjust Keys: Yes, x 6
  • Subnet Power On/Off Keys: Yes, x 2
  • Mains Power Supply: 100 to 240 VAC, 50 to 60 Hz (auto-select)
  • Power Consumption: < 35 W
  • Dimensions (W x H x D): 483 x 44 x 208 mm, 19 x 1 U x 8.2 inches
  • Weight: 2.25 kg (5 lbs)
  • Finish: Black anodized aluminium front and painted steel chassis

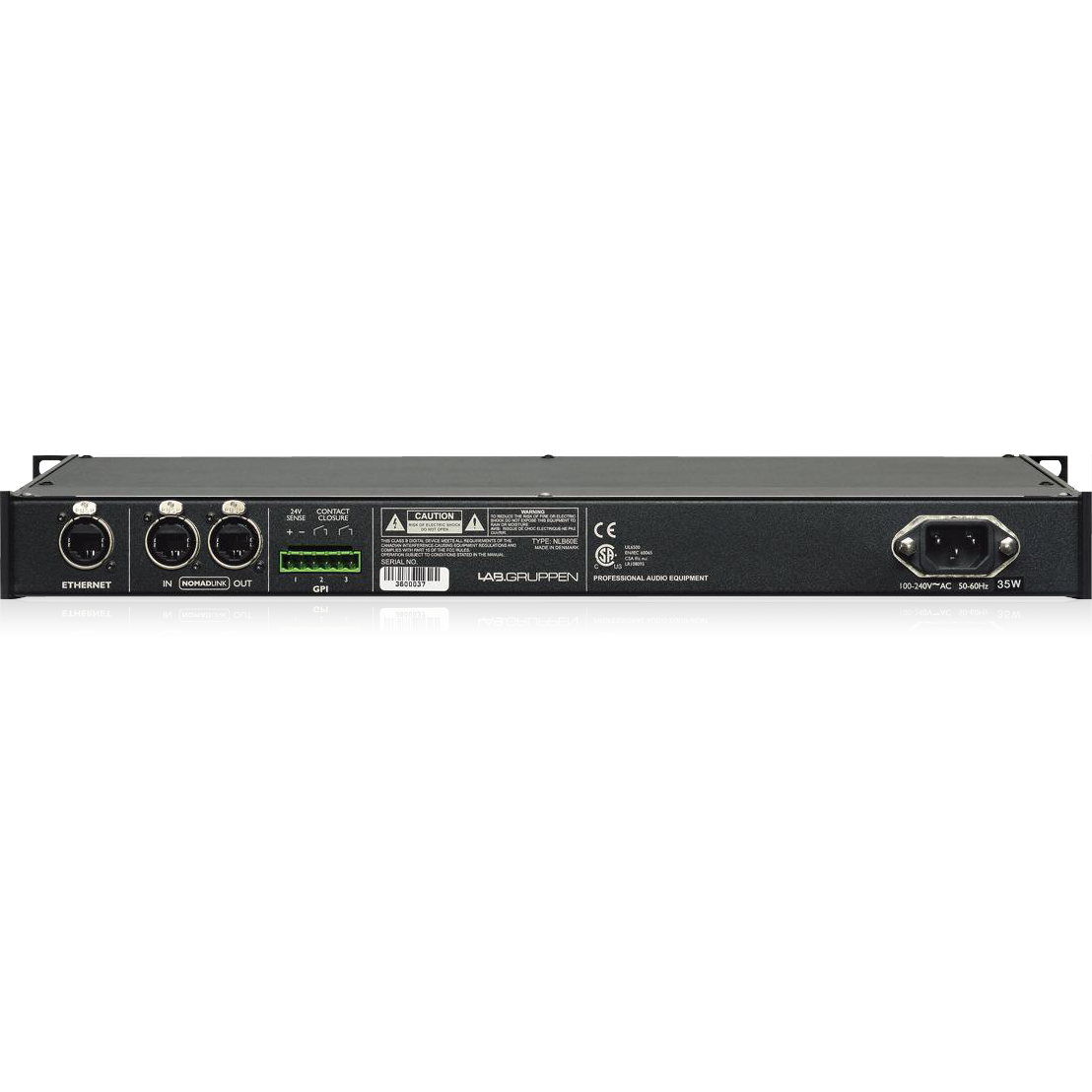

Network Connectors

  • NomadLink Out: EtherCon housed RJ45
  • NomadLink In: EtherCon housed RJ45
  • Ethernet Rear-Panel: EtherCon housed RJ45
  • Ethernet Front-Panel: Standard RJ45

General Purpose Input (GPI)

  • 1 x Voltage Sensing Input (10 V is the trigger level): 2-pole Phoenix
  • 2 x Contact Closure Input: 2-pole Phoenix

Manufacturer: Lab Gruppen
Model: NLB60EU
SKU: I196397-N-1-WHXE
UPC: 7331573000405
