Lewitt DTP640 REX Dual-Element (Dynamic and Condenser) Bass Drum Microphone

Add More Power to Your Music with the Lewitt DTP640 REX Dual-Element (Dynamic and Condenser) Bass Drum Microphone

Thanks to variably controlled dual element technology and fine tuned frequency responses, the DTP 640 REX (the flagship among Lewitt drum microphones) offers unparalleled and powerful sound that will delight professional drummers and sound engineers alike. The DTP 640 REX is equipped with a high quality dynamic element and a condenser element – the dynamic element ensures accurate reproduction of the bass drum kick, while the condenser element optimally captures the rich low frequency sound of the drum’s shell. In order to guarantee full control over the two elements, they can be separately mixed on their own channels.

Since 2012, the DTP 640 REX offers two more features. The dynamic element emphasizes frequency ranges relevant for the kick drum in the 'Dynamic Enhanced Frequency Response' setting switchable right on the microphone, while the condenser element captures the sound neutrally. With 'Dual Enhanced Frequency Response', the character of the sound can be shaped even more individually - with this setting, the condenser element focuses on frequencies from 70 to 150 Hz and delivers a full body sound. The dynamic element provides the necessary power by focusing on the range between 3 and 5 kHz. The combination of these features with the comprehensive tonal freedom of dual-element technology greatly increases the range of use, turning the DTP 640 REX into a universal tool for bass-heavy applications.

• Dual-element instrument microphone

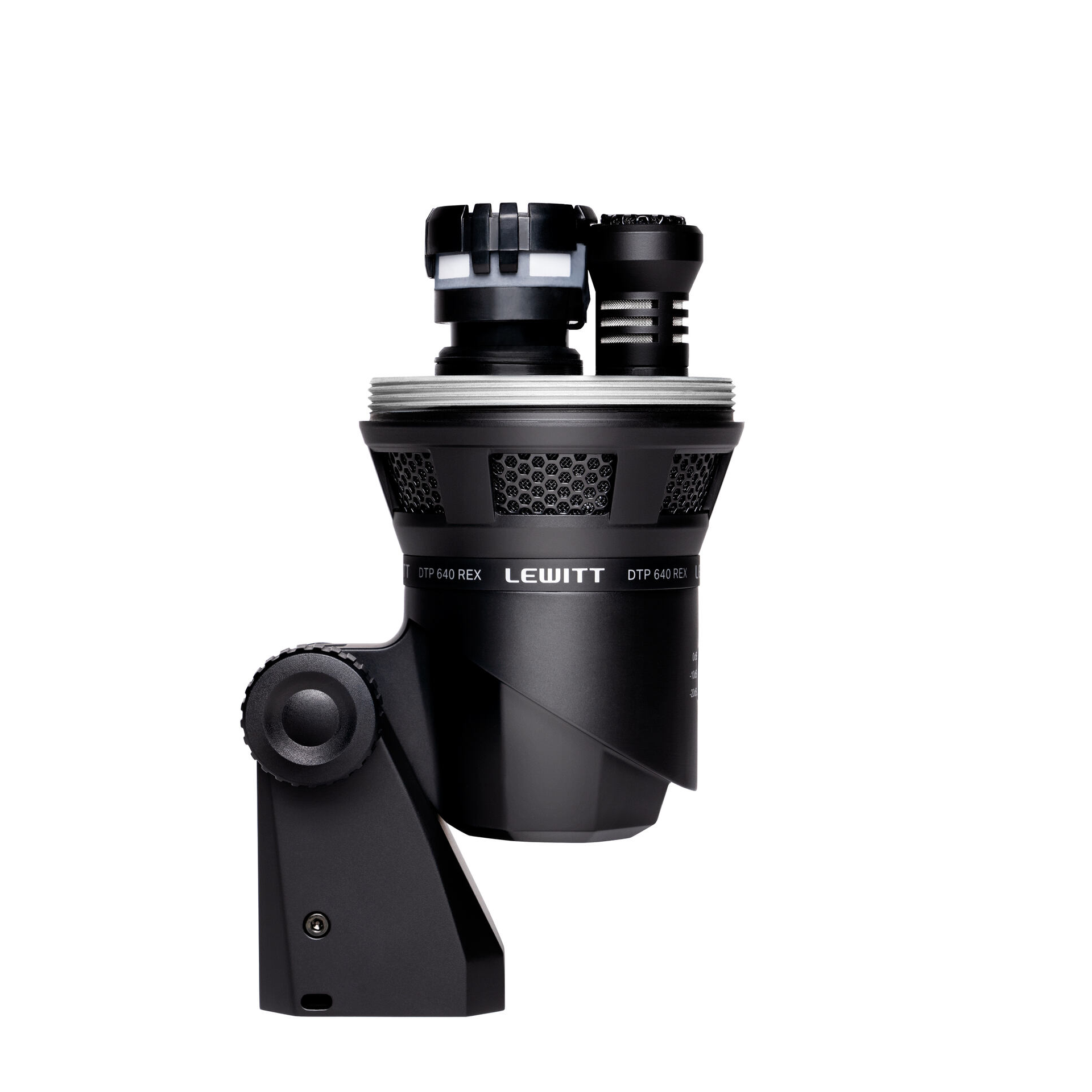

• Dynamic and condenser capsule in one housing
• Separate outputs for both capsules
• For kick drum and other bass-heavy sources
• Three switchable sound characteristics
• Cardioid polar pattern

SPECIFICATIONS

• Type: Dynamic - moving coil, Condenser - permanently polarized
• Acoustical Operating Principle: Pressure gradient transducer
• Transducer Ø (Dynamic): 1.25 inches / 31.7 mm
• Transducer Ø (Condenser): 0.88 inches / 22.4 mm
• Polar Pattern: Cardioid
• Frequency Range (Dynamic): 20 - 16,000 Hz
• Frequency Range (Condenser): 20 - 20,000 Hz
• Self-Noise: 28 dB (A)
• Max. SPL for 0.5 % THD: 150 dB SPL, 0 dB attenuation
• Dynamic Range of Mic. Amp. (Condenser): 122 dB
• Pre-Attenuation Pad: 0 dB, -10 dB, -20 dB
• Rated Impedance (Dynamic): 500 Ω
• Rated Impedance (Condenser): 200 Ω
• Supply Voltage: 48 V ± 4 V
• Current Consumption: 2 mA
• Connector: Gold plated 3-pin and 5-pin XLR
• Cable: 1.5 m (4.95') dual shielded Y-cable, 5-pin XLR into two 3-pin XLRs
• Microphone Dimensions: 2.8 x 6.2 inches / 71 x 158 mm
• Microphone Net Weight: 27.3 oz / 755 g

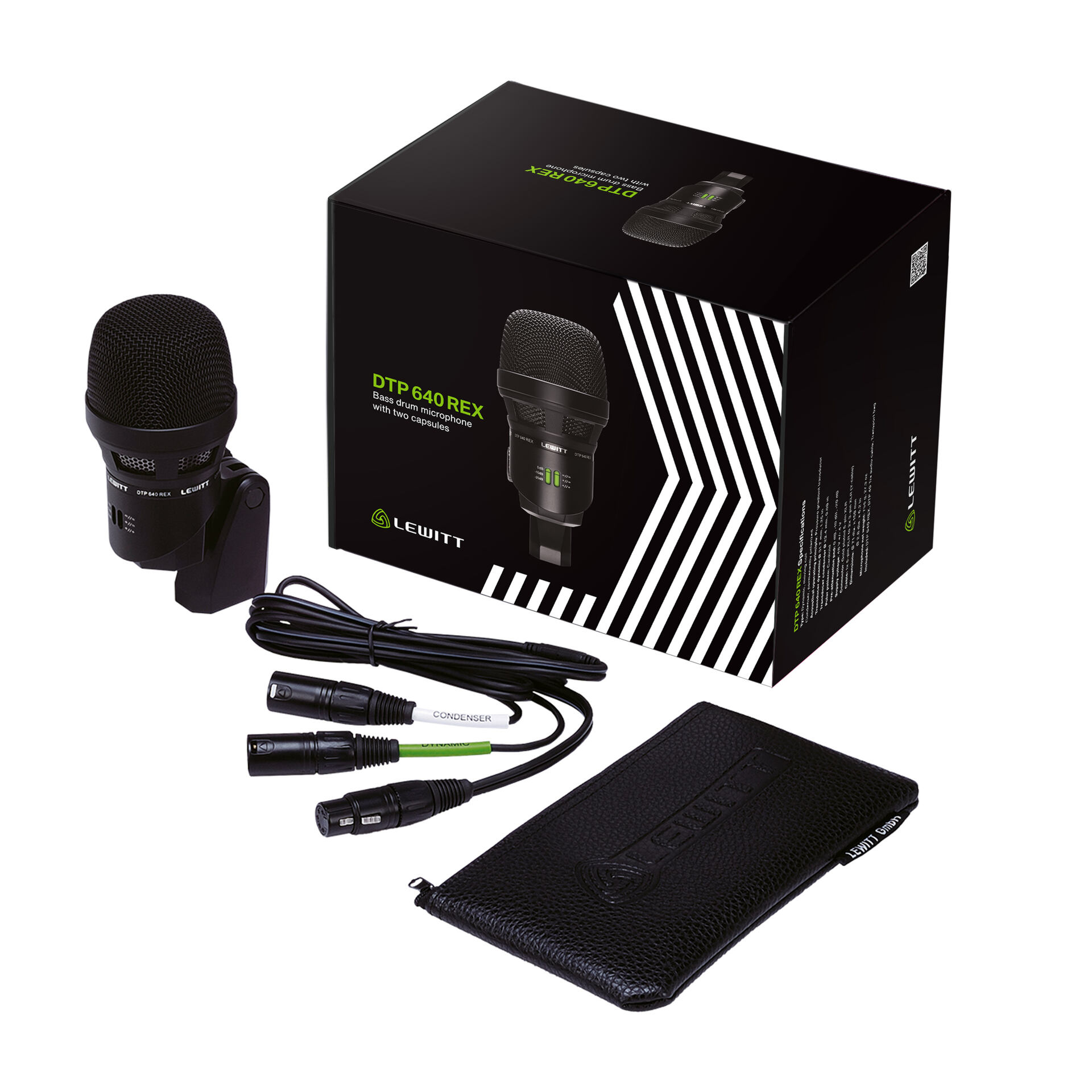

• Included: DTP 40 Trs audio cable, Transport bag
