Discover Your Bass Guitar's True Voice - Magellan Preamp/DI Bass Guitar Pedal

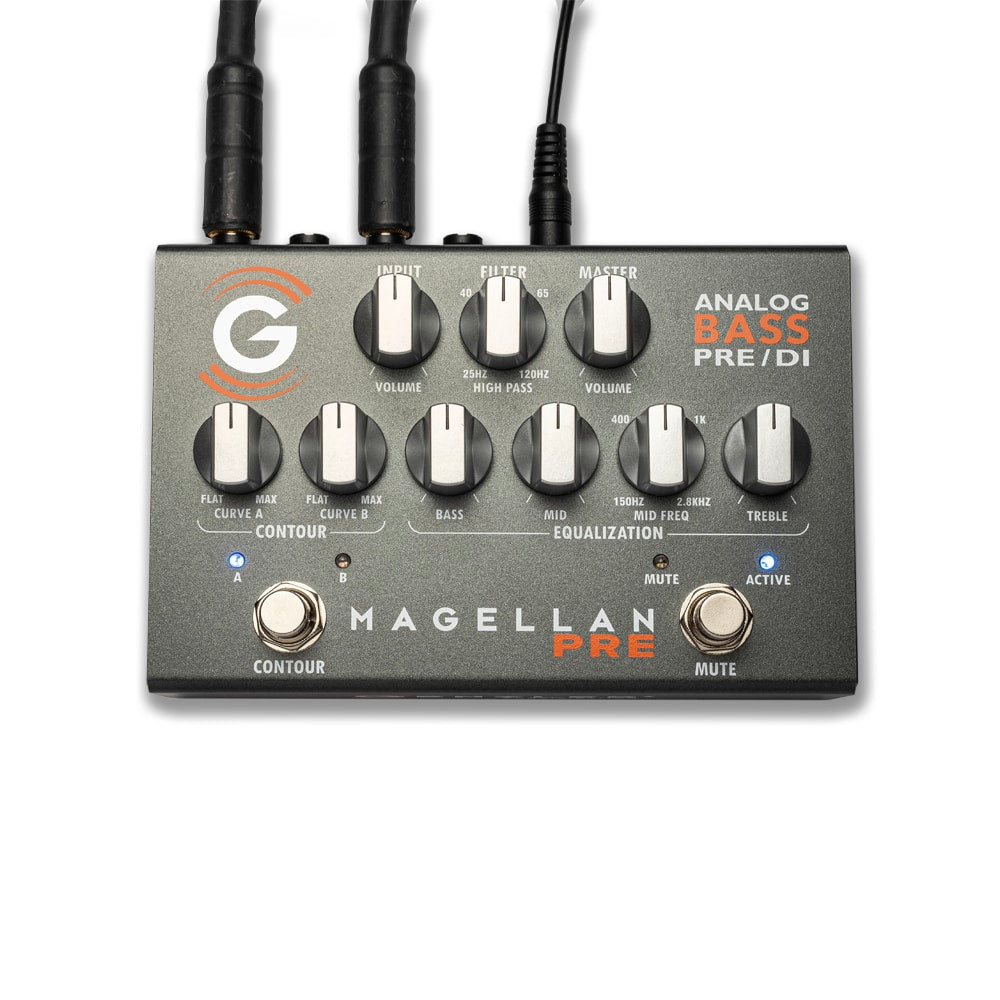

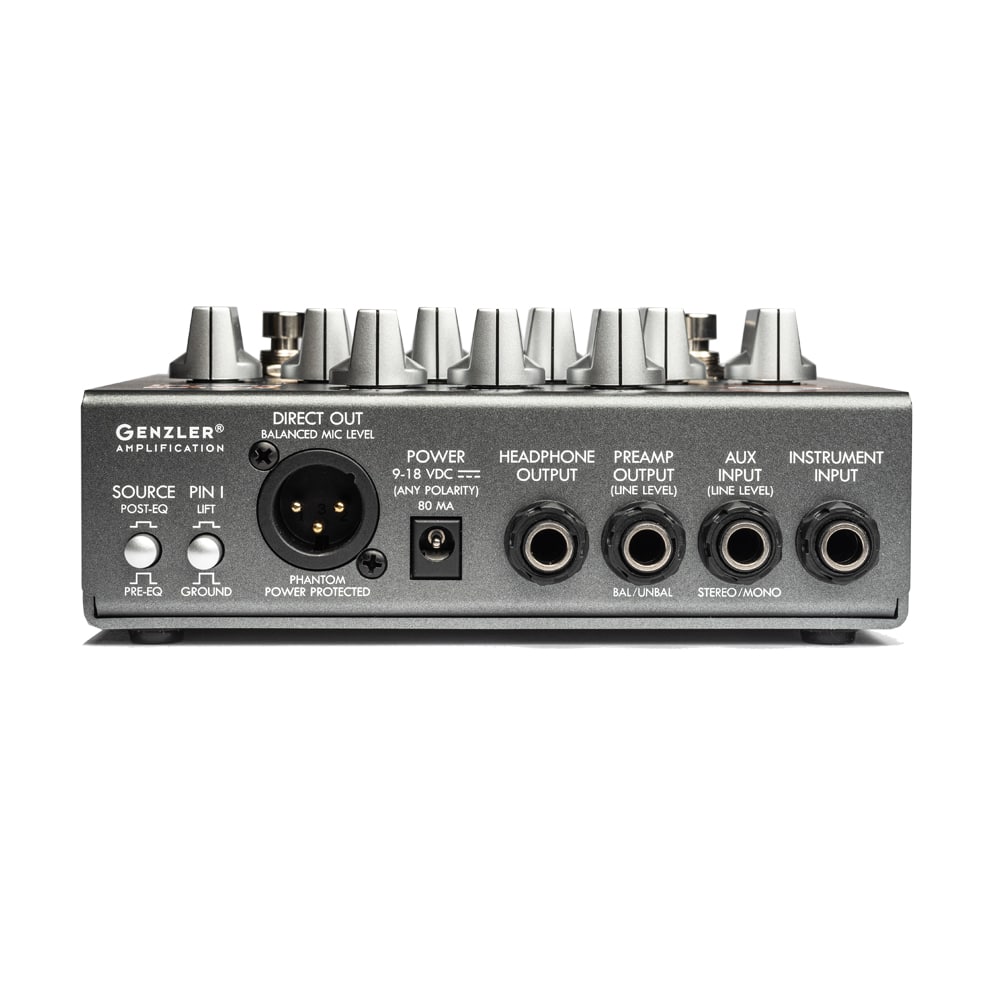

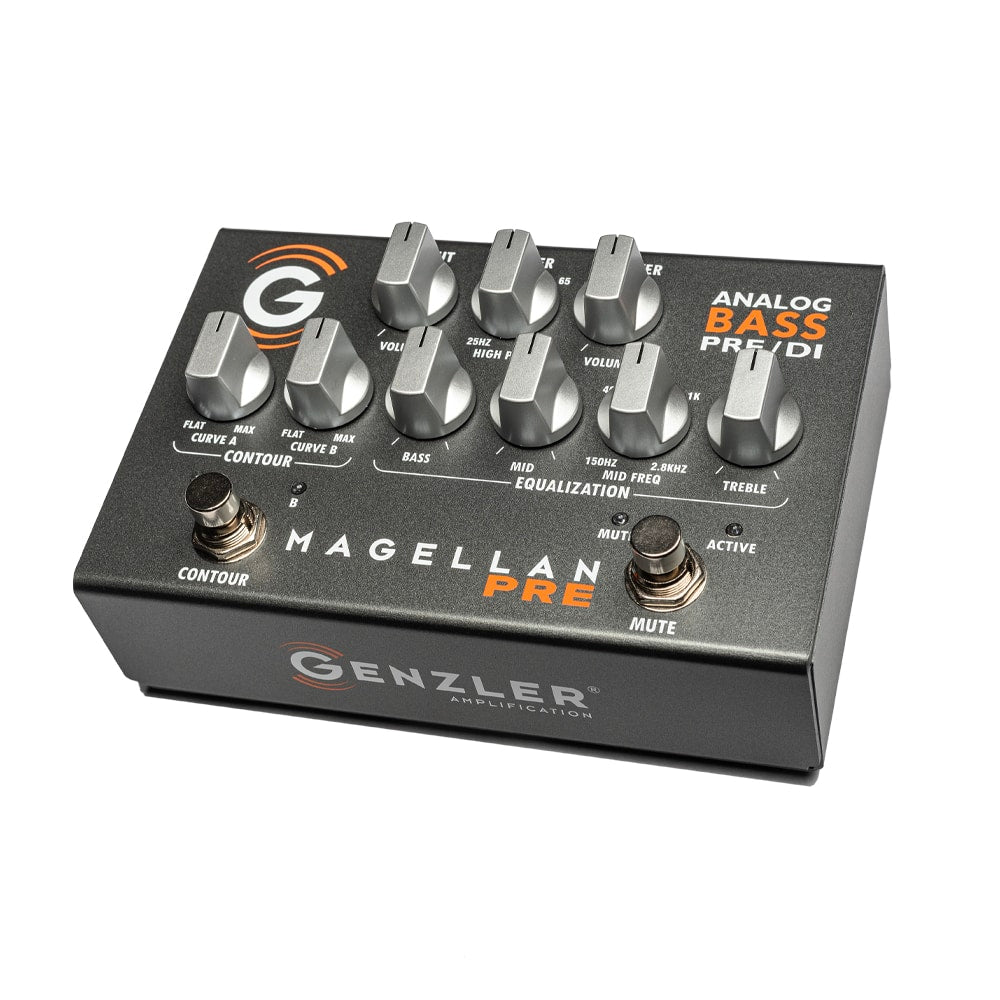

The MAGELLAN® PRE is an all-analog full featured preamp pedal with a wide-range input gain control, 3-band equalization with sweepable mids, our unique foot switchable dual curve adjustable contour circuits, foot switchable mute circuit, aux input, headphone output, balanced/unbalanced main output and balanced XLR direct output. This compact, lightweight pedal brings all of the tone and versatility of our MAGELLAN series bass amplifier designs into a small pedal format.


  • Wide Range Input Circuitry
  • Input and Master Volume Controls
  • Variable High Pass Filter
  • Switchable Dual Contours (A & B)
  • Independent Contour Controls
  • Same Magellan 3 Band EQ w/Sweepable Mids
  • Signal mute
  • Preamp Output—Capable of driving a Separate Power Amp
  • Aux Input
  • Headphone Output
  • Studio Quality Direct Out Circuitry w/Pre or Post and GND Lift
  • Lightweight Aluminum Chassis Construction
  • Operates on any Power Supply Voltage: 9 – 18VDC, either Polarity (power supply not included)
  • Dimensions: 6” (152mm) W x 4.3” (110mm ) D (w/ jacks) x 2.5” (63mm) H (w/ knobs and feet)
  • Weight: 1.1 lb (0.5kg)


SPECIFICATIONS

  • Dimensions: 6” (152mm) W x 4.3” (110mm ) D (w/ jacks) x 2.5” (63mm) H (w/ knobs and feet)
  • Wwight: 1.1 lb (0.5kg)
  • Power Supply: 9VDC-18VDC (low noise type), either polarity, 80mA
  • Power Supply Jack: 2.1mm center pin with 5.5mm barrel (standard Boss pedal dimensions)
  • Input Impedance: 1 Meg Ohm
  • Input Sensitivity (nominal): -10dBu to -20dBu (instrument level)
  • Input Sensitivity (maximum): >0dBu (9V supply), >+5dBu (12V supply), >+10dBu (18V supply)
  • High Pass Filter Range: 25Hz – 120hz, 18dB/oct variable
  • EQ Filter Points
    • Low: +/-15dB shelving below 75 Hz
    • Mid: +/-15dB peak-dip, between 150Hz – 2.8kHz
    • High: +/-15dB shelving above 6kHz
  • Preamp Outout Impedance: 1k ohm (unbalanced), 2k ohm (balanced)
  • Preamp Output Level (nominal): -10dBu to +4dBu (line level)
  • Preamp Output Level (unbalanced maximum): +8dBu (9V supply) +12dBu (12V supply), +16dBu (18V supply)
  • Preamp Output Level (balanced maximum): +14dBu (9V supply) +18dBu (12V supply), +22dBu (18V supply)
  • Direct Output Level (balanced nominal): -30dBu (mic level)
  • Direct Output Impedance: 2k ohm (balanced)
  • AUX Input Impedance: 10 K Ohm
  • AUX Input Level (nominal): -10dBu, stereo (sums to mono)
  • AUX Input Level (maximum): +10dBu, stereo (sums to mono)
  • Headphone Output: Drives headphones and IEM buds from 8 ohms -200 ohms, stereo output, mono signal path. (Higher impedance headphones, such as 600 ohms, will result in less output and headroom.)


Manufacturer: GENZLER AMPLIFICATION
Model: MG-PRE-DI
SKU: I744803-N-0-WHXD
UPC: 853974006437
