Make Noise 4-Zone CV Bus Eurorack Case

Power Your Rig with the Make Noise 4 Zone CV Bus Eurorack Case

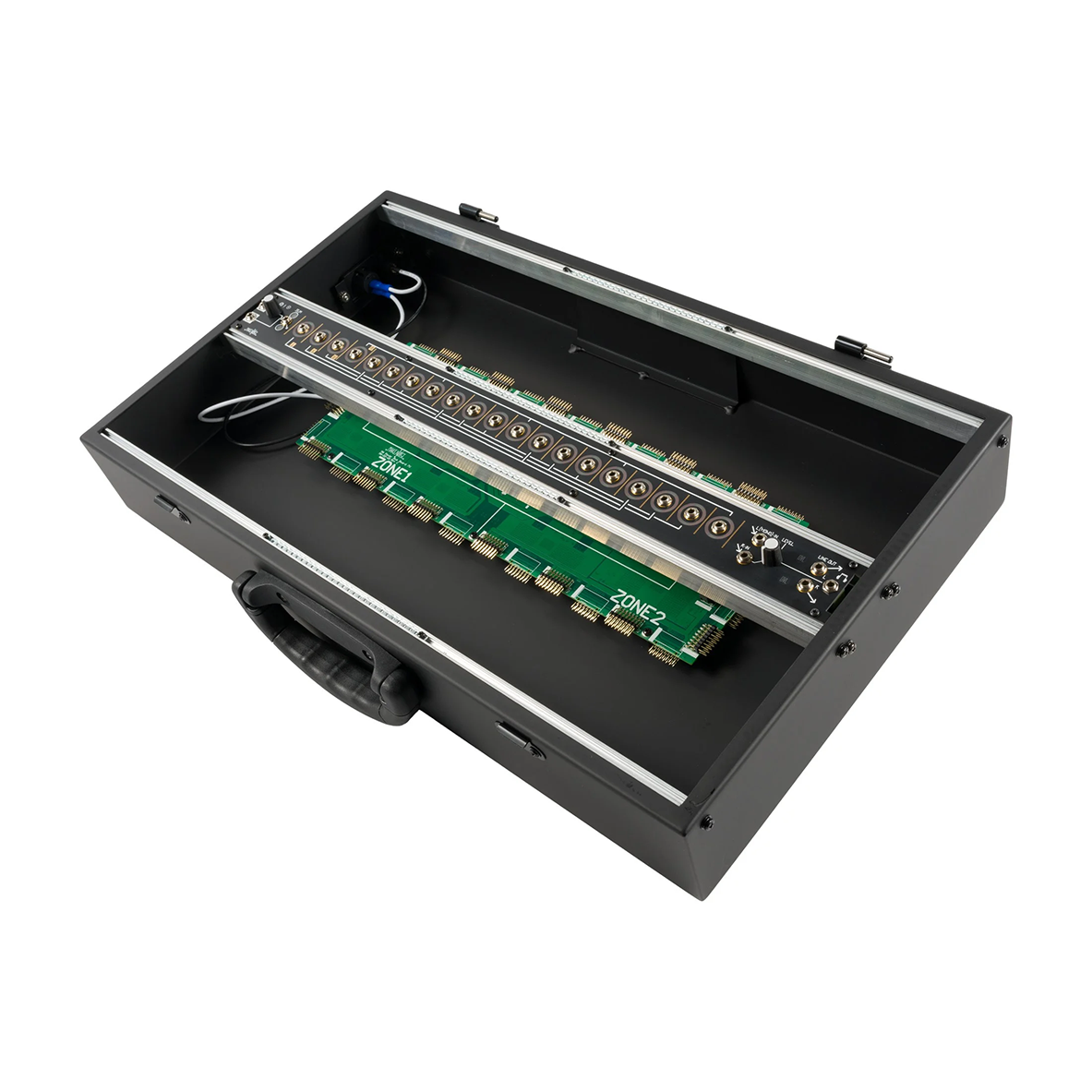

The Make Noise 4 Zone CV Bus Case is a 7U powered Eurorack case designed to arrive ready for modules, patch cables, and creative exploration. It provides two 104hp 3U rows for Eurorack modules along with a 104hp 1U row fitted with the Make Noise CV Bus. A rugged powder-coated metal enclosure, removable patch-friendly lid, multi-zone power architecture, integrated utilities, and universal power support make it a flexible foundation for studio, stage, and travel systems.

• 7U powered Eurorack case with two 104hp 3U rows and one 104hp 1U row
• Total Eurorack space: 208hp at 3U plus 104hp at 1U
• 1U row includes the Make Noise CV Bus
• 4 Zone Power Bus Board provides isolated +12VDC and -12VDC supplies for each zone
• Dedicated ground return path for each power zone
• Shared +5VDC supply across all four zones
• Hybrid switched/linear power system designed for low noise and stable load regulation
• Multi-zone design helps isolate noise-prone modules from noise-sensitive modules
• Black powder-coated metal construction with embossed logo on lid
• Removable lid can close while the system remains fully patched
• Sealed enclosure helps keep dust out during travel or storage
• Recessed side-mounted power switch and power inlet support safer transport
• Locking power connector helps reduce accidental power loss during performance
• Solid carrying handle and rubber feet simplify transportation and setup
• Designed to meet carry-on luggage size requirements for most airlines
• Universal AC power adapter supports worldwide use

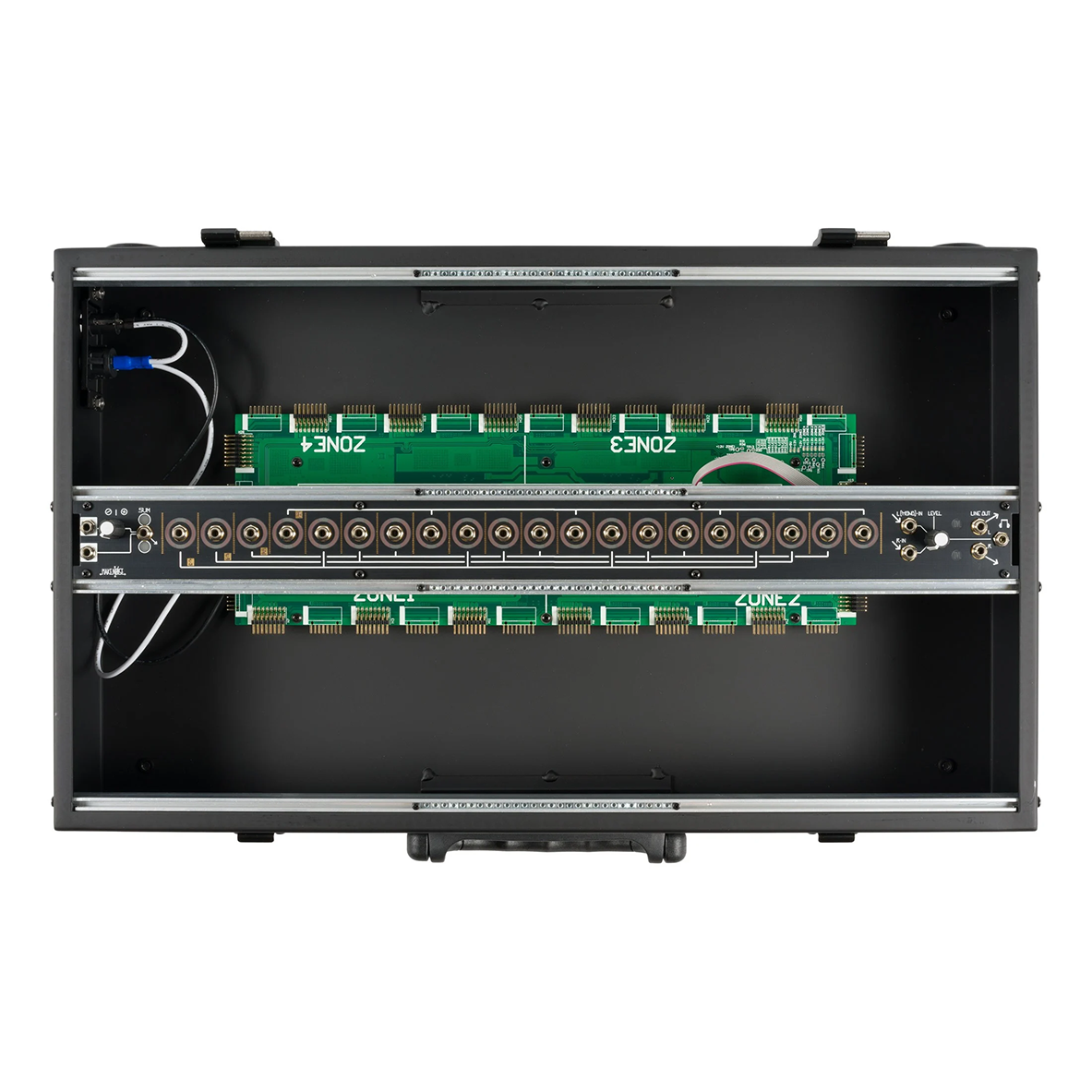

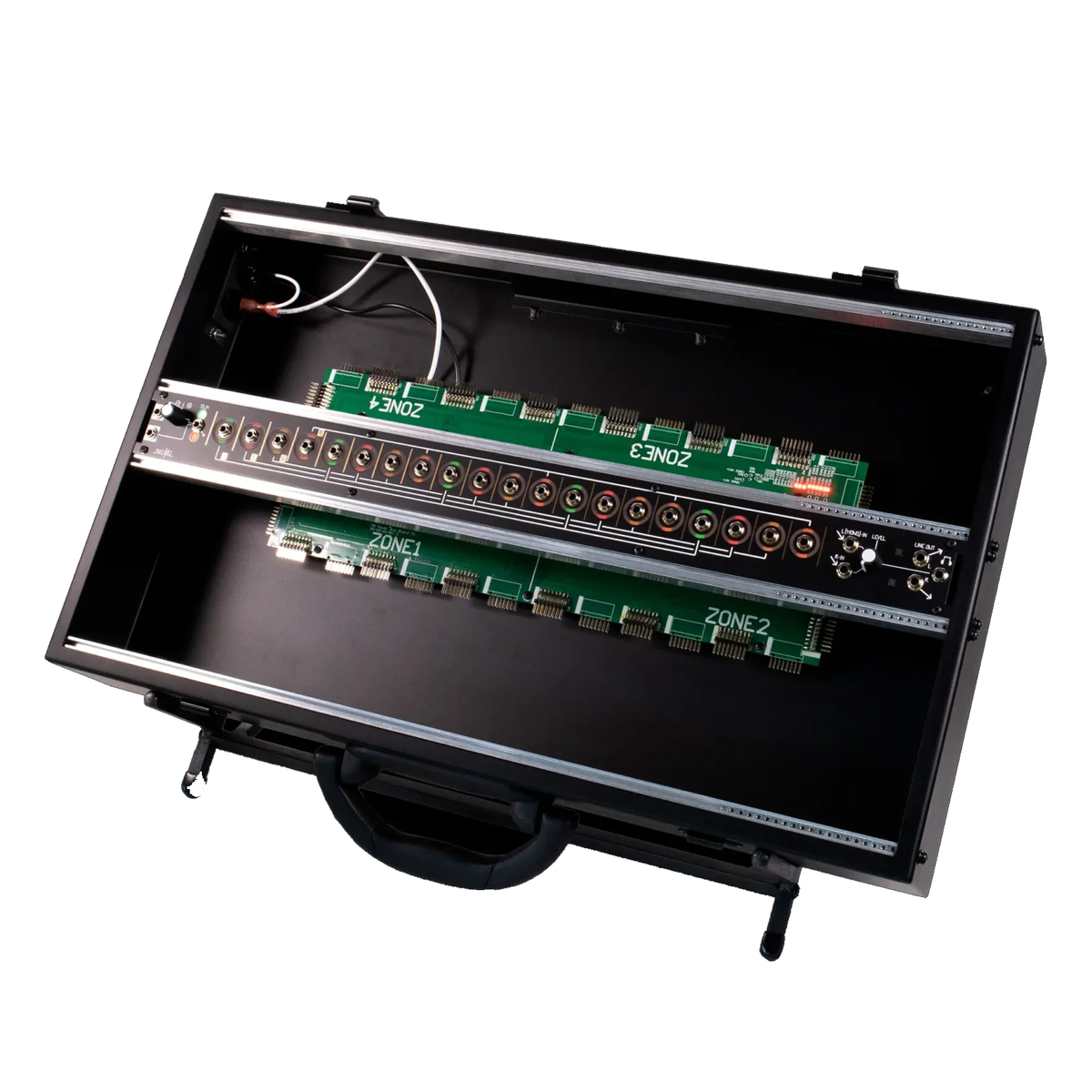

Four-Zone Power Architecture

The Make Noise 4 Zone Power Bus Board is designed to accommodate the wide variety of power requirements found in modern Eurorack systems. Instead of functioning as a single shared bus board, the design behaves like four independent power zones within one integrated board.

Each zone receives isolated +12VDC and -12VDC supplies along with a dedicated ground return path. The +5VDC supply is shared among all four zones. This arrangement allows noise-prone modules to be separated from more sensitive modules, helping create a cleaner and more manageable power environment.

Integrated CV Bus

The CV Bus provides visual indication of level, rate, and polarity for up to four control signals that can be distributed throughout a patch. These four signals are color coded and routed across the center of the system, making important modulation and timing sources easier to identify and access.

Instead of relying on a conventional multiple positioned in one location, the CV Bus places distributed control signals beneath potential destinations across the system. This arrangement encourages the use of shorter patch cables and can make large, complex patches easier to navigate.

Voltage Math Utility

Located at the left side of the CV Bus, the Voltage Math section provides a compact collection of useful modular functions. Its two inputs are summed at the output, with one input operating at unity and the second controlled by an attenuverter.

The attenuverted input is normalled to a DC offset when no external signal is connected, making the section useful for level shifting, voltage mirroring, signal summing, and related control-voltage processing. Green and red LEDs provide visual indication of output level and polarity.

Integrated Stereo Line Driver

The CV Bus also includes a high-quality Stereo Line Driver that converts modular-level signals to standard line level. Separate mini-jack inputs support Left/Mono and Right signals, while a master volume control adjusts the overall output level.

Outputs include a stereo line output pair along with a TRS line/headphone output. The circuit is designed to drive long cable runs to a PA system or headphones and includes AC coupling and built-in limiting with visual indication to help protect listening equipment when patch levels become extreme.

Built for Travel and Performance

The powder-coated metal enclosure provides strong mechanical protection while maintaining a streamlined matte black appearance designed to complement Make Noise Black & Gold modules. The removable lid provides enough clearance to close the case while a system remains patched, allowing complex setups to stay connected between sessions or performances.

A recessed power switch and inlet help protect controls during transportation, while the locking power connection reduces the chance of accidental disconnection on stage. A solid carrying handle, rubber feet, and compact dimensions make the case well suited for portable modular systems.

SPECIFICATIONS

Case Configuration

• Case Size: 7U
• 3U Eurorack Space: 208hp Total
• 3U Rows: 2 x 104hp
• 1U Space: 104hp
• 1U Row: Fitted with CV Bus
• Maximum Module Depth: 2.5 Inches

Power

• Power Architecture: 4 Zone Power Bus Board
• Positive Rail: +12VDC @ 4A
• Negative Rail: -12VDC @ 2.4A
• 5V Rail: +5VDC @ 1A
• Power Zones: 4
• +12VDC Supply: Isolated Per Zone
• -12VDC Supply: Isolated Per Zone
• Ground Return: Dedicated Per Zone
• +5VDC Supply: Shared Across All Zones
• Power Connectors: 33
• Power Design: Hybrid Switched/Linear
• AC Adapter: Universal Worldwide Power Adapter

CV Bus

• Distributed Control Signals: Up to 4
• Signal Indication: Level, Rate, and Polarity
• Signal Identification: Color Coded
• Integrated Utilities: Voltage Math and Stereo Line Driver

Voltage Math

• Inputs: 2
• Input 1: Unity Gain
• Input 2: Attenuverter Controlled
• DC Offset: Normalled to Attenuverted Input
• Output Indication: Green and Red LEDs for Strength and Polarity

Stereo Line Driver

• Left / Mono Input: Mini-Jack
• Right Input: Mini-Jack
• Master Volume Control: Yes
• Stereo Line Outputs: Yes
• TRS Line / Headphone Output: Yes
• AC Coupled: Yes
• Built-In Limiting Circuit: Yes
• Limiter Visual Indication: Yes

Construction

• Material: Powder-Coated Metal
• Finish: Matte Black
• Lid: Removable
• Patch-Friendly Lid Clearance: Yes
• Dust-Sealed for Travel and Storage: Yes
• Power Switch: Recessed Side-Mounted
• Power Inlet: Recessed Side-Mounted
• Power Connector: Locking
• Handle: Integrated Carrying Handle
• Feet: Rubber

Dimensions and Weight

• Outer Dimensions with Lid: 22.25 x 14 x 7.25 Inches
• Weight: 12.75 lb with Powered Bus Board and CV Bus Installed

Included

• CV Bus
• Powered 4 Zone Bus Board
• 120 Sliding M2.5 Nuts with Black Screws
• Universal AC Adapter

Optional Accessory

• Blued Steel Stand, Sold Separately

Manufacturer: Make Noise
Model: 4 ZONE CASE
SKU: I764796-N-4-WHXX
