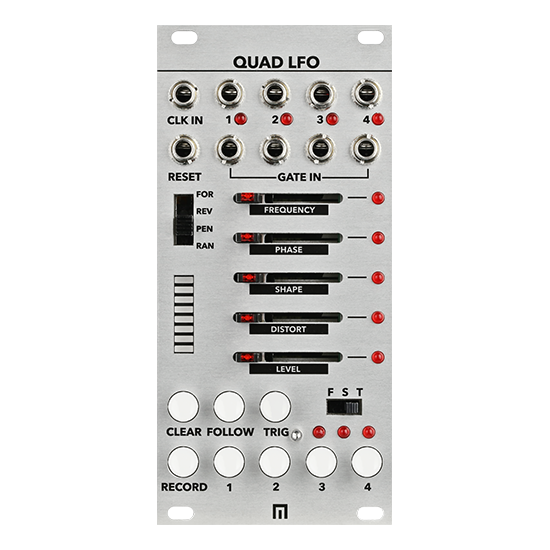

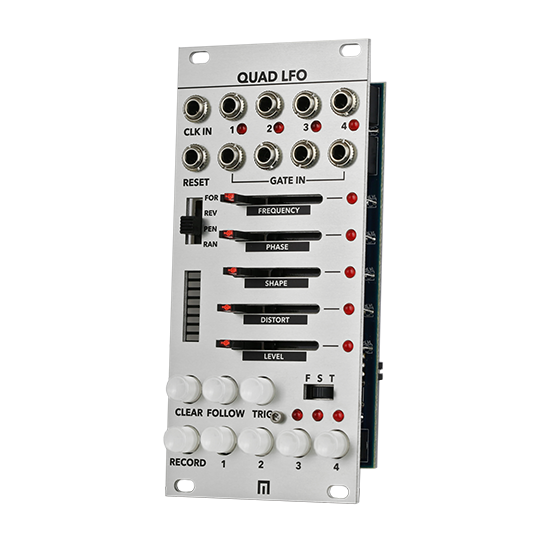

Control Your Sound With The Quad LFO Generator w/ 16-Step Sequencer Module
An LFO, or low frequency oscillator, sends control voltage out in the shape of a waveform. The Quad LFO available shapes include sine, ramp, saw, triangle and pulse and moves through these shapes using the SHAPE slider. You can send these 4 distinct LFOs directly out or to other modules for frequency modulation, VCA control, filter control, etc.
What makes this Quad LFO module different is that it also includes a 16 step automation sequencer for each channel, as well as autosave or expanded preset functions when used in conjunction with Varigate 4+ and Varigate 8+.
To create a sequence of automation for an LFO, select a channel and then hold the RECORD button and move the sliders for Frequency, Phase, Shape, Distort and Level and those slider movements will play back automatically as the Quad LFO cycles through the sequence. This sequencing feature allows for a multitude of dynamic possibilities for live performance and recording.
Set each LFO to trigger via one of the 4 individual gate inputs, or set channels 2 through 4 to follow channel 1 for quadrature and phase modulation. Change the direction of each channel of sequenced automation to Forward, Reverse, Pendulum or Random. Switch the playback speed and style between Fast, Slow or Tempo Sync. There are also inputs for both Clock and Reset.
- 4 LFOs, each with it's own individual output
- SINE, RAMP, TRIANGLE, SAW and PULSE
- Distortion types: FOLD, BIT CRUSH, NOISE
- 16 steps of automation recording for LFO settings per channel (+ Clear Automation function)
- Set each LFO to follow or trigger via one of the 4 gate inputs
- Forward, Reverse, Pendulum and Random switch for sequenced automation direction
- Autosave stand-alone or save up to 16 presets with Varigate 4+ and 100 with Varigate 8+
- Switch between Fast, Slow or Tempo Sync per LFO
- Clock in
- Reset in
- Space: 12hp
- Power: +12V/-12V
- Weight: 1 lbs
- Dimensions: 7" × 4" × 3"
Warranty: See manufacturer website for details
