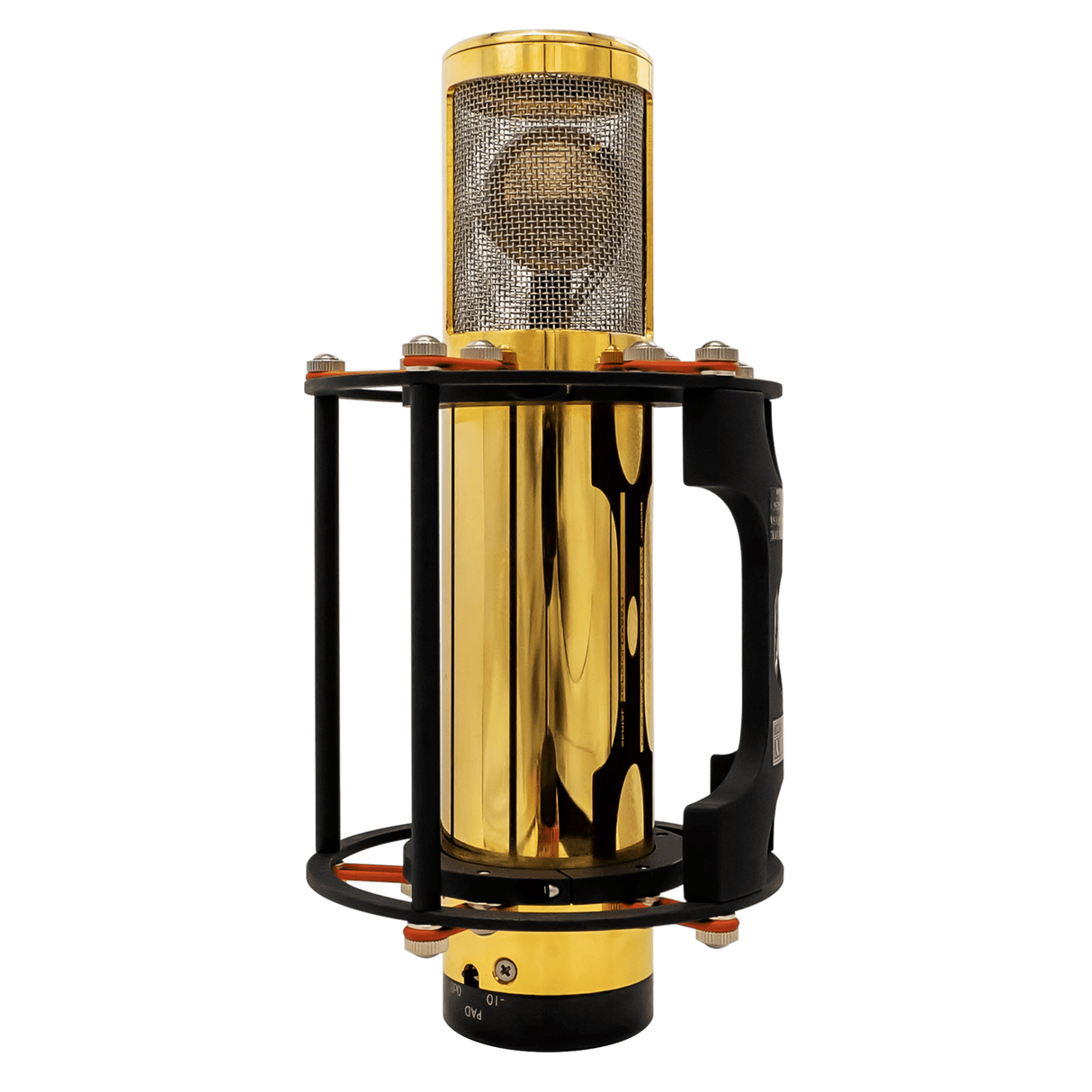

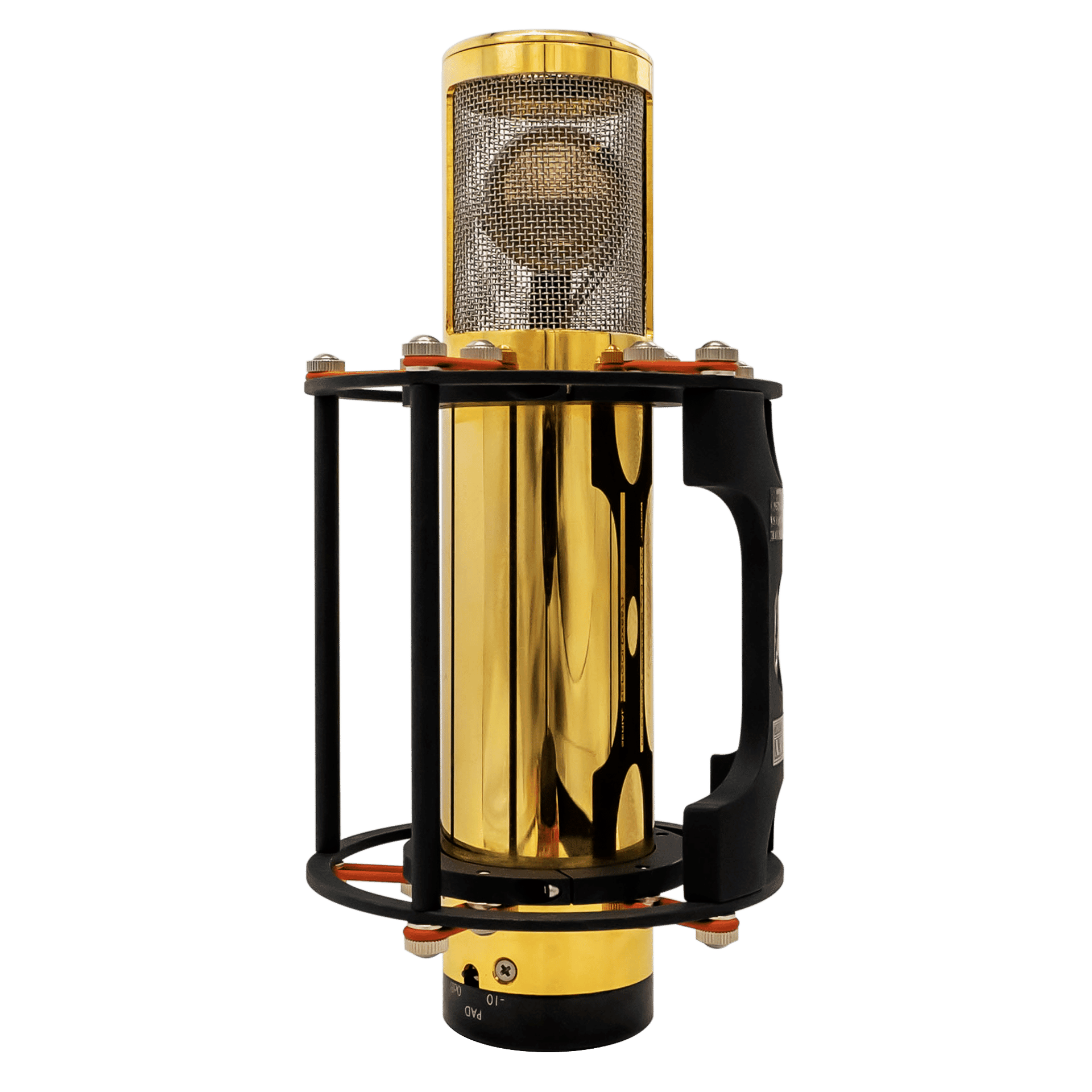

Manley Reference Gold Multi-Pattern Tube Microphone

Out of Stock
Original price $5,499.00 - Original price $5,499.00
Original price $5,499.00
$6,499.00
$6,499.00 - $6,499.00
Current price $6,499.00
About Inventory Status


Questions?
Call or text us at 301-946-8808.

In stock: It is in stock and available to ship or pickup. Apparel must be shipped from another location and is not available for in-store pickup. We can usually ship or have these items available for pickup by the next business day if they don't require inspection, special handling, or setup. Our pickup location is 11151 Veirs Mill Rd. Silver Spring, MD 20902.

📆 Preorder: It is on the way to our warehouse. We can't predict when preorder items will arrive due to current supply chain issues. If you place an order for one of these items someone will contact you to estimate the delivery date.

Out of stock: We don't currently have it available but you're not out of luck yet. We still may be able to get it. If you order one of these items we will contact you with an estimated fulfillment date. You have the option to cancel the order if you change your mind.

Special order: The item is so special that it needs to be custom ordered for you. Some of these items are works of art and have to be made individually. Orders for special order items must be prepaid and we cannot accept cancellations or refunds.

█ Sold out: We don't think we can get this item because it was either discontinued by the manufacturer or was limited in quantity. If you want or need this item call or text us. Sometimes we can help you track down the item through other sources or help you find something similar.

About Item Conditions


Questions?
Call or text us at 301-946-8808.

New: The item is brand new as received from the manufacturer with a full manufacturer warranty. Instruments such as guitars, snare drums, drum kits, brass and woodwind instruments may be opened for photography and quality control inspection and may not be in a factory sealed box.

Mint or Open Box: The item may have been opened and tested but has been repackaged. The original packaging may have superficial issues but the item itself and any originally included accessories are in perfect, like new condition.

Display Model: These items are so cool that we put them on display in our legendary shop. The condition is brand new as received from the manufacturer with manufacturer warranty. Rest assured, these items undergo a very careful inspection before shipping.

Demo: These items have been on our sales floor for demo purposes and will likely show signs of use. The original packaging may no longer be included, but you can be assured that you are receiving an awesome item and an awesome price.

Used: The item is used. These item may have varying degrees of wear. Please read the description for information about the condition of the item. Used items do not carry a warranty.

B or C Stock: Factory refurbished. These items were purchased from the manufacturer in a refurbished condition. They will show some cosmetic issues, but nothing that would impact performance. Being that these are sealed from the manufacturer, we generally do not open these to photograph the cosmetic issues. They are guaranteed to work and may have a limited warranty or you may purchase an extended warranty in some cases. Please see the listing description for item specific information.

Educational & Government Sales Quotes

Click here to inquire about an educational or government quote and discover more about our Educational & Government Sales Division.


With Unbelievable Extension and Air, The Manley Reference Gold Multipattern Tube Microphone is THE Reference Microphone

When fidelity is the goal, the Manley Reference Gold Mic is the solution. Its nimble CK12-style American-made capsule, open grille, and continually adjustable pickup pattern design allow it to hear deep into a room, capturing nuances and subtleties that other mics miss. It is real. It is the truth.

The Manley Gold Reference Multipattern Microphones are a statement, quite simply, of the finest microphones that money can buy in the pursuit of truly accurate musical recordings. The Gold Reference Series employ Manley's own design of large capsules (1.25 inch overall, 1 inch diaphragm diameter) which are executed to precise tolerances made possible by modern micro-milling machinery available today in California. The capsule rings and back-plates are milled from solid brass. The gold diaphragm film comes from Germany and is tensioned using proprietary techniques by David Josephson ensuring capsule-to-capsule constancy, combined with the speed, "air", and superb ultra-high frequency response you have only dreamt about.

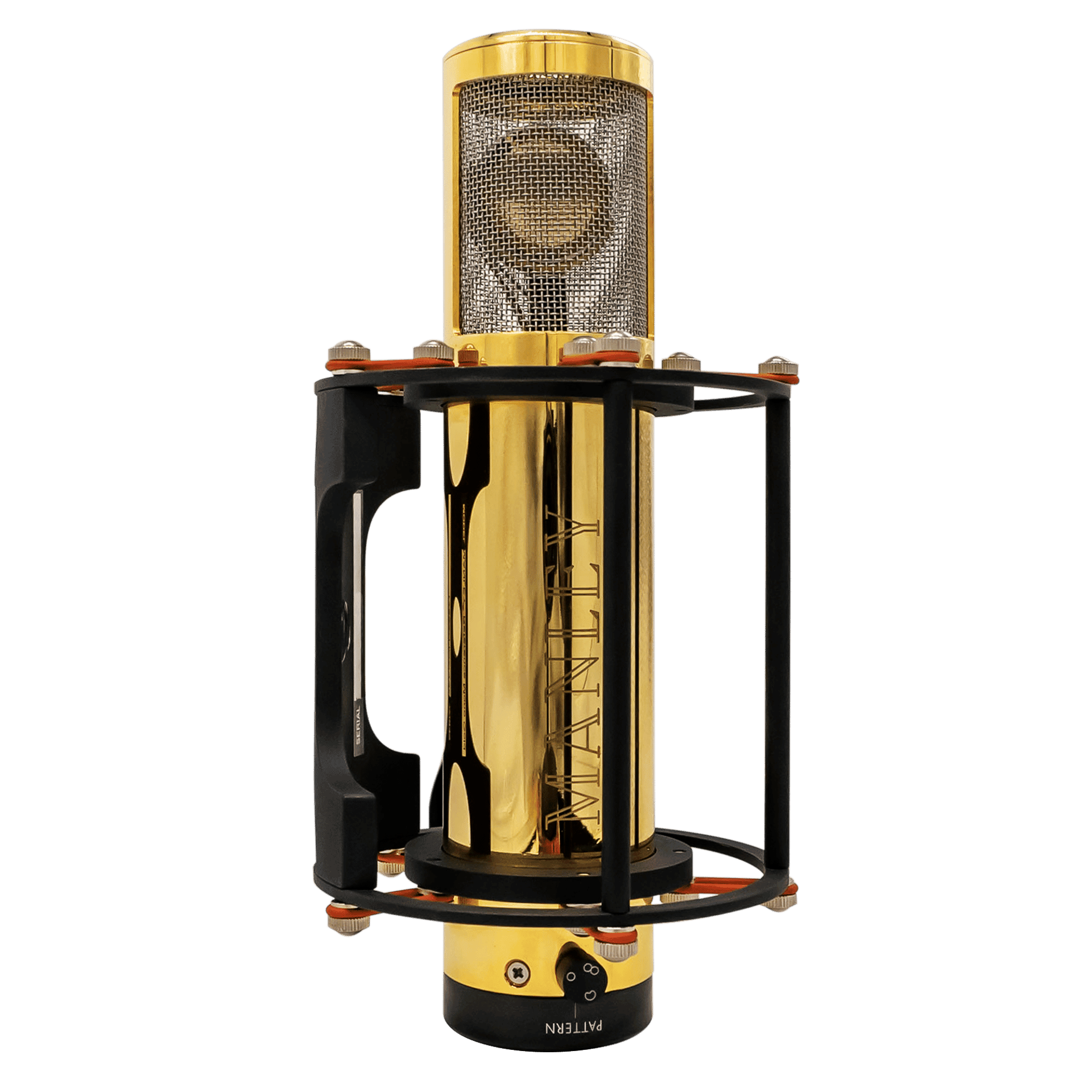

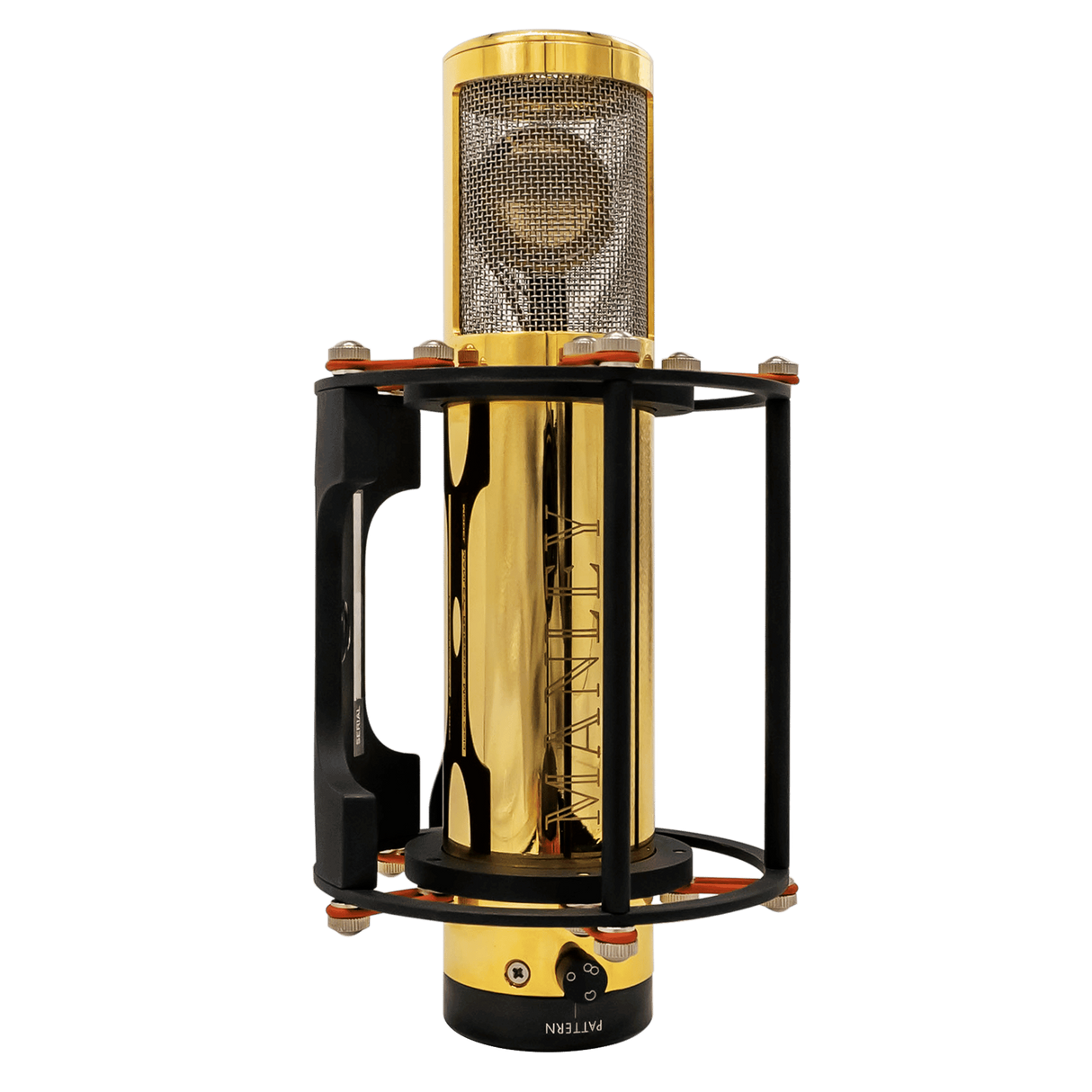

The all-tube electronics in Manley's Reference Series Microphones are built around two triodes in cascade forming an entire gain-block. We currently use a dual-triode 12AX7 tube, easily obtainable and replaceable, mounted in a ceramic socket. (We originally used 6072A until it became impossible to find quiet ones out of the NOS dreck left on the market.) The output is coupled through a Manley output transformer of unparalleled quality and substantial physical size employing nickel laminations with "hum bucking" bi-filar windings, encased in mu-metal. The polar pattern control is continuously variable between the OMNI, CARDIOID, and FIGURE 8 positions vastly increasing this mic's versatility. The Gold Mics make it possible to exactly tailor the proximity effect to achieve the desired character.

Precise Design and Engineering

Manley selected a very open weave stainless-steel grille for the capsule window which allows all the highs to reach the capsule unimpaired letting the engineer choose if, when, and how much pop screen is appropriate. As a result, the Reference Gold reaches to the furthest extremes of highs and lows with gorgeous natural acoustic smoothness. Some engineers claim it sometimes "hears" more than they do! A locking 7-pin XLR connector for the power supply cable carries the stringently filtered and regulated voltages from the separate dedicated MANLEY POWER® power supply. The audio signal exits the PSU via a traditional 3-pin XLR jack. The microphone body is machined from brass providing excellent shielding properties, polished to a high luster, then plated with 24 karat gold for an impressive finish, inspiring confidence in artists and producers.

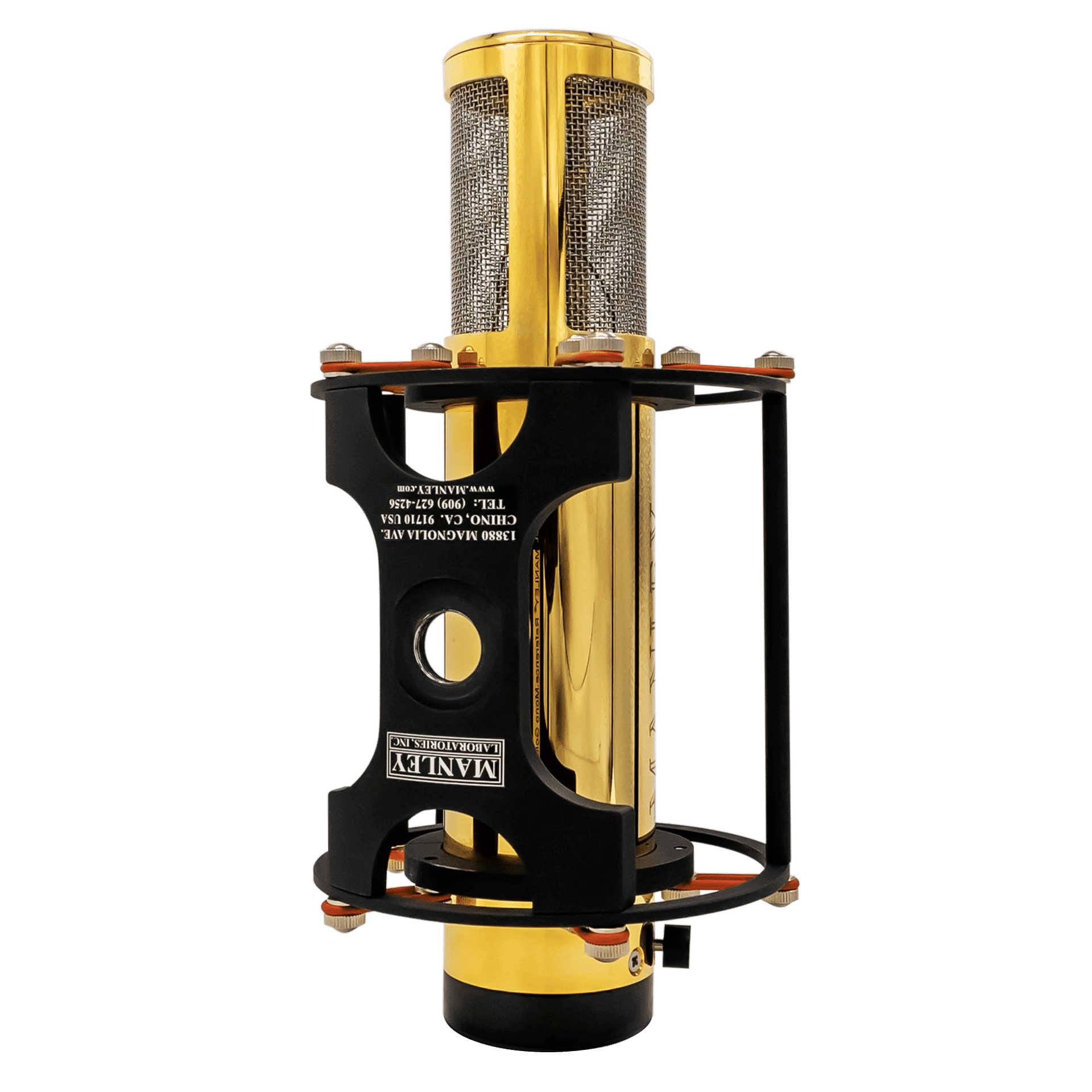

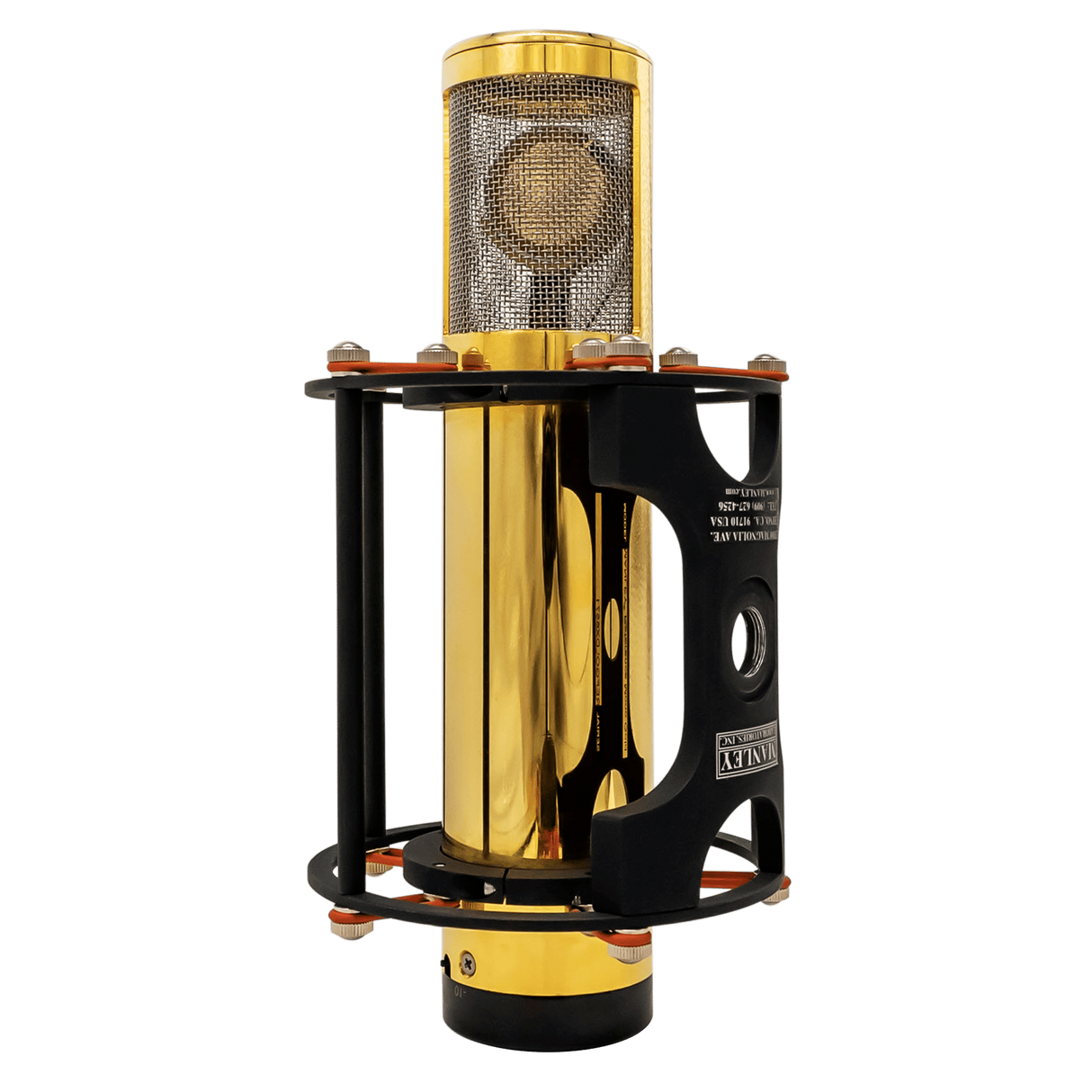

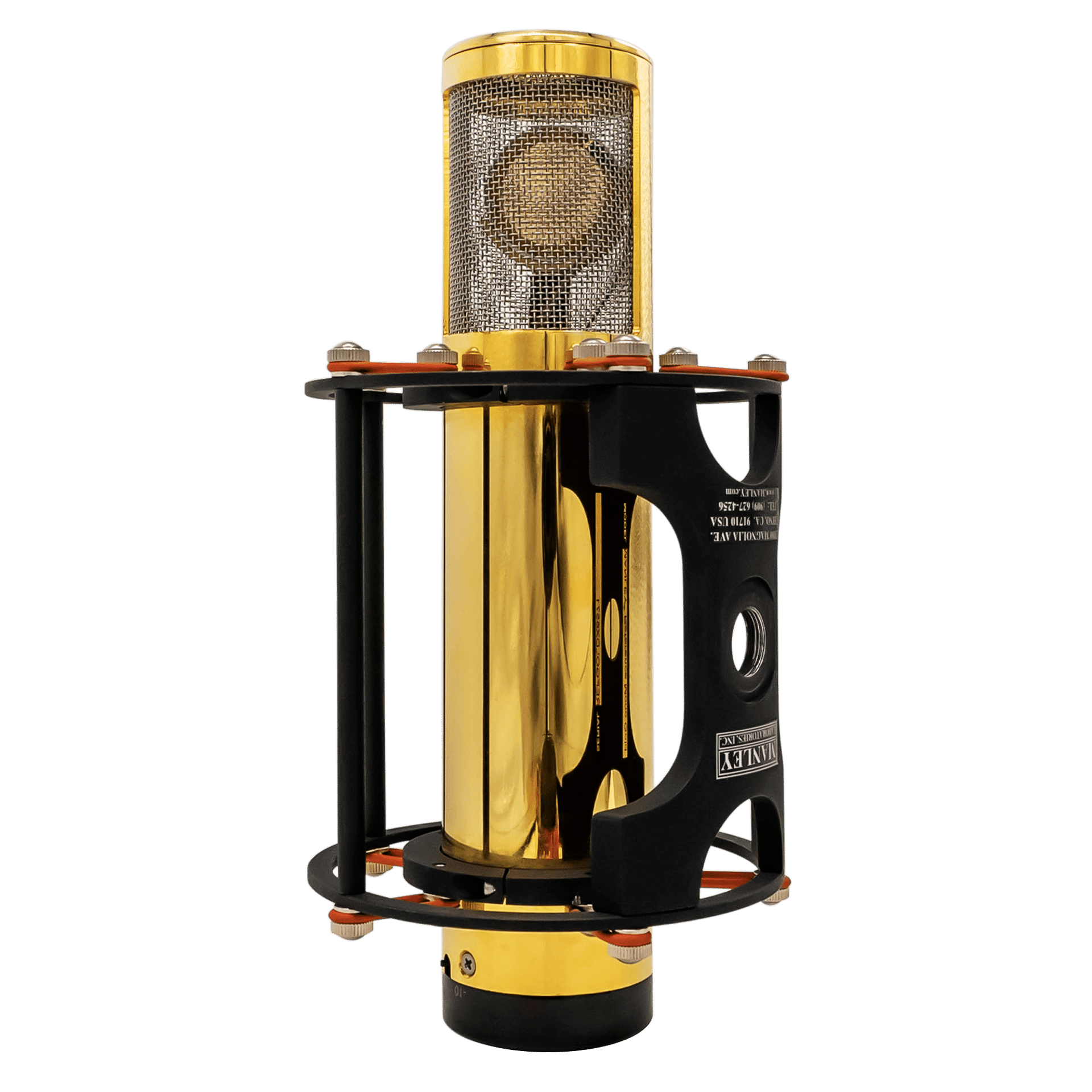

The Manley proprietary precision suspension system is provided with each Reference Microphone (the capsule itself is mounted onto a neoprene-rubber shock-mount.) Because the entire working "guts" of the microphone may be removed for service in one piece from the housing, it is envisioned that the microphone need not be removed from the suspension. We also provide a very useful swivel of our own design with every REFERENCE MICROPHONE; its T-bar handle and locking clutch action require no tools to adjust. And no MANLEY microphone would be complete without a genuine leather capsule protector which slips (and ties) onto the end of the microphone to protect the capsule when not in use.

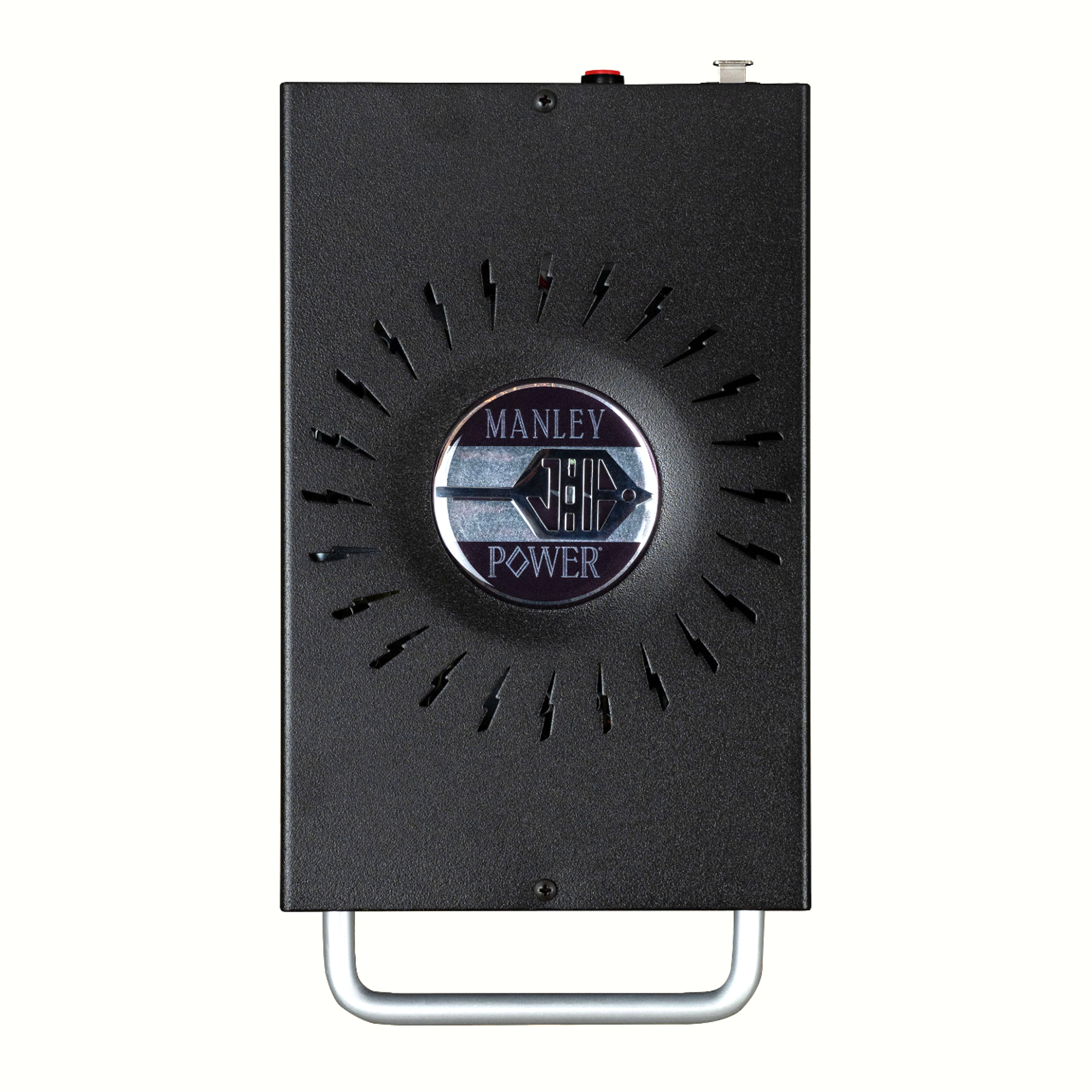

Driven by Manley Power

This new power supply is empirically quieter than the older PSUs. Sonically, we hear faster highs, generally more clarity, and 'blacker blacks' in the silence. The new power supply is also universal - accepting any voltage or frequency - so it works anywhere in the world without a voltage changeover switch or power transformer rewiring.


SPECIFICATIONS

Microphone

  • All-Tube triode design utilizes 12AX7 or 7025EH
  • -10 dB Switchable Pad
  • Frequency Response: 10 Hz - 30 KHz
  • Sensitivity: 17mV/Pa
  • Noise: typically -120 dB EIN
  • Max SPL: 150 dB
  • Output Impedance: 250 Ohms
  • Size: 2 inches / 51 mm Diameter x 9.7 inches / 246 mm Length x 4.5 inches / 114 mm Suspension
  • Weight: 2.25 lbs / 1 kg
  • Shipping Weight: 15 lb / 6.8 kg

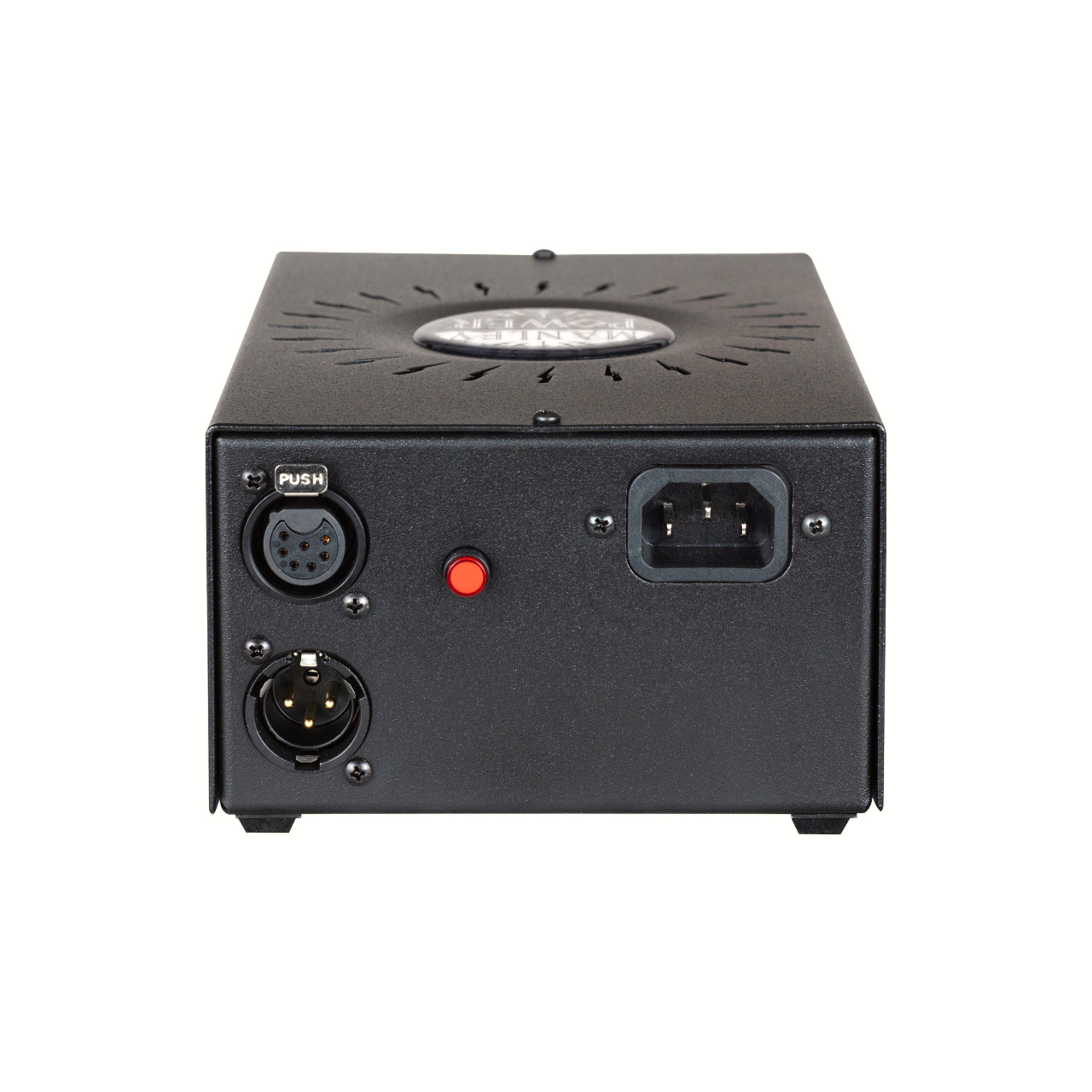

Power Supply

  • Universal MANLEY POWER™ Switch Mode Power Supply; works worldwide
  • Power Consumption: 8 Watts
  • Size (W x H x D): 5 x 3.3 x 9.3 inches / 127 x 84 x 236 mm (with handle)
  • Weight: 2.35 lb / 1.1 kg
  • Fuse: 250 VAC 2A SLO BLO Ceramic - 5 mm x 20 mm
  • Input Voltage: 90 VAC to 250 VAC (Universal)
  • Mains Frequency: 50 - 60 Hz

Manufacturer: Manley Laboratories
Model: REFGOLD
SKU: I501275-N-0-WHXB
