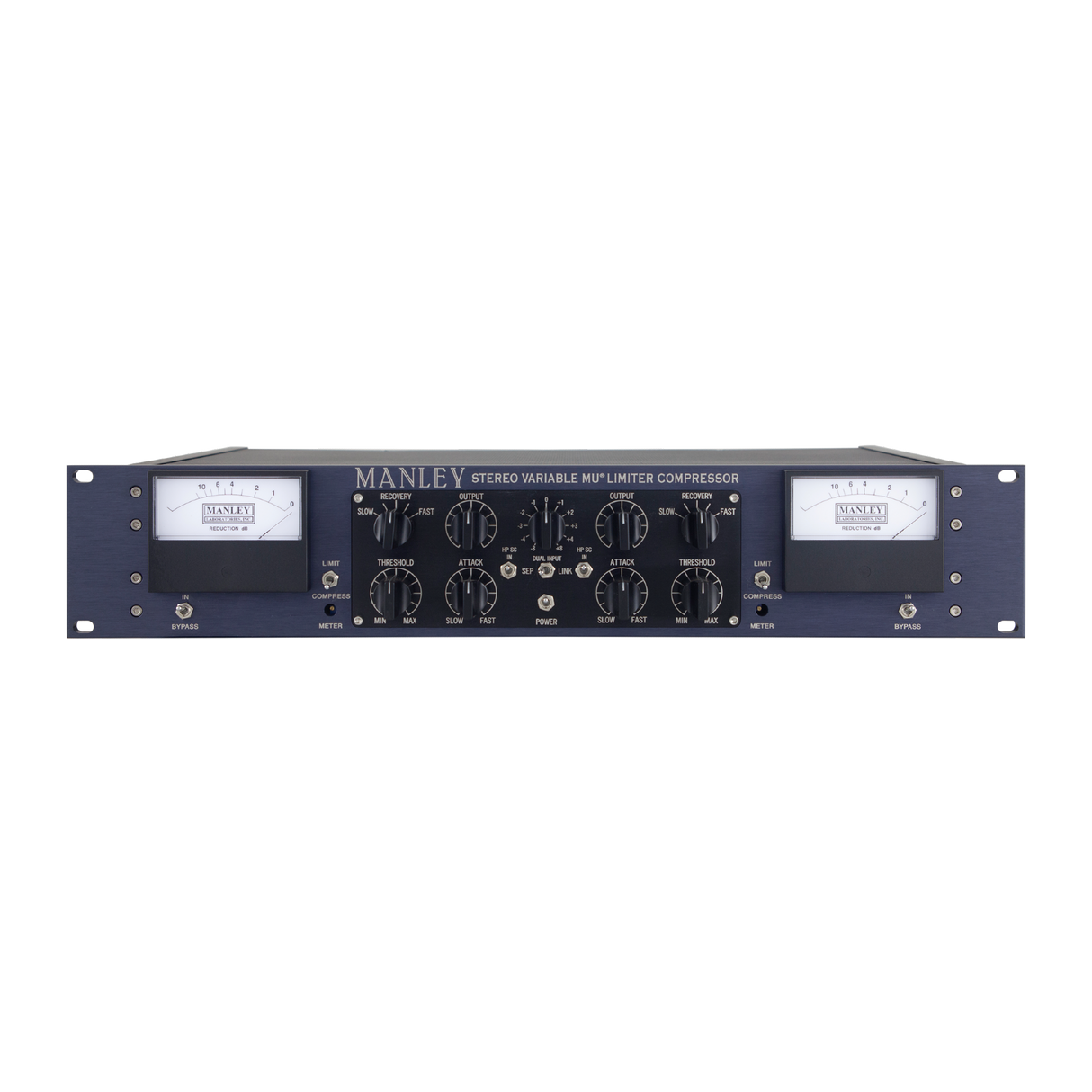

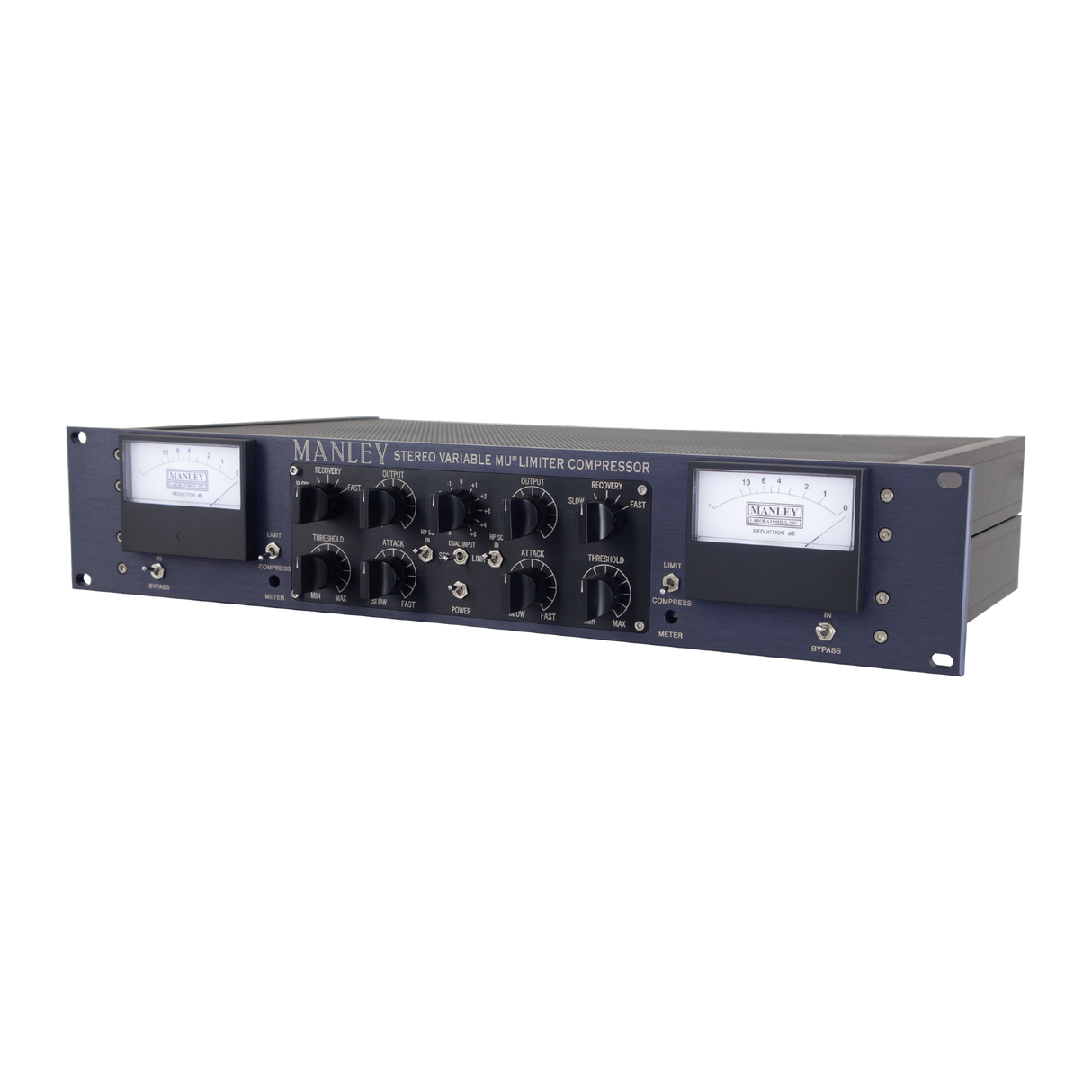

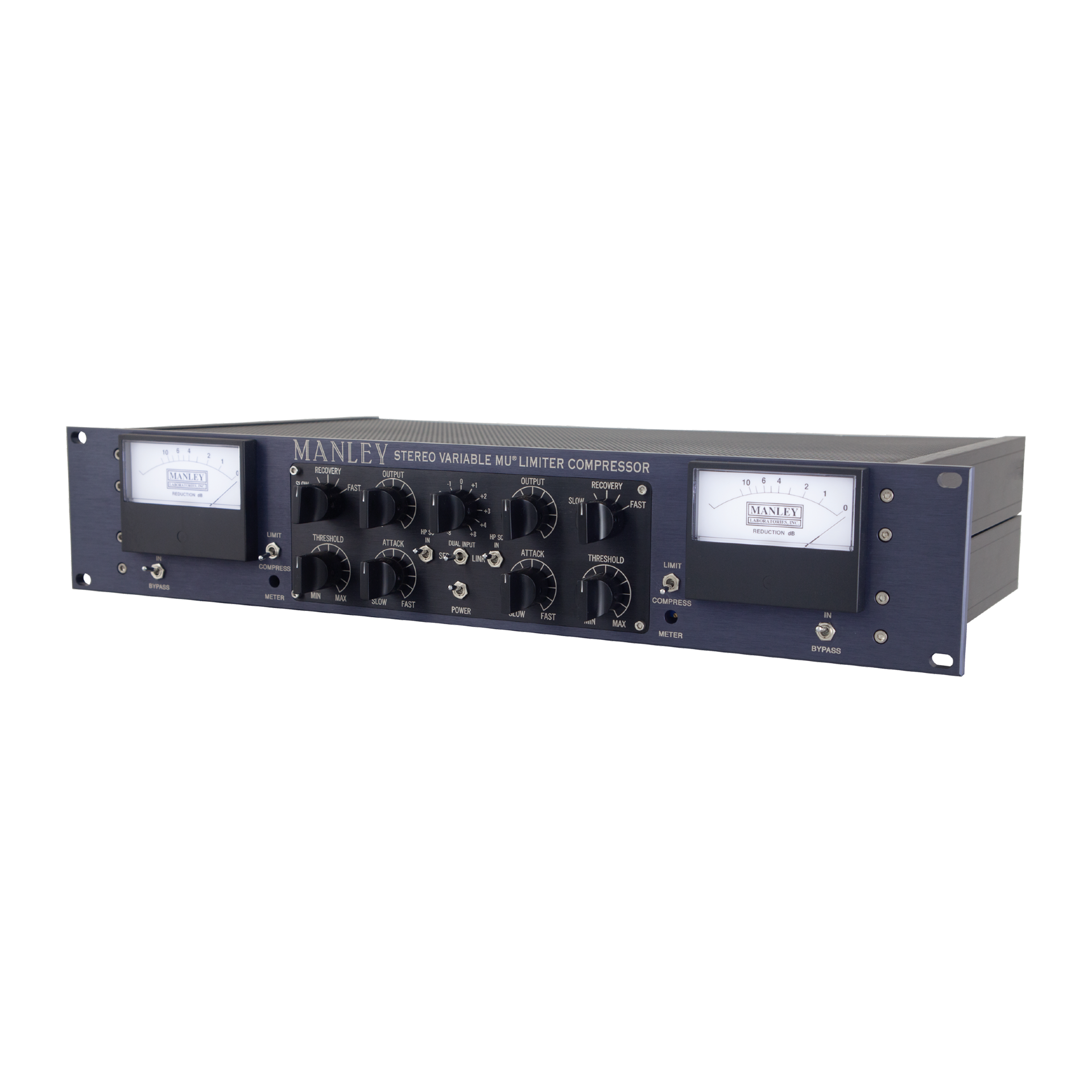

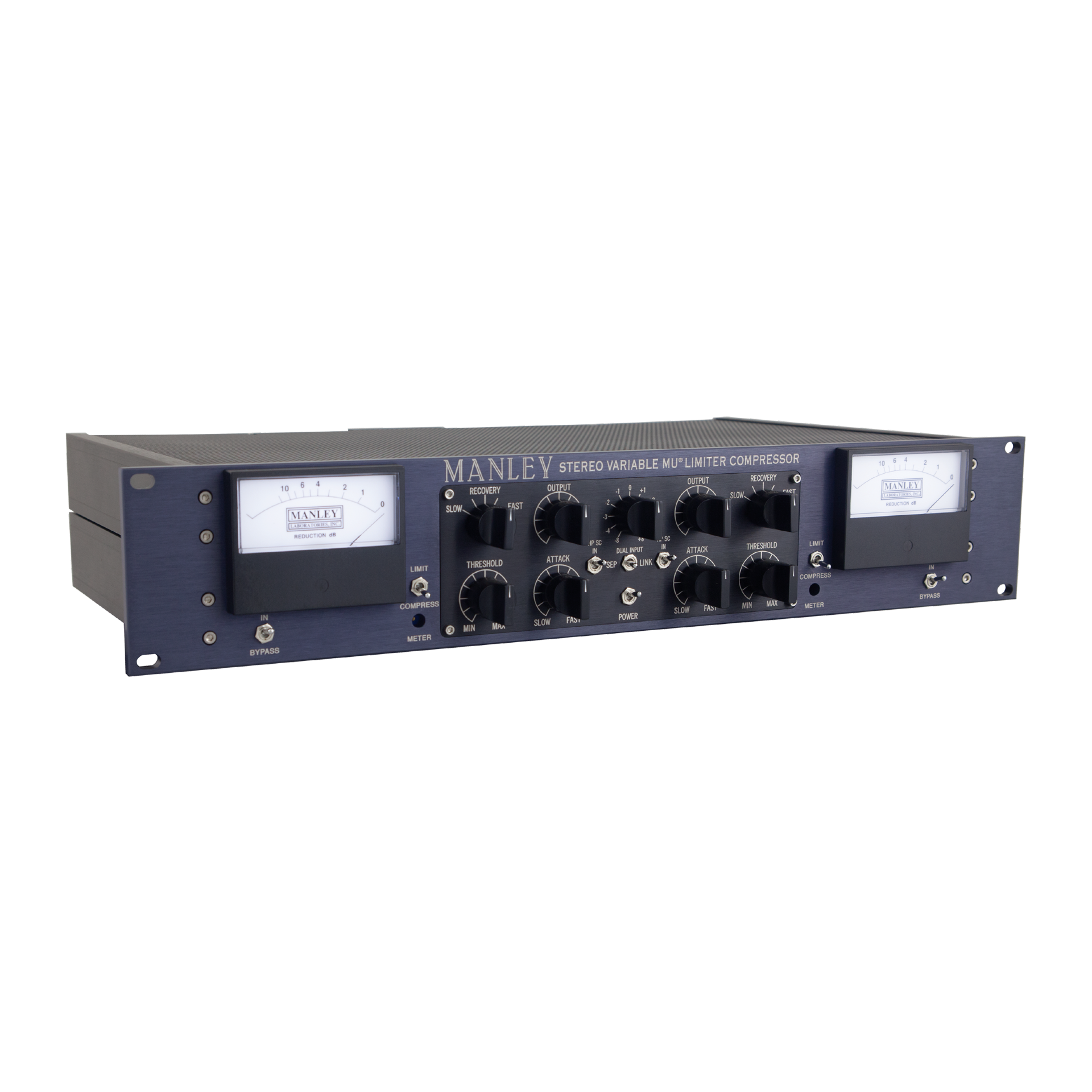

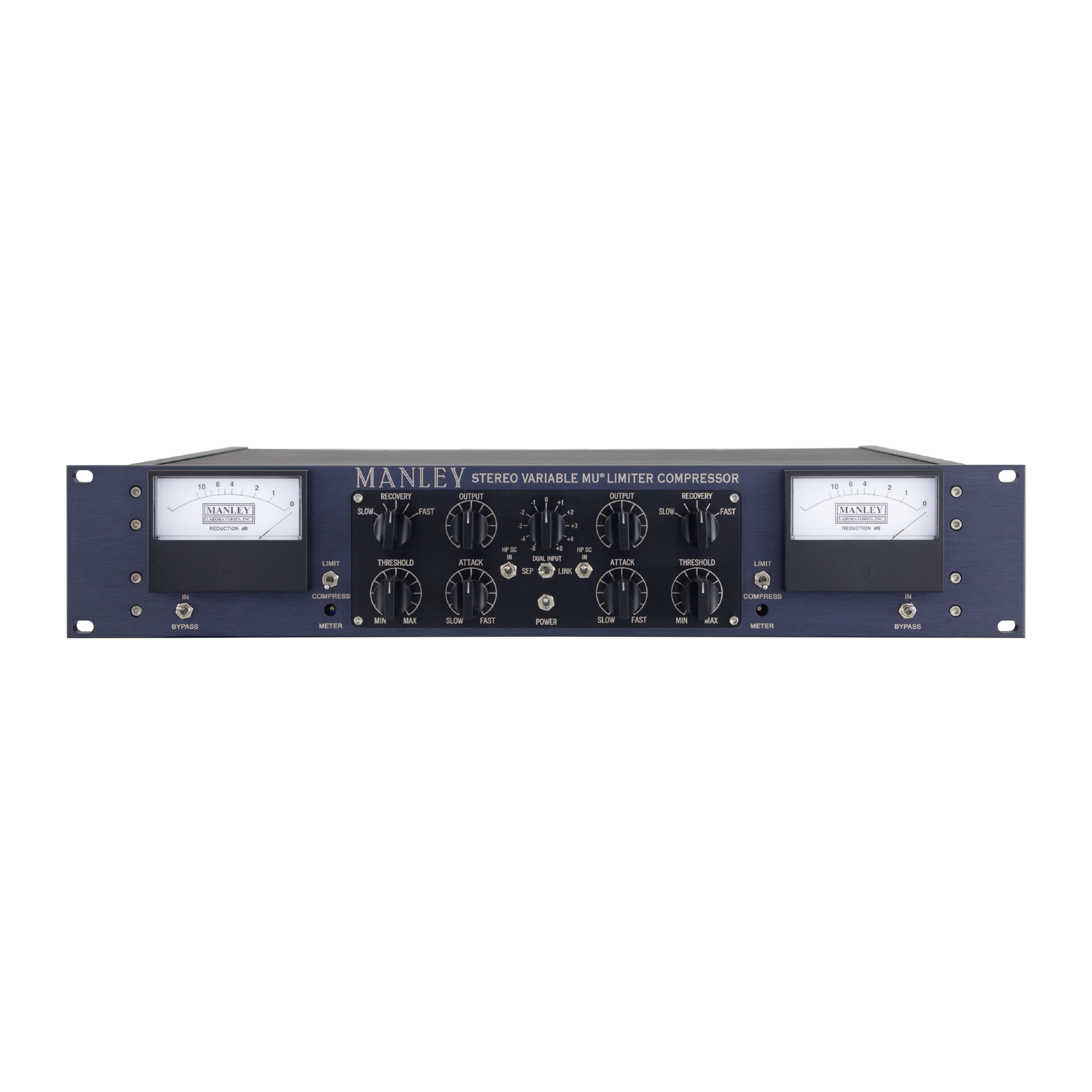

Manley Stereo Variable Mu Limiter Compressor

Original price $4,399.00 - Original price $4,399.00
Original price $4,399.00
$4,499.00
$4,499.00 - $4,499.00
Current price $4,499.00
Inventory Status:

❓ Out of stock
About Inventory Status


Questions?
Call or text us at 301-946-8808.

In stock: It is in stock and available to ship or pickup. We can usually ship or have these items available for pickup by the next business day if they don't require inspection, special handling, or setup. Our pickup location is 11151 Veirs Mill Rd. Silver Spring, MD 20902.

📆 Preorder: It is on the way to our warehouse. We can't predict when preorder items will arrive due to current supply chain issues. If you place an order for one of these items someone will contact you to estimate the delivery date.

Out of stock: We don't currently have it available but you're not out of luck yet. We still may be able to get it. If you order one of these items we will contact you with an estimated fulfillment date. You have the option to cancel the order if you change your mind.

Special order: The item is so special that it needs to be custom ordered for you. Some of these items are works of art and have to be made individually. Orders for special order items must be prepaid and we cannot accept cancellations or refunds.

█ Sold out: We don't think we can get this item because it was either discontinued by the manufacturer or was limited in quantity. If you want or need this item call or text us. Sometimes we can help you track down the item through other sources or help you find something similar.

About Item Conditions


Questions?
Call or text us at 301-946-8808.

New: The item is brand new as received from the manufacturer with a full manufacturer warranty. Instruments such as guitars, snare drums, drum kits, brass and woodwind instruments may be opened for photography and quality control inspection and may not be in a factory sealed box.

Mint or Open Box: The item may have been opened and tested but has been repackaged. The original packaging may have superficial issues but the item itself and any originally included accessories are in perfect, like new condition.

Display Model: These items are so cool that we put them on display in our legendary shop. The condition is brand new as received from the manufacturer with manufacturer warranty. Rest assured, these items undergo a very careful inspection before shipping.

Demo: These items have been on our sales floor for demo purposes and will likely show signs of use. The original packaging may no longer be included, but you can be assured that you are receiving an awesome item and an awesome price.

Used: The item is used. These item may have varying degrees of wear. Please read the description for information about the condition of the item. Used items do not carry a warranty.

B or C Stock: Factory refurbished. These items were purchased from the manufacturer in a refurbished condition. They will show some cosmetic issues, but nothing that would impact performance. Being that these are sealed from the manufacturer, we generally do not open these to photograph the cosmetic issues. They are guaranteed to work and may have a limited warranty or you may purchase an extended warranty in some cases. Please see the listing description for item specific information.


The Manley Stereo Variable Mu Limiter Compressor Is The Glue That Holds The Mix Together While Crystallizing It Into A Professional Final Product

The Manley Variable Mu Limiter Compressor has been Manley's flagship product for many years. It is one of the very few compressors that has become a real standard in Mastering studios and contributed to most hit records over the last decade and probably the next. "Mu" is tube-speak for gain, and Variable Mu® is Manley's registered trademark for this limiter compressor. It works by using the "remote cut-off" or re-biasing of a vacuum tube to achieve compression. The precious vintage Fairchild 670 also uses this technique and is one of few all-tube compressor to do so, that we know of. Even the side-chain has glowing rectifier bottles. How's it work? The unique 5670 dual triode is at the center of the peak-reducing and compression action constantly being re-biased by the vacuum tube rectified side-chain control voltages which cause this tube to smoothly change its gain. Just like that. All-tube, all transformer, an all-American legend. High Pass Side Chain mod now comes standard.

The COMPRESS mode is soft-knee 1.5 to 1 ratio while the sharper knee LIMIT mode starts at 4 to 1 and moves to a more dramatic ratio of 20 to 1 when limiting over 12dB. Interestingly, the knee actually softens as more limiting is used. Distortion can be creatively used by turning up the Input and turning down the Output while using very little or no compression. See the gain reduction curves here!

You might notice that the Variable Mu® Limiter Compressor has a ganged input control, but do not jump to conclusions that it is mono-unfriendly. Track away! There are separate threshold and output controls to make compensations with plus you can always adjust your individual source levels elsewhere, right? The advantage of the stereo input control becomes dramatically clear when you switch to LINK mode, and that's what our Variable Mu® Limiter Compressor does better than anything else: final mix, 2-track, or mastering limiting and compression. Like one reviewer put it: "It's like pouring a bowl of sweet cream over the mix." Mmmmmm. Yummy. Give your music a big hug.


Special Order Item: Please allow extra time for delivery.


SPECIFICATIONS

  • MANLEY input and output transformers with nickel laminations in mu-metal cases
  • Frequency Response: 20 Hz - 25 kHz
  • Balanced Inputs and Outputs: 600 Ohms
  • Fully differential ALL-TUBE circuitry
  • Variable Gain vacuum tube: 5670 x2 Standard
  • Amplifying vacuum tubes: 5751 or 12AX7 x2
  • Output vacuum tubes: 12BH7 x2
  • Output vacuum tubes: 5687 x2
  • Side Chain Rectifier Diodes: 12AL5 x2
  • Independently regulated B+ and Heater supplies
  • Hardwire BYPASS switch
  • Stepped switch INPUT attenuator
  • RECOVERY 5 steps: 0.2s, 0.4s, 0.6s, 4s, 8s
  • Variable ATTACK: 25 ms - 70 ms
  • Continuously variable THRESHOLD
  • LIMIT (4:1 to 20:1) or COMPRESS (1.5 to 1)
  • Large ILLUMINATED Sifam METERS (white LED lighting)
  • STEREO LINK SWITCH - Several units can be linked for Surround (custom order)
  • Maximum Gain: 35 dB
  • Maximum Output: +30 dBu (26 Vrms) 26 dB Headroom
  • Noise Floor (less than 0.1% THD @ 1KHz): -85 dB typical
  • Power Consumption (120/240VAC): 80 Watts
  • Mains Fuse Type: MDA or MDL SLO-BLO Time delay 1 1/4" x 1/4"
  • Mains Voltage Frequency: 50 - 60 Hz
  • Dimensions: 19 x 3.5 x 10 inches / 483 x 89 x 254 mm (chassis occupies 2U)
  • Power transformer protrudes 3.5" out the back of the chassis
  • Shipping Weight: 23 lb / 10.4 kg

Manufacturer: Manley Laboratories
Model: MSLCHP
SKU: I565468-N-0-WHXB
