Description
Description

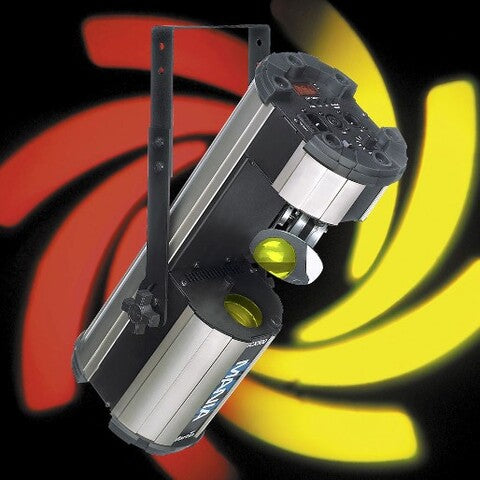

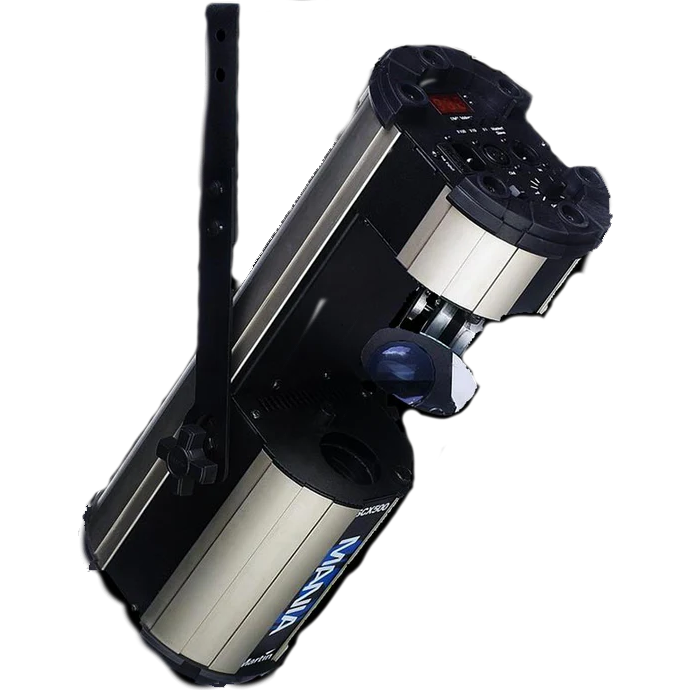

Martin Mania SCX500 150W Halogen Scanner
The Martin Mania SCX500 is a powerful yet compact 150 W halogen mirror scanner designed for clubs, DJs, and small to mid-sized venues that need fast-moving beams and bold mid-air effects. Separate color and gobo wheels, a high-speed mirror, and multiple control modes deliver a wide range of dynamic looks, while continuous-duty operation and full safety approvals make it a reliable choice for professional use.
- Compact 150 W halogen scanner with separate color and gobo wheels
- 14 solid colors plus 5 multi-colors and open for flexible color mixing
- Up to 16 gobos plus blackout and strobe effects for dynamic projection
- High-speed motorized mirror with 180° pan and 72° tilt
- DMX, stand-alone (auto or music trig), and host/client synchronized modes
- Continuous operation—no cool-down time required
- 12 pre-programmed macro programs for fast setup and instant shows
- Manual focus with 15° beam angle for sharp, punchy beams
- Rigorously tested and fully approved (CE, ETL, cETL) for professional use
Whether you are running a single fixture in stand-alone mode or multiple units via DMX, the Mania SCX500 delivers crisp beams, rapid movement, and a wide palette of color and gobo combinations. Built from steel and aluminum with forced-air cooling and broad safety and EMC approvals, it is designed to withstand the rigors of touring, club installs, and rental inventories.
Specifications
- Fixture Type: Compact halogen mirror scanner
-
Physical:
- Length: 442 mm (17.4")
- Width: 200 mm (7.9")
- Height: 178 mm (7.0"); 364 mm (14.4") including bracket
- Weight: 6.7 kg (14.8 lbs) including bracket
- Housing: Steel and aluminum
-
Light Source:
- Lamp Type: 150 W, 15 V MR16 halogen
- Included Lamp: Philips EFR/5H JCR 15 V, 150 W H5
- Socket: GZ 6.35
- Typical Lamp Life: 500 hours (included)
-
Optics:
- Beam Angle: 15°
- Focus: Manual, 2 m – 20 m
-
Dynamic Effects:
- Color Wheel: 14 single colors + 5 multi-colors + open; full and split color selection
- Gobo Wheel: Up to 16 gobos plus blackout
- Dimmer: 0–100%
- Mirror Movement: Motorized mirror, 180° pan / 72° tilt
- Strobe: Strobe effect via gobo wheel
-
Control & Programming:
- Control Modes: DMX, stand-alone, synchronized (host/client)
- DMX Channels: 8 / 6
- DMX Addressing: Onboard control panel with 3-digit display
- Macro Programs: 12 pre-programmed macros (selectable via DMX or control panel)
- Stand-Alone Triggers: Auto-trig (panel or DMX selectable), music trig
- Stand-Alone Programming: Onboard control panel (3-digit display)
- Protocol: USITT DMX512/1990
- Receiver: RS-485
- Firmware Update: Serial upload via DMX link
-
Installation:
- Mounting Points: Adjustable U-bracket and mounting plate
- Orientation: Any
-
Connections:
- AC Power Input: 3-pin IEC male socket
- DMX Data: 3-pin locking XLR in/out
-
Electrical:
- US Model AC Power: 110–120 V nominal, 60 Hz
- EU Model AC Power: 220–240 V nominal, 50 Hz
- Main Fuse (110–120 V): 3.15 AT (slow-blow)
- Main Fuse (220–240 V): 2 AT (slow-blow)
- Typical Power & Current (US Model):
- 110 V, 60 Hz: 138 W, 1.27 A
- 115 V, 60 Hz: 150 W, 1.30 A
- 120 V, 60 Hz: 159 W, 1.35 A
- Typical Power & Current (EU Model):
- 220 V, 50 Hz: 144 W, 0.66 A
- 230 V, 50 Hz: 154 W, 0.66 A
- 240 V, 50 Hz: 164 W, 0.68 A
- Note: Measurements at nominal voltage; allow ±10% deviation.
-
Thermal:
- Cooling: Forced air
- Maximum Ambient Temperature (Ta max.): 40 °C
- Total Heat Dissipation (approx.): 512 BTU/hr (±10%)
-
Approvals:
- EU Safety (EU Model): EN 60598-2-17
- EU EMC (EU Model): EN 55015, EN 61000, EN 61547
- US Safety (US Model): UL 1573
- Canadian Safety (US Model): CSA C22.2 No. 166
- Marks: CE, ETL, cETL (Intertek)
-
Included Items:
- Philips EFR/5H JCR 15 V, 150 W H5 halogen lamp (97000110)
- Adjustable U-bracket (55430301)
- Mounting plate (21060490)
- 5 m data cable, 3-pin XLR (11820008)
- 2 m US power cable, 3 × 18 AWG, UL-approved plug (US model, 11501501)
- 3 m EU power cable, 3 × 1 mm², IEC, Schuko mains plug (EU model, 11501017)
- 3 m EU power cable, 3 × 1 mm², IEC, no mains plug (EU model, 11501013)
- User manual (35000157)
-
Optional Accessories:
- G-clamp (91602003)
- Half-coupler clamp (91602005)
- DMX termination plug, 3-pin male XLR (91613017)
- Safety cable, SWL 50 kg (91604003)
-
Spare Parts:
- Philips EFR/5H JCR 15 V, 150 W H5 halogen lamp (97000110)
- 3.15 AT main fuse, US model (110–120 V, 05020013)
- 2 AT main fuse, EU model (220–240 V, 05020009)
-
Ordering Information:
- Mania SCX500, US model, 110–120 V, 60 Hz: 90430081
- Mania SCX500, EU model, 220–240 V, 50 Hz: 9043008
Manufacturer: Martin Lighting
Model: SCX500
SKU: I212546-4-WHXX
