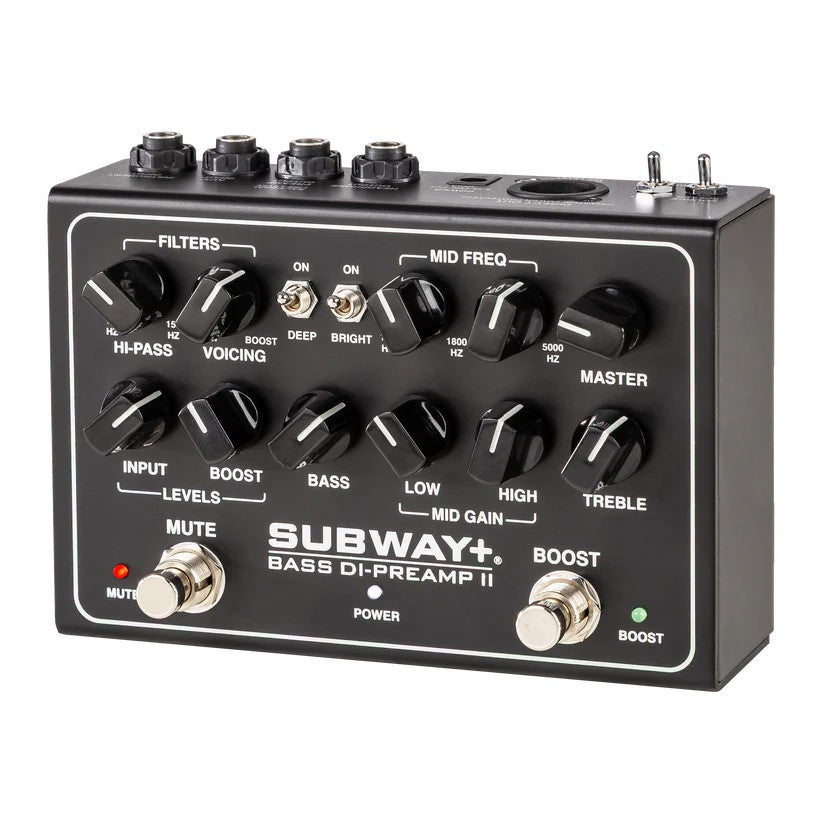

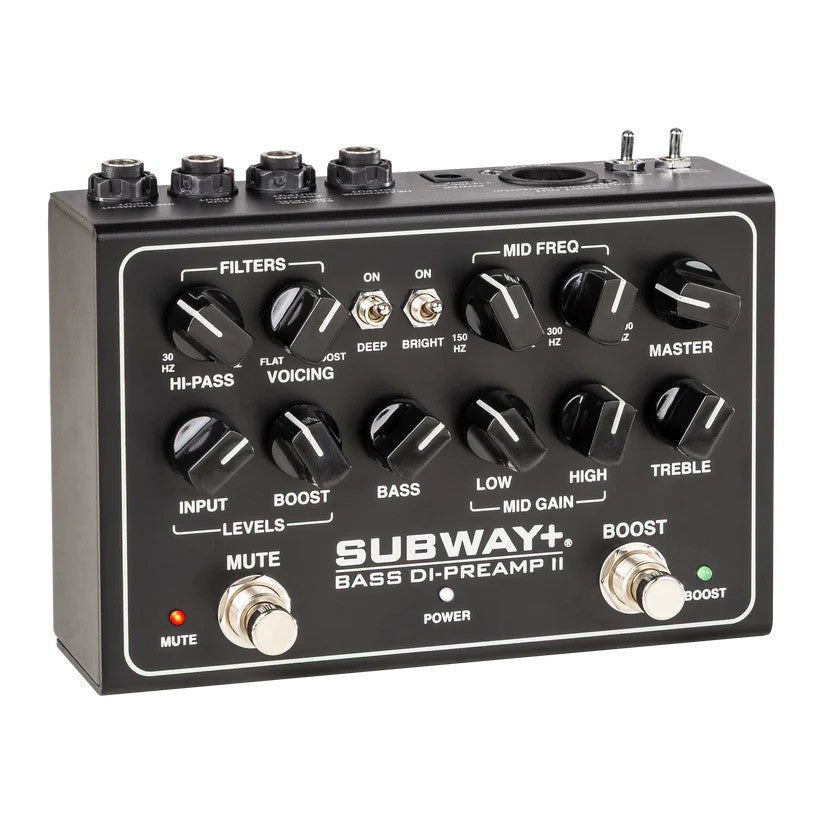

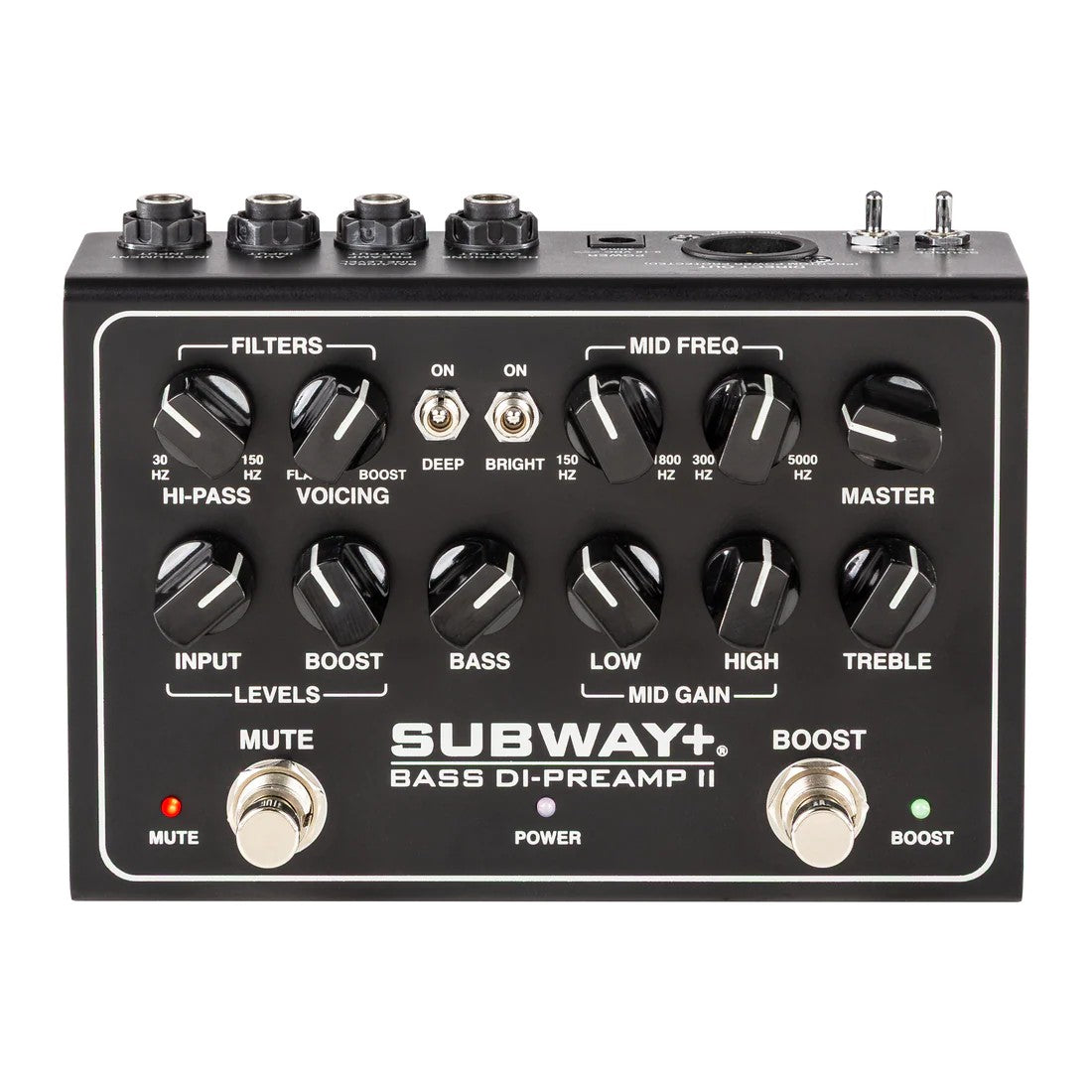

Mesa/Boogie Subway+ Bass DI Preamp II Pedal

Compact Power – The Mesa Boogie Subway+ Bass DI Preamp II Pedal

The MESA Subway+ Bass DI-Preamp II is a compact, full-featured follow-up to our highly acclaimed “first edition” Subway bass preamp pedals. It combines the features of our original two preamp pedals into a single new model that features a simple, yet expanded feature set that provides all the tone-shaping tools you need (and nothing you don’t) to deliver the sound, feel, and response that has made the Subway Series market leaders in premium bass sound.

• World-class MESA tone and quality in our most compact Bass Preamp to date
• Pro tone-shaping features, yet simple, intuitive operation
• Preamp derived from the renowned Subway D-350, D-800, D-800+ Bass Amps
• Instrument Input (Active or Passive)
• Input Level Control
• Boost Footswitch with Variable Boost Level Control
• Deep Switch (enhances low-end)
• Bright Switch (enhances top-end)
• Variable Voicing Control (Flat to Vintage Scoop)
• Variable Hi-Pass Filter Control (30Hz to 150Hz)
• Fully Active 4-Band EQ Controls (+/- 12dB of Bass, Low-Mid, High-Mid and Treble) with Sweepable (variable) Low-Mid (150Hz-1800Hz) and High-Mid (300Hz-5000Hz) Frequency Controls
• Master Output Level Control
• Mute Footswitch
• Aux Input
• Headphone Output
• Line Level Preamp Outputs (Unbalanced or Balanced)
• Balanced XLR Direct Mic Level Out with Pre/Post and Ground Lift Switches
• Powered by DC, 9-18 volts, either polarity
• Great for silent/live practicing, recording sessions, and touring applications
• Compact size (2.25 inch [57mm] H x 6 inch [152mm] W x 4.25 inch [108mm] D) that fits into your gig bag’s accessory compartment

Building on the foundation laid by MESA’s acclaimed Subway D-800, Subway D-800+, and Subway D-350 preamps, this new DI-preamp model combines even more features in a 35% smaller format than the original models. The results deliver world-class MESA bass tone in a small, even more pedalboard-friendly package that’s perfect for home use, studio recording, and touring.

The Subway+ Bass DI-Preamp II’s musically rich architecture easily adapts to use with active or passive basses with the extended range J-FET preamp, while the Input Mute footswitch lets you mute the outputs for silent tuning. The Deep switch adds additional roundness, while a Bright switch adds bite and sparkle to the top end. The award-winning variable Hi-Pass filter blocks unwanted headroom-robbing sub-sonic frequencies, allowing precise tuning of the low end to the musical style, ensemble, or venue. Separate Gain, Boost (footswitchable), and Master Volume controls enable you to dial up a wide range of gain profiles from round, warm cleans to mild overdrive and everything in between.

The Variable Voicing control adjusts the overall response from a flatter character to a more vintage curve by modifying levels and frequency response in multiple regions with the turn of a single knob. The fully active 4-band Baxandall EQ features fixed high and low-frequency shelving controls, as well as variable frequency Low Mid and High Mid bands for added surgical shaping of the sound.

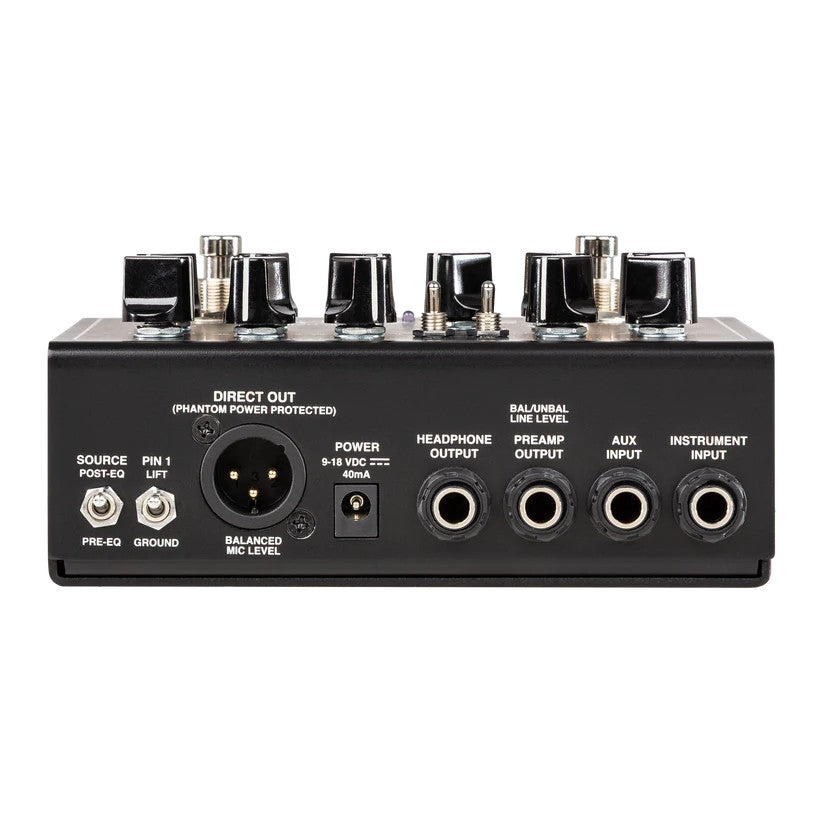

For practice at home or anywhere, the Subway + Bass DI-Preamp II’s Aux Input and Headphone output jacks let you listen to a media player and your bass simultaneously without disturbing others. The Preamp Output can be used as either a ¼ inch (6.35mm) TS unbalanced or ¼ inch (6.35mm) TRS fully balanced output, and provides ample signal level to drive any pro audio amp to the rated output. A full-featured mic-level balanced XLR direct output (DI) with pre/post EQ and ground lift is included, delivering iconic MESA tone to the front-of-house, monitor, or recording audio interface.

With its ideal combination of small size, light weight, and stellar tonal flexibility, the Subway+ Bass DI-Preamp II is a powerful on-the-go tool for great bass tone in sessions, feeding PA and/or backline in small to mid-sized venues, or as a micro-sized “backup amp” to carry in the gig bag for emergencies.

SPECIFICATIONS

General

• Available Formats: pedal
• Weight: 1.65 lbs. | 0.75 kg

Dimensions

• Height: 2.25 inch | 57mm
• Width: 6 inch | 152mm
• Depth: 4.25 inch | 108mm

Foot Switchable Functions

• Functions: mute and variable boost

Mode Voicings Styles

• Voicing: variable voicing (flat to vintage scoop), fully active 4-band EQ plus deep and bright switches (for enhanced low and top-end)

Manufacturer: Mesa Boogie
Model: FP.SBDI
SKU: I840674-N-0-WHXA
UPC: 809404008618
