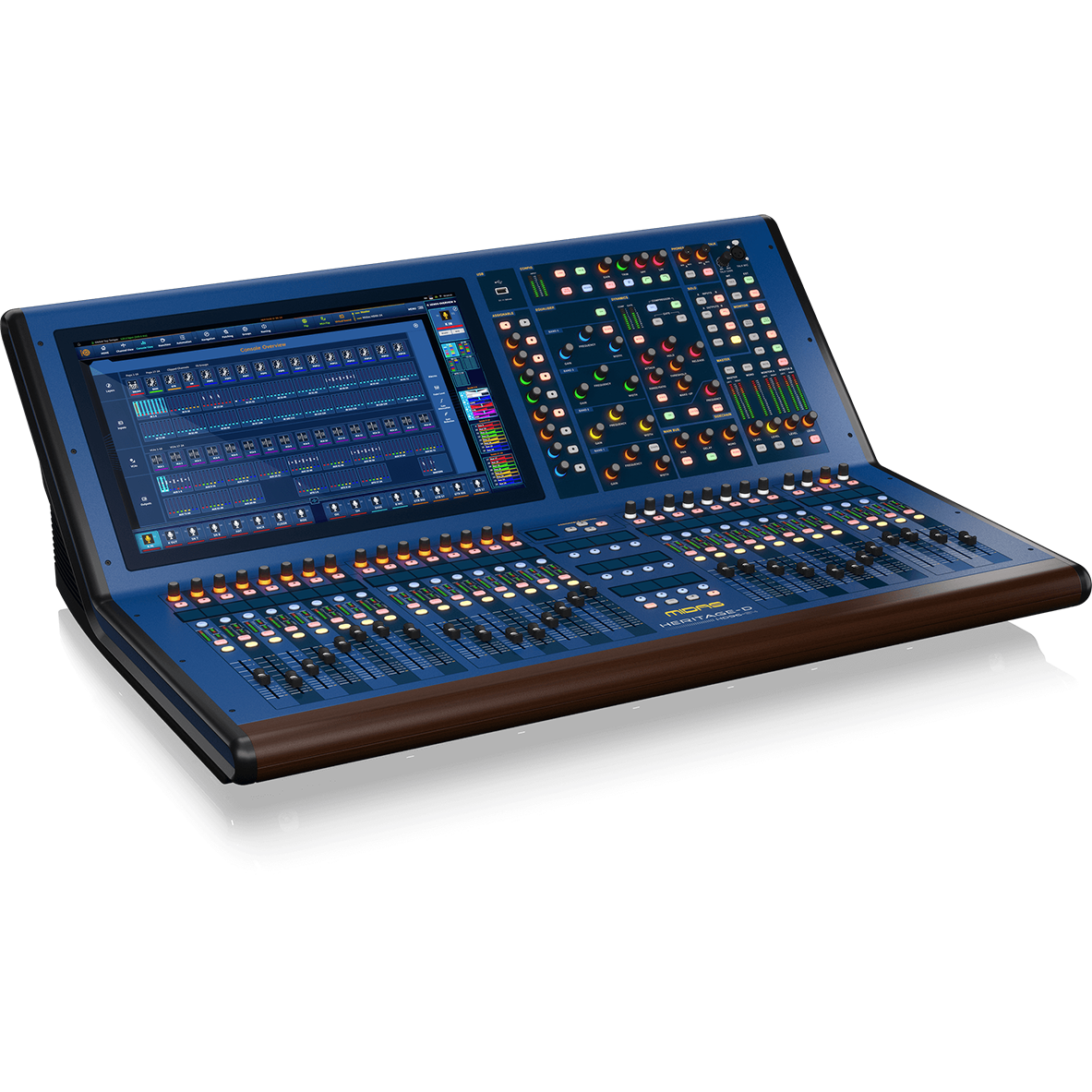

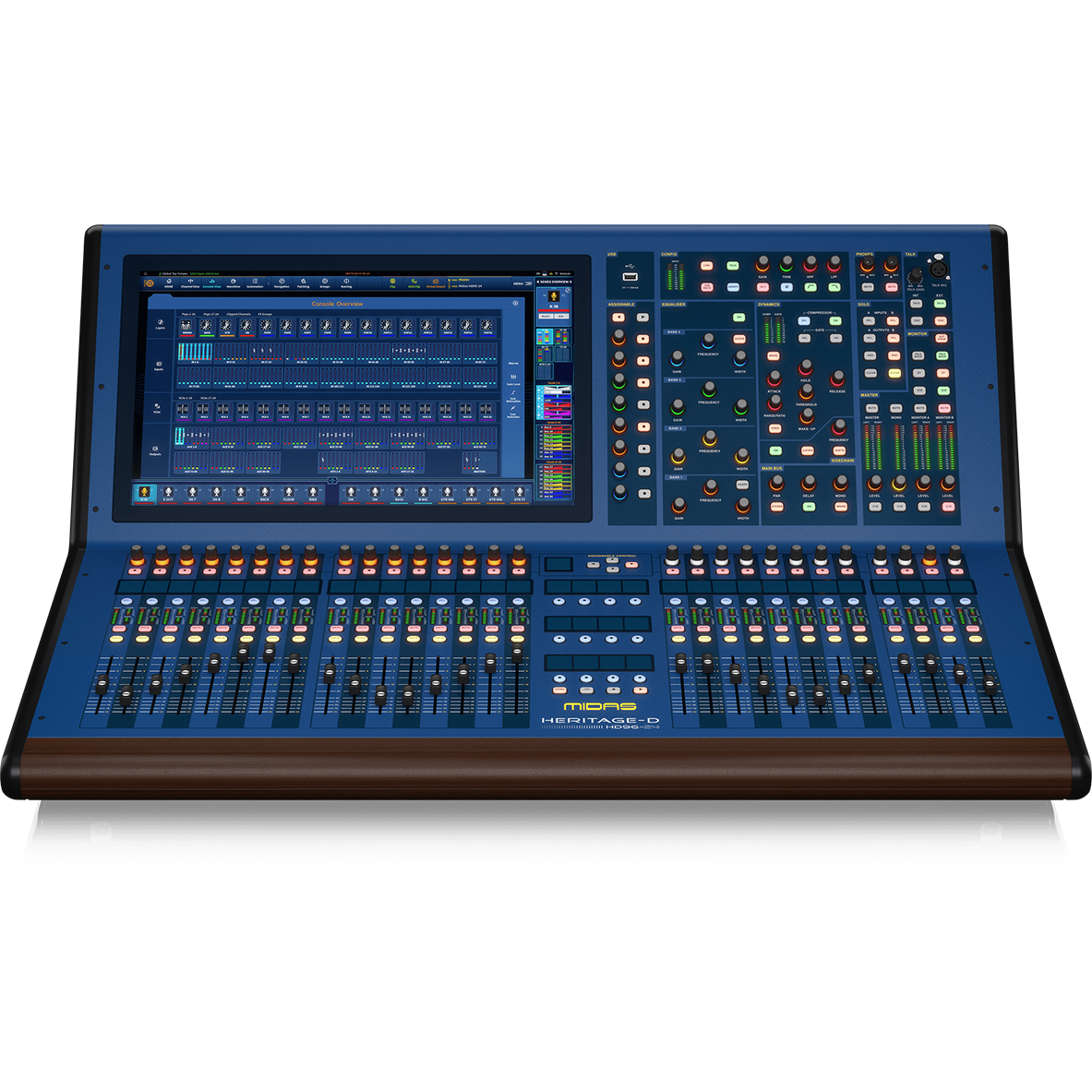

Midas Heritage D HD96-24-CC-IP Digital Mixer

Get the World Wide Industry Standard for Live Sound with the Midas Heritage D HD96-24-CC-IP Digital Mixer

The Heritage 3000 (H3K) was first introduced in 1999. Its famous purple colour and features made it so distinctly Midas. It soon established itself as the world wide industry standard for live sound applications. The H3K proved to be a huge winner from day one.

• Live performance digital control centre with up to 144 simultaneous input channels and 96 kHz sample rate
• 123 time-aligned and phase-coherent mix buses
• 21" full colour TFT display screen with capacitive touch sensing
• Advanced and multi gesture, touchscreen user interface
• Award-winning Midas microphone preamplifiers
• HyperMAC and AES50 networking allows up to 480 inputs and 480 outputs @ 96 kHz sample rate
• Dual Network Bridge Format Converter with up to 128 Bidirectional Channels and Asynchronous Sample Rate Conversion
• 24 VCA (variable control association) groups, and 24 POPulation groups
• Up to 48 assignable 1/3 octave Klark Teknik DN370 graphic equalisers
• Up to 24 multi-channel digital signal processing effects engines
• Integrated Bluetooth and wireless transceiver module
• Dual ULTRANET Ports providing 32 additional digital outputs
• 28 MIDAS PRO motorised 100 mm faders
• Fully interpolated touch sensitive controls
• Optional wireless remote control with remote application
• Dual redundant auto-ranging universal switch-mode power supplies

The striking colour scheme wasn’t the only thing that made waves within the industry. With a new pre-amp design bettering that of the iconic XL4, large channel and aux counts plus the flexible aux switching system, it’s no wonder the H3K appeared on everyone’s spec as the console of choice.

Living up to the reputation of the H3K is undeniably a hard task; the H3K set a new standard in live mixing.

Naming the Heritage D after such an iconic mixing console was indeed a bold move. However, this product is bold and visionary whilst keeping the legendary sound quality and raising the bar on what a digital mixing console can achieve.

Building on the prolific history of the H3K and PRO Series consoles, the new Heritage D now reinvents the workflow of the sound engineer. Finally, a Midas you can touch. Featuring a powerful 21” HD touch screen and formidable ultramodern Graphic User Interface (GUI) control all at your fingertips. Heritage D is a vision of the future with thought provoking new features such as Channel AI (yes, Artificial Intelligence).

This platform is designed for the future and will continue to grow and develop over many years with an impressive Midas team that are eager to improve and constantly add new features. Your investment in the Heritage D is safe.

SPECIFICATIONS

• Input processing channels: 144 flexi channels
• Output processing channels: 96 flexi aux outputs, 24 matrices, stereo bus, mono bus
• Point-to-point routing matrix: 622 x 652
• Signal processing: 64-bit floating point
• D/A converter: 24-bit, 96 kHz and 128 times oversampling
• A/D converter: 24-bit, 96 kHz and 128 times oversampling
• Sampling frequency: 96 kHz
• I/O latency (surface input to output): 1.34 ms
• Input audio processing includes: Dual-slope high and low-pass filters, True phase filter control, 4-band parametric EQ with 3 shelf modes, 4-mode creative input compressors, and more
• Output audio processing includes: Output 4-band parametric EQ with shelving/HP/LP options, 4-mode creative output dynamics
• Mixing control assistance: 12 x talk groups, 12 x mute groups, 24 x surface POPulation groups, 24 x VCA associated population groups

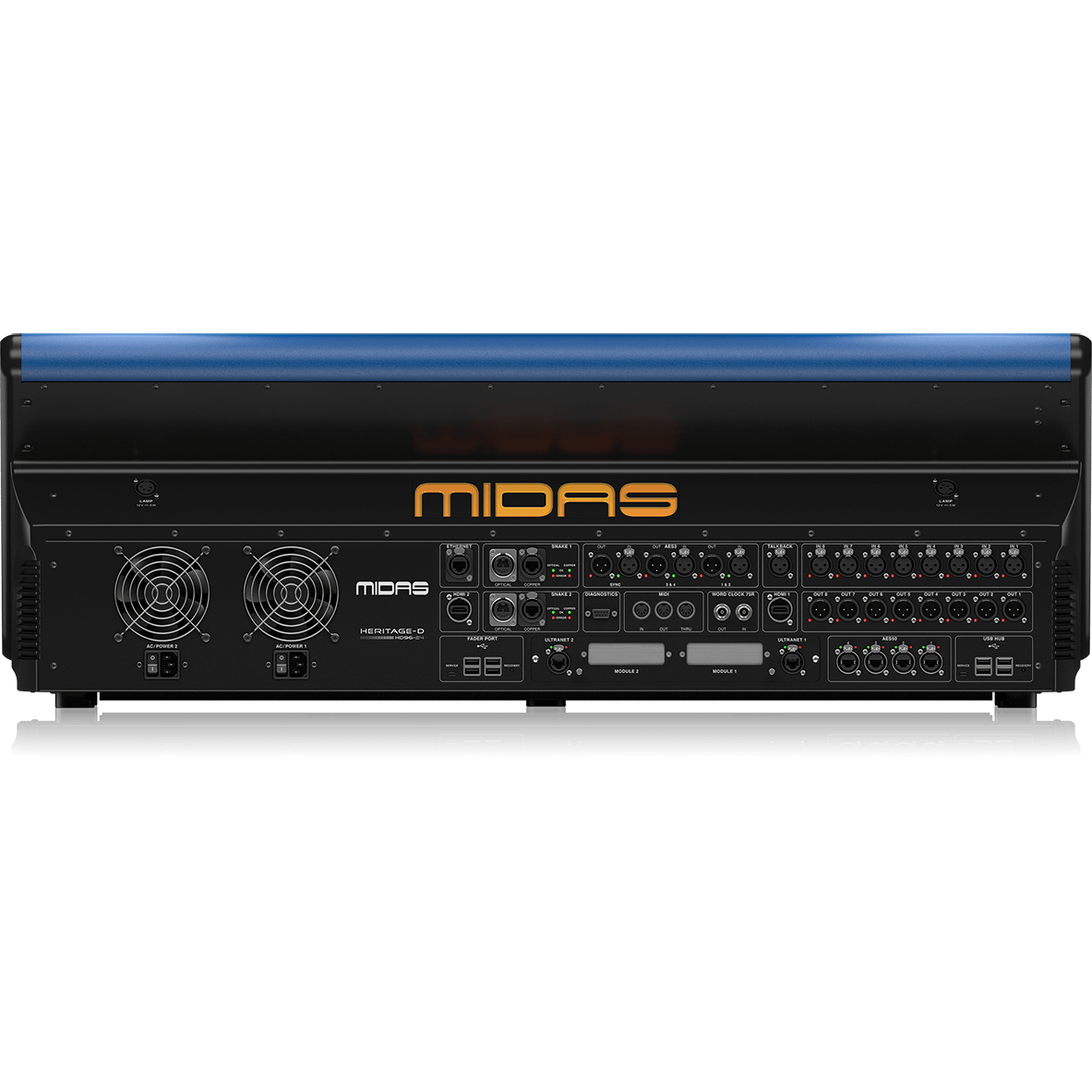

• Connectors include: Midas microphone preamplifier (8 x XLR balanced), Balanced outputs (8 x XLR balanced), and more
• Display screen: 21" LCD high brightness 1920 x 1080 px, captive touchscreen, up to 10 simultaneous touches
• Controls: 100 mm motorized faders, Touch-sensitive rotary controls, Fully assignable rotary controls and backlit buttons
