Midas Heritage HD96-24-CC-TP-UL Digital Console Tour Pack with Case
MSRP: $4320000
Couldn't load pickup availability
About Inventory Status
About Inventory Status
Questions? Call or text us at 301-946-8808.
♫ In stock: It is in stock and available to ship or pickup. Apparel must be shipped from another location and is not available for in-store pickup. We can usually ship or have these items available for pickup by the next business day if they don't require inspection, special handling, or setup. Our pickup location is 11151 Veirs Mill Rd. Silver Spring, MD 20902.
📆 Preorder: It is on the way to our warehouse. We can't predict when preorder items will arrive due to current supply chain issues. If you place an order for one of these items someone will contact you to estimate the delivery date.
❓ Out of stock: We don't currently have it available but you're not out of luck yet. We still may be able to get it. If you order one of these items we will contact you with an estimated fulfillment date. You have the option to cancel the order if you change your mind.
❔ Special order: The item is so special that it needs to be custom ordered for you. Some of these items are works of art and have to be made individually. Orders for special order items must be prepaid and we cannot accept cancellations or refunds.
█ Sold out: We don't think we can get this item because it was either discontinued by the manufacturer or was limited in quantity. If you want or need this item call or text us. Sometimes we can help you track down the item through other sources or help you find something similar.
About Item Conditions
About Item Conditions
Questions? Call or text us at 301-946-8808.
New: The item is brand new as received from the manufacturer with a full manufacturer warranty. Instruments such as guitars, snare drums, drum kits, brass and woodwind instruments may be opened for photography and quality control inspection and may not be in a factory sealed box.
Mint or Open Box: The item may have been opened and tested but has been repackaged. The original packaging may have superficial issues but the item itself and any originally included accessories are in perfect, like new condition.
Display Model: These items are so cool that we put them on display in our legendary shop. The condition is brand new as received from the manufacturer with manufacturer warranty. Rest assured, these items undergo a very careful inspection before shipping.
Demo: These items have been on our sales floor for demo purposes and will likely show signs of use. The original packaging may no longer be included, but you can be assured that you are receiving an awesome item and an awesome price.
Used: The item is used. These item may have varying degrees of wear. Please read the description for information about the condition of the item. Used items do not carry a warranty.
B or C Stock: Factory refurbished. These items were purchased from the manufacturer in a refurbished condition. They will show some cosmetic issues, but nothing that would impact performance. Being that these are sealed from the manufacturer, we generally do not open these to photograph the cosmetic issues. They are guaranteed to work and may have a limited warranty or you may purchase an extended warranty in some cases. Please see the listing description for item specific information.
Description
Description

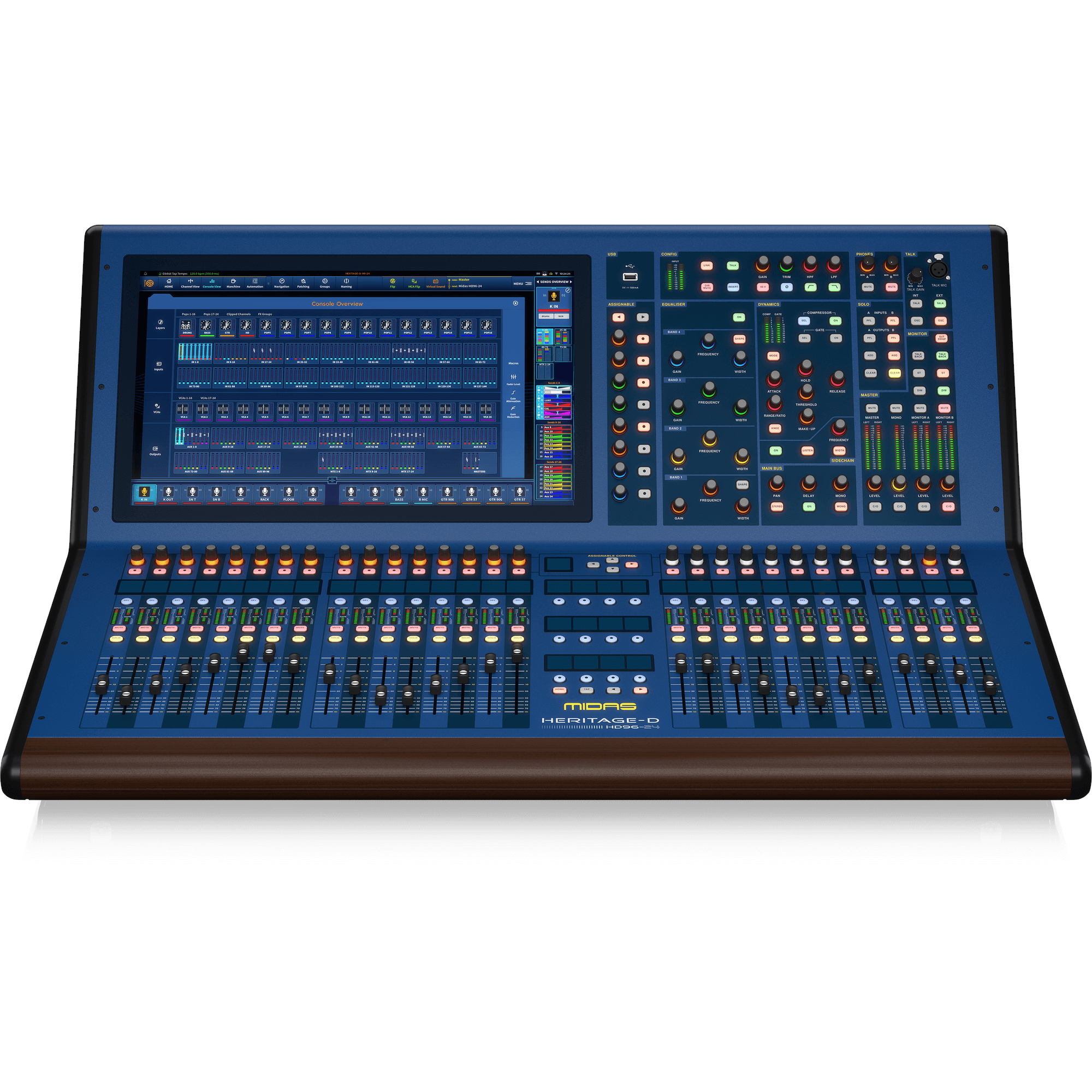

Control at Your Fingertips - The Midas Heritage HD96-24-CC-TP-UL Digital Console Tour Pack with Case
The Heritage 3000 (H3K) was first introduced in 1999. Its famous purple color and features made it so distinctly Midas. It soon established itself as the world wide industry standard for live sound applications. The H3K proved to be a huge winner from day one. The striking color scheme wasn’t the only thing that made waves within the industry. With a new pre-amp design bettering that of the iconic XL4, large channel and aux counts plus the flexible aux switching system, it’s no wonder the H3K appeared on everyone’s spec as the console of choice.
- Graviton Mk 2 Processing Engine with 64-bit summing mix engine with increased dynamic range
- Flexi-Aux System sends aux to aux for group or stem style mixing and smashes full drum sets
- 21-inch Touch Screen and ultramodern graphic user interface (GUI)
- Channel AI (artificial intelligence

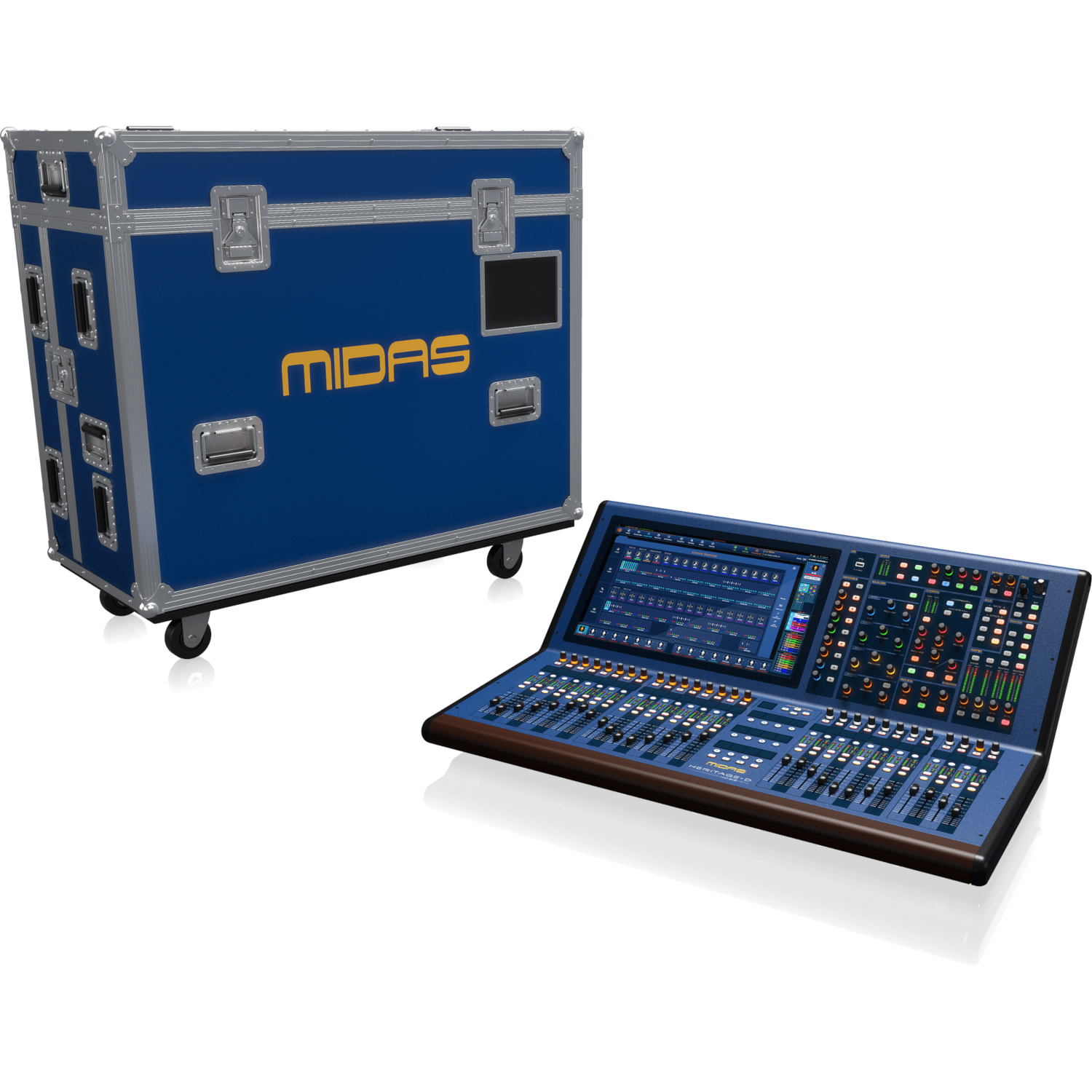

- Touring-grade road case
SPECIFICATIONS
Processing
- Input Processing Channels: 144 flexi channels
- Output Processing Channels: 96 flexi aux outputs, 24 matrices, stereo bus, mono bus
- Point-To-Point Routing Matrix: 622 x 652
- Signal Processing: 64-bit floating point
- D/A Converter: 24-bit, 96 kHz and 128 times oversampling
- A/D Converter: 24-bit, 96 kHz and 128 times oversampling
- Sampling Frequency: 96 kHz
- I/O Latency (surface input to output): 1.34 ms
- Input Audio Processing:
- Dual-slope high and low-pass filters
- True phase filter control
- 4-band parametric EQ with 3 shelf modes
- 4-mode creative input compressors
- Input gates or ducker
- Insert point on/off with processing order change
- Direct output with adjustable level and processing pick of point
- Delay-compensated aux return mode on inputs
- 5 x tap-off points per send
- Output Audio Processing:
- Output 4-band parametric EQ with shelving/HP/LP options
- 4-mode creative output dynamics
- Insert point on/off with processing order change
- Direct input with adjustable level and processing tap-off point
- Mixing Control Assistance
- 12 x talk groups
- 12 x mute groups
- 24 x surface POPulation groups
- 24 x VCA associated population groups
- Scene snapshot automation

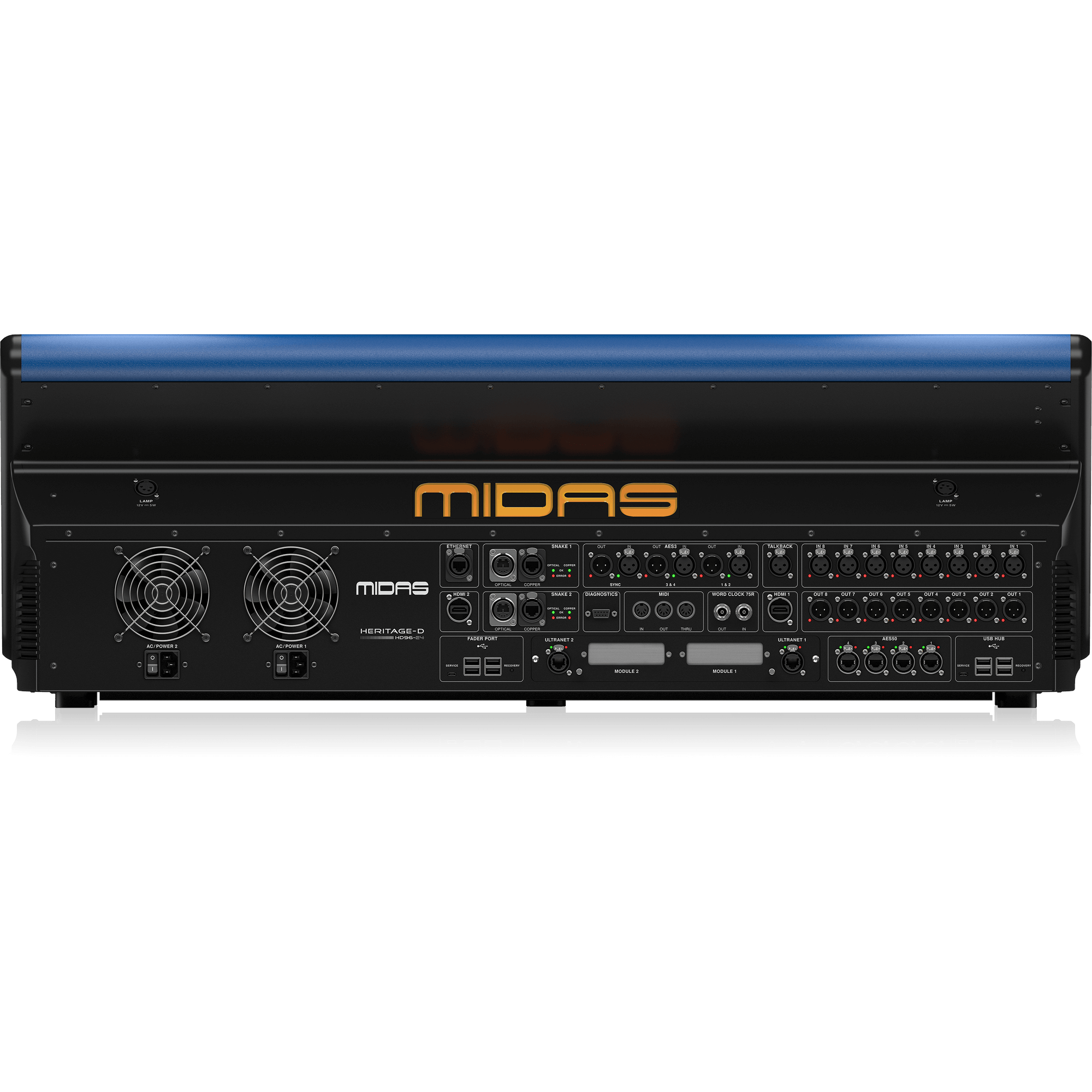

- Midas Microphone Preamplifier: 8 x XLR balanced
- Balanced Outputs: 8 x XLR balanced
- Talkback Connector: 1 x XLR balanced
- Talk Connector: 1 x XLR balanced
- Headphone Connector: 2 x 1/4-inch TRS (stereo)
- Digital AES3 Input/Output (XLR): 2 / 2
- AES50 Ports (Klark Teknik SuperMAC, 100 Mbit/s): 4
- Snake (copper): 2 x HyperMac (192 channels of bi-directional digital audio) on Ethercon XLR
- Snake (fibre): 2 x HyperMac (192 channels of bi-directional digital audio) on Opticon XLR
- CM1 Expansion Slots: 2 x slots (CM1 module for AES50, DANTE, MADI and USB)
- Ultranet: 2 x Ultranet ports (up to 16 digital outputs per port)
- Word Clock IN: BNC, accepts TTL level, 96 kHz square wave, impedance 75 Ohms
- Word Clock OUT: BNC, provides a TTL level, 96 kHz square wave
- AES3 Sync IN: 1 x 3-pin XLR
- AES3 Sync OUT: 1 x 3-pin XLR
- External (Ethernet) Connector: Ethercon XLR
- Monitor Output: 2 x HDMI (1920 x 1080p 59.94Hz/60Hz 16:9 & 720 x 480p 59.94Hz/60Hz 16:9 supported)
- USB 3.0 Type A hub: 4 x 5 V ⎓ 900 mA
- USB 3.0 type A (fader port expansion): 4 x 5 V ⎓ 900 mA
- USB 2.0 type A (front surface data): 1 x 5 V ⎓ 500 mA
- Diagnostics Port: Serial port
- MIDI: In, Out and Thru 5-pin MIDI DIN sockets
- Lamp: 2 x 12 V DC 5 W 4-pin
- IEC Mains Socket with Power Switch: 2
Input/Output Characteristics
- Surface Input Impedance: 10 kΩ
- Non-Clip Maximum Input Level: +24 dBu
- Input Gain: -22.5 dB to +65 dB
- Phantom Power (switchable per input): +48 V
- Talk Mic Impedance: 5 kΩ
- Talk Mic Gain: +15 dB to +60 dB
- Talk Mic Max Level: +6 dB
- Talkback Impendence: 20 kΩ
- Talkback Gain: ∞0 to + 10 dB
- Talkback Max Level: +21 dBu
- Surface Output Impedance: 50 Ω
- Surface Output Gain: 0 dB
- Surface Output Max Level: +21 dBu
- Dynamic Range: 106 dB, 22 Hz to 22 kHz, unweighted
- Maximum Voltage Gain: 100 dB inputs to subgroups and masters, 106 dB inputs to aux and matrix
- Crosstalk at 1 kHz: -100 dB physically adjacent input channels
- Crosstalk at 10 kHz: -90 dB physically adjacent input channels
- Fader/pan cut off at 1 kHz: -100 dB
- Fader/pan cut off at 10 kHz: -100 dB
- Headphones Output Impedance: 10 Ω
- Headphones Maximum Output Level: +21 dBu
Displays
- Display Screen: 21-inch LCD high brightness 1920 x 1080 px, captive touchscreen, up to 10 simultaneous touches
- LCD Info Displays: 41 x full colour LCD info displays, 24 mm x 24 mm (size), 240 x 240 px
- Input Meters (quantity 30): 12 segment -35 dBu to +20 dBu
- Output Meters (quantity 7): 20 segment -36 dBu to +21 dBu
- Channel Comp Meters (quantity 28): 5 segment -24 dBu to -1 dBu
- Channel Gate Meters (quantity 28): 5 segment -34 dBu to -5 dBu
- Comp Meter (quantity 1): 12 segment -23 dBu to -1 dBu
- Gate Meter (quantity 1): 12 segment -34 dBu to -1 dBu
Controls
- 100 mm motorized faders: 8 + 8 + 8 + 4
- Touch-Sensitive Rotary Controls: 66
- Fully Assignable Rotary Controls: 28 + 8
- Fully Assignable Backlit Buttons: 28 + 8 + 12
- Headphone Controls: A and B, min to max
- Talk: Talk gain min to max
Manufacturer: Midas
Model: HD96-24-CC-TP-UL
SKU: I618421-N-0-WHXA
EAN: 4033653071116
