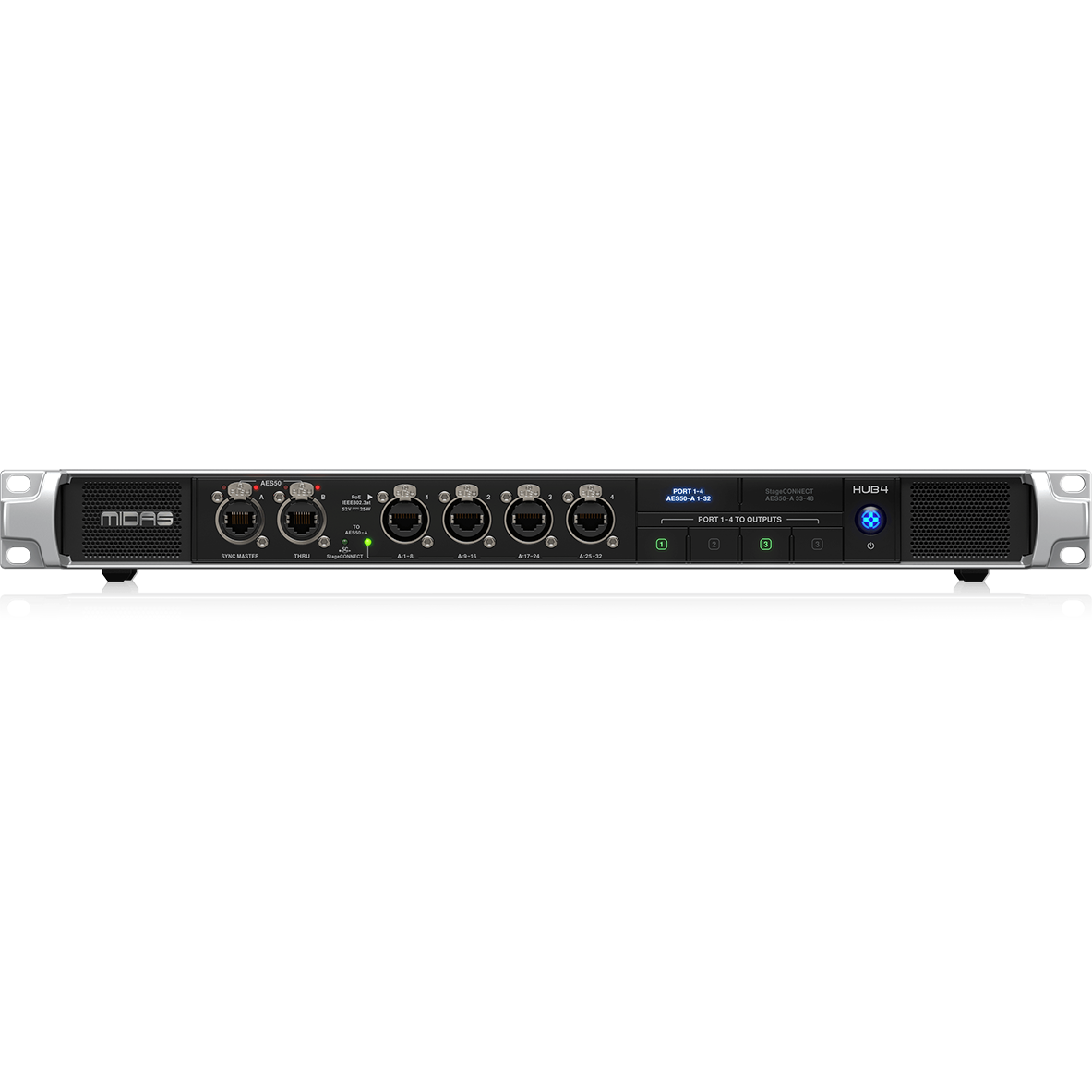

Midas HUB4 Monitor System Hub with 4 PoE Ports for Personal Mixers

by Midas
Sold out
Original price $869.00 - Original price $869.00
Original price
$869.00
Default Title: $869.00
Current price $869.00
❓ Out of stock

Notify Me When Available
About Inventory Status


Questions?
Call or text us at 301-946-8808.

In stock: It is in stock and available to ship or pickup. Apparel must be shipped from another location and is not available for in-store pickup. We can usually ship or have these items available for pickup by the next business day if they don't require inspection, special handling, or setup. Our pickup location is 11151 Veirs Mill Rd. Silver Spring, MD 20902.

📆 Preorder: It is on the way to our warehouse. We can't predict when preorder items will arrive due to current supply chain issues. If you place an order for one of these items someone will contact you to estimate the delivery date.

Out of stock: We don't currently have it available but you're not out of luck yet. We still may be able to get it. If you order one of these items we will contact you with an estimated fulfillment date. You have the option to cancel the order if you change your mind.

Special order: The item is so special that it needs to be custom ordered for you. Some of these items are works of art and have to be made individually. Orders for special order items must be prepaid and we cannot accept cancellations or refunds.

█ Sold out: We don't think we can get this item because it was either discontinued by the manufacturer or was limited in quantity. If you want or need this item call or text us. Sometimes we can help you track down the item through other sources or help you find something similar.

About Item Conditions


Questions?
Call or text us at 301-946-8808.

New: The item is brand new as received from the manufacturer with a full manufacturer warranty. Instruments such as guitars, snare drums, drum kits, brass and woodwind instruments may be opened for photography and quality control inspection and may not be in a factory sealed box.

Mint or Open Box: The item may have been opened and tested but has been repackaged. The original packaging may have superficial issues but the item itself and any originally included accessories are in perfect, like new condition.

Display Model: These items are so cool that we put them on display in our legendary shop. The condition is brand new as received from the manufacturer with manufacturer warranty. Rest assured, these items undergo a very careful inspection before shipping.

Demo: These items have been on our sales floor for demo purposes and will likely show signs of use. The original packaging may no longer be included, but you can be assured that you are receiving an awesome item and an awesome price.

Used: The item is used. These item may have varying degrees of wear. Please read the description for information about the condition of the item. Used items do not carry a warranty.

B or C Stock: Factory refurbished. These items were purchased from the manufacturer in a refurbished condition. They will show some cosmetic issues, but nothing that would impact performance. Being that these are sealed from the manufacturer, we generally do not open these to photograph the cosmetic issues. They are guaranteed to work and may have a limited warranty or you may purchase an extended warranty in some cases. Please see the listing description for item specific information.

Educational & Government Sales Quotes

Click here to inquire about an educational or government quote and discover more about our Educational & Government Sales Division.


Get Connected with the Midas HUB4 Monitor System Hub with 4 PoE Ports for Personal Mixers

Midas HUB4 is the multi-tool in your stage rack providing analogue and digital outputs for various applications. HUB4 can supply up to four DP48 personal monitor mixers with PoE (Power over Ethernet) and 48 channels of 24-bit / 48 kHz audio. HUB4 also collects 48 channels of upstream audio and forwards this audio to the FOH console, either from stage boxes connected to the AES50-B (THRU) Port or 8 return channels from each of Ports 1-4.


  • Supplies PoE (Power over Ethernet) for up to 4 DP48 personal mixers and compatible stage boxes
  • AES50 connectivity for daisy-chaining hubs or stage boxes with 48 bidirectional channels of 24-bit/48kHz audio
  • 16 analog outputs for sending personal stereo mixes to IEM transmitters
  • Receives channel names and group assignments from compatible consoles
  • Can also connect and power MIDAS stage boxes
  • Personal mix outputs can be monitored via AES50 upstream to connected consoles
  • Supports remote control forwarding of a personal mixer from another
  • StageCONNECT port outputs 32 channels of low-latency audio via a single XLR cable
  • Offers remote operation via Cat 5e cable
  • Universal switch-mode power supply allows you to use your gear anywhere in the world
  • Durable Neutrik etherCON ports, and a rugged, road-worthy chassis


SPECIFICATIONS

  • AES50 sync master / thru: 2 x RJ45
  • AES50 remote outputs: 4 x RJ45
  • Remote power: PoE (IEEE802.3at)
  • USB: Type B
  • StageConnect: 1 x XLR, male
  • Analog outputs: 4 x XLR, balanced, 12 x 1/4" TRS, balanced
  • Controls / Indicators:
  • Power: 1 x blue LED (button)
  • AES50-A: 1 x green LED, 1 x button LED, green/white
  • StageConnect: 1 x green / white (button), 1 x green LED (port active)
  • Ports 1 - 4: 4 x button LED, green/white
  • TO AES50-A: 2 x green LED
  • AES50 - A / B: 2 x green LED (good connection), 2 x red LED (error)
  • AES50 Audio channels: 48
  • Sample rate: 44.1 / 48 kHz
  • Sample word length: 24 bit
  • Clock synchronization: AES50 Sync Master
  • Latency: min. 70 µs per node (AES50)
  • Cable: shielded CAT 5e
  • Cable length: max. 100 m (330 ft)
  • StageConnect Audio channels in / out: 16 / 16
  • Phantom power: +12 V DC / 18 W
  • Latency: < 0.1 ms
  • Cable: XLR balanced, mic or DMX cable
  • Cable length: max. 40 m (132 ft) with DMX, typ. 20 m with microphone cable
  • Power Supply, Voltage, Current Consumption:
  • Switch mode power supply: Autorange, 100-240 V~50/60 Hz
  • Power consumption: 180 W
  • Mains connection: Standard IEC receptacle
  • Dimensions (H x W x D): 50 x 482 x 291 mm (1.97 x 18.98 x 11.46")
  • Weight: 8.72 lbs / 3.96 kg


Manufacturer: Midas
Model: HUB4_US1
SKU: I692725-N-0-WHXX
UPC: 4033653071505
