Mordax DATA Multi-Function Utility Eurorack Module - Silver

by Mordax
Original price $0.00 - Original price $0.00
Original price $0.00
$395.00
$395.00 - $395.00
Current price $395.00
Inventory Status:

► New - ♫ In stock
About Inventory Status


Questions?
Call or text us at 301-946-8808.

In stock: It is in stock and available to ship or pickup. We can usually ship or have these items available for pickup by the next business day if they don't require inspection, special handling, or setup. Our pickup location is 11151 Veirs Mill Rd. Silver Spring, MD 20902.

📆 Preorder: It is on the way to our warehouse. We can't predict when preorder items will arrive due to current supply chain issues. If you place an order for one of these items someone will contact you to estimate the delivery date.

Out of stock: We don't currently have it available but you're not out of luck yet. We still may be able to get it. If you order one of these items we will contact you with an estimated fulfillment date. You have the option to cancel the order if you change your mind.

Special order: The item is so special that it needs to be custom ordered for you. Some of these items are works of art and have to be made individually. Orders for special order items must be prepaid and we cannot accept cancellations or refunds.

█ Sold out: We don't think we can get this item because it was either discontinued by the manufacturer or was limited in quantity. If you want or need this item call or text us. Sometimes we can help you track down the item through other sources or help you find something similar.

About Item Conditions


Questions?
Call or text us at 301-946-8808.

New: The item is brand new as received from the manufacturer with a full manufacturer warranty. Instruments such as guitars, snare drums, drum kits, brass and woodwind instruments may be opened for photography and quality control inspection and may not be in a factory sealed box.

Mint or Open Box: The item may have been opened and tested but has been repackaged. The original packaging may have superficial issues but the item itself and any originally included accessories are in perfect, like new condition.

Display Model: These items are so cool that we put them on display in our legendary shop. The condition is brand new as received from the manufacturer with manufacturer warranty. Rest assured, these items undergo a very careful inspection before shipping.

Demo: These items have been on our sales floor for demo purposes and will likely show signs of use. The original packaging may no longer be included, but you can be assured that you are receiving an awesome item and an awesome price.

Used: The item is used. These item may have varying degrees of wear. Please read the description for information about the condition of the item. Used items do not carry a warranty.

B or C Stock: Factory refurbished. These items were purchased from the manufacturer in a refurbished condition. They will show some cosmetic issues, but nothing that would impact performance. Being that these are sealed from the manufacturer, we generally do not open these to photograph the cosmetic issues. They are guaranteed to work and may have a limited warranty or you may purchase an extended warranty in some cases. Please see the listing description for item specific information.

Condition: New

The Ultimate Eurorack Utility Module (and a whole lot more!)

The DATA is a digital platform for testing, measurement, and signal generation in Eurorack modular synthesis systems. It is a modular tool kit, with functions applicable to any system and style.

Use the DATA’s scope to view the interactions between your control voltages and audio signals, allowing you to master your modules by understanding their voltage ranges, control shapes, and parameter responses. Use the DATA’s dual waveform generator to dial in a precisely scaled LFO for CV control, or use the waveform’s frequency “note mode” to effortlessly make dyads (two note chords). Use the DATA’s clock program as a master clock or to divide or multiply an incoming clock signal, sending four different clock outs to gate modules directly or as control to sequencers.

The possibilities of the DATA are basically unlimited; with the included microSD you can update the DATA’s firmware and we can continue to refine and create new programs.

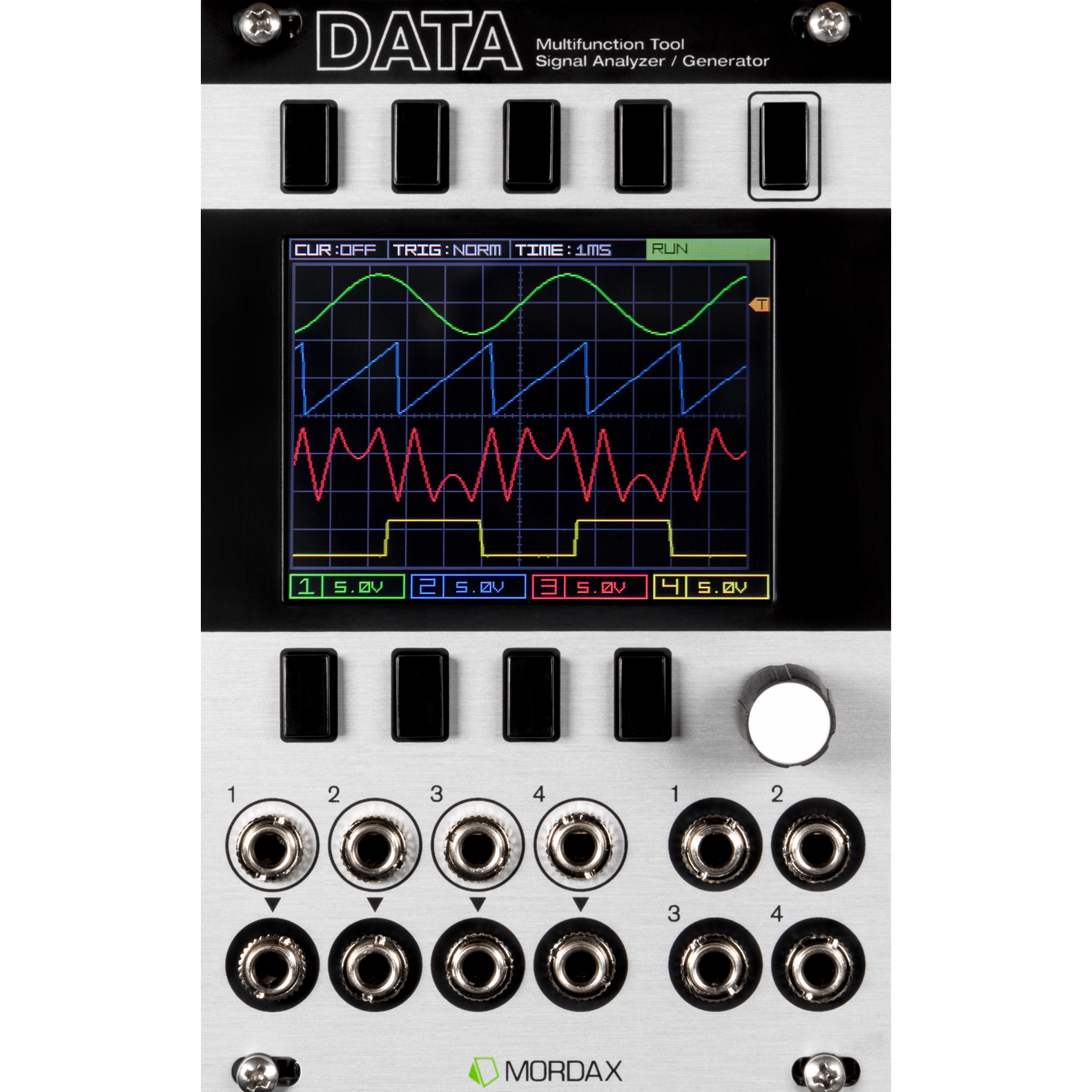

4 Channel Oscilloscope

  • Monitor four independent CV or audio channels
  • Selectable voltage scale, position, AC/DC coupling, and visibility
  • Trigger from any channel, with full scale, user-selectable trigger level
  • Time scale ranges from 50µS to 5 seconds per grid square (total range of 600µS to 1 minute of signal across the screen)
  • X (time) and Y (voltage) measurement cursors with difference display, allowing for simple measurement and windowing of any input signal
  • NEW in Firmware V01.01.00: XY Scope (Lissajous curves) and Minimal Display Mode

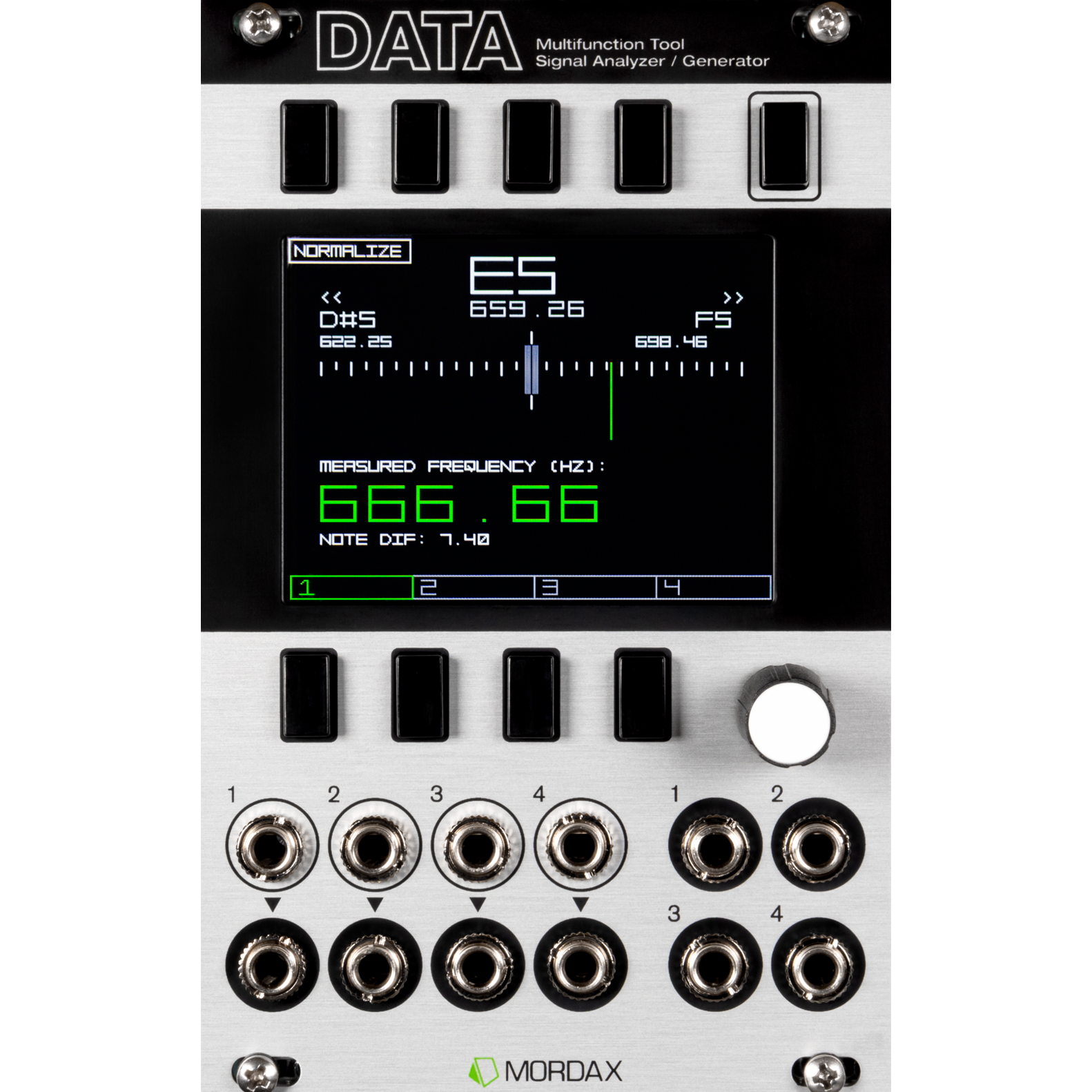

Tuner

  • Measure the precise frequency of any of the 4 incoming signals with a large frequency display
  • The tuning display shows your distance from the closest note graphically and as a frequency number
  • Nearest note is automatically detected and changes while you tune

Voltage Monitor with Quad Voltage & Gate Source

  • 4 channel input display with real-time voltage readout, a simple CV scope for low frequency signals
  • 4 channel outputs can be CV sources (constant voltages, from +10V to -5V) or manual gate sources, with user defined gate HIGH and gate LOW voltages, with either momentary gate or latched gate behavior.

Dual Waveform Generator

  • Two independent digital oscillator channels, with control over frequency, phase, amplitude and offset (wave center)
  • Current waveforms: sine, square, saw, triangle, with waveform output display per channel
  • Frequency range: > 4kHz down to 0.01Hz, selected per numeral for quick, precise value input
  • “Note Mode” frequency selection available independently for either oscillator
  • CV assignable control over frequency (1V/Octave - over 8 octaves!) and amplitude (digital VCA)
  • Flexible CV control routing; any of the four input jacks can be freely assigned to any destination, with per destination attenuation (percent value)
  • NEW in Firmware V01.01.00: Wavefolding Mode

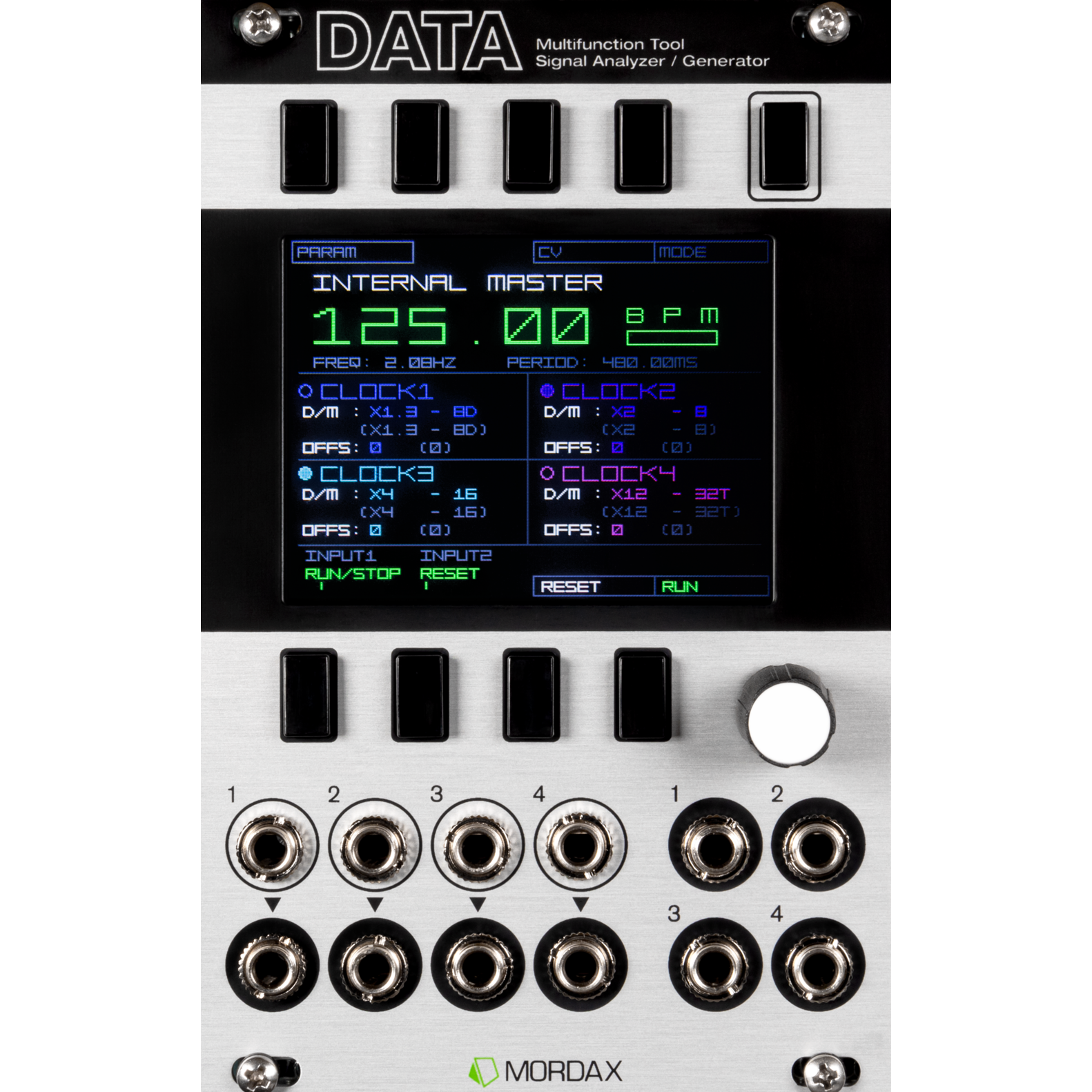

Quad Clock Source with Clock Division, Multiplication & Offset

  • “External Sync” or “Internal Clock” modes; use it as a precise and stable master clock, or as a clock processor sync’d to an external clock source
  • Quad clock outputs, each can be a ratio of the main clock (internal/external), with 32 different div/mult values available, from /48 (12 measures) up to x48 (128th note triplets), including fractional factors (e.g., x1.3 = dotted 8th note)
  • Beat offset shift for each clock pulse, +/- 96 steps (up to one 4th note shift either direction)
  • Input jacks 1 & 2 act as “Ext Clock Sync” and “Reset” inputs while in “External Sync” mode and as “Start/Stop” and “Reset” while in “Internal Clock” mode
  • Input jacks 3 & 4 are user-assignable CV input sources, which can be assigned to control any of the 4 output channel's div/mult values and offsets, with selectable attenuation per destination
  • NEW in Firmware V01.02.02: Clock upgraded from 2ch to 4ch clock output, new core, more div/mult values

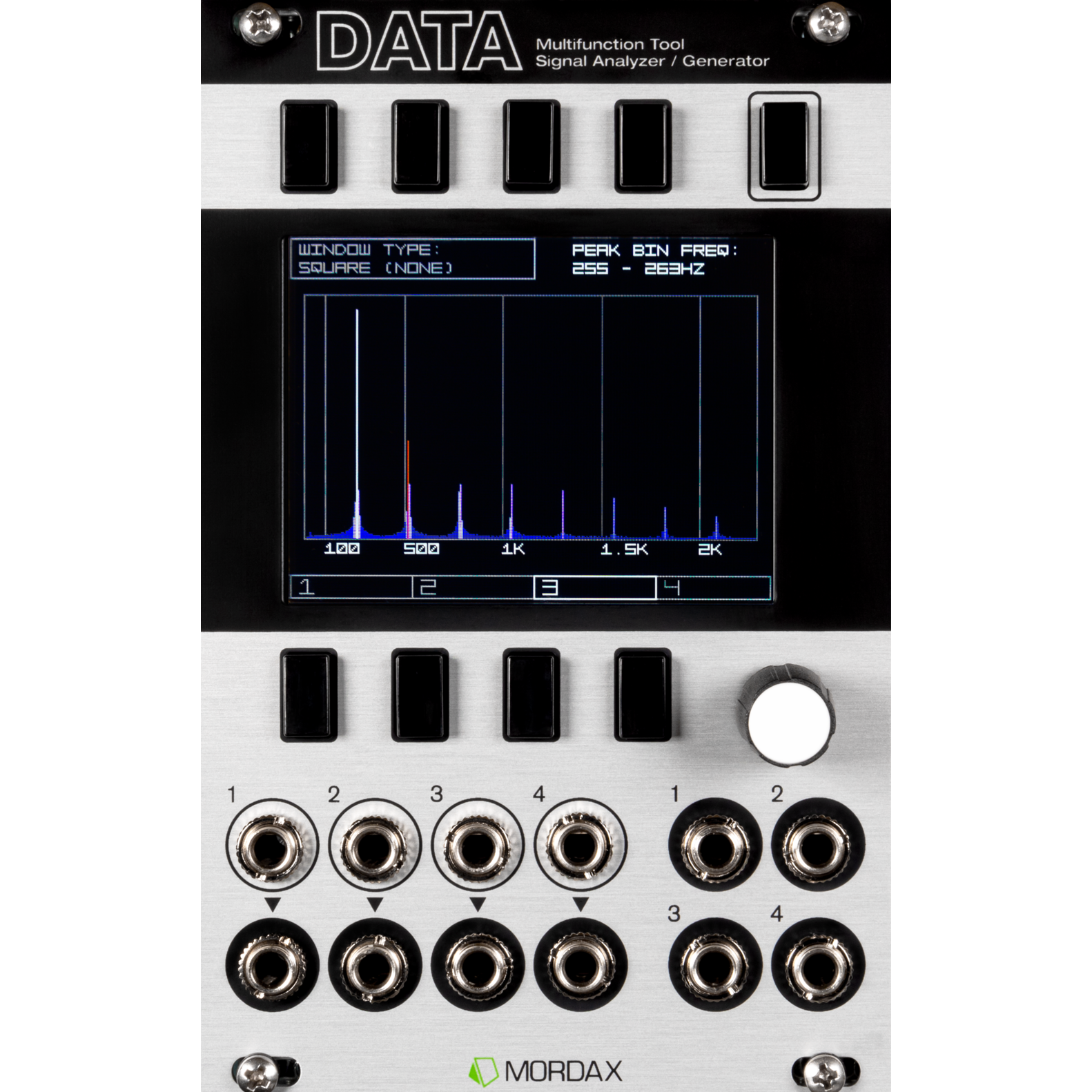

Spectral Analyzer (single-FFT)

  • Display the current harmonic content of any of the 4 incoming signals
  • User-selectable filter window (Square/None, Hann, Bartlett, Blackman-Harris)
  • Peak frequency bin readout shows you frequency range of the first harmonic (fundamental frequency) in the signal

Spectrograph (multi-FFT)

  • Display the harmonic content of any of the 4 incoming signals over time
  • Each column of pixels along the X axis is one frame of the Spectral Analyzer’s display.
  • User-selectable filter window (Square/None, Hann, Bartlett, Blackman-Harris)
  • Controls for display clear and run/stop


SPECIFICATIONS

General

  • 16 HP (81.28mm width)
  • 35mm approx. depth
  • Full color, 2.8” (71mm) display, with crystal clear, scratch resistant window
  • User upgradable firmware via included microSD card
  • Oscilloscope, tuner, waveform generator, clock source/div/mult, spectral display, and more

Input/Output

  • 4 input jacks (+/-10V range), AC or DC coupled via on-screen control
  • 4 buffered through jacks, one for each input channel
  • 4 output jacks (+10 to -5V range), can be CV, audio, trigger or gate signals

Power Consumption (average)

  • ~250mA +12V
  • ~60mA -12V

Manufacturer: Mordax
Model: DATA_SV
SKU: I657234-61-WHXPL
