Mordax DATA Multi-Function Utility Eurorack Module - Silver

Master Your Modules with the Mordax DATA Multi-Function Utility Eurorack Module - Silver

The DATA is a digital platform for testing, measurement, and signal generation in Eurorack modular synthesis systems. It is a modular tool kit, with functions applicable to any system and style.

Use the DATA’s scope to view the interactions between your control voltages and audio signals, allowing you to master your modules by understanding their voltage ranges, control shapes, and parameter responses. Use the DATA’s dual waveform generator to dial in a precisely scaled LFO for CV control, or use the waveform’s frequency “note mode” to effortlessly make dyads (two note chords). Use the DATA’s clock program as a master clock or to divide or multiply an incoming clock signal, sending four different clock outs to gate modules directly or as control to sequencers.

The possibilities of the DATA are basically unlimited; with the included microSD you can update the DATA’s firmware and we can continue to refine and create new programs.

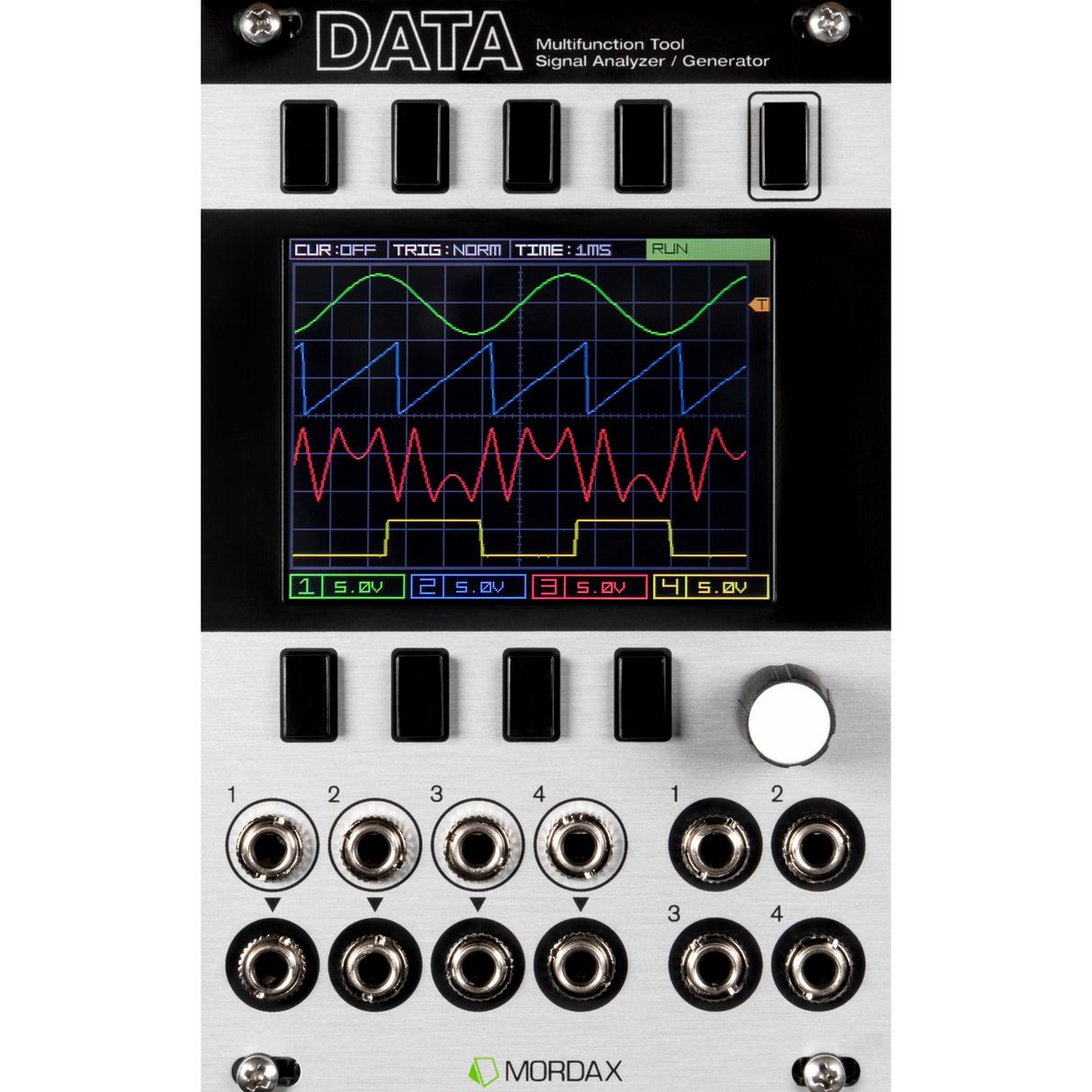

4 Channel Oscilloscope

• Monitor four independent CV or audio channels
• Selectable voltage scale, position, AC/DC coupling, and visibility
• Trigger from any channel, with full scale, user-selectable trigger level
• Time scale ranges from 50µS to 5 seconds per grid square (total range of 600µS to 1 minute of signal across the screen)
• X (time) and Y (voltage) measurement cursors with difference display, allowing for simple measurement and windowing of any input signal
• NEW in Firmware V01.01.00: XY Scope (Lissajous curves) and Minimal Display Mode

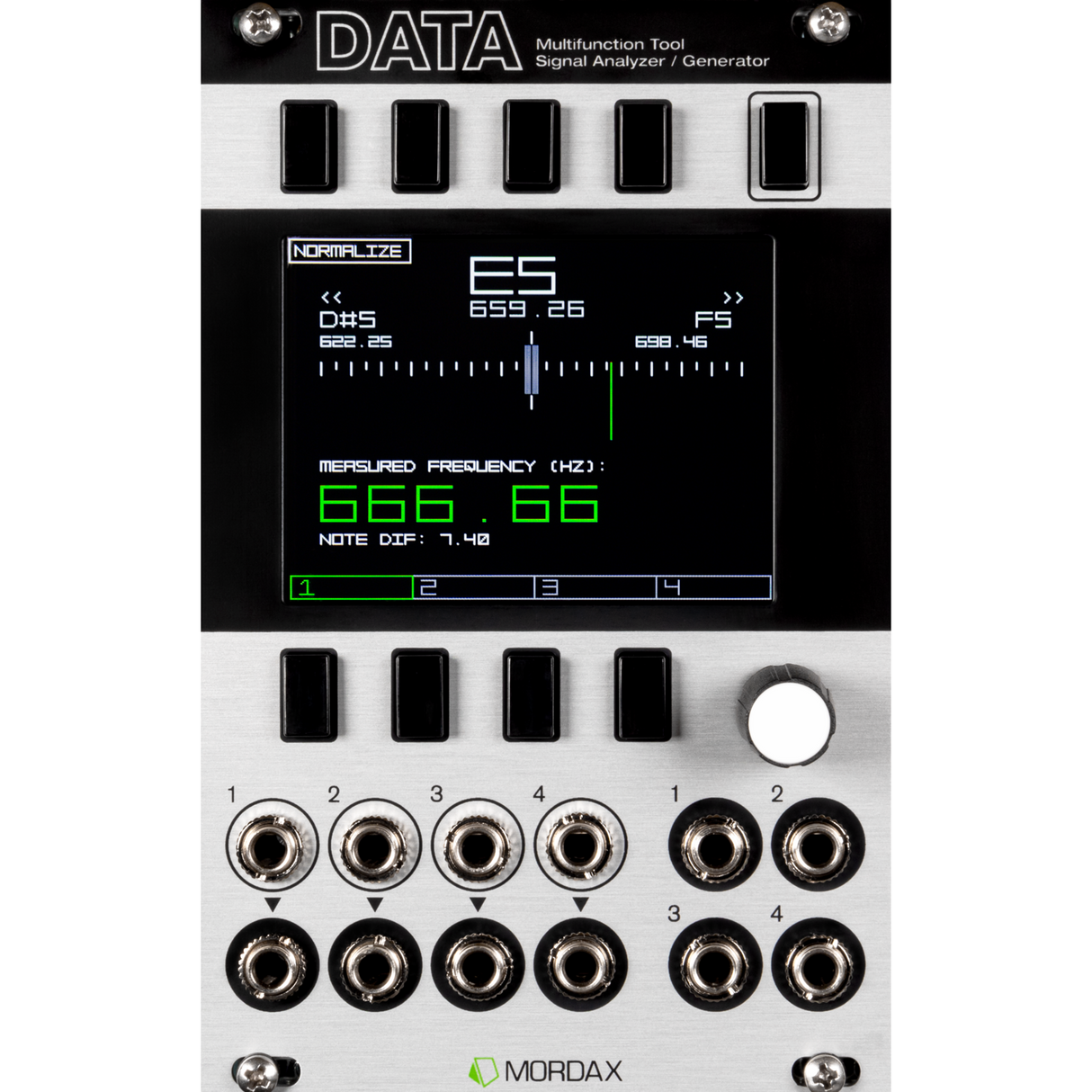

Tuner

• Measure the precise frequency of any of the 4 incoming signals with a large frequency display
• The tuning display shows your distance from the closest note graphically and as a frequency number
• Nearest note is automatically detected and changes while you tune

Voltage Monitor with Quad Voltage & Gate Source

• 4 channel input display with real-time voltage readout, a simple CV scope for low frequency signals
• 4 channel outputs can be CV sources (constant voltages, from +10V to -5V) or manual gate sources, with user defined gate HIGH and gate LOW voltages, with either momentary gate or latched gate behavior.

Dual Waveform Generator

• Two independent digital oscillator channels, with control over frequency, phase, amplitude and offset (wave center)
• Current waveforms: sine, square, saw, triangle, with waveform output display per channel
• Frequency range: > 4kHz down to 0.01Hz, selected per numeral for quick, precise value input
• “Note Mode” frequency selection available independently for either oscillator
• CV assignable control over frequency (1V/Octave - over 8 octaves!) and amplitude (digital VCA)
• Flexible CV control routing; any of the four input jacks can be freely assigned to any destination, with per destination attenuation (percent value)
• NEW in Firmware V01.01.00: Wavefolding Mode

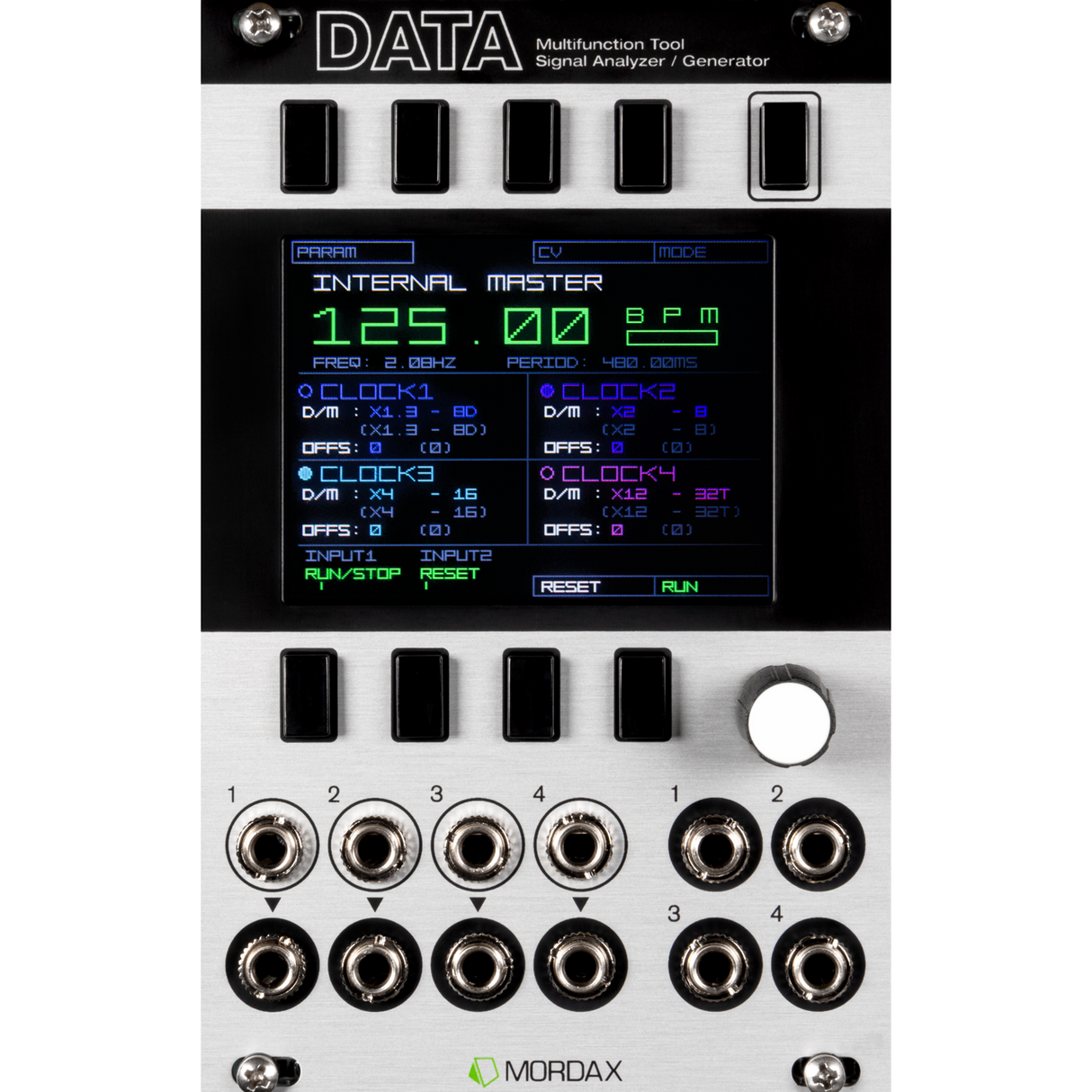

Quad Clock Source with Clock Division, Multiplication & Offset

• “External Sync” or “Internal Clock” modes; use it as a precise and stable master clock, or as a clock processor sync’d to an external clock source
• Quad clock outputs, each can be a ratio of the main clock (internal/external), with 32 different div/mult values available, from /48 (12 measures) up to x48 (128th note triplets), including fractional factors (e.g., x1.3 = dotted 8th note)
• Beat offset shift for each clock pulse, +/- 96 steps (up to one 4th note shift either direction)
• Input jacks 1 & 2 act as “Ext Clock Sync” and “Reset” inputs while in “External Sync” mode and as “Start/Stop” and “Reset” while in “Internal Clock” mode
• Input jacks 3 & 4 are user-assignable CV input sources, which can be assigned to control any of the 4 output channel's div/mult values and offsets, with selectable attenuation per destination
• NEW in Firmware V01.02.02: Clock upgraded from 2ch to 4ch clock output, new core, more div/mult values

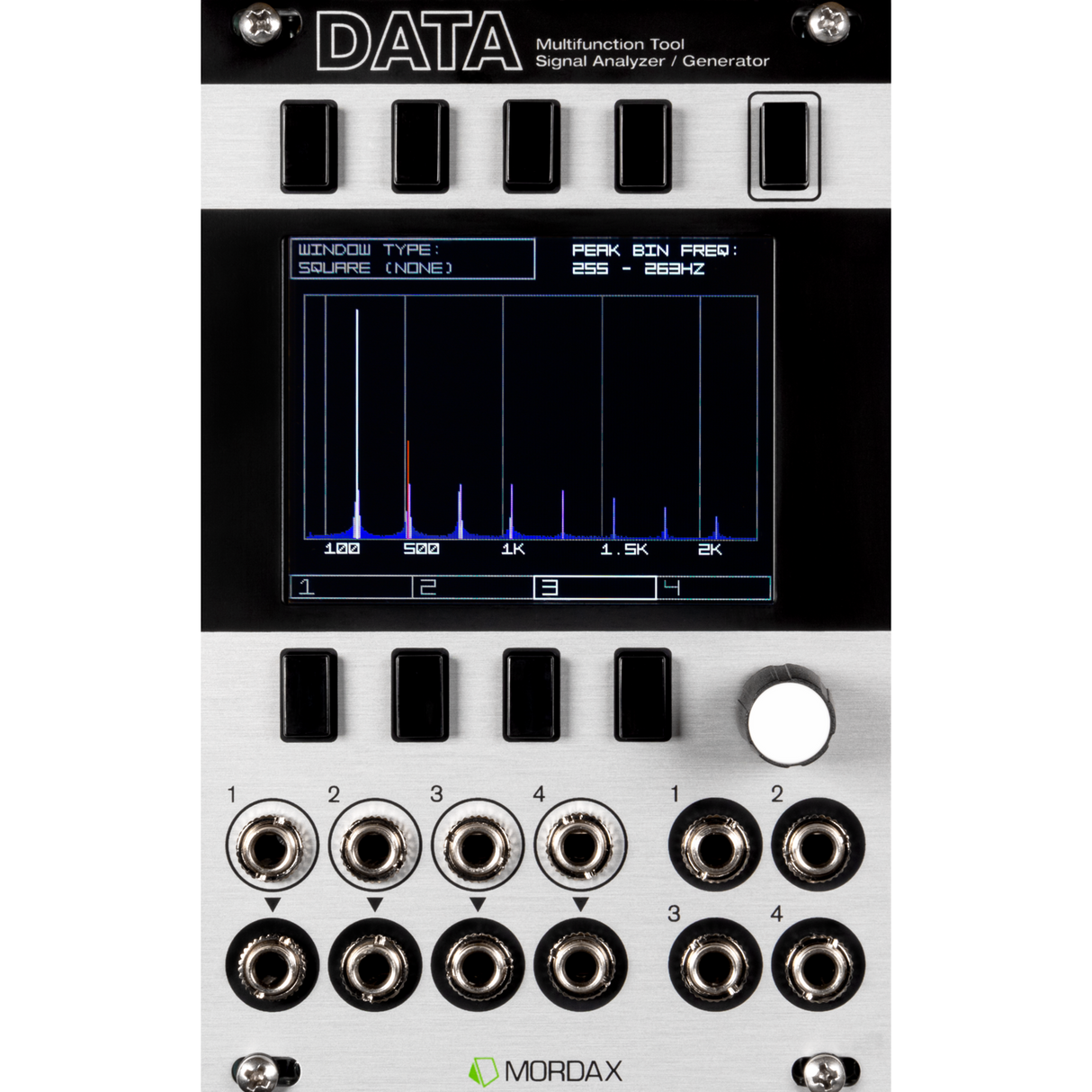

Spectral Analyzer (single-FFT)

• Display the current harmonic content of any of the 4 incoming signals
• User-selectable filter window (Square/None, Hann, Bartlett, Blackman-Harris)
• Peak frequency bin readout shows you frequency range of the first harmonic (fundamental frequency) in the signal

Spectrograph (multi-FFT)

• Display the harmonic content of any of the 4 incoming signals over time
• Each column of pixels along the X axis is one frame of the Spectral Analyzer’s display.
• User-selectable filter window (Square/None, Hann, Bartlett, Blackman-Harris)
• Controls for display clear and run/stop

SPECIFICATIONS

General

• 16 HP (81.28mm width)
• 35mm approx. depth
• Full color, 2.8” (71mm) display, with crystal clear, scratch resistant window
• User upgradable firmware via included microSD card
• Oscilloscope, tuner, waveform generator, clock source/div/mult, spectral display, and more

Input/Output

• 4 input jacks (+/-10V range), AC or DC coupled via on-screen control
• 4 buffered through jacks, one for each input channel
• 4 output jacks (+10 to -5V range), can be CV, audio, trigger or gate signals

Power Consumption (average)

• ~250mA +12V
• ~60mA -12V
