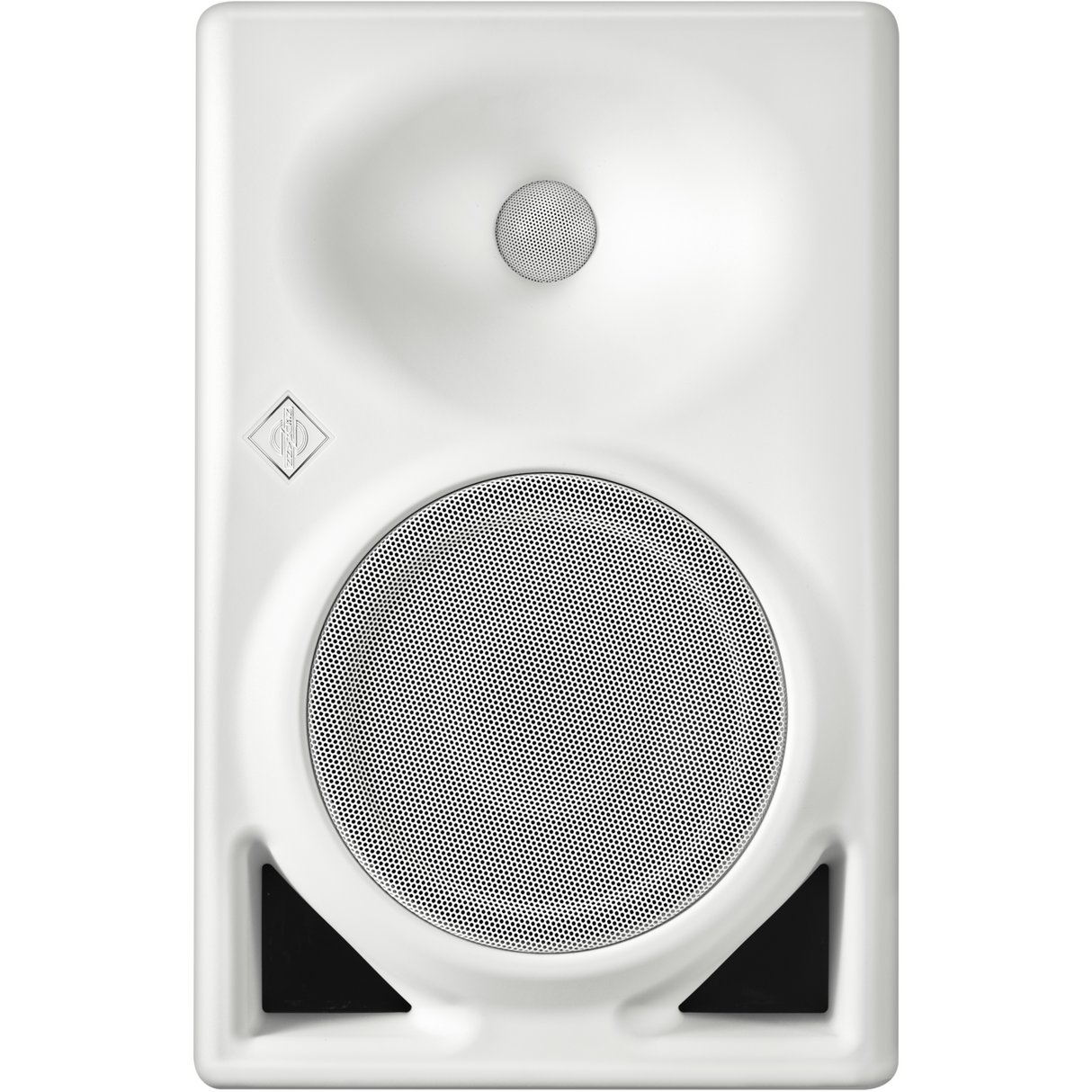

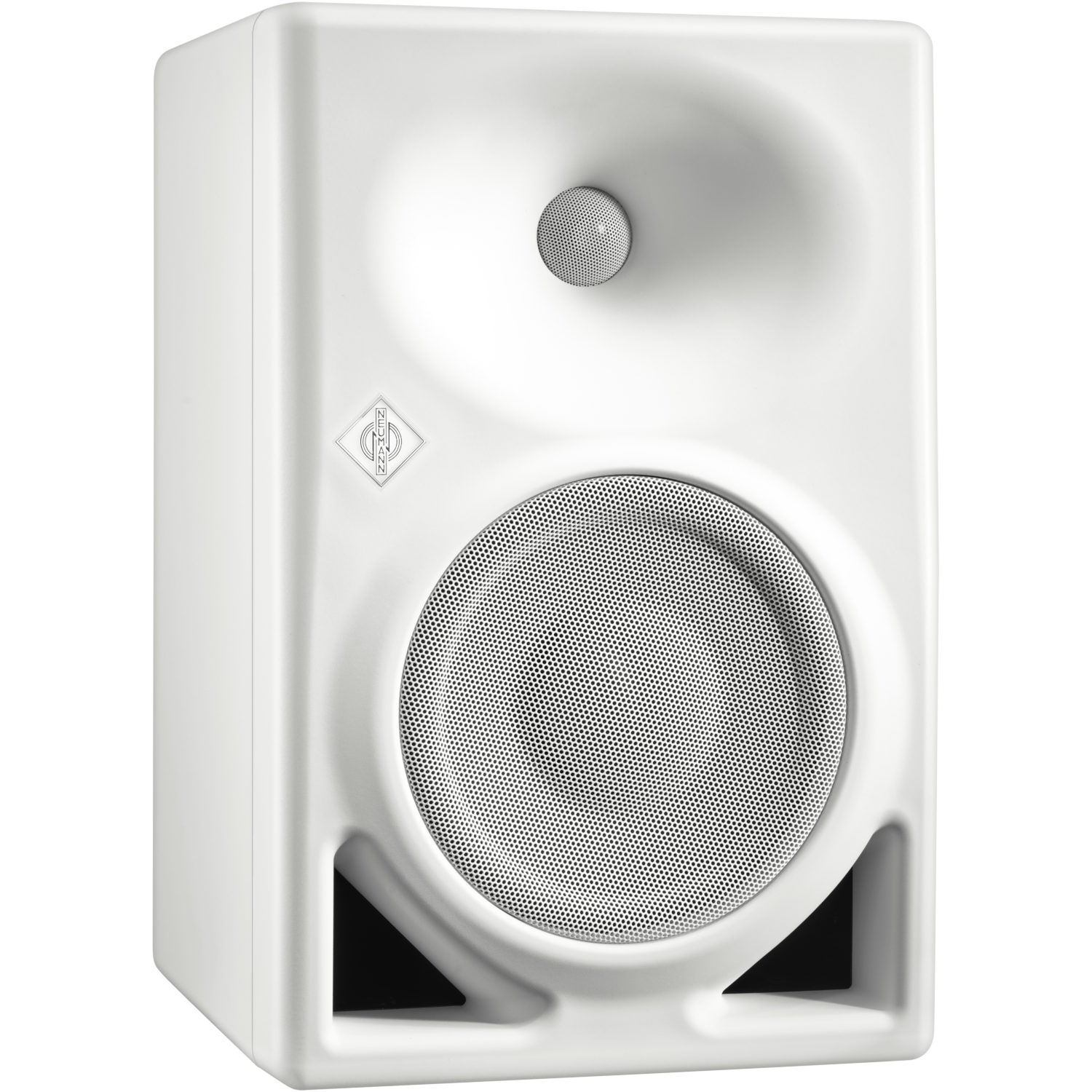

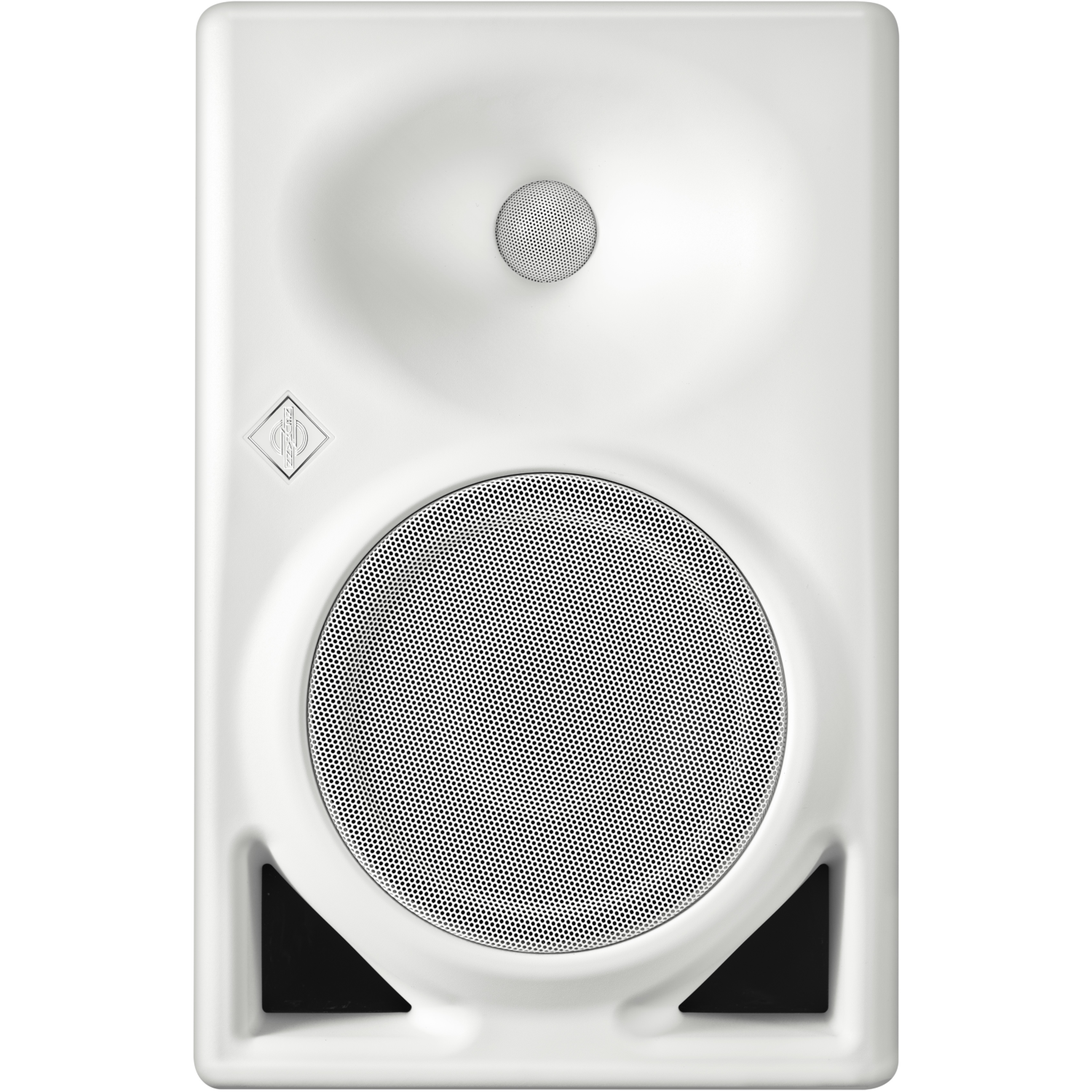

Neumann KH 150 AES67 Two-Way DSP-Powered Nearfield Monitor - White
MSRP: $234900
Couldn't load pickup availability
About Inventory Status
About Inventory Status
Questions? Call or text us at 301-946-8808.
♫ In stock: It is in stock and available to ship or pickup. Apparel must be shipped from another location and is not available for in-store pickup. We can usually ship or have these items available for pickup by the next business day if they don't require inspection, special handling, or setup. Our pickup location is 11151 Veirs Mill Rd. Silver Spring, MD 20902.
📆 Preorder: It is on the way to our warehouse. We can't predict when preorder items will arrive due to current supply chain issues. If you place an order for one of these items someone will contact you to estimate the delivery date.
❓ Out of stock: We don't currently have it available but you're not out of luck yet. We still may be able to get it. If you order one of these items we will contact you with an estimated fulfillment date. You have the option to cancel the order if you change your mind.
❔ Special order: The item is so special that it needs to be custom ordered for you. Some of these items are works of art and have to be made individually. Orders for special order items must be prepaid and we cannot accept cancellations or refunds.
█ Sold out: We don't think we can get this item because it was either discontinued by the manufacturer or was limited in quantity. If you want or need this item call or text us. Sometimes we can help you track down the item through other sources or help you find something similar.
About Item Conditions
About Item Conditions
Questions? Call or text us at 301-946-8808.
New: The item is brand new as received from the manufacturer with a full manufacturer warranty. Instruments such as guitars, snare drums, drum kits, brass and woodwind instruments may be opened for photography and quality control inspection and may not be in a factory sealed box.
Mint or Open Box: The item may have been opened and tested but has been repackaged. The original packaging may have superficial issues but the item itself and any originally included accessories are in perfect, like new condition.
Display Model: These items are so cool that we put them on display in our legendary shop. The condition is brand new as received from the manufacturer with manufacturer warranty. Rest assured, these items undergo a very careful inspection before shipping.
Demo: These items have been on our sales floor for demo purposes and will likely show signs of use. The original packaging may no longer be included, but you can be assured that you are receiving an awesome item and an awesome price.
Used: The item is used. These item may have varying degrees of wear. Please read the description for information about the condition of the item. Used items do not carry a warranty.
B or C Stock: Factory refurbished. These items were purchased from the manufacturer in a refurbished condition. They will show some cosmetic issues, but nothing that would impact performance. Being that these are sealed from the manufacturer, we generally do not open these to photograph the cosmetic issues. They are guaranteed to work and may have a limited warranty or you may purchase an extended warranty in some cases. Please see the listing description for item specific information.
Description
Description
Get Legendary Accuracy with the Neumann KH 150 Two-Way DSP-Powered Nearfield Monitor - White
The KH 150 is a powerful bi-amplified studio monitor with reference-class performance. Its 6.5-inch woofer in a bass reflex cabinet provides stunning low end and high SPL capability with undiminished clarity. DSP controlled electronics ensure linear phase response and allow for room-adaptive calibration via Neumann’s revolutionary MA 1 Automatic Monitor Alignment.
Additionally, the KH 150 AES67 model variant offers integrated redundant AES67 audio network ports that are fully compliant with broadcast standards such as ST 2110, ST 2022-7 redundancy, and RAVENNA. At the same time, the KH 150 AES67 is compatible with DANTE-generated AES67 network streams.
- High-precision drivers, Mathematically Modelled Dispersion (MMD) waveguide
- DSP engine allows for room adaptive calibration via Neumann’s MA 1
- Razor-sharp imaging due to extremely low tolerances (± 0.8 dB)
- May be combined with other KH line speakers in immersive/surround setups
SPECIFICATIONS
- Free Field Frequency Response ±6 dB: 36 Hz - 21 kHz
- Free Field Frequency Response ±3 dB: 39 Hz - 20.4 kHz
- Pass Band Free Field Frequency Response: 42 Hz - 20 kHz, ±1.25 dB
- Free Field Frequency Linearity deviation between 100 Hz and 10 kHz: ±0.8 dB
- Self-generated noise at 10 cm (with input gain set to 100 dB SPL for 0 dBu): <20 dB(A) SPL
- Sine Wave output with a THD < 0.5 % at 1 m in half space: 95 dB SPL (>75 Hz)
- Dolby D.A.R.D.T. Max SPL fullrange: 114 dB
- Dolby D.A.R.D.T. Max SPL bass managed: 120 dB
- Recommended Listening Distance: 1.0 - 2.5 m; (3 - 8 foot)
- Feasible Listening Distance: 0.75 - 6.0 m; (2 foot 6 inches - 18 feet)
- Acoustic Principle: Bassreflex, Ports at the front

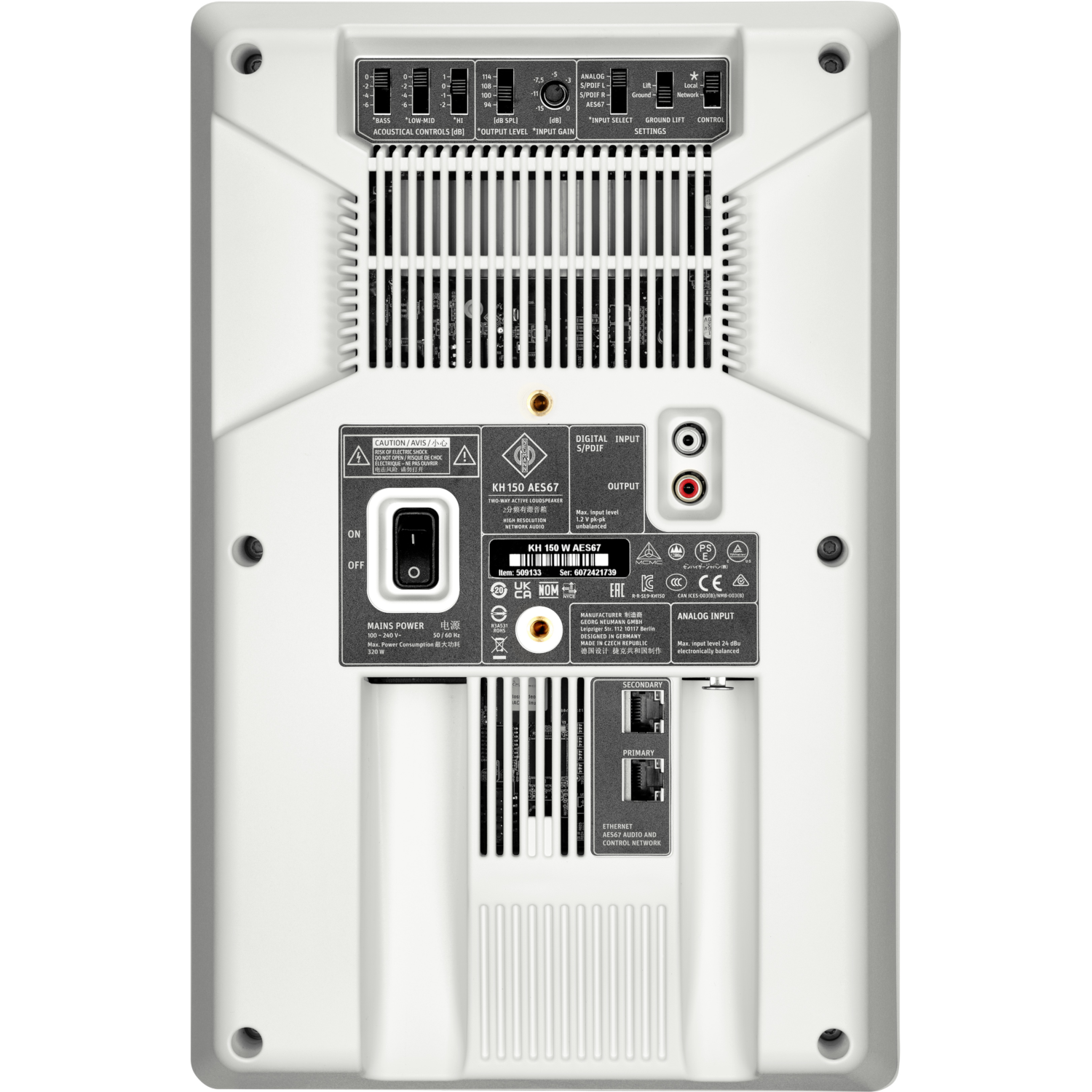

- Analog Input(s): XLR: analog electronically balanced
- Analog Input Impedance: 24 kOhms
- Max. Input Level: +24 dBu for 94 dB SPL setting; +14 dBu for 100 dB SPL setting; +9 dBu for 108 dB SPL setting; -1 dBu for 114 dB SPL setting
- Common Mode Rejection Ratio (CMRR): >56 dB @ 15 kHz
- Volume Control: via MA 1 software
- Volume Control Range; Resolution: 0 - -∞ dB; 0.1 dB
- Analog Dynamic Range; THD+N: 118 dB, A-weighted, 90 dB
- Signal Routing Modes: Analog, S/PDIF L, S/PDIF R, S/PDIF mono
- Digital Input(s): RCA (75 Ω): S/PDIF
- Digital Output(s): RCA (75 Ω): S/PDIF
- Max. Input Level; pk-pk, unbalanced / balanced: 1.2 V
- Digital Converter Resolution; design: 24 Bit
- Digital Converter Sampling Rate: 32 kHz - 200 kHz
- Digital Internal Sampling Rate: 48 kHz
- Delay User adjustable delay range: 0 - 120 ms
- Delay Resolution: time; distance: 20.8 µs
- Delay Max. frames Audio-video synchronisation (lip sync): 0 - 120 ms for TOF=0ms, depends on APP implementation
- Delay Time-of-flight maximum distance: 0 … 120 ms for lipsync=0ms, depends on APP implmentation
- Transport/storage conditions: -25° C to +60° C (-13° F to 140° F); <90% RH; non-condensing
- Input gain control (sensitivity): 0 dB - -15 dB
- Output level control (output level in 1 m based on 0 dBu input level) 94; 100; 108; 114 dB SPL
- Equalization, Bass: 0; -2; -4; -6 dB
- Equalization, Low-Mid: 0; -2; -4; -6 dB
- Equalization, Treble: +1; 0; -1; -2 dB
- Input Selector: Analog; S/PDIF L; S/PDIF R; Mono
- Ground Lift: Yes
- Control: Local; Network
- Mains Switch: Yes
- Mains Voltage Select: Universal Power Supply 100 V~ - 240 V~
- Controller Design: Digital; active
- Crossover Frequency: 1700 Hz
- Crossover Slope: 48 dB / octave
- Equalization, via Neumann.Control software: No
- Automatic Room Calibration via MA 1: Yes
- FIR phase correction: Linear phase (105 Hz - 16 kHz; +/- 45°)
- Protection Circuitry: Independent soft clip, peak and thermo limiters for woofer and tweeter; Woofer excursion limiter; thermo limiter for the electronics and amplifiers
- Infrasonic Filter: Frequency; slope 38 Hz; 12 dB / octave
- Remote Control: MA 1 software via an RJ45 connector carrying standard IP data
- Display, On; Normal Operation: Neumann logo “White”
- Display, Identification: Neumann logo “Rosé”
- Display, Limit / Clip / Errors / Protection /Boot Mute / Shut Down Mute: Neumann logo “Red”
- Output Power Woofer Amplifier (THD+N with limiter deactivated: 10%): 145 W
- Output Power Tweeter Amplifier (THD+N with limiter deactivated: 10%): 100 W
- Output Power Woofer Amplifier (THD+N with limiter deactivated: 0.1%): 120 W
- Output Power Tweeter Amplifier (THD+N with limiter deactivated: 0.1%): 80 W
- Mains Power Supply, Input voltage; frequency: 100 - 240 V; 50/60 Hz
- Power Consumption (230 V / 100 V): Standby: 0.3 W
- Power Consumption (230 V / 100 V): Idle: 15 W
- Power consumption (230 V / 100 V): Full Output: 320 W
- In-Rush Current (Peak): 33 A
- Standby: Automatic, 90 mins (default); user defined in software
- Cabinet Material: Composite polycarbonate front and rear, wooden sleeve
- Cabinet Surface finish; color (front / back): Painted; metallic anthracite (RAL 7021) / Black (RAL 9005)
- Operating Conditions: +10° C to +40° C (+50° F to +104° F); <75% RH, non-condensing
- Woofer: 165 mm; (6.5-inch) with protecting black metal grille
- Tweeter: 25 mm; (1-inch) with protecting black metal grille
- Mounting Points: 2 x M6 threaded inserts with 70 mm spacing on back panel; thread depth 15 mm; (5/8-inch)
- Product Dimensions (height x width x depth): 345 x 225 x 273 mm; (13.58 x 8.86 x 10.75 inches)
- Internal Net Volume: 12.6 l
- External Net Volume: 20.4 l
- Packed Dimensions (height x width x depth), mm (inches): 480 x 303 x 403 mm; (18.9 x 11.9 x 15.9 inches)
- Product Weight: 8.0 kg; (17 lbs 10 oz)
- Packed Weight: 9.4 kg; (20 lbs 12 oz)
- Packaging Weight inc. Cables and Manuals: 1.41 kg; (3 lbs)
Manufacturer: Neumann
Model: KH 150 W AES67
SKU: I720378-N-0-WHXX
UPC: 615104355934
