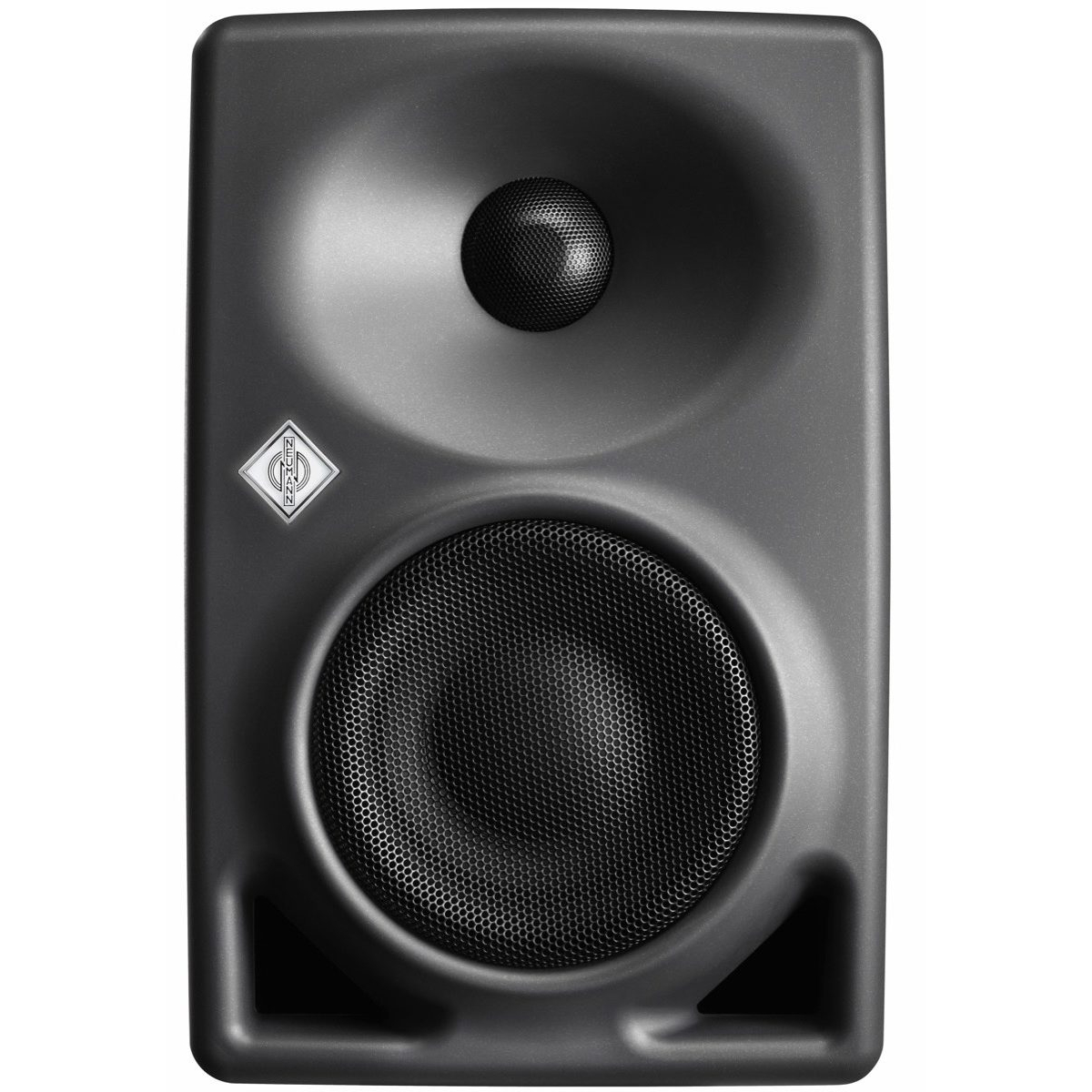

Neumann KH 80 DSP 4"+1" Active Studio Monitor (Single)

by Neumann
Original price $649.00
Original price $649.00 - Original price $649.00
Original price $649.00
Current price $549.00
$549.00 - $549.00
Current price $549.00
Inventory Status:

♫ In stock
About Inventory Status


Questions?
Call or text us at 301-946-8808.

In stock: It is in stock and available to ship or pickup. We can usually ship or have these items available for pickup by the next business day if they don't require inspection, special handling, or setup. Our pickup location is 11151 Veirs Mill Rd. Silver Spring, MD 20902.

📆 Preorder: It is on the way to our warehouse. We can't predict when preorder items will arrive due to current supply chain issues. If you place an order for one of these items someone will contact you to estimate the delivery date.

Out of stock: We don't currently have it available but you're not out of luck yet. We still may be able to get it. If you order one of these items we will contact you with an estimated fulfillment date. You have the option to cancel the order if you change your mind.

Special order: The item is so special that it needs to be custom ordered for you. Some of these items are works of art and have to be made individually. Orders for special order items must be prepaid and we cannot accept cancellations or refunds.

█ Sold out: We don't think we can get this item because it was either discontinued by the manufacturer or was limited in quantity. If you want or need this item call or text us. Sometimes we can help you track down the item through other sources or help you find something similar.

About Item Conditions


Questions?
Call or text us at 301-946-8808.

New: The item is brand new as received from the manufacturer with a full manufacturer warranty. Instruments such as guitars, snare drums, drum kits, brass and woodwind instruments may be opened for photography and quality control inspection and may not be in a factory sealed box.

Mint or Open Box: The item may have been opened and tested but has been repackaged. The original packaging may have superficial issues but the item itself and any originally included accessories are in perfect, like new condition.

Display Model: These items are so cool that we put them on display in our legendary shop. The condition is brand new as received from the manufacturer with manufacturer warranty. Rest assured, these items undergo a very careful inspection before shipping.

Demo: These items have been on our sales floor for demo purposes and will likely show signs of use. The original packaging may no longer be included, but you can be assured that you are receiving an awesome item and an awesome price.

Used: The item is used. These item may have varying degrees of wear. Please read the description for information about the condition of the item. Used items do not carry a warranty.

B or C Stock: Factory refurbished. These items were purchased from the manufacturer in a refurbished condition. They will show some cosmetic issues, but nothing that would impact performance. Being that these are sealed from the manufacturer, we generally do not open these to photograph the cosmetic issues. They are guaranteed to work and may have a limited warranty or you may purchase an extended warranty in some cases. Please see the listing description for item specific information.


Get Greater Consistency, Improved Accuracy, And More Flexibility Than Its Analog Counterparts - The Neumann KH 80 DSP 4"+1" Active Studio Monitor

The KH 80 DSP two-way (4" + 1") active bi-amplified monitor features a DSP engine with network control, a Mathematically Modeled Dispersion™ Waveguide (MMD), an analog input, and an extensive range of mounting hardware. A standard IP network connection allows the monitoring system to be controlled using Neumann. Control which runs on a PC/Mac computer or Android/iOS tablet. This allows the loudspeaker to be used in diverse acoustical conditions, with any source equipment, and in a wide variety of physical locations. The KH 80 represents the latest in acoustic and electronic simulation and measurement technologies to ensure the most accurate sound reproduction possible.

With its digital core, the KH 80 DSP enables filtering functions and room adjustment options, which brings reference level reproduction to any environment. Even with its compact design, it has extraordinary reserve capacity - as well as the classic strengths of the Neumann monitor philosophy: clearly defined dispersion angle, distortion-free design and sophisticated material selection.

Adjusts To Your Studio

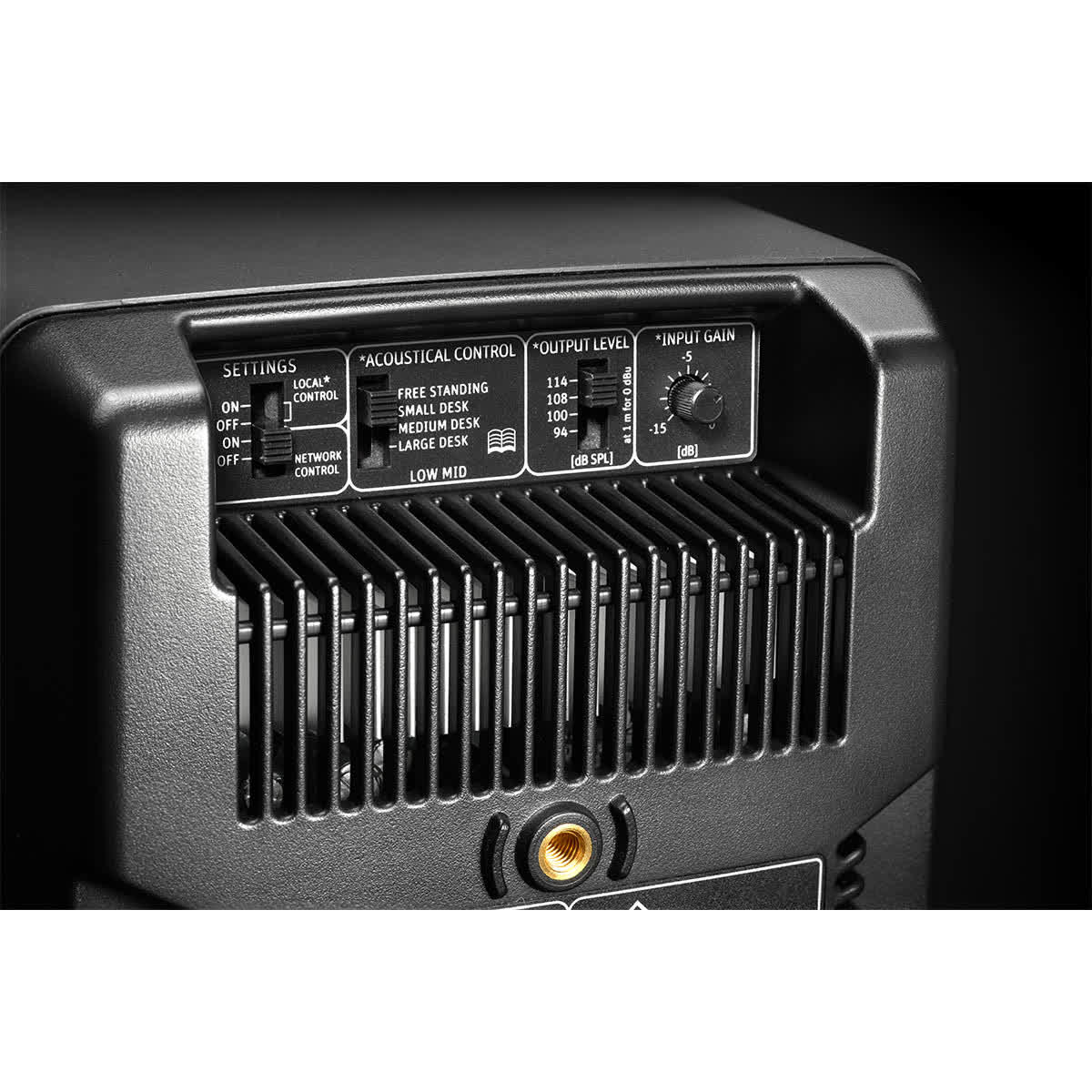

It might be a project studio, an outside broadcast van, a corner at work or just a brick building: The room defines the sound. Surfaces and corners in the room cause interference, diffraction, reflection, and refraction: all are forms of distortion. For a really true sound, without acoustic-physical “accidents”, you normally need expensive equipment plus plenty of time and expertise to align it correctly – or smart algorithms. An easy adjustment to the monitor position (free standing, small/medium/large desk) is possible via the rear "Acoustical Control" switch.

A Tool For Everyone With Professional Standards

Highest quality components, high-end protection systems and power reserves are what you would expect from this studio class product even under the most demanding circumstances. Its design makes the KH 80 DSP a versatile near-field monitor, which delivers professional-quality sound wherever you need it – in project and music studios, editing and broadcasting rooms or in outside broadcast vans. Some customers like it so much, they use the KH 80 DSP in their living rooms. Why not? After all, the KH 80 DSP delivers digital precision for a masterpiece of analog technology: your ears.

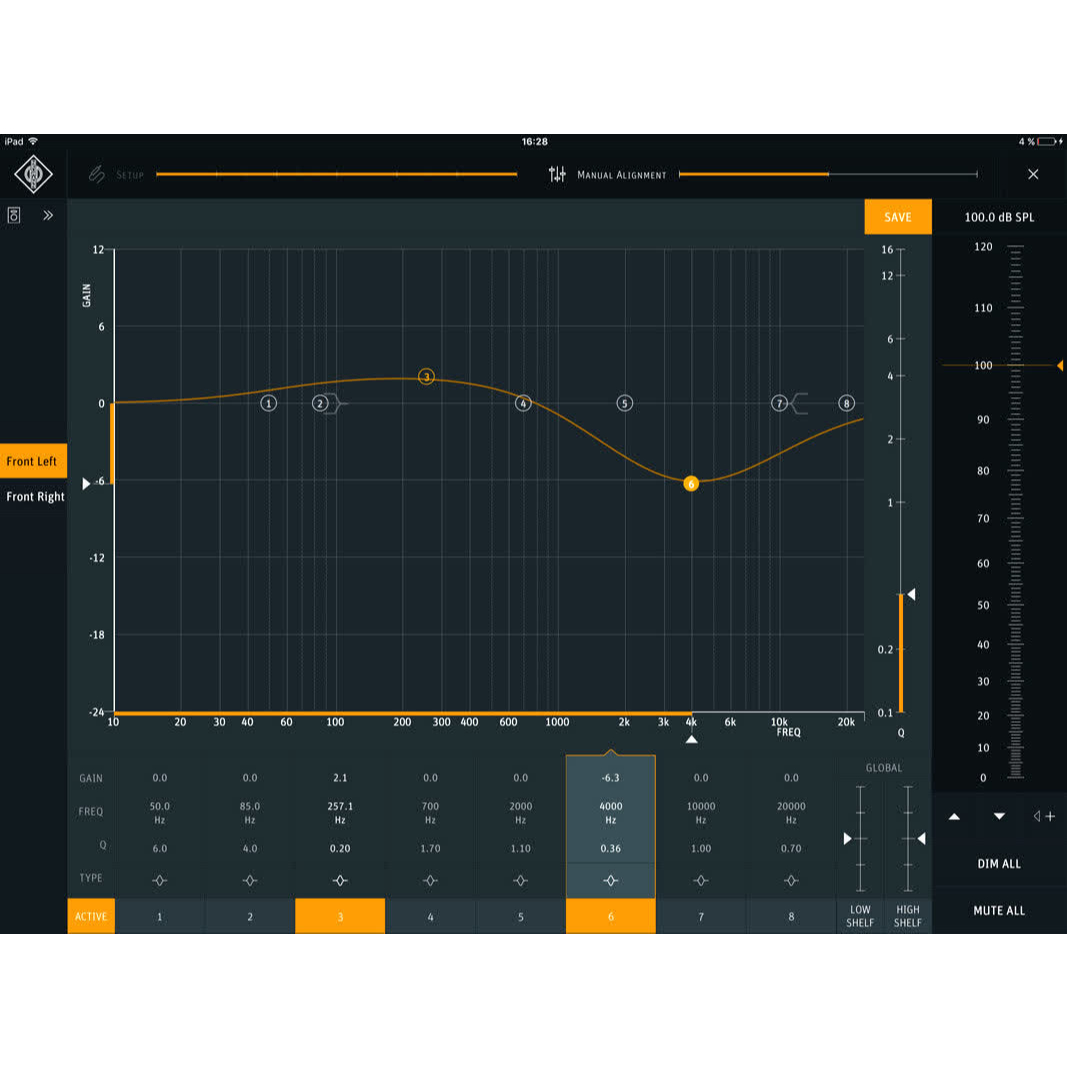

  • DSP engine with standard IP networking and Neumann.Control software
  • Mathematically modeled dispersion to deliver excellent detail in any surroundings

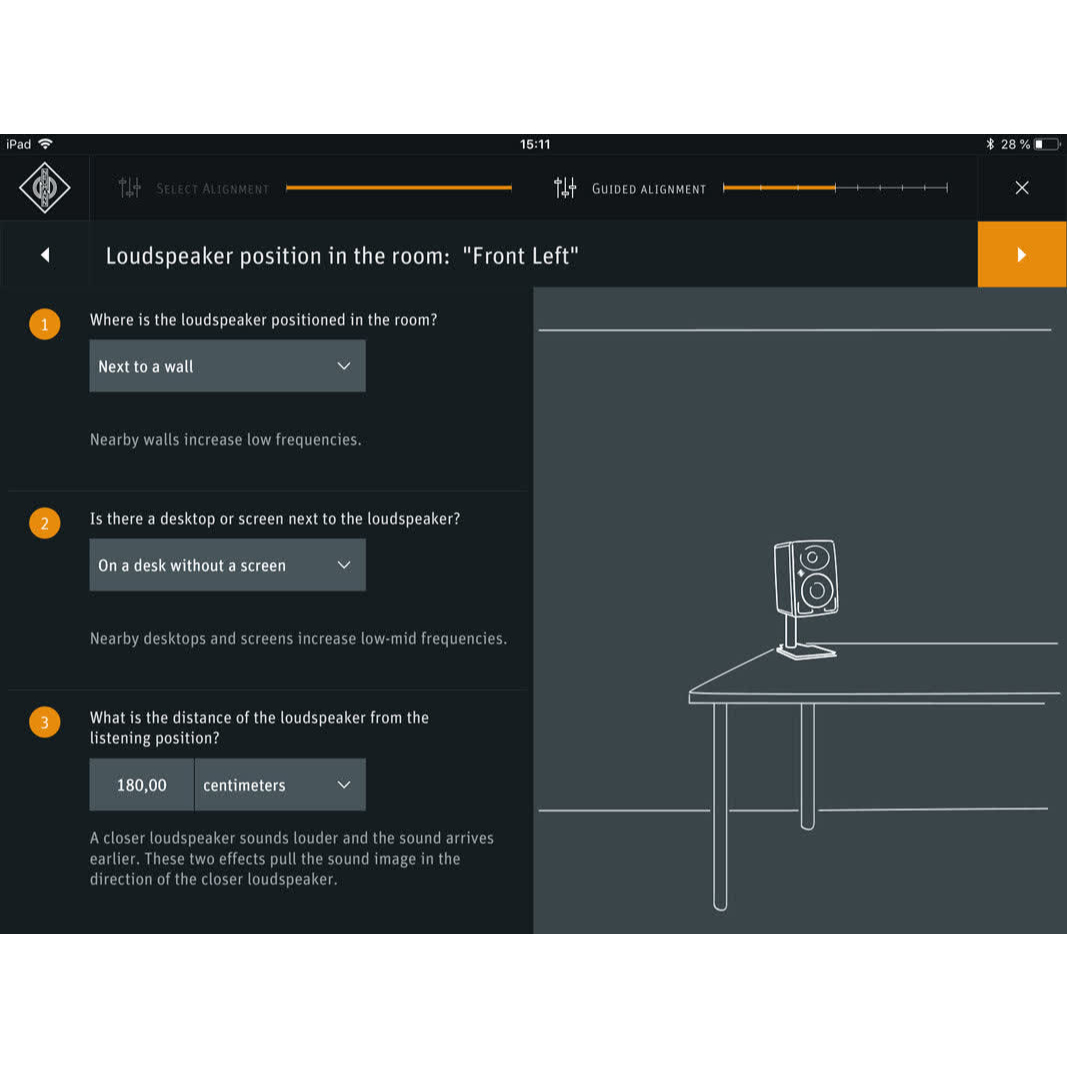

  • Optional tools for room alignment, configuration und control


SPECIFICATIONS

Acoustical

  • -6 dB Free Field Frequency Response: 53 Hz - 22 kHz, ± 6 dB
  • -3 dB Free Field Frequency Response: 57 Hz - 21 kHz, ± 3 dB
  • Pass Band Free Field Frequency Response: 59 Hz - 20 kHz, ± 2 dB
  • Self-Generated Noise (with input gain set to 100 dB for 0 dBu): less than 20 dB(A) bei 10 cm
  • Max. SPL (in full space at 3% THD at 1m, averaged between 100 Hz and 6 kHz): 102.8 / 108.8 dB SPL

Electronics

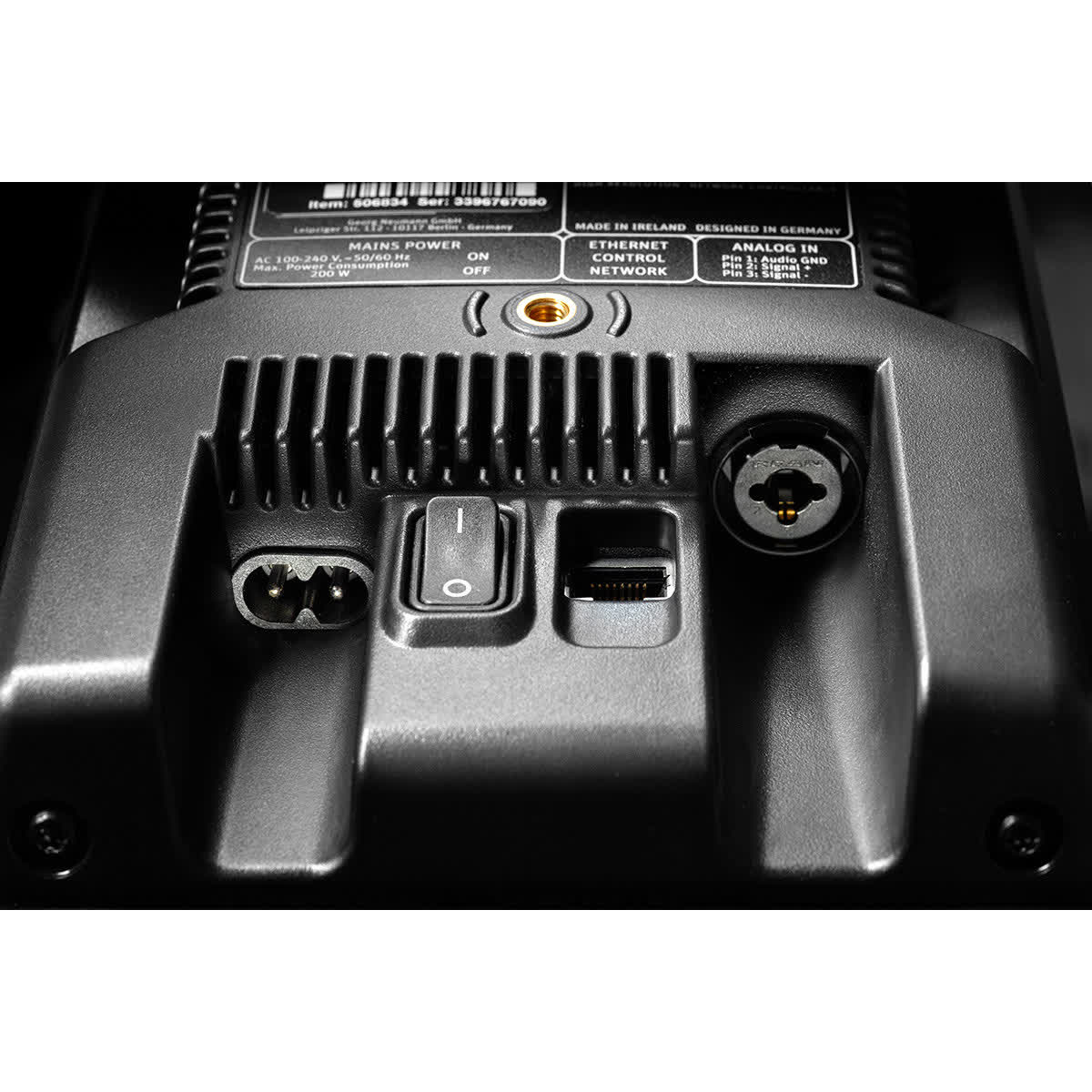

  • Input: XLR, analog electronically balanced
  • Controller Design: Digital, active
  • Crossover Frequency, Slopes: 1.8 kHz, 48 dB / oct, 8th order
  • Bass Amplifier, Cont. Output Power (peak): 150 W (130 W)
  • Treble Amplifier, Cont. Output Power (peak): 55 W (70 W)
  • Mains Power Supply Voltage, Frequency: 100-240 V~; 50/60 Hz, with standby

Mechanics

  • Drivers: 4 inch (100 mm), 1 inch (25 mm), with integrated black metal grilles

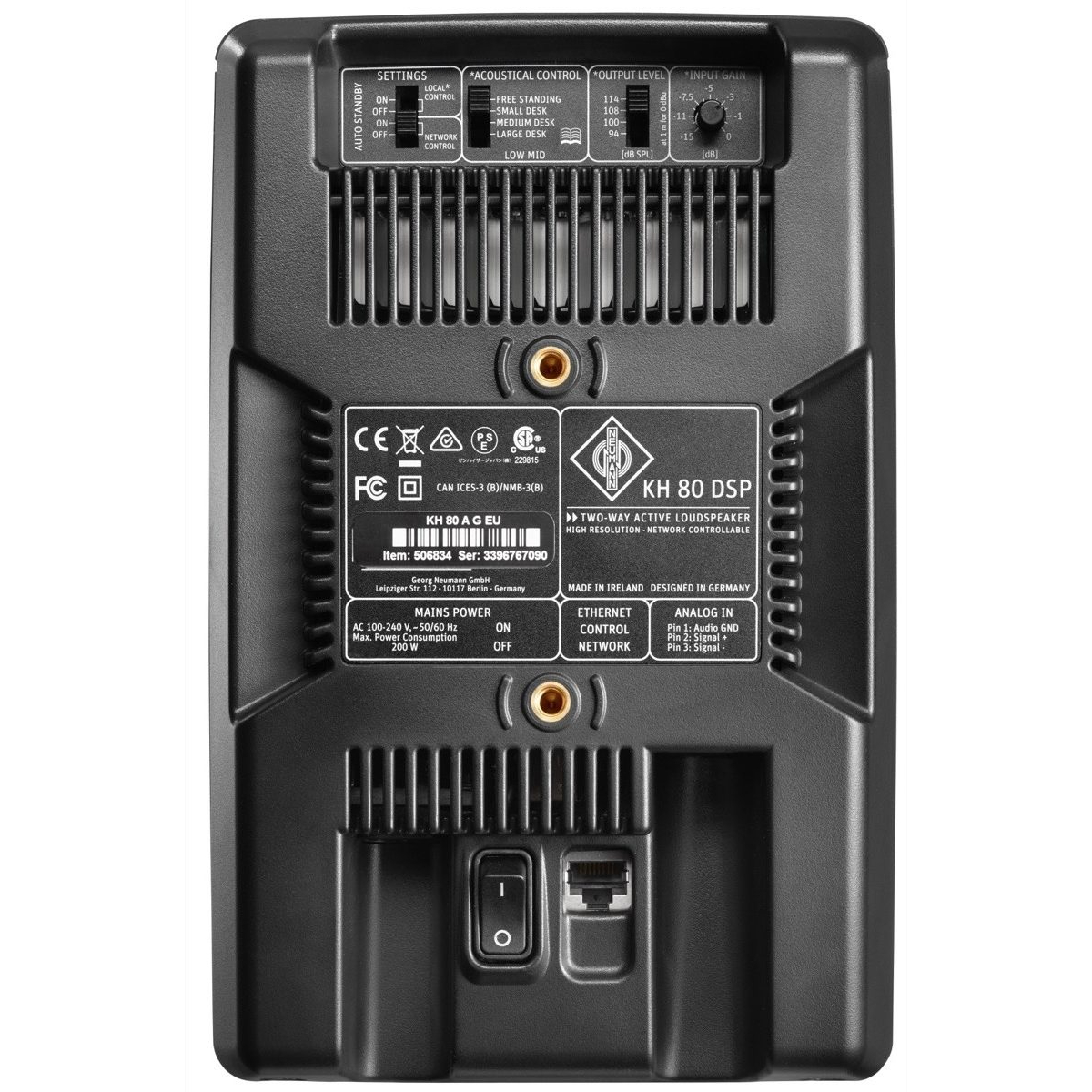

  • Mounting Points: 2 x M6 threaded inserts with 70 mm spacing on back panel
  • Product Dimensions (H x W x D): 9.13 x 6 x 8.63 inch / 233 x 154 x 194 mm
  • Product Weight: 7.72 lb / 3.5 kg

Package Contents

  • 1x KH 80 DSP
  • 1x Mains Cable
  • 1x Safety Booklet
  • 1x Getting Started Quickly Guide
  • 1x Set of Stick-on Feet

Manufacturer: Neumann
Model: KH 80 DSP A G US
SKU: I459765-N-4-WHXC
UPC: 615104271012
