Neumann MCM 114 Set Miniature Clip Mic System for Woodwinds

Redefine Standards - Neumann MCM 114 Set Miniature Clip Mic System for Woodwinds

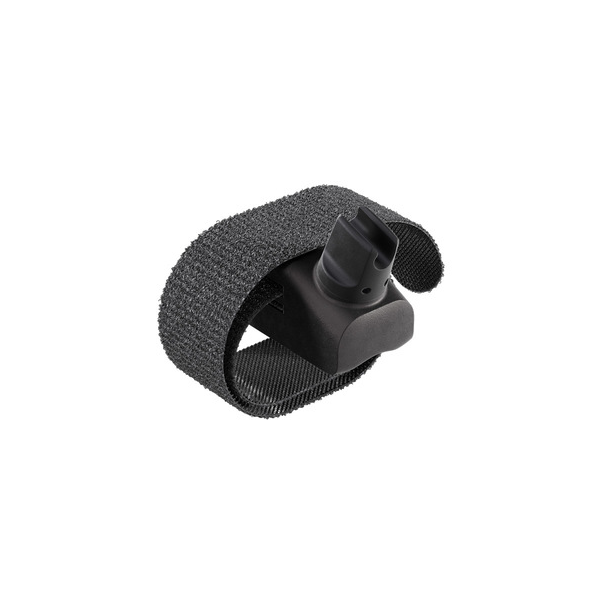

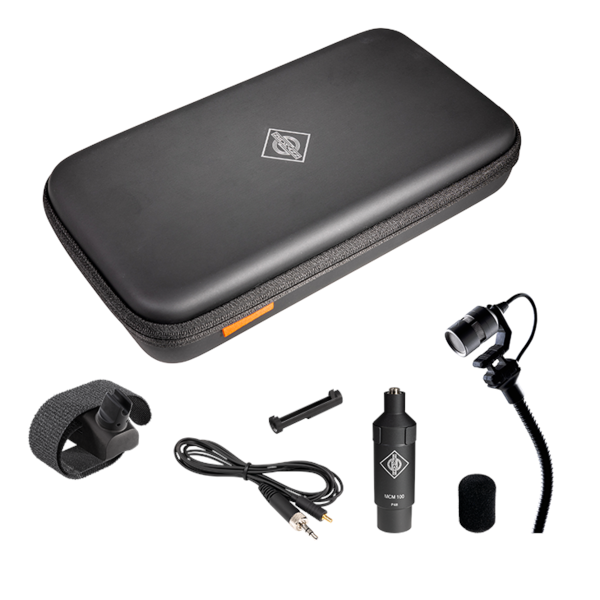

The Miniature Clip Mic MCM System raises the bar of electret capsules. And as a true Neumann, picks the typical sound from all acoustic instruments in live applications. It redefines the standard in natural sound, practicality, reliable mounting, and longevity. The system includes nine instrument-specific mounting clips for a wide variety of acoustic instruments. The modular construction allows for easy replacements and guarantees a superior low cost of ownership.

• Perfect for oboe, clarinet, recorder, bassoon
• Elevates electret principle to Neumann sound standards
• Durability increases ROI up to tenfold
• A single capsule for loud and soft instruments
• Works with key transmitter bodypacks

SPECIFICATIONS

• Acoustical Operating Principle: Pressure gradient transducer
• Directional Pattern: Cardioid
• Frequency Range: 20 Hz - 20 kHz
• Sensitivity at 1 kHz into 1 kohm: 3.6 mV/Pa ≅ -49 dBV
• Rated Impedance: 50 Ohms (MCM 100)
• Rated load impedance: 1000 Ohms
• Equivalent Noise Level, CCIR¹⁾: 31 dB
• Equivalent noise level, A-weighted¹⁾: 23 dB
• Maximum SPL for THD 0.5%²⁾: 153 dB
• Signal-to-Noise Ratio, CCIR (re. 94 dB SPL)⁾: 63 dB
• Signal-to-Noise Ratio, A-weighted (re. 94 dB SPL)⁾: 71 dB
• Maximum Output Voltage: 12 dBu
• Matching Connector: XLR 3 F
• Operating Temperature Range: 0 °C - +40 °C
• Operating Humidity Range: 0 %…75 % rel. hum
• Storage Temperature Range: −20 °C - +70 °C
• Storage Humidity Range: 0 % - 95 % rel. hum
