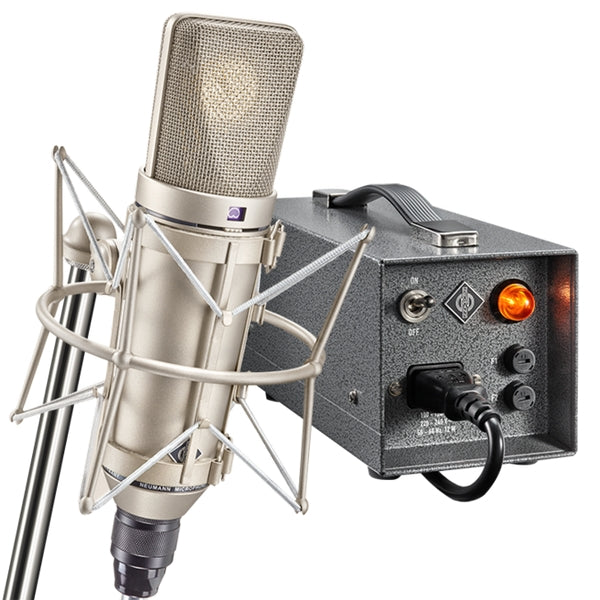

Experience Extraordinary Versatility And Unmatched Sound Quality With The Neumann U67 Legendary Tube Mic
THE ORIGINAL OFTEN IMITATED, NEVER DUPLICATED
- Introduced in 1960, the U 67 was the quintessential studio workhorse throughout the formative years of modern music. Today, more than ever, its inimitably smooth sound continues to be in high demand. Now, for the first time in decades, Neumann's legendary tube microphone is back in production, built to the original specifications.
RETURN OF A LEGEND
- Introduced as the successor to the eminent Neumann U 47, a lesser microphone would have failed. But the U 67 was quickly adopted as the new studio standard, offering many advantages over its predecessor. With three selectable polar patterns and advanced tube circuitry, including low cut and pad switches, the Neumann U 67 was well-equipped for virtually any recording task. It still is: To this day, many top-level engineers would choose the U 67 as their "desert island" microphone for its extraordinary versatility and unmatched sound quality.
NEUMANN ENGINEERING AT ITS BEST
- The U 67 was the first microphone equipped with the famous K 67 capsule, which has since become associated with "the Neumann sound" and continues to be used in its successor, the U 87 A. No less important is the U 67's masterful tube circuit featuring a clever pre-emphasis/de-emphasis scheme to minimize tube hiss. The U 67 was also the first microphone to address modern recording techniques such as close miking. Its switchable low cut filter compensates for the proximity effect occurring at short recording distances. Using its pre-attenuation, the U 67 can handle high sound pressure levels of up to 124 dB without distortion (and much more if you don't mind a bit of "tube grit").
- The U 67 is a universal studio microphone suitable for all applications. Its smooth top-end with a subtle tube shimmer makes the U 67 an outstanding vocal microphone. Due to its essentially linear response in three polar patterns (Omni, cardioid, and figure-8), the U 67 is also a very versatile microphone for all kinds of instruments such as strings, woodwinds, brass, piano, drums, acoustic and electric guitar, bass guitar and upright bass.
- Sonically, the current reissue is identical to the U 67 made from 1960-1971. It uses the same capsule and electronic design. Key parts, such as the BV 12 output transformer, are meticulously reproduced according to original documentation. EF86 tubes are carefully selected for optimal characteristics and lowest noise in a dedicated measurement facility. The power supply was redesigned to meet today's strict safety requirements and to accommodate the slightly higher filament current of newer premium grade tubes. The new power supply NU 67 V is fully compatible with older U 67 microphones.
- Classic tube circuit, transformer balanced
- Balanced sound in three polar patterns
- Meticulously reproduced to original specifications
- Vintage case, handmade in Germany
- Reissue of the legendary Neumann U 67
- Superb vocal microphone for male and female singers
- Versatile microphone for all kinds of instruments
- Made to original specifications using archived documentation
- New power supply NU 67 V automatically adapts to the local mains voltage
- Handmade and hand soldered in Germany
ACOUSTICAL OPERATING PRINCIPLE
- Pressure gradient transducer
- Omnidirectional, cardioid, figure-8
- 20 Hz-20 kHz
SENSITIVITY AT 1 kHz INTO 1 KOHM
- 15/24/16 mV/Pa ± 1 dB (Omni/cardioid/8)
- 200 ohms
RATED LOAD IMPEDANCE
- 1 Kohms
EQUIVALENT NOISE LEVEL, CCIR
- 32/28/31 dB (Omni/cardioid/8)
EQUIVALENT NOISE LEVEL, A-WEIGHTED
- 21/17/20 dB-A (Omni/cardioid/8)
MAXIMUM SPL FOR THD 0.5%
- 114 dB (cardioid)
MAXIMUM SPL FOR THD 0.5% WITH PREATTENUATION
- 124 dB
SIGNAL-TO-NOISE RATIO, CCIR (RE. 94 DB SPL)
- 62/66/63 dB (Omni/cardioid/8)
SIGNAL-TO-NOISE RATIO, A-WEIGHTED (RE. 94 DB SPL)
- 73/77/74 dB (Omni/cardioid/8)
MAXIMUM OUTPUT VOLTAGE
- -9.8 dBu
- NU 67 V
- Microphone: spec. 7pin, Power Supply: XLR 3 F
- 560 g
- 56 mm
- 200 mm
Model: U 67 SET
Warranty: See manufacturer website for details
