Neutrik NC3FXX-B 3-Pole Female Cable Connector
SKU

Neutrik

Neutrik NC3FXX-B 3-Pole Female Cable Connector

$5.95 USD
Sale price  $5.95 USD Regular price

Sold out but may be available!

Condition: New

PRODUCT DETAILS

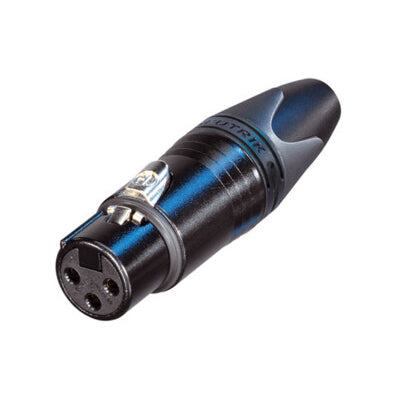

Neutrik NC3FXX-B 3-Pole Female Cable Connector


Tour-Ready XLR with Gold Contacts – Neutrik NC3FXX-B 3-Pole Female Cable Connector

The Neutrik NC3FXX-B is a next-generation 3-pole female XLR cable connector featuring a black metal housing and gold-plated contacts for dependable performance in professional audio environments. As the successor to the classic X Series, the XX Series improves contact integrity, strain relief, and ease of assembly—making it a go-to choice for building or repairing microphone, line-level, and DMX-style cables where reliability matters.


  • 3-pole female XLR cable connector with black KTL-coated metal shell
  • Gold-plated contacts for strong conductivity and corrosion resistance
  • Unique female contact cage design for low contact resistance and high integrity
  • Solder barrier helps prevent solder from wicking into the mating area
  • Improved solid metal latch: larger and easier to handle
  • Additional ground spring contacts for better shell ground continuity
  • Improved chuck-type strain relief for higher pull-out force and faster assembly
  • Polyurethane boot gland helps protect against cable bending stress
  • Compatible with optional colored rings/boots for easy identification
  • Rugged zinc diecast construction built for long service life


SPECIFICATIONS

  • Model: NC3FXX-B
  • Connection Type: XLR
  • Gender: female
  • Locking Device: latch lock

Electrical

  • Capacitance Between Contacts: ≤ 4 pF
  • Contact Resistance: ≤ 3 mΩ
  • Dielectric Strength: 1.5 kVdc
  • Insulation Resistance: > 10 GΩ (initial)
  • Rated Current per Contact: 16 A
  • Rated Voltage: < 50 V

Mechanical

  • Cable O.D.: 3.5 - 8.0 mm
  • Insertion Force: ≤ 20 N
  • Withdrawal Force: ≤ 20 N
  • Lifetime: > 1000 mating cycles
  • Wire Size (max): 2.5 mm² / 14 AWG
  • Wiring: solder contacts

Materials

  • Boot: polyurethane
  • Contact Plating: 0.2 µm Au hard alloy over 2 µm Ni
  • Contacts: bronze (CuSn8)
  • Insert: polyamide (PA66)
  • Locking Element: zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
  • Locking Element Plating: nickel
  • Shell: zinc diecast (ZnAl4Cu1)
  • Shell Coating: black KTL
  • Strain Relief: polyacetal (POM)

Environmental

  • Flammability: UL 94 V-0
  • Standard Compliance: IEC 61076-2-103
  • Protection Class: IP 40
  • Solderability: complies with IEC 68-2-20
  • Temperature Range: -30 °C to +80 °C


Manufacturer: Neutrik
Model: NC3FXX-B
SKU: I840401-N-0-WHXD
UPC: 765811649434
