Neutrik NC3MD-L-1 Connectors
SKU

Neutrik

Neutrik NC3MD-L-1 Connectors

$4.95 USD
Sale price  $4.95 USD Regular price

MSRP:$695

In stock and ready to ship or pick up.

Condition: New

Store pickup

Neutrik NC3MD-L-1 Connectors

Chuck Levin's Washington Music Center

Usually ready in 2-4 days

11151 Veirs Mill Rd
Wheaton, MD 20902

PRODUCT DETAILS

Neutrik NC3MD-L-1 Connectors

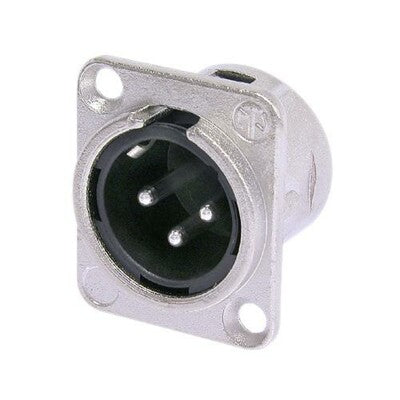

Neutrik NC3MD-L-1 3-Pole Male XLR Panel Mount Connector

The Neutrik NC3MD-L-1 is a robust, universal D-size 3-pole male XLR receptacle featuring solder contacts, a nickel housing, and silver-plated contacts. Designed as part of Neutrik’s trusted panel mount series, this connector delivers reliable performance and durability for professional audio, broadcast, and installation applications.


  • Robust D-size metal shell for maximum durability
  • Standardized D-size 24 mm panel cutout
  • Solder cups for easy wiring on 3- to 7-pole versions
  • Latch lock mechanism for secure connections
  • UL recognized component


SPECIFICATIONS

Product

  • Model: NC3MD-L-1
  • Connection Type: XLR
  • Gender: Male

Electrical

  • Capacitance Between Contacts: ≤ 4 pF
  • Contact Resistance: ≤ 5 mΩ
  • Dielectric Strength: 1.5 kV DC
  • Insulation Resistance: > 10 GΩ (initial)
  • Rated Current per Contact: 16 A
  • Rated Voltage: < 50 V

Mechanical

  • Insertion Force: ≤ 20 N
  • Withdrawal Force: ≤ 20 N
  • Lifetime: > 1000 mating cycles
  • Wiring: Solder contacts
  • Locking Device: Latch lock
  • Mounting Direction: Front mounting
  • Chassis Shape: D

Material

  • Contact Plating: 2 µm Ag over 2 µm Ni
  • Contacts: Brass (CuZn35Pb2)
  • Insert: Polyamide (PA 6.6, 30% GR)
  • Locking Element: Steel Ck67
  • Shell: Zinc diecast (ZnAl4Cu1)
  • Shell Plating: Nickel

Environmental

  • Approvals: UL
  • Flammability: UL 94 HB
  • Standard Compliance: IEC 61076-2-103
  • Protection


Manufacturer: Neutrik
Model: NC3MD-L-1
SKU: I083023-N-111-WHXE
UPC: 728736060685
