NEUTRIK NE8MX6-B etherCON CAT6A Cable Connector
SKU

Neutrik

NEUTRIK NE8MX6-B etherCON CAT6A Cable Connector

$18.36 USD
Sale price  $18.36 USD Regular price

MSRP:$2050

In stock and ready to ship or pick up.

Condition: New

Store pickup

NEUTRIK NE8MX6-B etherCON CAT6A Cable Connector

Chuck Levin's Washington Music Center

Usually ready in 2-4 days

11151 Veirs Mill Rd
Wheaton, MD 20902

PRODUCT DETAILS

NEUTRIK NE8MX6-B etherCON CAT6A Cable Connector

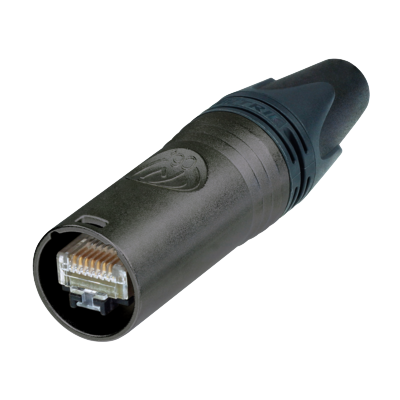

Rugged CAT6A etherCON for Field Termination – Neutrik NE8MX6-B Ethercon CAT6A Cable Connector

The Neutrik NE8MX6-B is a self-terminating etherCON CAT6A cable connector built for professional networking in touring, installed AV, and broadcast environments. This set includes a robust metal shell, a proven Neutrik chuck-type strain relief, and a CAT6A RJ45 plug—delivering a reliable, ruggedized alternative to standard RJ45 ends while maintaining compatibility with the etherCON CAT5 range.


  • Self-terminating etherCON CAT6A cable connector (male), black KTL plating
  • Includes cable plug carrier + CAT6A RJ45 plug
  • CAT6A component compliant to ISO/IEC 11801 and TIA/EIA 568-C.2
  • PoE++ compliant (IEEE 802.3bt Type 4)
  • Rugged latch lock system for secure connections
  • Unique Neutrik chuck-type strain relief for high pull-out protection
  • Intermateable with existing etherCON CAT5 range
  • IP65 when mated with NE8FDX-P6-W or NE8FDX-Y6-W


Important Note

  • Does not intermate with CAT6 chassis connectors NE8FDY-C6 and NE8FDY-C6-B
  • For insulation diameter ≤ 1.1 mm, use NE8MX-B-T instead


SPECIFICATIONS

  • Model: NE8MX6-B
  • Gender: male
  • Transmission Performance: CAT6A (TIA/EIA and IEC/ISO/EN ratings)
  • Power over Ethernet: PoE++ (IEEE 802.3bt)
  • Locking Device: latch lock

Electrical

  • Dielectric Strength: 1 kVdc
  • Insulation Resistance: > 0.5 GΩ
  • Rated Current per Contact: 1.5 A

Mechanical

  • Cable O.D.: 7.0 - 9.5 mm
  • Insulation Diameter: 1.1 - 1.6 mm
  • Lifetime: > 1000 mating cycles
  • Wire Size (Solid): AWG 24/1 - AWG 22/1
  • Wire Size (Stranded): AWG 24/7 - AWG 22/7

Materials

  • Contact Plating: Au
  • Shell: zinc diecast (ZnAl4Cu1)
  • Shell Coating: black KT


Manufacturer: Neutrik
Model: NE8MX6-B
SKU: I514007-N-22-WHXA
