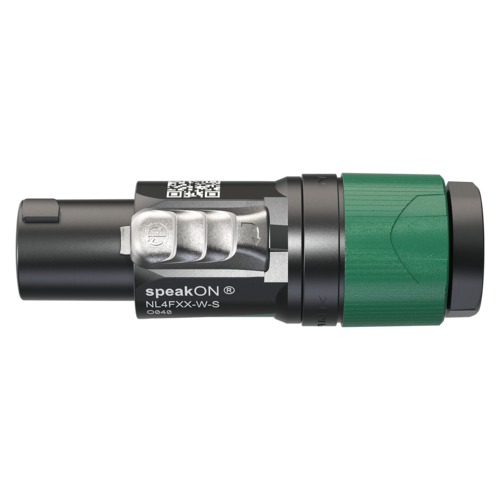

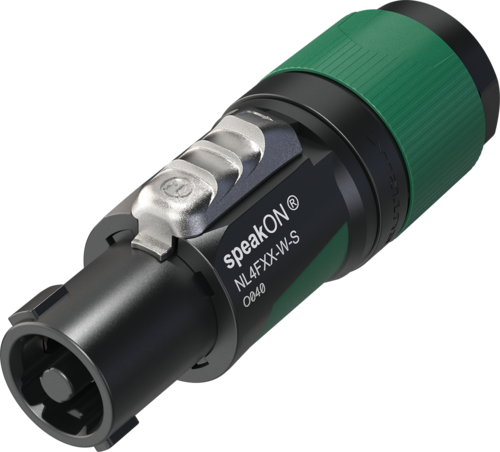

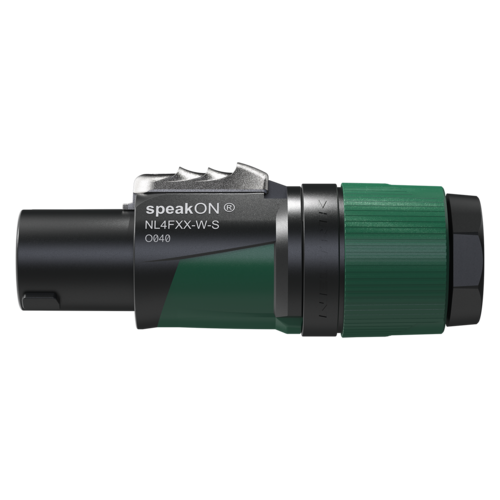

Neutrik NL4FXX-W-S 4-Pole speakON Cable Connector Screw Terminal

4 pole speakON cable connector, screw terminal assembly, chuck type strain relief for cable diameters 6 to 12 mm speakON connectors are the industry-standard for loudspeaker connections. This product series offers extremely reliable and robust cable connectors with a proven twist lock system. speakON cable connectors feature solid contacts with screw-type terminals including a stranded wire protection.


  • Up to 37 A rms current rating
  • Unique Neutrik locking bushing and strain relief for cable diameters 6 mm to 12 mm
  • IEC 61984 certified, thus accepted as a component of equipment acc. to IEC 62368-1
  • Superior NEUTRIK quality standard, extremely robust and reliable
  • Easy to assemble because the strain relief locks with the insert mechanically and aligns with the housing
  • Easy and reliable twist lock system
  • Ergonomic design with slip-proof two-component molded housing
  • Improved kink protection by two-component bushing


SPECIFICATIONS

Electrical
  • Contact resistance: ≤ 2 mΩ
  • Dielectric strength: 2.8 kVac
  • Insulation resistance: > 10 GΩ (initially)
  • Number of electrical contacts: 4
  • Rating Europe: IEC 61984: 37 A 250 V AC
  • Rating USA: UL1977: 35 A 250 V AC
  • Rating Canada: CSA C22.2 No.182.3: 24 A 250 V AC
  • ATTENTION: This product is strictly not intended for use as an AC mains or power supply connector!
  • CAUTION: NOT FOR INTERRUPTING CURRENT
Mechanical
  • Cable O.D.: 6 – 12 mm
  • Lifetime: typically 5’000 mating cycles
  • Wiresize (mm²): 1.5 – 4 mm²
  • Wiresize (AWG): 17 – 11 AWG
  • Locking device: Twist lock
  • Termination: screw type terminals
Material
  • Contact plating: Ag
  • Contacts: Copper Alloy
  • Insert: Polyamide (PA6.6)
  • Locking element: Zinc diecast
  • Shell: Polyamide (PA6) / TPE
  • Strain relief: Polyketone
  • Bushing: Polypropylene / TPE
Environmental
  • Temperature range: -33 °C to +80 °C
  • Protection class: IP20
  • Flammability acc. to UL94: V-0


Manufacturer: Neutrik
Model: NL4FXX-W-S
SKU: I734689-N-225-WHXA
UPC: LIECHTENST
