PRODUCT DETAILS

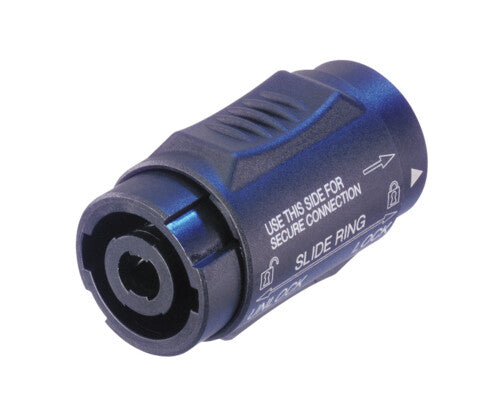

Neutrik NL4MMX Lockable 4 Pole Speakon Adapter
Neutrik NL4MMX Lockable 4 Pole Speakon Adapter
Links two NL2/4F*s together for cable extension. Changes gender to male when permanently locked on the cable.Features permanent secure connection on a speakON cable connector using 2nd lock. Can be permanently attached to NL2/4F*.
- Rugged diecast metal shell
- Chuck type strain relief for optimum cable protection
- Precision machined one-piece contacts - avoid hook up of tip contact
- Meets all prevailing standards
SPECIFICATIONS
-
Product Specifications:
- Title: NL4MMX
- Gender: Male
- Electrical Specifications:
- Contact Resistance: ≤ 3 mΩ (after lifetime)
- Dielectric Strength: 4 kVdc (peak)
- Insulation Resistance: > 1 GΩ (after damp heat)
- Rated Current per Contact: 15 A rms continuous
- Rated Current per Contact (Audio Signal): 30 A, duty cycle 50%
- Rated Voltage (Insulation): 250 V
- Attention: speakON is NOT to be used as an AC mains or power supply connector!
- Mechanical Specifications:
- Lifetime: > 5000 mating cycles
- Locking Device: Quick Lock (a mechanism for easily locking and unlocking the connector)
- Material Specifications:
- Contact Plating: 4 µm Ag (Silver)
- Contacts: Bronze (CuSn6)
- Insert: Polyamide (PA 6 30% GR - Glass Reinforced)
- Shell: Polyamide (PA 6 30% GR - Glass Reinforced)
- Environmental Specifications:
- Flammability: UL 94 HB (This rating pertains to materials that burn slowly when tested using the UL 94 standard for flammability of plastic materials for parts in devices and appliances.)
- Solderability: Complies with IEC 68-2-20 (This indicates the connector’s capacity to be soldered, typically in terms of the soldering temperature and duration that the connector can withstand.)
- Temperature Range: -30 °C to +80 °C
This connector, designed for professional audio applications, adheres to rigorous standards for electrical capabilities, durability, and environmental resistance. Its specifications indicate a robust construction suitable for reliable, high-quality signal transmission, ensuring longevity and performance in various environments.
Manufacturer: Neutrik
Model: NL4MMX
SKU: I143370-N-1-WHXC
UPC: 765811414452
