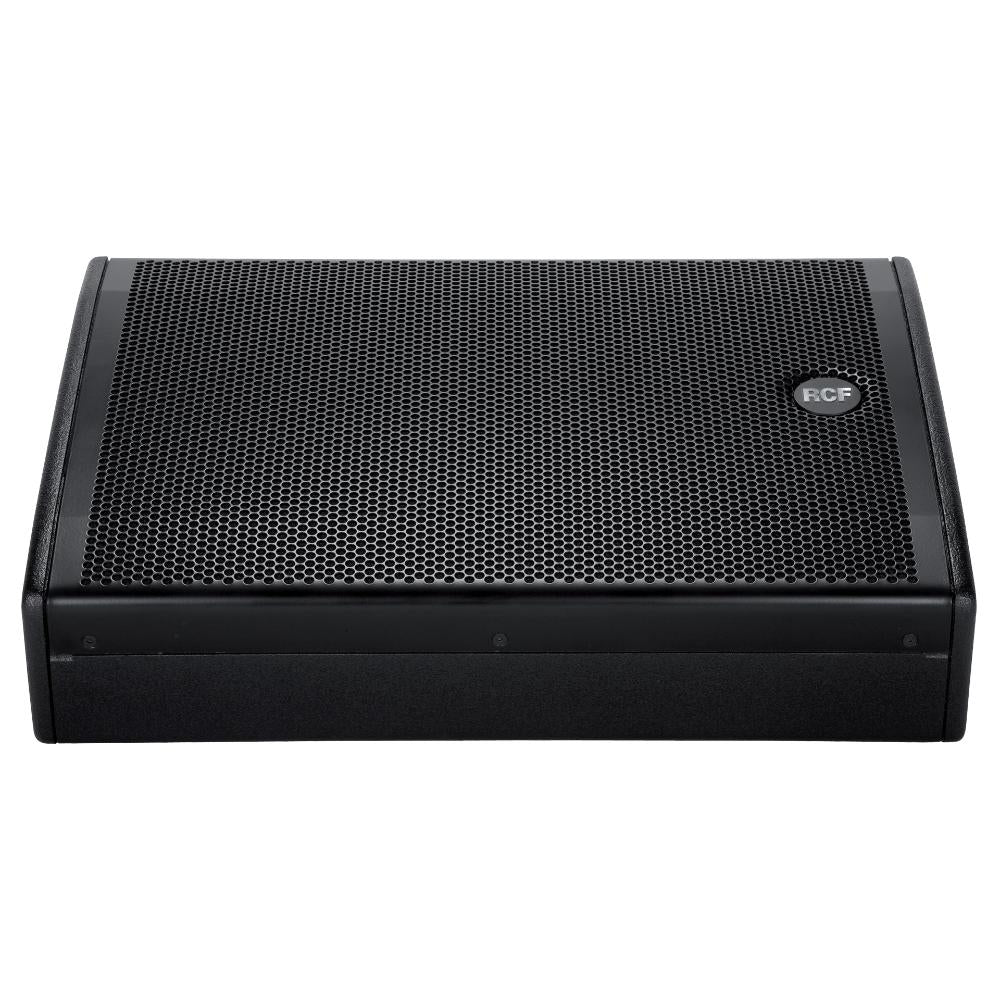

RCF NX-15 SMA Active Coaxial Stage Monitor

by RCF
Original price $2,499.00 - Original price $2,499.00
Original price
$2,499.00
Default Title: $2,499.00
Current price $2,499.00
♫ In stock
About Inventory Status


Questions?
Call or text us at 301-946-8808.

In stock: It is in stock and available to ship or pickup. Apparel must be shipped from another location and is not available for in-store pickup. We can usually ship or have these items available for pickup by the next business day if they don't require inspection, special handling, or setup. Our pickup location is 11151 Veirs Mill Rd. Silver Spring, MD 20902.

📆 Preorder: It is on the way to our warehouse. We can't predict when preorder items will arrive due to current supply chain issues. If you place an order for one of these items someone will contact you to estimate the delivery date.

Out of stock: We don't currently have it available but you're not out of luck yet. We still may be able to get it. If you order one of these items we will contact you with an estimated fulfillment date. You have the option to cancel the order if you change your mind.

Special order: The item is so special that it needs to be custom ordered for you. Some of these items are works of art and have to be made individually. Orders for special order items must be prepaid and we cannot accept cancellations or refunds.

█ Sold out: We don't think we can get this item because it was either discontinued by the manufacturer or was limited in quantity. If you want or need this item call or text us. Sometimes we can help you track down the item through other sources or help you find something similar.

About Item Conditions


Questions?
Call or text us at 301-946-8808.

New: The item is brand new as received from the manufacturer with a full manufacturer warranty. Instruments such as guitars, snare drums, drum kits, brass and woodwind instruments may be opened for photography and quality control inspection and may not be in a factory sealed box.

Mint or Open Box: The item may have been opened and tested but has been repackaged. The original packaging may have superficial issues but the item itself and any originally included accessories are in perfect, like new condition.

Display Model: These items are so cool that we put them on display in our legendary shop. The condition is brand new as received from the manufacturer with manufacturer warranty. Rest assured, these items undergo a very careful inspection before shipping.

Demo: These items have been on our sales floor for demo purposes and will likely show signs of use. The original packaging may no longer be included, but you can be assured that you are receiving an awesome item and an awesome price.

Used: The item is used. These item may have varying degrees of wear. Please read the description for information about the condition of the item. Used items do not carry a warranty.

B or C Stock: Factory refurbished. These items were purchased from the manufacturer in a refurbished condition. They will show some cosmetic issues, but nothing that would impact performance. Being that these are sealed from the manufacturer, we generally do not open these to photograph the cosmetic issues. They are guaranteed to work and may have a limited warranty or you may purchase an extended warranty in some cases. Please see the listing description for item specific information.

Educational & Government Sales Quotes

Click here to inquire about an educational or government quote and discover more about our Educational & Government Sales Division.


Ensure Outstanding Audio Quality and Definition With NX 15-SMA Active Coaxial Stage Monitor

In order to ensure outstanding audio quality and definition, the NX 15-SMA features a newly designed 15 inch coaxial neodymium transducer. The new high power 700 W digital amplifier ensures outstanding audio performance as well. In addition, it comes equipped with two special Equalization Modes: Floor monitor for stage monitoring and Free Field mode, which allows you to use the speakers as a stand-alone PA system without complicated cables or speakers setups.


  • 1400 Watt Peak, 700 Watt RMS digital bi-amplification
  • 130 dB max spl
  • 60 x 60 degree constant directivity horn

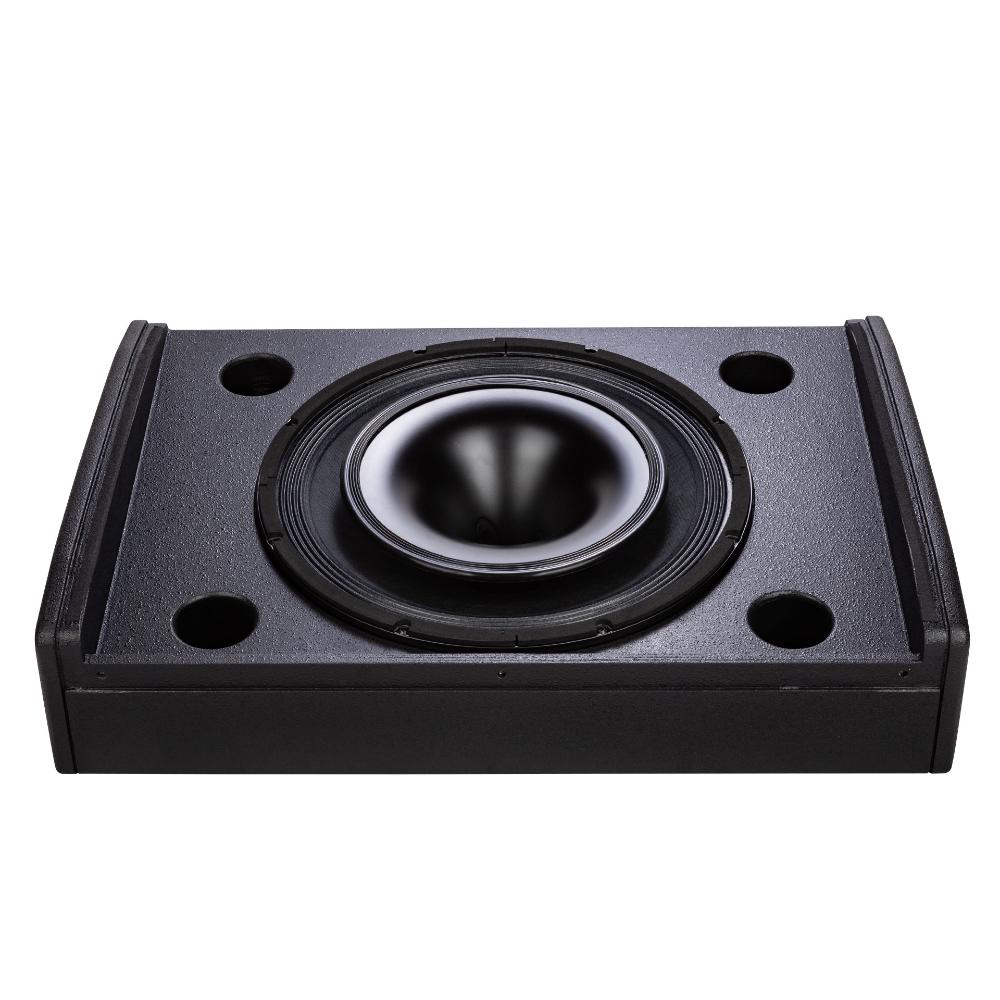

  • 15 inch High power neodymium woofer, 2.5 inch voice coil
  • 1.7 inch kapton dome, 1 inch exit, neodymium high frequency driver
  • DSP processing, floor - free field equalization, soft limiter and protection

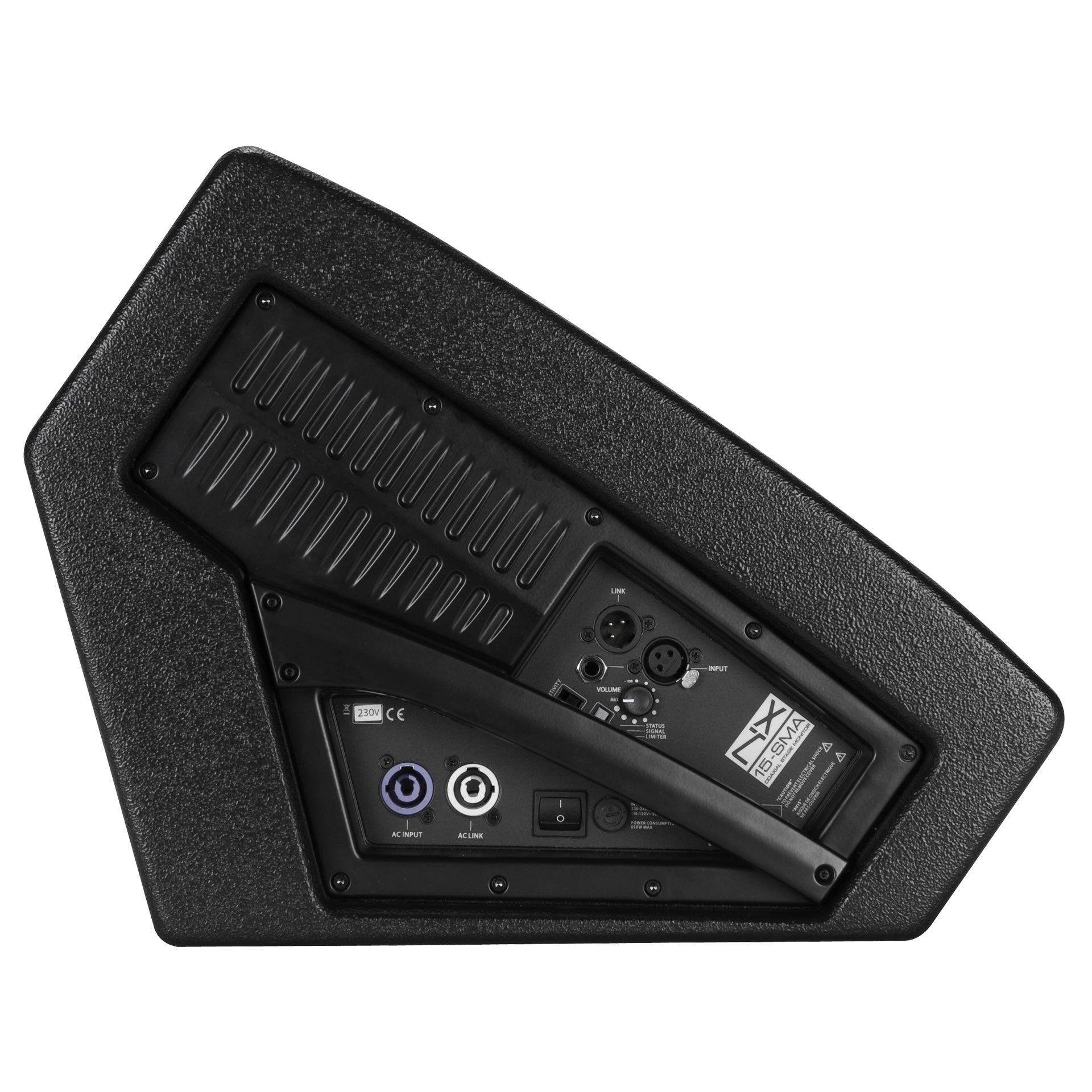

  • Combo XLR/jack input, XLR signal output


SPECIFICATIONS

Acoustical

  • Frequency Response: 50 Hz - 20000 Hz
  • Max SPL @ 1m: 130 dB
  • Horizontal coverage angle: 60 degrees
  • Vertical coverage angle: 60 degrees

Transducers

  • Compression Driver: Coaxial 1.0 inch neo, 1.75 inch v.c
  • Woofer: Coaxial 15 inch neo, 2.5 inch v.c

Input/Output Section

  • Input signal: bal/unbal
  • Input connectors: XLR, Jack
  • Output connectors: XLR
  • Input sensitivity: +4 dBu

Processor Section

  • Crossover Frequencies: 1700 Hz
  • Protections: RMS, HF
  • Limiter: Soft Limiter
  • Controls: Freefield, Floor

Power Section

  • Total Power: 1400 W Peak, 700 W RMS
  • High frequencies: 400 W Peak, 200 W RMS
  • Low frequencies: 1000 W Peak, 500 W RMS
  • Cooling: Convection
  • Connections: Powercon IN/OUT

Physical Specifications

  • Cabinet/Case Material: Baltic birch plywood
  • Handles:1 on side
  • Pole mount/Cap: Yes
  • Grille: Steel
  • Color: Black

Size

  • Height: 362 mm / 14.25 inches
  • Width: 650 mm / 25.59 inches
  • Depth: 468 mm / 18.43 inches
  • Weight: 20.2 kg / 44.53 lbs

Shipping Information

  • Package Height: 714 mm / 28.11 inches
  • Package Width: 464 mm / 18.27 inches
  • Package Depth: 569 mm / 22.4 inches
  • Package Weight: 24.5 kg / 54.01 lbs


Manufacturer: RCF
Model: NX15-SMA
SKU: I383592-N-4-WHXC
UPC: 8024530009045
