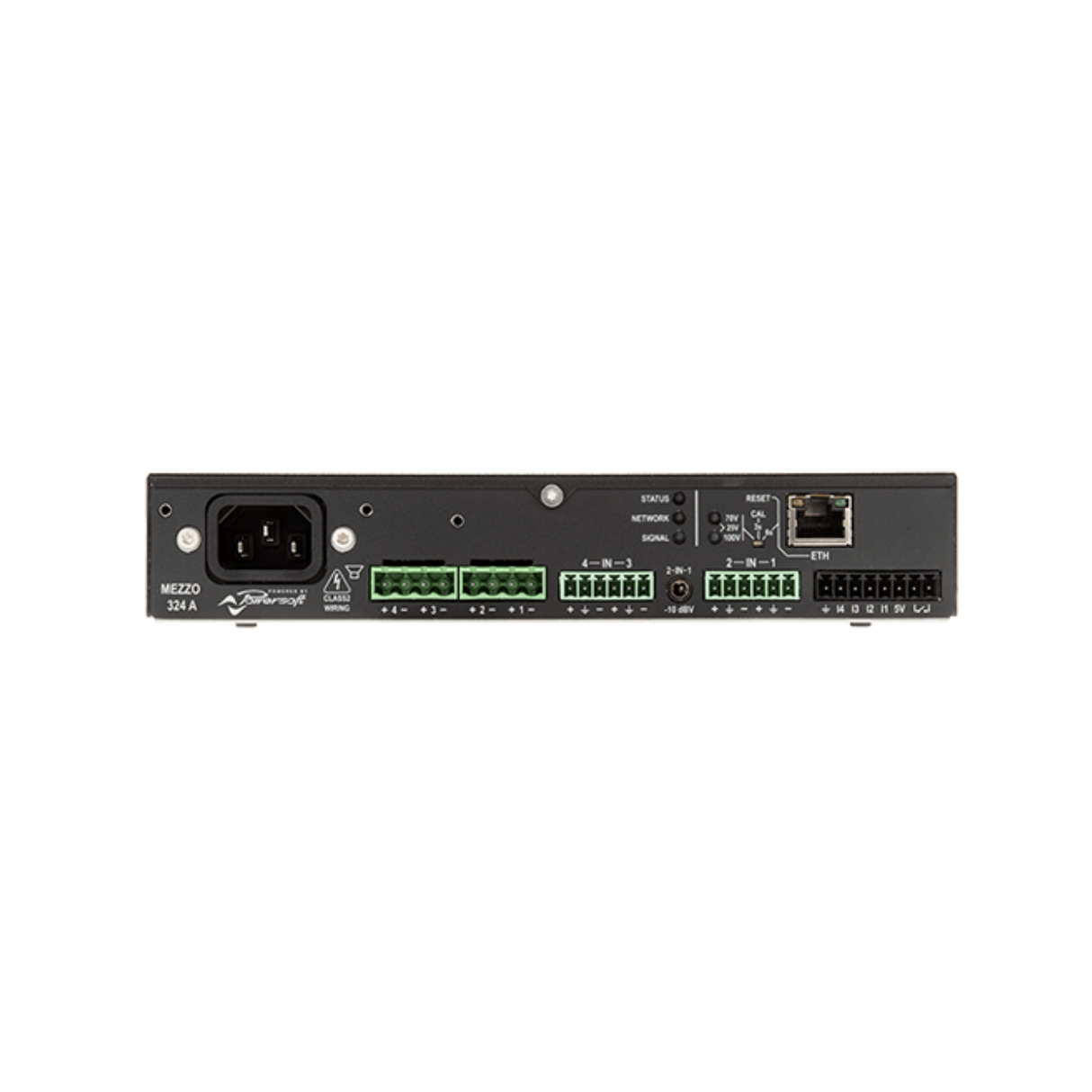

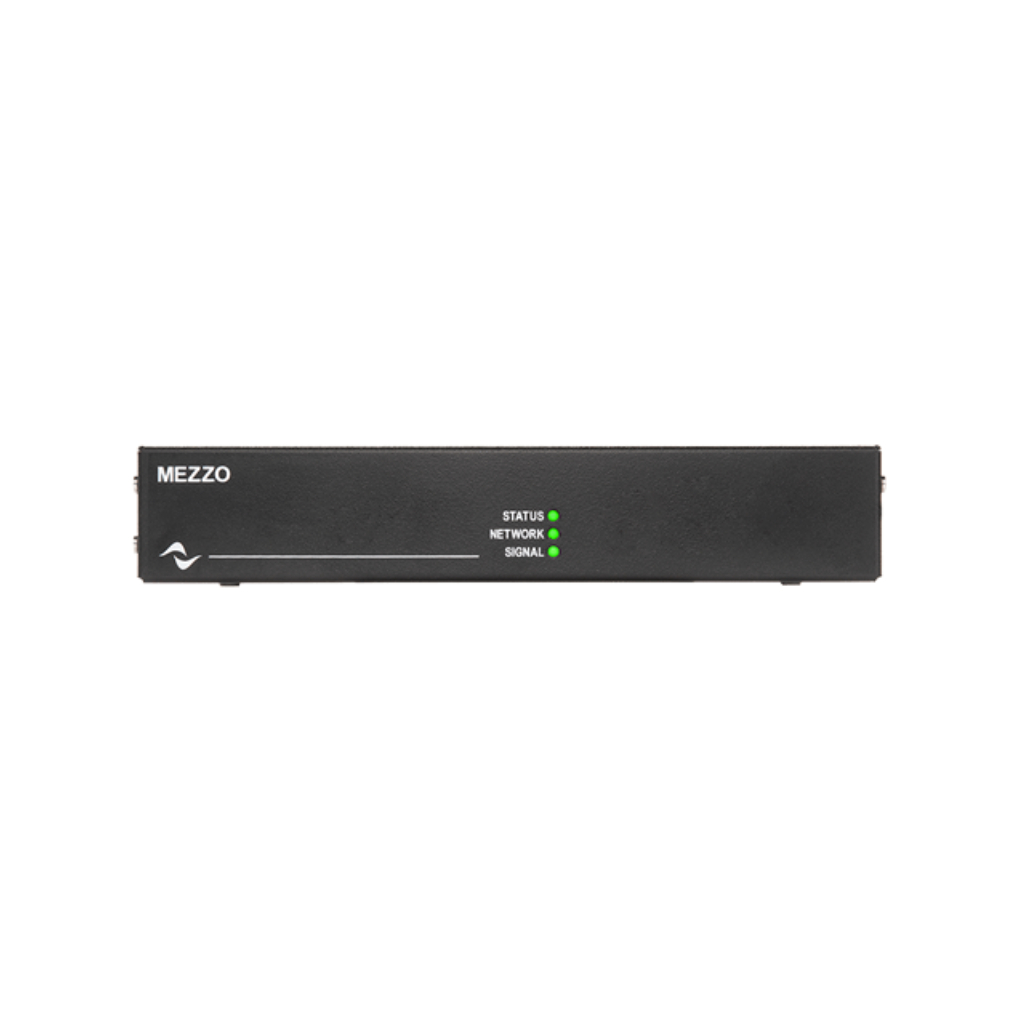

Powersoft Mezzo 324A 4-Channel Compact Install Power Amplifier

Out of Stock
Original price $1,184.00
Original price $1,184.00 - Original price $1,184.00
Original price $1,184.00
Current price $1,006.95
$1,006.95 - $1,006.95
Current price $1,006.95
Inventory Status:

About Inventory Status


Questions?
Call or text us at 301-946-8808.

In stock: It is in stock and available to ship or pickup. Apparel must be shipped from another location and is not available for in-store pickup. We can usually ship or have these items available for pickup by the next business day if they don't require inspection, special handling, or setup. Our pickup location is 11151 Veirs Mill Rd. Silver Spring, MD 20902.

📆 Preorder: It is on the way to our warehouse. We can't predict when preorder items will arrive due to current supply chain issues. If you place an order for one of these items someone will contact you to estimate the delivery date.

Out of stock: We don't currently have it available but you're not out of luck yet. We still may be able to get it. If you order one of these items we will contact you with an estimated fulfillment date. You have the option to cancel the order if you change your mind.

Special order: The item is so special that it needs to be custom ordered for you. Some of these items are works of art and have to be made individually. Orders for special order items must be prepaid and we cannot accept cancellations or refunds.

█ Sold out: We don't think we can get this item because it was either discontinued by the manufacturer or was limited in quantity. If you want or need this item call or text us. Sometimes we can help you track down the item through other sources or help you find something similar.

About Item Conditions


Questions?
Call or text us at 301-946-8808.

New: The item is brand new as received from the manufacturer with a full manufacturer warranty. Instruments such as guitars, snare drums, drum kits, brass and woodwind instruments may be opened for photography and quality control inspection and may not be in a factory sealed box.

Mint or Open Box: The item may have been opened and tested but has been repackaged. The original packaging may have superficial issues but the item itself and any originally included accessories are in perfect, like new condition.

Display Model: These items are so cool that we put them on display in our legendary shop. The condition is brand new as received from the manufacturer with manufacturer warranty. Rest assured, these items undergo a very careful inspection before shipping.

Demo: These items have been on our sales floor for demo purposes and will likely show signs of use. The original packaging may no longer be included, but you can be assured that you are receiving an awesome item and an awesome price.

Used: The item is used. These item may have varying degrees of wear. Please read the description for information about the condition of the item. Used items do not carry a warranty.

B or C Stock: Factory refurbished. These items were purchased from the manufacturer in a refurbished condition. They will show some cosmetic issues, but nothing that would impact performance. Being that these are sealed from the manufacturer, we generally do not open these to photograph the cosmetic issues. They are guaranteed to work and may have a limited warranty or you may purchase an extended warranty in some cases. Please see the listing description for item specific information.


Get Powersoft Levels Of Quality And Performance With The Powersoft Mezzo 324A 4-Channel Compact Install Power Amplifier

Mezzo 324A heralds the same levels of reliability, build quality, and acoustic proprieties of any Powersoft amplifier platform, in half the size. Ultimately flexible, "A" versions of Mezzo offer remote control and monitoring of all the vital functions. The small form factor allows it to be mounted anywhere thanks to the included mounting kit, the 320 W versions of Mezzo can also be mounted in air handling spaces, such as double ceilings or wall boxes. MyPowersoft services are available for this product.


  • Multiple mounting options
  • Auto-Setup
  • Power sharing
  • Full remote control via 3rd party controls


SPECIFICATIONS

General

  • Number of Channels: 4
  • Output Power: Single channel mode
  • Distributed Line: 2, 4, 6, 8, 16 Ohms, 70-100V, 80W
  • Commercial Total Rated Power: 320W
  • Max Output Voltage/Current: 142 V peak/15.6 A peak

AC Main Power

  • Power Supply: Universal, regulated switch mode with PFC (Power Factor Correction)
  • Nominal Power Requirement: 100-240 V +/- 10%, 50-60 Hz
  • Operating Voltage: 90 V - 264 V
  • Power Consumption: 115 V, 230 V
  • Standby: 2 W
  • Idle: 18 W

Audio

  • Frequency Response: 20 Hz - 20 kHz (±0.5 dB)
  • S/N Ratio: greater than 100 dB (20 Hz - 20 kHz, A weighted)
  • Crosstalk Separation: -60 dB @ 1kHz
  • Input Impedance: 10 kiloohms to ground/20 kiloohms balanced

DSP

  • AD Converter: 24 Bit @ 48 kHz 125 dB-A Dynamic Range - 0.00x % THD+N
  • DA Converter: 24 Bit @ 48 kHz 115 dB-A Dynamic Range - 0.00x % THD+N
  • Internal Precision: 32 bit floating point
  • Latency: 2.5 ms fixed latency architecture
  • Input Equalizer: Parametric IIR: peaking, hi/lo-shelving, all-pass, band-pass, band-stop
  • Crossover: Butterworth, Linkwitz-Riley, Bessel: 6 dB/oct to 24 dB/oct (IIR)
  • Delay: 80 ms (per output) for time alignment
  • Limiters: RMS voltage, Peak limiter

Construction

  • Dimensions (L x H x W): 275 mm x 40 mm x 210 mm (10.8 in x 1.6 in x 8.3 in)
  • Weight: 2.6kg

Manufacturer: Powersoft Audio
Model: MEZZO 324 A
SKU: I616702-N-0-WHXB
