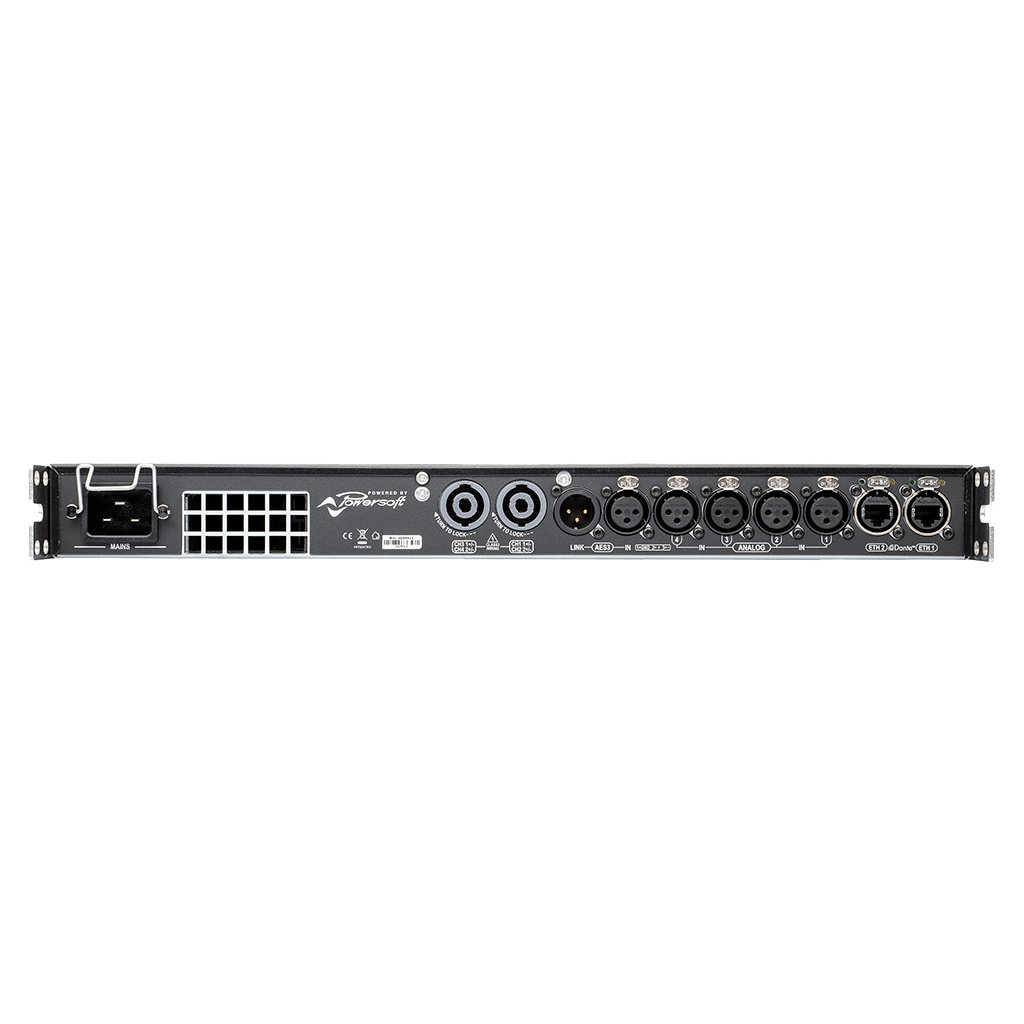

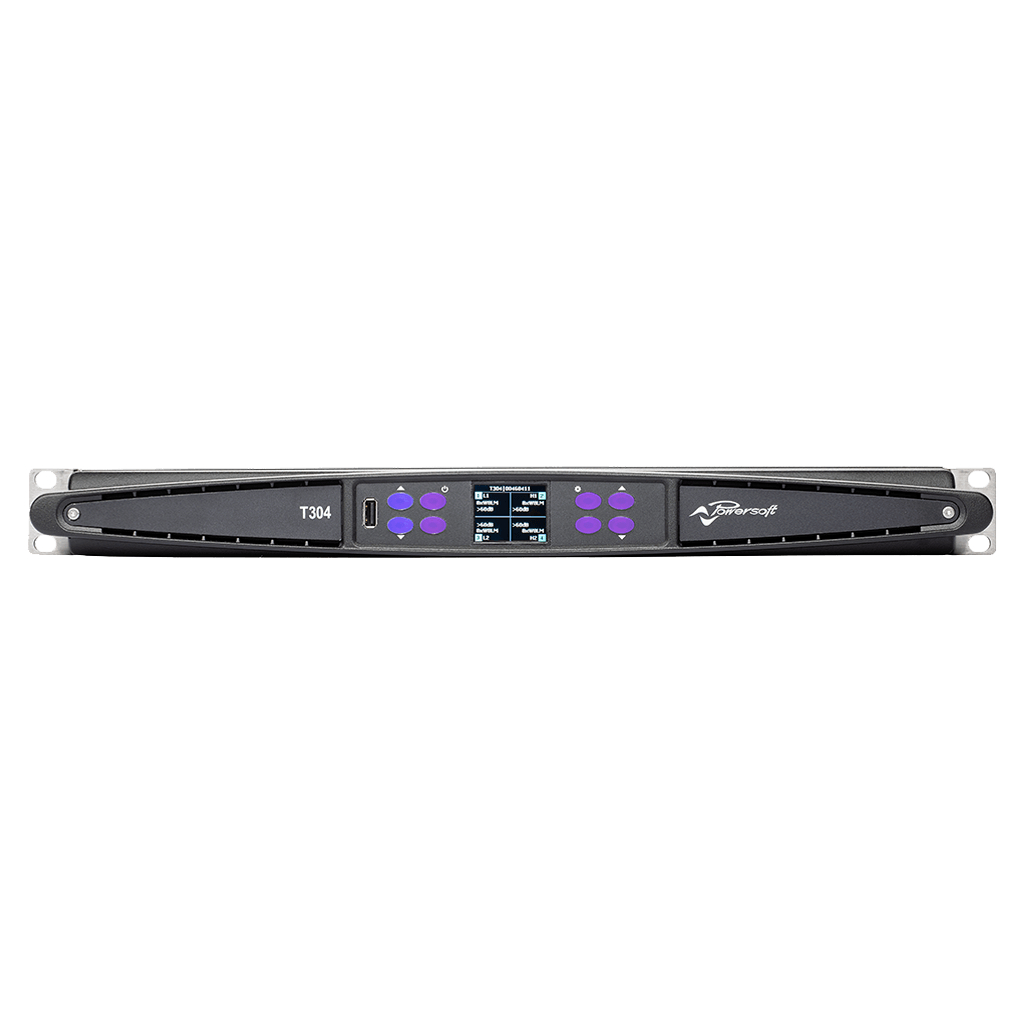

Powersoft T304 3000W 4-Channel Power Amplifier w/ DSP and Dante

Original price $3,356.00 - Original price $3,356.00
Original price $3,356.00
$3,356.00
$3,356.00 - $3,356.00
Current price $3,356.00
Inventory Status:

❓ Out of stock
About Inventory Status


Questions?
Call or text us at 301-946-8808.

In stock: It is in stock and available to ship or pickup. We can usually ship or have these items available for pickup by the next business day if they don't require inspection, special handling, or setup. Our pickup location is 11151 Veirs Mill Rd. Silver Spring, MD 20902.

📆 Preorder: It is on the way to our warehouse. We can't predict when preorder items will arrive due to current supply chain issues. If you place an order for one of these items someone will contact you to estimate the delivery date.

Out of stock: We don't currently have it available but you're not out of luck yet. We still may be able to get it. If you order one of these items we will contact you with an estimated fulfillment date. You have the option to cancel the order if you change your mind.

Special order: The item is so special that it needs to be custom ordered for you. Some of these items are works of art and have to be made individually. Orders for special order items must be prepaid and we cannot accept cancellations or refunds.

█ Sold out: We don't think we can get this item because it was either discontinued by the manufacturer or was limited in quantity. If you want or need this item call or text us. Sometimes we can help you track down the item through other sources or help you find something similar.

About Item Conditions


Questions?
Call or text us at 301-946-8808.

New: The item is brand new as received from the manufacturer with a full manufacturer warranty. Instruments such as guitars, snare drums, drum kits, brass and woodwind instruments may be opened for photography and quality control inspection and may not be in a factory sealed box.

Mint or Open Box: The item may have been opened and tested but has been repackaged. The original packaging may have superficial issues but the item itself and any originally included accessories are in perfect, like new condition.

Display Model: These items are so cool that we put them on display in our legendary shop. The condition is brand new as received from the manufacturer with manufacturer warranty. Rest assured, these items undergo a very careful inspection before shipping.

Demo: These items have been on our sales floor for demo purposes and will likely show signs of use. The original packaging may no longer be included, but you can be assured that you are receiving an awesome item and an awesome price.

Used: The item is used. These item may have varying degrees of wear. Please read the description for information about the condition of the item. Used items do not carry a warranty.

B or C Stock: Factory refurbished. These items were purchased from the manufacturer in a refurbished condition. They will show some cosmetic issues, but nothing that would impact performance. Being that these are sealed from the manufacturer, we generally do not open these to photograph the cosmetic issues. They are guaranteed to work and may have a limited warranty or you may purchase an extended warranty in some cases. Please see the listing description for item specific information.


The New Benchmark For Cost-Effective Power Amplification - The Powersoft T304 4-Channel Power Amplifier

The T Series is a very flexible and cost-effective amplifier platform with loudspeaker processor. All models deliver the same high peak voltage allowing high SPL with single 8/16 ohm cabinets on all models. The high voltage is also good for sharing power between the channels for applications such as bi-amped loudspeakers or subwoofers with passive tops.

The amplifiers feature input via Dante, AES3 and analog. The Dante and AES3 solutions are optimized for daisy-chained distribution of 2-channel audio for distribution to many amplifiers without the need for external switches/repeaters/ splitters. A simple Dante system has a daisy chain with the mixing console at one end, a WiFi access point at the other end and the amplifiers in-between. MyPowersoft services are available for this product.


  • The loudspeaker processing sets a new benchmark for cost-effective amplification for small and medium-sized systems and stage monitors. The T Series can be controlled and configured in different ways
  • Full control with a PC running Armonía
  • Control from the front panel display for features like preset recall (also per output), gain, delay, mute. This makes it very easy to use for small systems in a rental company. The display also shows the available headroom with easy to read numbers in dB as well as other status monitoring parameters
  • Web app. Use any device with a browser (e.g. a tablet) and access the amplifier via an external WiFi access point for easy control
  • Group controllable advanced EQ with raised cosine filters
  • Large preset library
  • Preset compatibility with X Series
  • Very long FIR filters (42.6 ms)
  • Control and monitoring through ArmoníaPlus


SPECIFICATIONS

General

  • Output Power per Channel: 750W @ 2 Ω, 750 W @ 4 Ω, 750 W @ 8 Ω
  • Bridge Mode Output Power: 1500 W @ 4 Ω, 1500 W @ 8 Ω
  • Max Unclipped Output Voltage @8 Ω: 145 V peak
  • Current: 50 A peak
  • Thermal Dissipation (1/8 of max output power @ 4 Ω)
    • 120 V: 537 BTU/h -135.3 kcal/h
    • 230 V: 512 BTU/h -129.0 kcal/h

AC Main Power

  • Power Supply: Universal, regulated switch mode with PFC (Power Factor Correction)
  • Nominal Power Requirement: 100-240 V ±10%, 50-60 Hz
  • Operating Voltage: 90 V – 264 V
  • Power Consumption/Current Draw (1/8 of max output power @ 4 Ω)
    • 120 V: 537 W – 4.7 A
    • 230 V: 525 W – 2.7 A

Audio

  • Gain: 32dB
  • Input sensitivity: 2.57 Vrms
  • Max input level: 24 dBu
  • Frequency response: 20 Hz - 20 kHz ( ±0.5 dB) @ 1 W, 8 Ohm
  • S/N ratio: greater than 110 dB (20 Hz - 20 kHz, A weighted)
  • Crosstalk separation: less than -70 dB @ 1kHz
  • THD+N: less than 0.1% (typical less than 0.5%)
  • IMD: less than 0.1% (typical less than 0.5%)
  • Input impedance: 20 kΩ balanced

DSP

  • AD Converter: 24 Bit Tandem @ 48 kHz 125 dB-A Dynamic Range - 0.005 % THD+N
  • DA Converter: 24 Bit Tandem @ 48 kHz 117 dB-A Dynamic Range - 0.003 % THD+N
  • Memory/Presets: 256 MB (RAM) plus 512 MB flash for presets
  • Input Equalizer: Raised-cosine, custom FIR, parametric IIR: peaking, hi/lo-shelving, all-pass, band-pass, band-stop, hi/lo-pass
  • Crossover: Linear phase (FIR), Butterworth, Linkwitz-Riley, Bessel: 6 dB/oct to 48 dB/oct (IIR)
  • Delay: 2 s (input) + 100 ms (output) for time alignment
  • Limiters: TruePower, RMS voltage, RMS current, Peak limiter
  • Damping Control: Active Damping Control and Live Impedance measurement

Construction

  • Dimensions (L x H x W): 19.1 in x 1.8 in x 16.0 in (484 mm x 44.45 mm x 405 mm)
  • Weight: 15.7 lbs (7.1 kg)

Manufacturer: Powersoft Audio
Model: T304
SKU: I588483-N-0-WHXE
