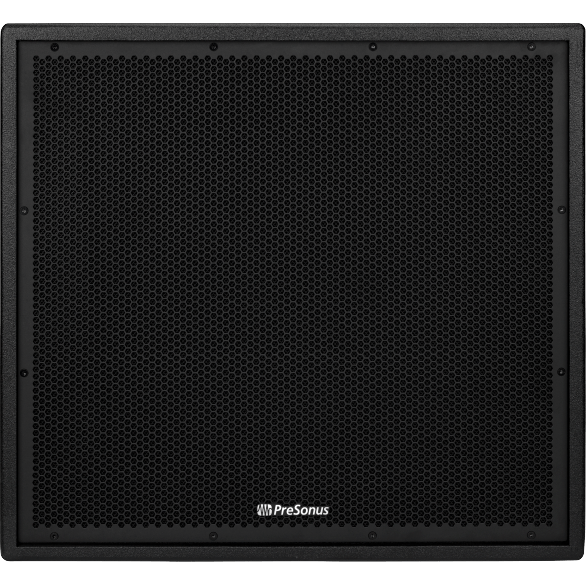

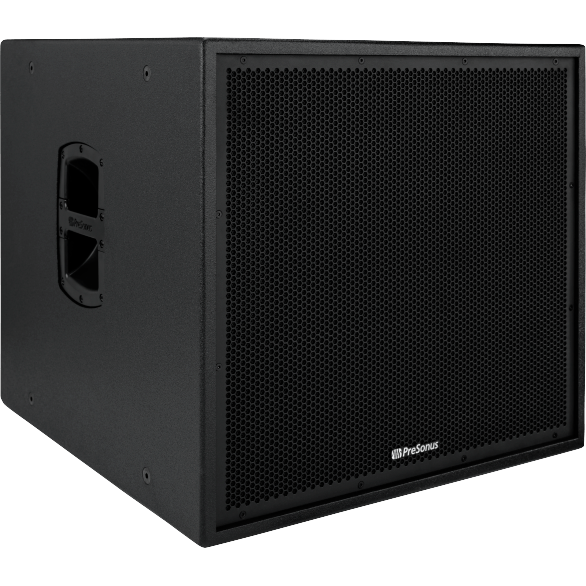

PreSonus CDL Sub18 18-Inch 2000-Watt Powered Subwoofer

Get a Powerful Articulate Sub-Bass Performance and Compact Design with the PreSonus CDL Sub18 18-Inch 2000-Watt Powered Subwoofer

A terrific complement for any full-range loudspeaker and the perfect companion for PreSonus® CDL-series loudspeakers, the CDL Sub18 Active Subwoofer delivers tight, coherent low-end, driven by an integrated 2,000-watt Class D power amp, and features a unique ported design that maximizes efficiency. Its powerful, articulate sub-bass performance and compact design make the CDL Sub18 a great choice for installed and mobile sound.

The CDL Sub18 features a 18-inch LF transducer with 4-inch voice coil, providing 7 mm of driver travel before over-excursion to move more air for a low-end punch you can feel. When flown or combined for ground-stacked applications, the CDL Sub18 and CDL12P or CDL10P form a complete system with an even response across the frequency spectrum.

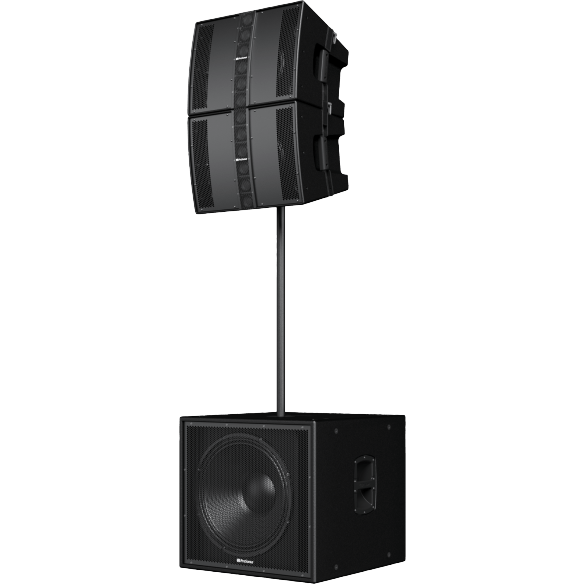

An integrated pole mount supports ground-stacked systems with up to two CDL-series loudspeakers. For more bass, stack two CDL Sub18 subwoofers together. Integrated M10 fly points make it easy to suspend CDL Sub18 subwoofers, for flexibility in any environment.

For flexibility in various live sound situations, a menu system is provided for adjusting the performance of the subwoofer. This includes, sound enhancing presets, plus a variable low pass filter for adjusting the transition between full range loudspeakers.

• 18-inch low-frequency driver with a 4-inch voice coil
• 2,000W peak (1000W RMS) Class D power amp
• Maximum SPL 135 dB peak with 36 Hz to 144 Hz frequency response
• Unique ported design that maximizes efficiency
• Easy-to-use Menu and Performance Monitoring LED's
• Variable Low Pass Frequency Control

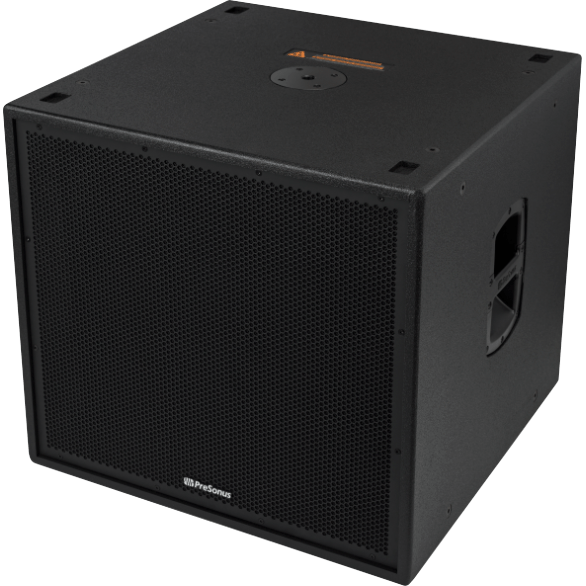

• Integrated M20 threaded pole mount for ground-stacked systems
• Integrated M10 Fly Points for suspending

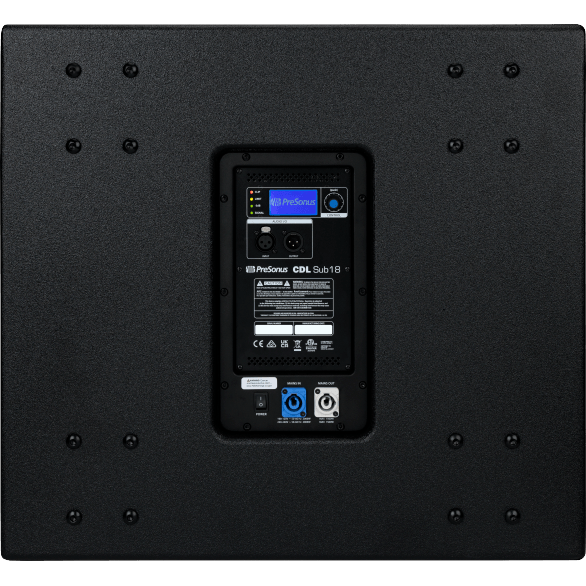

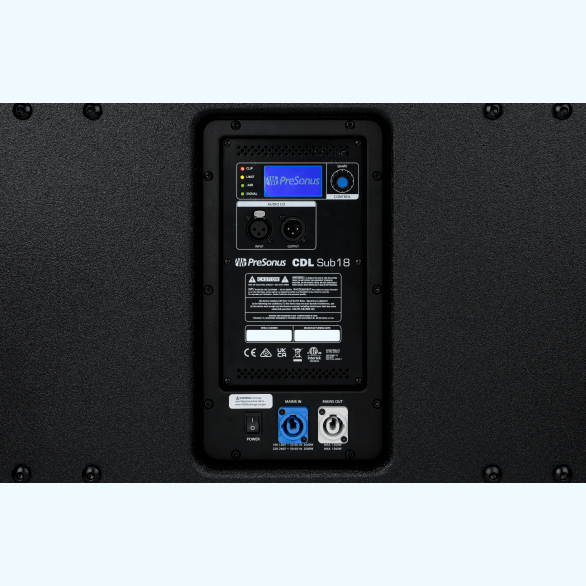

• Balanced XLR input and balanced XLR direct output
• Locking In and Out powerCon AC connectors
• Rugged, Chemline Polyurea-finished, 15 mm eucalyptus plywood enclosure with tour-grade steel grille

SPECIFICATIONS

• Power Configuration:Full-range
• LF Driver Size:18"
• Total Power:Class D, 2000W Peak (1000W RMS)
• Inputs:1 x XLR
• Outputs:1 x XLR
• Frequency Range:42Hz-150kHz (±3dB)
• Crossover Frequency:90Hz
• Maximum Peak SPL:135dB SPL
• Signal Processing:Onboard DSP
• Enclosure Material:Plastic, 1.2mm Steel Grille
• Mounting Options:Floor, M10 Mount Points, M20 Threaded Pole Receiver
• Power Source:Locking Power In, Out
• Height:22.75"
• Width:24.5"
• Depth:25"
• Weight:105.8 lbs
