PreSonus Monitor Station v2 Desktop Studio Control Center W/ SPDIF Input

Equip Your Studio With Pro Monitoring And Manage Multiple Audio Sources And Monitors From Your Desktop - The PreSonus Monitor Station v2 Desktop Studio Control Center

Switch quickly and easily between up to four audio sources with a selection of input types.

Manage Your Destinations

Audition your music with your choice of three stereo pairs of speaker outputs, each with separate level control. Four screaming-loud headphone outs and a talkback mic ensure your musicians hear every note—and your instructions—clearly.

Customize Your System For The Way You Work

There’s more to managing a monitoring system than I/O, level controls, and talkback. The Monitor Station V2 offers powerful options that allow you to configure it for the way you like to work.

Take Control Of Your Monitor Stations

With its ergonomic, intuitive layout; extensive features and I/O; and PreSonus’s famed sound quality, Monitor Station V2 provides a versatile, convenient, and affordable solution for managing your studio monitoring system from your desktop. So sashay down to your PreSonus dealer and take control of your monitoring system the way the professionals do!

SPECIFICATIONS

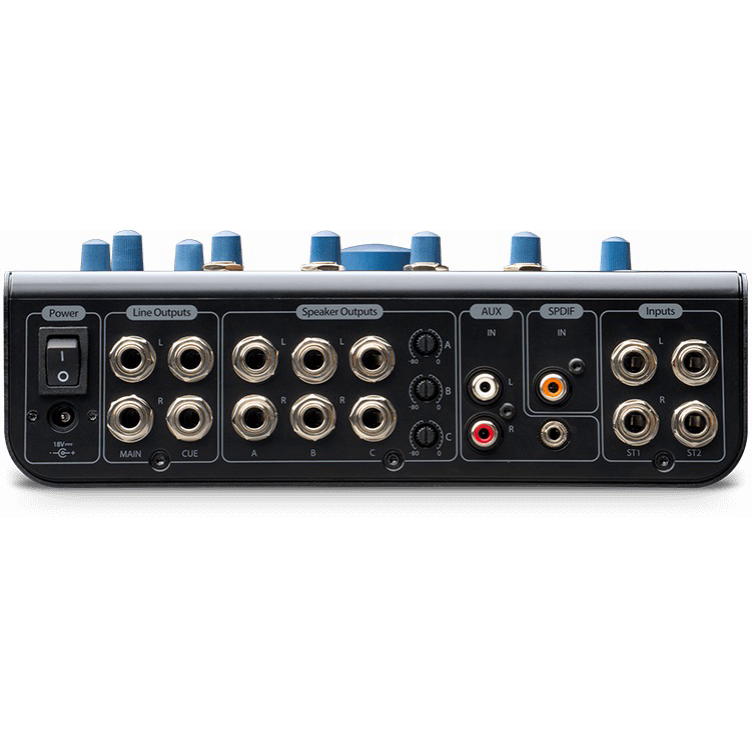

Inputs And Outputs

• 2 Stereo pairs of ¼” TRS inputs
• 1 Stereo pair of RCA Aux inputs
• 1 Stereo S/PDIF coaxial (RCA) digital input (44.1/48/88.2/96 kHz)
• 3 Stereo pairs of ¼” TRS speaker outputs with level controls
• 1 Stereo pair of ¼” TRS Main outputs
• 1 Stereo pair of ¼” TRS Cue outputs
• 4 ¼” TRS screaming-loud stereo headphone outputs

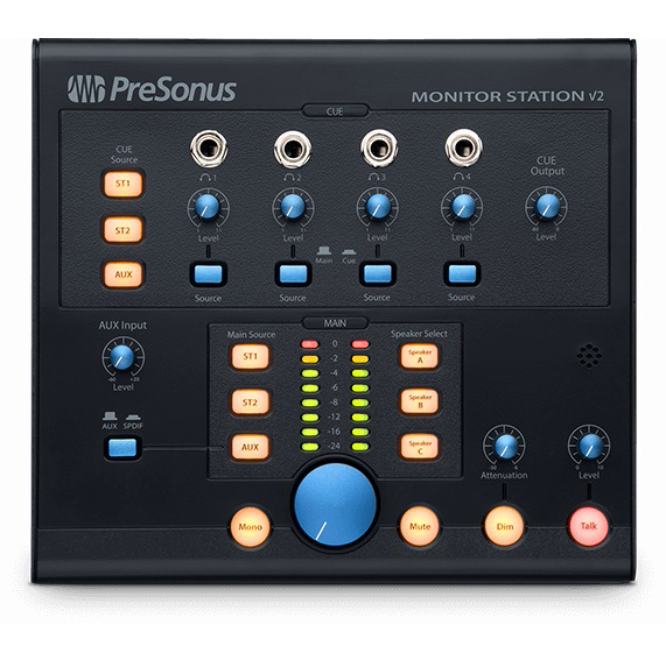

Controls

• Large Main level control
• 3 Individual Main Source (ST1, ST2, Aux) select switches
• 3 Individual Speaker Select switches
• Cue section with Source select (ST1, ST2, Aux) and output-level control
• Aux-S/PDIF Select switch
• Aux Input level control
• Main Mute, Mono, and Dim switches with variable Dim attenuation

Special Features

• 8-segment color LED input meters with selectable reference level
• Built-in electret-condenser talkback microphone with input-gain control and Talkback button
• Convenient desktop design

Internal Talkback Microphone

• Gain Range: +15 to +55 dB
• Type Electret condenser
• Sensitivity -42 dB

Stereo 1 And Stereo 2 Inputs

• Type ¼” TRS Active Balanced
• Input Impedance (Balanced): 10 kΩ
• S/N Ratio (1 kHz @ +10 dBu, Unity Gain): 105 dB
• THD+N (unwtd, 1 kHz @ 0 dBu Output, Unity Gain): 0.0075%
• Frequency Response (±0.5 dB): 10 Hz to 65 kHz
• Noise Floor (20 Hz to 20 kHz, 150Ω input termination) -96 dBu
• Maximum Input Level (Minimum Gain, 1 kHz @ 0.5% THD+N) +22 dBu

Auxiliary Inputs

• Type RCA Active Unbalanced
• Input Impedance: 47.5 kΩ
• S/N Ratio (1 kHz @ 0 dBu, Unity Gain): 115 dB
• THD+N (unwtd, 1 kHz @ 0 dBu Output, Unity Gain): 0.01%
• Frequency Response (±0.5 dB): 10 Hz to 50 kHz
• Gain Range: 80 dB to +10 dB

S/PDIF

• Types: RCA 75Ω coax
• Dynamic Range: 113 dB
• THD+N: 0.0025% (1 kHz @ -1 dBFS)
• Maximum output at 0 dBFS; +18 dBu
• Sample Rates: 44.1, 48, 88.2, 96 kHz

Input Meters(ST1, ST2, And AUX Only)

• Type: Dual 8-segment LED w/peak hold
• Sensitivity Range: -24 dB to 0 dB

Audio Outputs

• Type ¼” TRS Active Balanced
• Output Impedance (Balanced): 51Ω
• THD+N (unwtd, 1 kHz @ 0 dBu, Unity Gain); 0.01%
• Frequency Response (±0.5 dB): 10 Hz to 50 kHz

Speaker A, B, And C

• Trim Range: -80 dB to 0 dB
• Main Level Range: -80 dB to 0 dB
• Dim Attenuation Range: -30 dB to -6dB

Cue

• Cue Level Range: -80 dB to 0 dB
• Dim Attenuation (Talkback activated): -20 dB

Headphones

• Type ¼” TRS Active Stereo
• Maximum Output (60Ω load): 150 mW / channel
• Frequency Response (±1.0 dB): 10 Hz to 50 kHz

Power

• Power Supply Type: External DC Transformer/Internal Line
• Input Connector Type: Barrel, 5.5 mm outside diameter, 2.1 mm inside diameter
• Monitor Station Input Voltage Range: 18 VDC
• Power Requirements (Continuous): 10W

Dimensions

• Height: 2.5” (63.5 mm)
• Depth: 8.5” (216 mm)
• Width: 9” (228.6 mm)
• Weight: 6 lbs. (4.54 kg)

Manufacturer: PreSonus Audio
Model: MONITOR STATION 2
SKU: I322066-N-3-WHXA
UPC: 673454002823
